Start with a flyback topology for low-cost isolated designs under 150W. Use an active clamp for leakage energy recovery, reducing snubber losses by 30-40%. Opt for a two-switch forward converter when input ranges exceed 400V or efficiency above 92% is critical. Pair it with a synchronous rectifier on the secondary–this cuts conduction losses by 60% compared to Schottky diodes.
For non-isolated point-of-load applications, select a buck regulator with multi-phase interleaving. At 20A loads, three phases with 120° phase shift reduce input/output ripple by 85%. Integrate ceramic output capacitors rated for 2x expected voltage; their ESR stability prevents thermal runaway. Avoid electrolytics in high-ripple environments–they degrade 5% annually under 100mVpp stress.
Gate drive circuits demand precise timing. Use a dedicated driver IC (e.g., UCC27424) with 1A sink/source capability. Isolate the gate with a pulse transformer if dv/dt exceeds 10V/ns to prevent false turn-on. Add a Miller clamp diode across the gate resistor for MOSFETs above 200V–this blocks parasitic turn-on during fast transients.
Thermal management dictates reliability. Mount the main switching element on an aluminum PCB (1oz copper, 2mm thickness) with thermal vias under the pad. For 50W+ designs, use a heatsink with over-temperature shutdown at 110°C with a 10°C hysteresis.
Feedback loops must stabilize under all loads. Implement a type III compensator for wide dynamic response (2µs settling time). Use an optocoupler with >1Mbps CTR (e.g., PC817C) for isolated feedback. Sample output voltage with a Kelvin connection to eliminate trace resistance errors. Add a soft-start capacitor (10nF) to limit inrush current–without it, peak currents can exceed 3x steady-state.

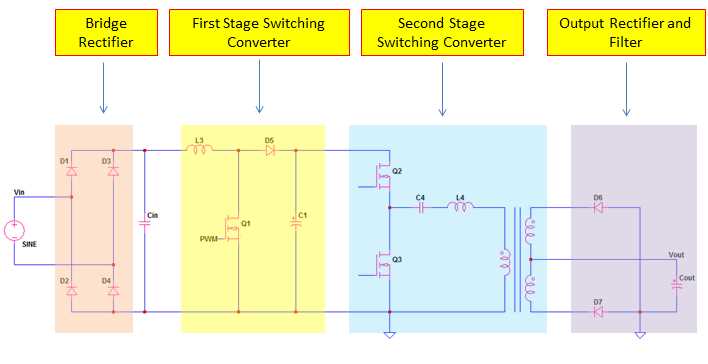

Key Design Elements for Switch-Mode Circuit Blueprints
Begin isolator selection right after the input filter–opt for a flyback transformer with a turns ratio between 5:1 and 10:1 for 12V outputs, ensuring primary inductance stays in the 50–500 µH range to balance efficiency and transient response. Match core material to switching frequency: ferrite (e.g., PC40) for 100–500 kHz, powdered iron for lower ranges.
- Fuse rating: 1.5× input current for 230VAC, 2× for 110VAC–use a slow-blow type to avoid nuisance trips during inrush.
- Bridge rectifier: 600V/2A diodes (e.g., 1N4007) for universal inputs, with heatsinks if ambient exceeds 50°C.
- PFC stage: Boost converter with 350–400V output–IRF840 MOSFET (500V/8A) and MUR160 diode for active designs.
Control IC choice defines regulation: UC3843 (current-mode) for discontinuous flyback, TL494 (voltage-mode) for push-pull, or FAN7631 (quasi-resonant) for >90% efficiency. Compensate the feedback loop with a Type III network: 10kΩ resistor, 220pF C1, 2.2nF C2, and 15kΩ R3 for ±5% line/load tolerance.
Output caps must handle ripple current–select polymer electrolytics (e.g., Panasonic SP-Caps) with ≥100 mΩ ESR at 100 kHz, or ceramic X7R (≤1 µF) for low-voltage rails. For multiple outputs, cross-regulate auxiliary rails with post-linear regulators (e.g., LM7805) to avoid load-dependent drift.
- Snubber network: 1nF/2kV ceramic + 10Ω/2W series resistor across MOSFET drain-source to suppress 20–30MHz ringing–measure with a 100MHz scope probe.
- Optocoupler (e.g., PC817) isolation: 2.2kΩ collector resistor at 5V, 1kΩ emitter resistor for 5mA nominal current transfer ratio.
- Protection: Crowbar circuit (SCR + 47Ω gate resistor) for overvoltage; thermal cutoff at 120°C via NTC thermistor (e.g., B57861S).
Ground layout: Separate analog (feedback components) and power (FET/transformer) returns, tying them at a single point near the DC link capacitor. Use 35 µm copper pour for high-current paths, widening traces to 5 mm/A for currents >3A. Place input caps within 20 mm of the bridge rectifier to reduce conducted EMI.
EMI filtering: Common-mode choke (e.g., 10 mH Murata DLW31SN) after fuse, followed by X/Y caps (4.7nF/250VAC). Test compliance with EN55022 Class B using a LISN–target
Thermal design: Mount TO-220 FETs on 10°C/W heatsinks (e.g., AAVID 530002) with thermal pad (e.g., Bergquist 570). Drill vias (0.5 mm diameter, 1.0 mm pitch) under the tab to improve vertical heat transfer–eight vias reduce θJA by 30%. Use 70 µm PCB thickness for better heat spreading on 1 oz copper.
Key Components and Symbols in Switched-Mode Circuit Blueprints
Begin by identifying the switching transistor–typically an N-channel MOSFET (e.g., IRFP460 or STP20NM60)–as the core element. Place it adjacent to the primary winding of the high-frequency transformer, ensuring minimal trace length to reduce parasitic inductance. Verify the transistor’s gate driver circuit includes a 22Ω series resistor and a 10V Zener diode to clamp voltage spikes. Use a snubber network (e.g., 470pF/1kV capacitor + 33Ω resistor) across the drain-source terminals to suppress ringing.
- PWM Controller (e.g., UC3843, TL494): Position near the feedback loop’s optocoupler (e.g., PC817) to maintain isolation. Ensure the feedback resistor divider (10kΩ + 2.2kΩ trimmer) connects to the controller’s compensation pin (COMP) for stable regulation.
- Rectifiers: For secondary outputs, use ultra-fast diodes (e.g., MUR460) or synchronous rectifiers (IRFB4110) with . Place diodes as close as possible to the transformer windings to minimize leakage inductance losses.
- Input/Output Capacitors: Select low ESR electrolytics (e.g., Nichicon UHE series) or MLCCs (e.g., X7R dielectric, 10µF/50V) for high-frequency filtering. For bulk storage, combine with film capacitors (e.g., 1µF/250VAC) to handle ripple currents.
- Current-Sense Resistor: Use a shunt resistor (e.g., 0.1Ω/5W) in series with the MOSFET source to monitor peak currents. Connect directly to the PWM controller’s CS pin via a low-pass RC filter (1kΩ + 0.1µF) to reject noise.
Critical Symbol Annotations
Label the following symbols with precise reference designators to avoid assembly errors:
- T for transformers (e.g., T1), specifying winding polarity with dots (primary dot = start of winding).
- L for inductors (e.g., L2 in output filters), annotating core material (ferrite, powdered iron).
- Q for semiconductors (e.g., Q1 for MOSFET), including package type (TO-220, TO-247).
- U for ICs (e.g., U1 for PWM controller), marking pin numbers and signal names (VCC, FB, GATE).
- Ratings (voltage, current, wattage) must be adjacent to each component symbol–avoid relying solely on BOM for critical values.

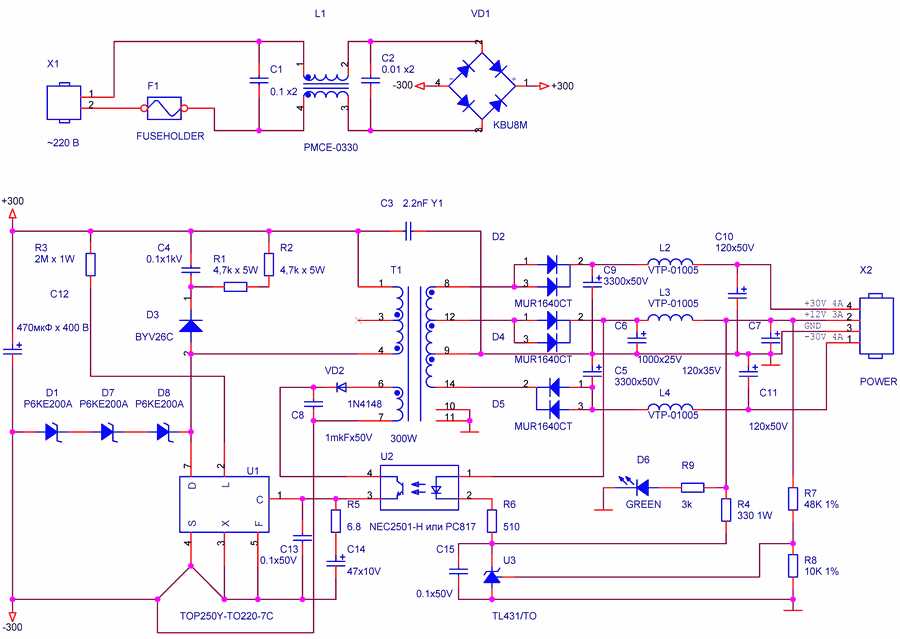

Step-by-Step Tracing of a Flyback Converter Circuit

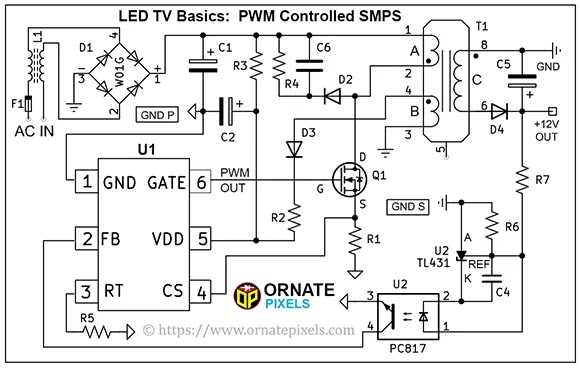

Begin with the primary winding input: verify the AC mains rectification stage by locating the bridge rectifier (e.g., GBU4J) and filter capacitor (typically 100-470µF, 400V). Measure DC voltage across the capacitor–expect ~325V for 230VAC input. Trace this line to the MOSFET (commonly FQPF8N80C) drain pin, confirming gate drive isolation via a pulse transformer (e.g., EF20 core). Use a 10x probe to observe switching waveforms at the MOSFET gate, ensuring rise/fall times under 50ns and peak voltage matching the controller’s VCC (e.g., 12V).
Critical Component Checks
| Component | Test Point | Expected Value | Fault Signs |
|---|---|---|---|
| Snubber (RCD) | MOSFET drain to primary coil | Damped oscillation (20-100kHz) | Excessive ringing (>3Vpp), overheating |
| Optocoupler (e.g., PC817) | Feedback pin (controller) | 0.1-1V (adjustable) | Unstable output, no regulation |
| Secondary diode (SR360) | Cathode to output cap | Forward drop ~0.45V | Reverse leakage, thermal runaway |
Probe the feedback loop next: confirm the optocoupler (e.g., PC817) isolates the secondary output (e.g., 5V) from the primary-side controller (e.g., UC3843). Check the voltage divider on the secondary (typically 2x 10kΩ resistors + TL431) – adjust top resistor to trim output ±5%. On the primary, measure the controller’s COMP pin – a sawtooth waveform (0.5-2.5V) indicates proper PWM regulation. If absent, suspect faulty optocoupler or shorted MOSFET.
Common Topologies: Buck, Boost, and Buck-Boost Converter Layouts
Place the input capacitor as close as possible to the switching element–ideally within 2–3 mm–to minimize parasitic inductance. For buck configurations, ensure the freewheeling diode’s cathode connects directly to the inductor’s input node, reducing switching noise. A ground plane beneath high-current traces cuts loop area by 40–60%, but segment it under the switch node to prevent coupling into sensitive analog stages. Trace width for 3 A currents should exceed 2.5 mm; use 2 oz copper for currents above 5 A.
Buck Converter Layout Considerations
Route the feedback path along a quiet return line–never alongside the gate drive trace. The compensation network (typically 1–10 kΩ and 1–10 nF) must sit adjacent to the controller’s feedback pin, shielded by a dedicated inner layer if multilayer PCB is used. Separate the input and output grounds by a single point star connection to avoid load transients corrupting the reference. Thermal vias under the switching FET pad improve dissipation; space them 1.2 mm apart for TO-220 packages.
Boost and Buck-Boost Pitfalls
Boost converters demand a tight loop between the switch, diode, and output cap–keep this path under 15 mm total length. Snubber components (5 Ω, 1 nF) soldered across the diode clamp ringing at 2–5 MHz. Buck-boost layouts suffer from right-half-plane zero; mitigate by placing the inductor within 10 mm of the controller and using a short, wide trace for the switch node. For 12 V → 24 V conversions at 2 A, maintain ≥ 3 mm spacing between high dV/dt nodes and feedback traces to prevent erroneous duty cycles.
Thermal reliefs on large pads degrade performance; omit them on input/output caps and switching FET pads. Instead, stitch thermal vias directly into the pad’s center, then fan out via tented traces on inner layers. For transient response under 500 kHz switching frequency, prioritize a low-ESL ceramic cap (X5R, 10 μF) within 5 mm of the controller’s input pin. If EMI exceeds CISPR 22 Class B, introduce a small series ferrite bead (60 Ω @ 100 MHz) on the output–but never on the feedback trace.
