Connect the power source directly to the lower contact of the activation mechanism–this ensures the motor engages only when fluid reaches the set level. Use 12-gauge marine-grade cable for the feed line, securing terminals with heat-shrink tubing to prevent corrosion from humidity.
Attach the red wire from the power input to the common terminal of the control device. The black wire should run from the normally open contact to the motor’s positive lead. Verify the circuit with a multimeter: resistance should read near zero when the lever is triggered, and infinite when at rest.
For 120V AC installations, insert a 10-amp fuse in the hot line before the sensing element. In DC setups, match wire gauge to the distance: 14 AWG for runs under 10 feet, 12 AWG for 10–25 feet. Avoid daisy-chaining multiple devices–each should have an independent power feed to prevent voltage drop.
Ground the negative side of the system to the hull or chassis using a dedicated bus bar, not through painted surfaces. Test the setup by manually lifting the actuator: the impeller should start within two seconds. If delayed, check for oxidized connections or undersized wiring.
Label each connection point with adhesive sleeves–specific voltage, current rating, and function reduce troubleshooting time later. Store spare fuses and a spare triggering element onboard; saltwater environments degrade these components faster than freshwater.
Electrical Setup for Marine Drainage Systems with Automatic Activation

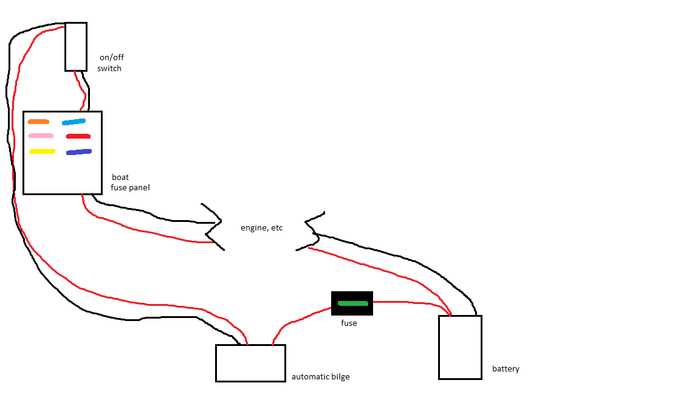

Connect the motor’s power feed directly to the battery’s positive terminal using 10-gauge marine-grade cable to handle sustained current without overheating. Attach an inline fuse (20-30A) within 7 inches of the battery to protect the circuit–corrosion-resistant tinned copper terminals prevent failure in humid environments. The automatic level sensor requires a separate 12V feed spliced before the motor’s main power wire, ensuring independent operation. Ground both components to the vessel’s bonding system at a single point to avoid stray current corrosion.
Component Placement and Cable Routing
Position the level sensor at the lowest point of the drainage cavity, angled slightly downward to prevent debris accumulation on the activation mechanism. Secure cables along the hull’s structural members using UV-resistant zip ties, spaced every 12 inches–avoid sharp edges that could chafe insulation. Route cables above potential water pooling areas, maintaining a minimum 4-inch separation from fuel lines or electrical interference sources like VHF antennas. For vessels over 25 feet, use a relay (30A minimum) to isolate high current draw from the sensor’s low-amperage trigger circuit.
Label all connections with heat-shrink tubing or marine-grade labels, including wire gauge and destination points (e.g., “MOTOR + → BATT,” “SENSOR → 12V FUSED”). Test the system dry by manually lifting the sensor’s float: the motor should activate within 2 seconds, and current draw should not exceed 15A at 12.6V. If drawing more, inspect for binding impellers or excessive discharge head (over 3 feet). Replace the motor if it fails to start under load or draws intermittent current, as internal shorting accelerates in saltwater environments.
For dual-motor setups, wire each drainage unit in parallel with dedicated level sensors, ensuring the sensors’ triggering heights overlap by at least 1 inch to prevent cycling conflicts. Use a three-way connector to splice the sensor’s common ground, but keep power feeds isolated–shared circuits risk cascade failures. Verify final installation by flooding the cavity with a measured volume of water (1 gallon per 5 cubic feet of cavity); both the unit and sensor should operate consistently without false triggers or overheating (housing temperature
Manual for Assembling a Sump Drainage System with Automatic Sensor
Begin by mounting the motor unit at the lowest point where water accumulates, ensuring the intake sits flush with the base. Secure it with marine-grade stainless steel brackets–avoid aluminum, which corrodes in saline environments. Pre-drill holes to prevent cracking in fiberglass hulls; use a countersink bit for flush screws.
Route the power cable upward along the hull’s interior, following ribs or stringers to minimize interference with other systems. Leave a 10–15 cm service loop near the unit to allow for future height adjustments or maintenance without cutting wires. Use adhesive clips every 30 cm to prevent chafing from vibration.
Connect the sensor’s red wire to the motor’s positive (+) terminal using a crimped butt connector; tin the wires first if soldering in humid conditions. The black wire from the sensor attaches to the motor’s negative (–) terminal. Verify polarity with a multimeter–reverse polarity will burn out the sensor’s reed switch.
Wiring the Control Circuit
Run a dedicated 12-gauge (or thicker for runs over 5 m) cable from the circuit panel to the sensor’s brown wire, marking it at both ends with heat-shrink labels. Install a 10-amp fuse within 15 cm of the battery’s positive terminal–this protects the wiring if the sensor stick in the “on” position. For 24V systems, use a relay to isolate the high-current load from low-voltage sensor contacts.
Ground the motor’s bonding wire to a dedicated bus bar near the helm, not to engine mounts or steering components, which can introduce electrical noise. Test continuity between the grounding point and the system’s negative bus; resistance should not exceed 0.5 ohms. In wooden or composite boats, create a copper grounding plate bolted below the waterline to ensure reliable dissipation.
Before sealing connections, apply dielectric grease to terminals to repel moisture. Wrap each joint with self-amalgamating silicone tape, overlapping each layer by 50%–this prevents water ingress even under pressure. Secure all cables with chafe guards at through-hulls or bulkhead penetrations.

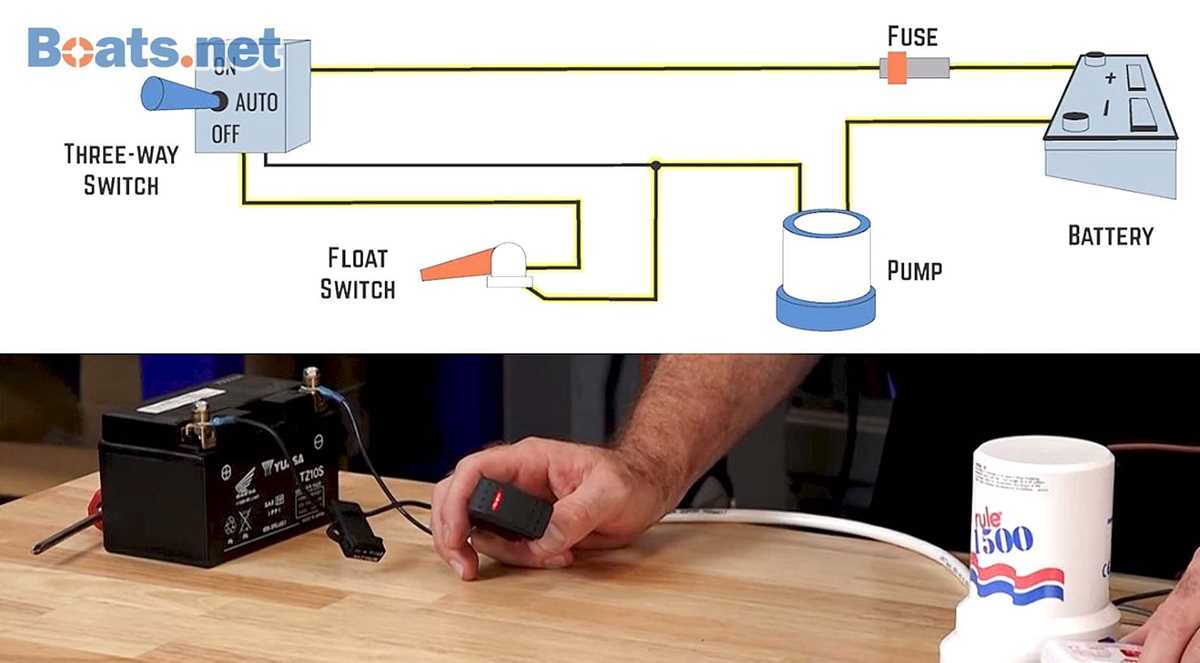

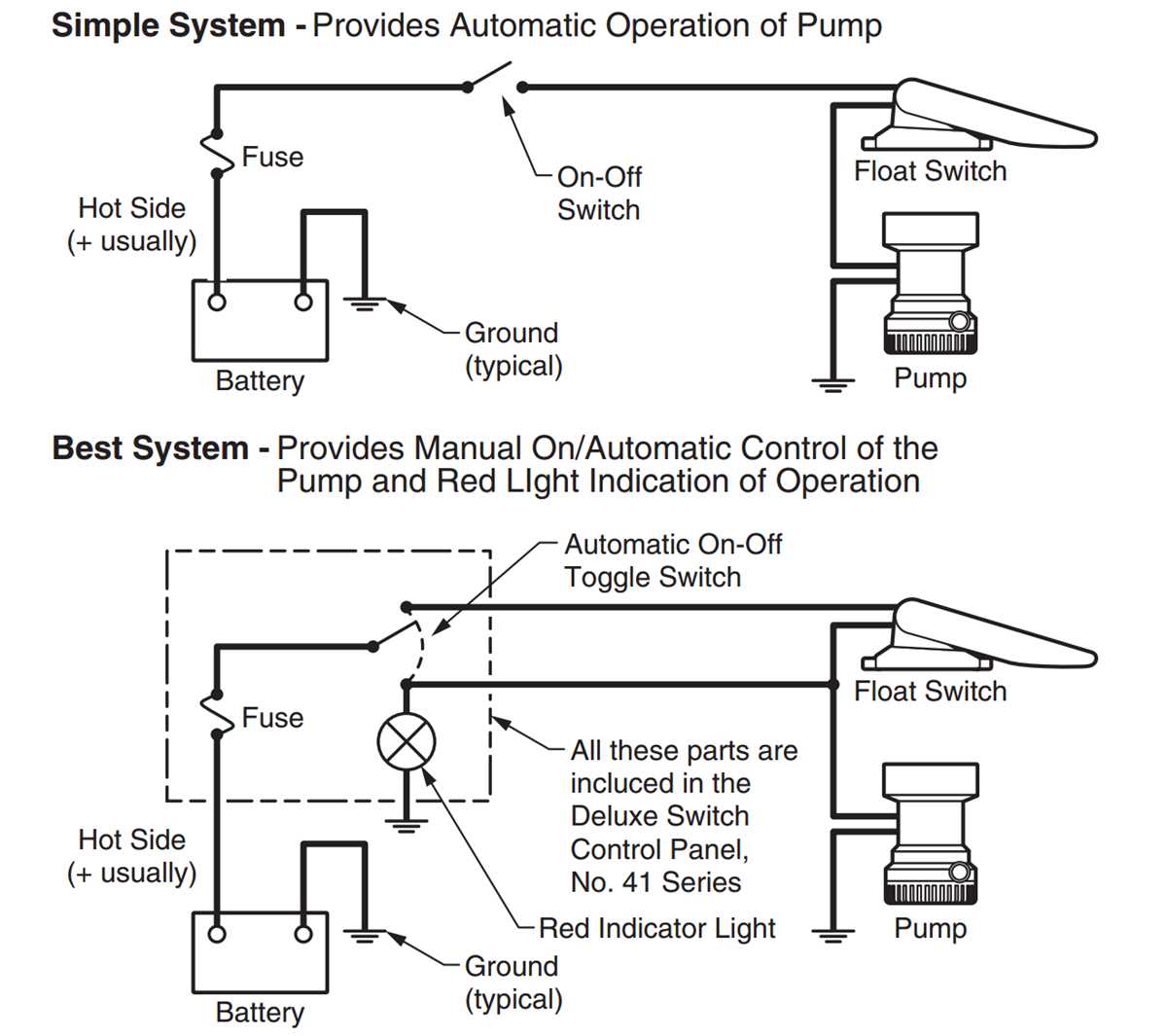

Activate the system from a dry start by temporarily lifting the sensor’s float arm to confirm the motor engages. Check the discharge port for consistent flow–if output pulses, clear blockages in the intake or impeller housing. For backup redundancy, wire a manual override switch in parallel with the sensor, using a sealed push-button rated for marine use.
Critical Errors to Sidestep When Installing Automatic Water Removal Systems
Applying incorrect wire gauge ranks as the most frequent blunder during installations. A 16-gauge conductor suffices for 5-amp mechanisms, while 12-gauge becomes mandatory for 15-amp setups. Underpowering leads to overheating and premature component failure, while oversized cables waste resources without tangible performance benefits. Verify specifications against manufacturer guidelines, accounting for voltage drop over extended runs–especially critical in 12V systems where resistance compounds quickly.
Skipping dedicated circuit protection invites catastrophic short circuits. Fuses or breakers must match the device’s amperage rating, positioned within 7 inches of the power source per ABYC E-11 standards. Common oversight: relying on main panel protection alone, which proves inadequate when water intrusion occurs. Install marine-grade fuses near the battery, ensuring corrosion-proof holders and proper heat dissipation.
Improper grounding creates silent failures that accelerate component degradation. Always connect the negative terminal to the vessel’s bonding system–never to engine blocks or through hull fittings. Use tinned copper wire of equivalent gauge to power conductors, minimizing galvanic corrosion risk. Test continuity post-installation; resistance exceeding 0.1 ohms signals potential trouble spots needing rework.
Mispositioning the activation sensor compromises reliability. Position the sensor 1-2 inches above the unit’s intake to prevent false triggers from splash or vibration, yet low enough to engage before water reaches critical levels. Secure it firmly to avoid shifting during operation–zip ties degrade under UV exposure; opt for stainless steel clamps instead. Verify operation by pouring measured water volumes until engagement occurs.
Avoid these voltage mismatches when combining components:
| Device Type | Recommended Input | Tolerance Range | Failure Mode |
|---|---|---|---|
| Automatic controller (12V) | 12.0–13.8VDC | ±0.5V | Sensor inaccuracy |
| Submersible motor | 13.2–14.4VDC | ±0.8V | Reduced flow rate |
| High-capacity unit | 24V | ±1.5V | Pump stalling |
Overlooking temperature effects leads to unplanned downtime. Copper’s resistance increases by 0.39% per °C–significant in engine compartments where ambient temps reach 60°C. For 10-meter runs, compensate with an additional 10% wire cross-section. Select heat-resistant insulation (XLPE rated to 125°C) rather than standard PVC, which softens at lower temperatures, risking short circuits.
Ignoring vibration protection damages connections over time. Use flexible marine-grade cable with stranding conforming to ASTM B174 (minimum 19 strands for 16AWG). Secure all junctions with double-crimp terminals and adhesive-lined heat shrink tubing–electrical tape degrades within months. Route cables away from sharp edges and moving parts, allowing 10% slack to absorb motion without strain.
Disregarding polarity sensitivity ruins electronic controls. Most sensors and solid-state modules tolerate only minimal reverse voltage–typically
Post-Installation Validation Checklist
Conduct these tests before deployment:
- Measure system voltage at both battery and device terminals–differences >0.2V indicate resistive connections.
- Simulate activation by manually lifting the sensor–verify immediate response and proper current draw per specifications.
- Inspect all junctions for water ingress points; apply dielectric grease to exposed terminals.
- Check grounding continuity with a multimeter–confirm
- Operate under load for 10 minutes, monitoring for abnormal heat or voltage drop.
