Ensure a dedicated 30-amp circuit breaker for heavy-duty laundry equipment. Match the wire gauge to the load: 10 AWG copper conductors for 30-amp service, 8 AWG for 40-amp. Verify local electrical codes–some jurisdictions require 4-wire configurations (two hots, neutral, ground) instead of older 3-wire setups.
Terminate the neutral conductor to the appliance’s designated terminal block–never combine it with ground. Secure all connections with torque drivers calibrated to manufacturer specs (typically 12-15 lb-in for 10 AWG). Test continuity between all conductors before energizing. Use a non-contact voltage detector to confirm power isolation before handling terminals.
For split-phase configurations (common in North American installations), check voltage between each hot conductor and neutral–expect 110-125 phase-to-neutral, 220-250 phase-to-phase. If readings deviate by more than ±5%, trace the supply back to the panel for loose connections or incorrect breaker sizing.
Grounding is non-negotiable. Attach the ground wire to the metal outlet box and appliance chassis using green insulated screws. For surface-mounted boxes, secure the ground directly to the stud with a listed grounding clip if no grounding bus exists in the panel.
Label the circuit at both the panel and outlet with permanent, weatherproof identifiers. Include the date of installation and wire type for future reference. Replace deteriorated insulation immediately–particularly near entry points where sharp edges risk abrasion.
Electrical Connection Guide for High-Amperage Appliance Receptacles

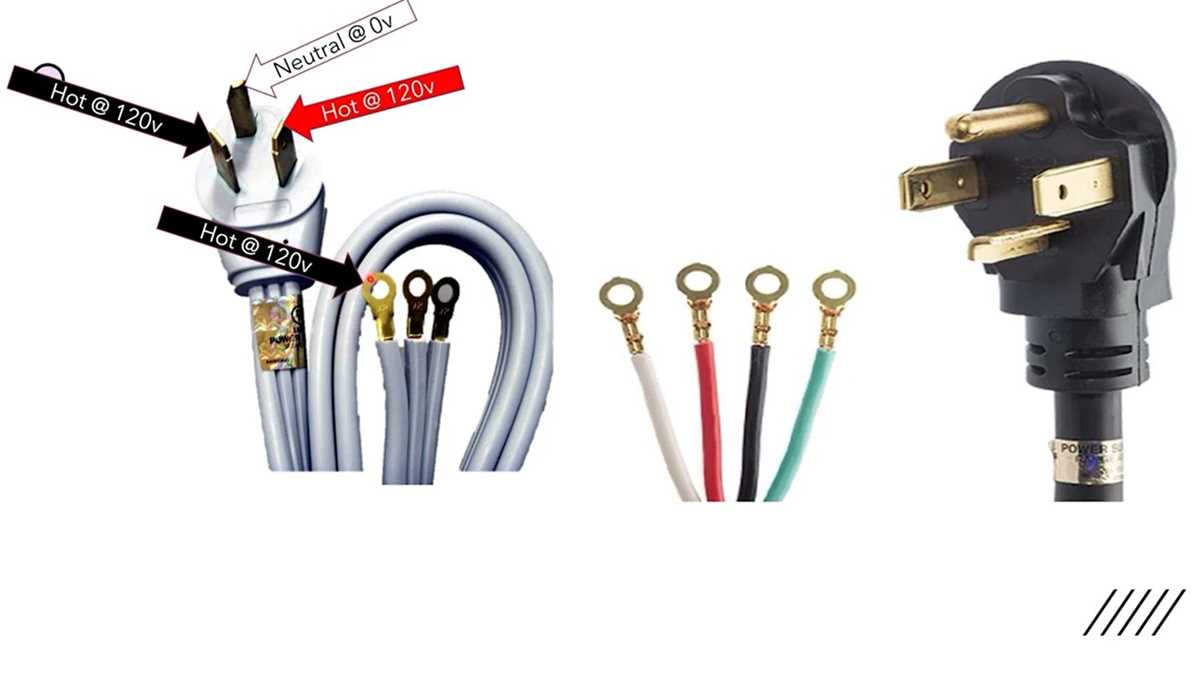

Install a 30-amp NEMA 10-30 or 4-prong NEMA 14-30 receptacle for clothes drying machines based on local electrical codes–older structures may still use the 3-wire setup, but never modify existing wiring unless upgrading to a safer 4-wire configuration with dedicated grounding. Use 10-gauge copper conductors (THHN/THWN in conduit or NM-B Romex with bare ground) to handle sustained 24A loads at 240VAC, ensuring the circuit breaker matches the conductor capacity exactly (no oversized protection). Verify torque specifications on terminal screws during attachment (often 15-20 lb-in) to prevent arcing–manufacturers like Square D and Eaton include values in documentation.
Key Configuration Steps
- Neutral Connection: Terminate the white conductor to the neutral bus or terminal block–this carries unbalanced current from the motor and controls (improper bonding to ground violates NEC 250.140, risking stray voltage on metal surfaces).
- Grounding: For 4-wire setups, attach the bare/green wire to the chassis ground lug or bus bar–never combine this with neutral at the outlet or panel (retrofit older 3-wire systems by removing the neutral-ground bond strap if present).
- Hot Conductors: Connect the black and red (or alternate color-coded) leads to opposing 120V legs–phase separation must be 180° to deliver 240V (test with a multimeter for exactly 240V line-to-line and 120V line-to-neutral).
Label the circuit at the breaker panel with permanent ink, noting “Dedicated 30A Appliance Branch” to comply with NEC 408.4–include conductor type (e.g., “10 AWG Cu”) and receptacle model (NEMA 14-30P). For subpanels, confirm the grounding electrode conductor connects to the main service panel, not the subpanel’s neutral bus (separate equipment grounding and neutral at all downstream locations per NEC 250.30(A)(1)). Before energizing, perform a 3-point polarity test: measure hot-to-hot (240V), hot-to-neutral (120V each), and neutral-to-ground (≤ 1V).
- Turn off power at the main breaker–test both hots with a non-contact voltage detector before touching any wires.
- Strip conductors ⅝” using a calibrated tool (avoid nicks greater than 10% of conductor diameter).
- Tighten terminal screws in two-stage increments (finger-tighten, then final torque) to prevent cold creep.
- Install a cover plate and secure with tamper-resistant screws–recheck all connections with a thermal camera or touch test after 30 minutes under load for hotspots.
Essential Supplies for Installing a High-Power Appliance Connection
Start with a 30-amp double-pole circuit breaker matching your service panel’s brand–Schneider Electric QO or Siemens QP series are reliable choices. Verify the breaker’s amperage rating aligns with the appliance’s data plate (commonly 24-30 amps) to prevent overheating or tripping. For residential installations, 10-gauge copper THHN/THWN wire is the minimum standard; use 8-gauge for runs exceeding 100 feet to maintain voltage stability. Avoid aluminum conductors due to corrosion risks at termination points over time.
Gather a 4-slot NEMA 14-30 receptacle for grounded setups or a 3-slot NEMA 10-30 if retrofitting an older, ungrounded configuration–though the latter violates current NEC codes unless grandfathered. Ensure the receptacle’s faceplate is rated for at least 30 amps and made of heat-resistant thermoplastic (e.g., Hubbell’s Spec Grade). Include a weatherproof in-use cover if mounting the outlet in damp locations like basements or garages. Test the terminal screws for tightness before installation; loose connections cause arcing.
Precision Instruments for Safe Installation
A non-contact voltage tester (such as Fluke 1AC II) is mandatory to confirm power shutdown at the panel before handling conductors. Follow with a multimeter (like Klein MM700) to verify live wires read ~240V across the hot terminals and 0V between hot and neutral/ground. For torque verification, use a calibrated driver (e.g., Wiha 32690) to tighten breaker lugs to 20 lb-in and receptacle screws to 15 lb-in–overtorquing cracks terminals. Include fish tape (Greenlee’s 43 lb test) for pulling wires through conduit or finished walls.
Wear flame-resistant arc-rated gloves (NFPA 70E-compliant) and safety glasses when working near live circuits. Use a wire stripper with built-in crimping (Ideal 45-121) to cleanly expose 1/2 inch of conductor without nicking strands. For conduit runs, secure wires with insulated staples (Gardner Bender NM Staples) spaced every 4.5 feet along wood framing. Apply anti-oxidant compound (NOALOX) to all copper-aluminum interfaces to prevent galvanic corrosion.
Final Checklist Components
Have UL-listed wire nuts (Ideal Twister #10-341) for grounding pigtails when retrofitting a 3-slot receptacle. Keep a roll of high-visibility electrical tape (3M Super 33+) to mark conductors–use black for hot, white for neutral, green for ground. For concealed installations, junction boxes (Hubbell 4″ square) must meet NEC 314.16 cubic inch requirements after wire fill calculations. Include strain relief connectors (Bridgeport MC-2) if running flexible metal conduit. Label the breaker “Clothes Appliance” with a laser-printed tag (Panduit LBL1) to aid future maintenance.
Step-by-Step Guide to Installing a 4-Prong 30-Amp Appliance Receptacle
Shut off the main circuit breaker at the service panel before beginning any work. Verify power is completely disconnected using a non-contact voltage tester on the existing receptacle or wires. Failure to confirm this step risks severe electrical shock.

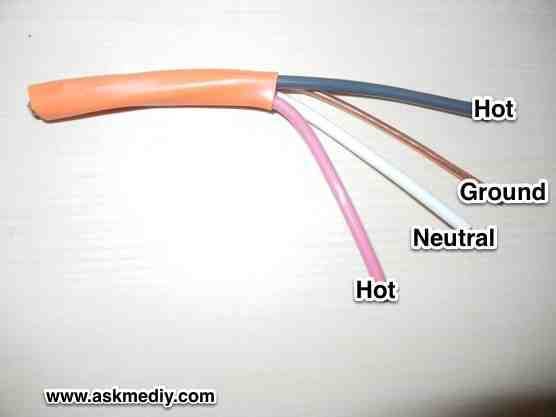

Remove the cover plate and mounting screws of the old receptacle. Gently pull the device outward to expose the connected conductors. Label each wire with masking tape based on its terminal: X (red/hot), Y (black/hot), neutral (white), and ground (bare/green). Take a photo for reference if modifying existing connections.
| Wire Color (New Installation) | Terminal | Function | AWG (Minimum) |
|---|---|---|---|
| Red | X | Hot conductor (120V leg) | 10 |
| Black | Y | Hot conductor (120V leg) | 10 |
| White | Neutral | Current return path | 10 |
| Green/Bare | Ground | Safety bonding path | 10 |
For new circuits, run 10 AWG or thicker NM-B cable from the breaker panel to the installation location. Use conduit if local codes require protection in exposed or damp areas. Secure cables every 4.5 feet and within 12 inches of boxes, stapling no closer than 1/4 inch to the outer sheath.

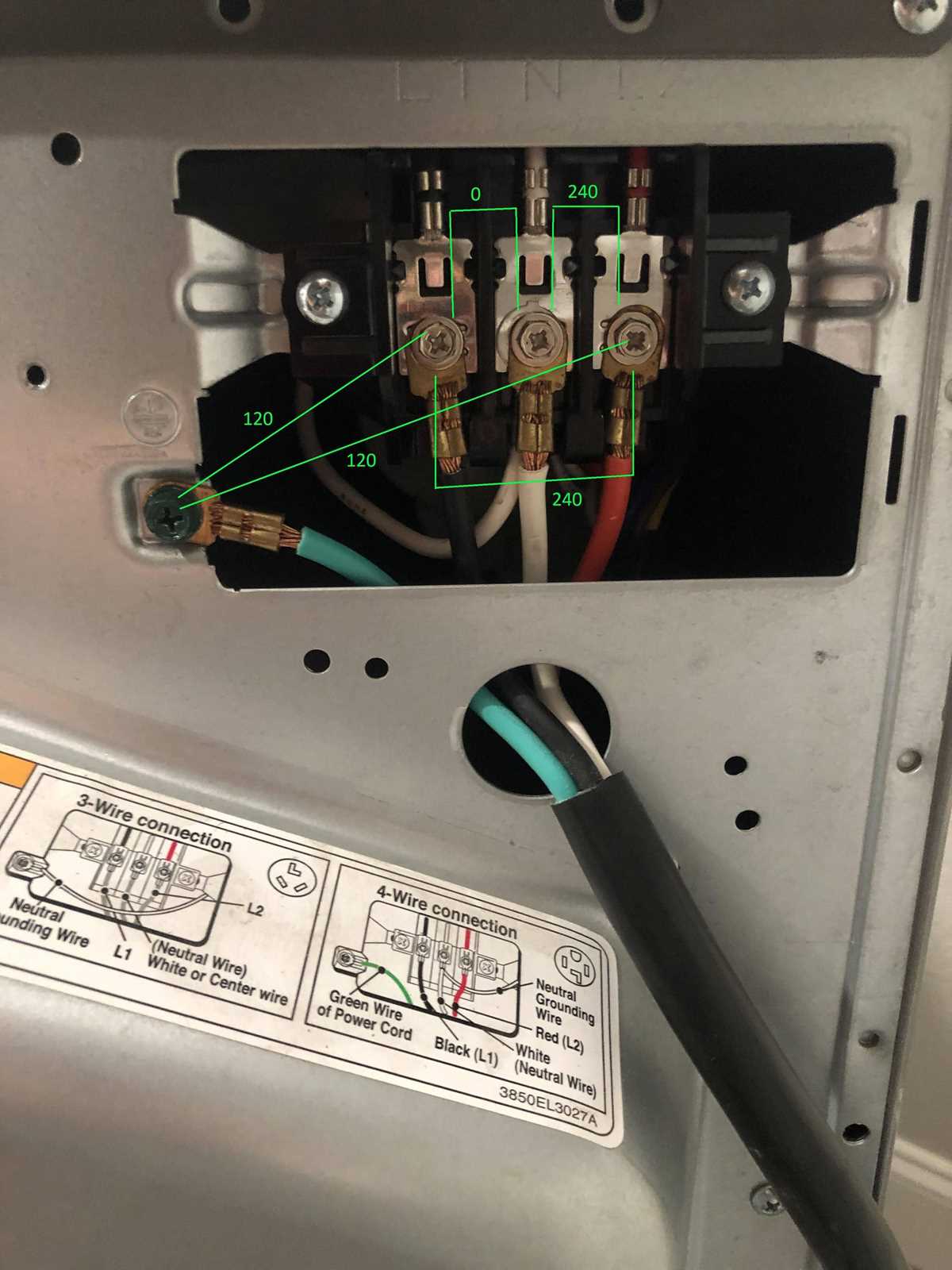

Strip 5/8 inch of insulation from each conductor end. Insert the bare ground wire into the green ground terminal of the new receptacle and tighten the screw to 12 in-lbs torque. Connect the white neutral wire to the silver terminal, the red hot to the brass terminal marked “X,” and the black hot to the adjacent brass terminal marked “Y.” Ensure no wire strands extend beyond the terminal clamps.
Mount the receptacle securely into the electrical box using the provided screws. Attach the cover plate, ensuring no gaps exist between the device and wall surface. Restore power at the breaker panel and test all functions with a multimeter or plug-in circuit analyzer. Voltage readings should show 240V between X and Y, 120V between either hot and neutral, and 0V between ground and neutral.
If replacing a 3-prong receptacle, remove the neutral-ground bonding jumper inside the appliance first. Failure to do so creates a parallel current path through the appliance chassis during a fault, violating NEC 250.140. Keep a copy of the modification record with the appliance manual for future reference.
Critical Errors in Connecting 3-Wire vs 4-Wire Appliance Circuits
Never assume the neutral and ground conductors serve identical purposes–confusing them creates lethal shock hazards. In a 3-slot setup, the neutral doubles as ground, but this violates modern electrical codes (NEC 250.140) for new installations. Verify which system you’re modifying before touching any terminals.
Omitting the equipment bonding jumper on a retrofitted 4-slot configuration leaves the chassis ungrounded, even if everything else seems functional. The green (or bare) wire *must* terminate directly to the frame screw–no shortcuts through conduit or junction boxes. Test continuity with a multimeter before energizing.
Reversing hot and neutral wires on a 3-slot receptacle swaps voltage polarity and can prevent appliances from operating correctly, damaging motors or electronics. Label each conductor before disconnecting the old setup–red typically designates the second phase, but older installations may deviate. Confirm with a non-contact voltage pen.
Using aluminum branch circuit cabling without proper anti-oxidant compound invites corrosion at connection points, causing resistance buildup and overheating. For copper-clad installations, torque all terminals to the manufacturer’s specifications (usually 14-20 in-lbs for #10 AWG) to prevent loose junctions.
Avoid backstabbing conductors into push-in terminals on receptacles–these connections fail under the sustained high-current draw of heavy-duty equipment. Instead, loop wires clockwise around screw terminals for maximum contact surface. Inspect for copper exposure; frayed strands can create short circuits.
Forgetting to remove the neutral-ground bond strap when converting from a 3-slot to 4-slot system keeps the circuit tied to ground, defeating the purpose of the dedicated safety conductor. Locate this strap inside the appliance’s junction box–it’s often a metal tab or screw–before finalizing the upgrade. Failure to do so risks parallel grounding paths and potential fire hazards.
