Start by disconnecting the negative battery terminal to prevent short circuits–this step prevents blown fuses or damaged circuits during installation. Locate the factory head unit harness behind the dashboard panel on the driver’s side; it’s a 12-pin connector with color-coded wires. Match the aftermarket system’s wiring harness to the vehicle’s pins using the following layout: yellow (constant 12V), red (switched 12V), black (ground), blue/white (antenna/amplifier), and orange (illumination). Use a multimeter to verify voltage on the yellow and red wires before splicing–false readings risk draining the battery.
For speaker connections, trace the gray (+) and gray/black (−) front right, white (+) and white/black (−) front left, green (+) and green/black (−) rear right, and violet (+) and violet/black (−) rear left wires. Strip 5mm of insulation, twist tightly, and secure with solder or crimp connectors; avoid electrical tape as it degrades over time. Test each channel at low volume before finalizing the installation–distortion indicates reversed polarity or poor grounding.
If integrating a backup camera or steering wheel controls, splice the purple (reverse signal) and pink (steering wheel data) wires into the new harness. Use a relay for the camera’s power to avoid overloading the factory circuit. For steering controls, an adapter module (e.g., Metra ASWC-1) simplifies compatibility without manual resistor configuration. Double-check all connections with the vehicle’s service manual–incorrect wiring may trigger error codes on the instrument cluster.
Car Audio System Wire Guide for the 2012 Model Compact Sedan
Begin by locating the aftermarket radio harness adapter matching the vehicle’s original 16-pin ISO connector–typically labeled METRA 70-5500 or AXXESS AX-TOY13. Connect the yellow wire (constant 12V) directly to the battery positive terminal using an inline fuse holder rated at 15A to prevent short circuits during installation. The red wire (switched 12V) should splice into the ignition-controlled circuit, commonly found in the fusebox behind the driver-side kick panel; test with a multimeter to confirm voltage presence only when the key is turned to ACC or ON.
Ground the black wire to the vehicle’s chassis using a self-tapping screw, ensuring bare metal contact immediately beneath the dashboard near the original radio mounting bracket. Scrape away paint or corrosion from the attachment point–poor grounding causes alternator whine, distorted audio, or sporadic power loss. For speaker wiring, refer to the following pinout: front left (+) white, front left (-) white/black; front right (+) gray, front right (-) gray/black; rear left (+) green, rear left (-) green/black; rear right (+) purple, rear right (-) purple/black. Twist each pair together before crimping with insulated connectors to minimize interference.
Verify all connections with a test light before powering the head unit–reversing polarity on amplifier outputs risks damaging the aftermarket receiver. If equipping a subwoofer, route the blue/white remote turn-on wire from the head unit to a dedicated amplifier, ensuring it shares the same ground plane as the radio. Avoid daisy-chaining power cables alongside RCA signal wires; maintain a minimum 10-inch separation to reduce buzzing noises.
Finalize by securing all loose wires with zip ties or spiral wrap, routing them away from moving pedals, sharp edges, or the vehicle’s climate control ducts. Use dielectric grease on crimp connectors exposed to moisture, particularly in door speaker installations. For troubleshooting, download a factory service manual PDF–section 8A-01 contains detailed fuse layouts and electrical schematics specific to trim levels GL, GLS, and SE.
Finding the OEM Electrical Linkage Ports Behind the Head Unit

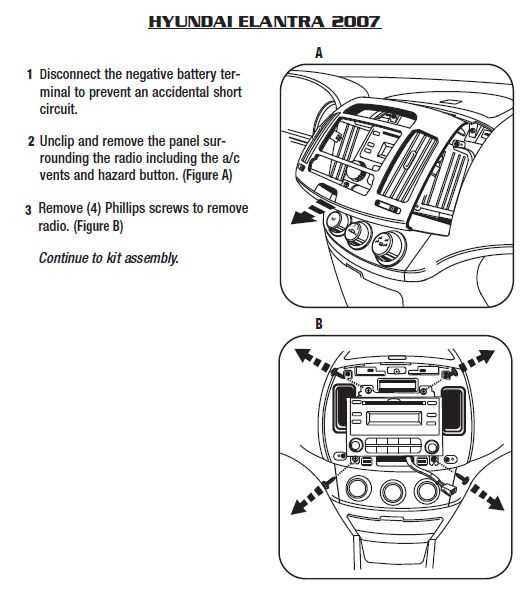

Begin by disconnecting the negative battery terminal to prevent short circuits–this takes 30 seconds with a 10mm wrench. The factory connectors sit 8–12 cm behind the dashboard trim, directly adjacent to the climate control assembly. Pry off the center trim panel using a plastic trim tool (avoid metal tools to prevent scratches), starting at the lower right corner where the clips are weakest. Four push-lock tabs secure the panel: two near the hazard button and two below the air vents.
| Connector Position | Clip Type | Removal Tool | Color Code (Typical) |
|---|---|---|---|
| Upper-left | Single-central tab | Trim pry bar | Yellow (power) |
| Lower-right | Dual-latch | Small flathead | Blue (speaker +) |
| Mid-center | Sliding lock | Needle-nose pliers | Gray (ground) |
| Far-left | Friction-fit | Fingers only | Green (illumination) |
Gently rotate the climate control cables downward to expose the recessed bundle–it’s held by a single 12mm bolt behind the hazard switch. The main harness splits into two plugs: the 16-pin ISO connector (for power, antenna, and data) and the 8-pin mini-connector (for speaker outputs). Label each plug immediately after removal to avoid miswiring; use colored masking tape (red=constant 12V, black=ground, orange=illumination).
For stubborn connectors, apply dielectric grease to the plug edges and wiggle side-to-side rather than pulling straight out–this prevents breaking the plastic retention tangs. If the harness won’t release, check for hidden screws under the climate control dials or behind the cigarette lighter socket. Reconnect the battery only after verifying all connections are fully seated with a click, then test headlight illumination before reassembling the dash.
Decoding Wire Colors and Roles in Your Vehicle’s Audio Harness
Start by locating the 12V constant power lead–typically a solid yellow wire–necessary to retain memory functions like saved stations. This line maintains voltage even when the ignition is off, ensuring seamless operation upon restart. Verify its presence with a multimeter set to DC voltage; a reading below 11V suggests a weak battery or faulty fuse.
Ground connections–often a black or brown wire–demand immediate attention. A poor ground manifests as engine noise or intermittent audio dropouts. Strip the wire end, sand the chassis contact point to bare metal, and secure with a ring terminal. Avoid daisy-chaining grounds; each component should connect directly to the same clean chassis spot.
The ignition-switched power wire, usually red, activates the system only when the key turns to accessory or on positions. Confusing this with the constant 12V line can drain the battery. Test by toggling the key while observing voltage on the multimeter–the red wire should fluctuate between 0V and 12V.
Speaker wires follow a standardized color pattern: front left positive (gray), front left negative (gray/black stripe), rear left positive (green), rear left negative (green/black stripe). Right-side speakers mirror these colors with white (front) and purple (rear) bases. Polarity swaps cause phase cancellation; use a 9V battery to confirm direction–positive connection makes the speaker cone push outward.
Amplifier trigger wires, if present, are typically blue or blue/white and require 12V to power external amplifiers. Some harnesses combine this with the antenna trigger (solid blue), which extends motorized antennas. Separate these functions if upgrading to an aftermarket amplifier to avoid overloading the factory circuit.
Illumination control wires–purple or purple/white–dim dashboard lights in sync with the headlight switch. These carry low current but require precise matching when integrating third-party head units. Incorrect connections result in non-functional dash lighting or erratic brightness adjustments.
Step-by-Step Guide to Removing the Original Audio Head Unit Safely
Disconnect the negative terminal of the vehicle’s battery first to prevent short circuits or electrical damage. Use a 10mm socket wrench to loosen the terminal clamp, then secure the cable away from the battery post to eliminate accidental reconnection. Allow at least 10 minutes for residual power in the system to dissipate before proceeding, especially if the head unit has a capacitor-backed memory.
Removing Dashboard Panels and Securing the Unit
- Locate the trim panel surrounding the central console–gently pry it away using a plastic trim removal tool, starting from the lower corners to avoid snapping clips. Work incrementally, applying even pressure to release each hidden fastener.
- Identify the head unit’s mounting brackets–most vehicles use either spring-loaded clips or Phillips screws (typically #2 size). For clip-mounted units, insert a DIN removal key or U-shaped tool into the designated slots on either side, then pull firmly outward while wiggling slightly to disengage the clips. If screws are present, unscrew them counterclockwise using a magnetic screwdriver to prevent dropping fasteners into the dash cavity.
- Once freed, slide the unit forward cautiously–avoid tugging on attached harnesses or antenna leads. Note the orientation of the connectors on the rear of the unit, then press the release tabs (if applicable) while pulling the plugs straight out. For antennas, twist the coaxial connector gently counterclockwise until it detaches. Store the unit in a static-free environment to prevent dust or moisture from entering the open dashboard.
- Reinstall any removed panels before reconnecting the battery to verify no tools or debris remain in the dashboard cavity.
- Test all dashboard functions (hazard lights, air vents, etc.) prior to finalizing the installation of a replacement unit.
