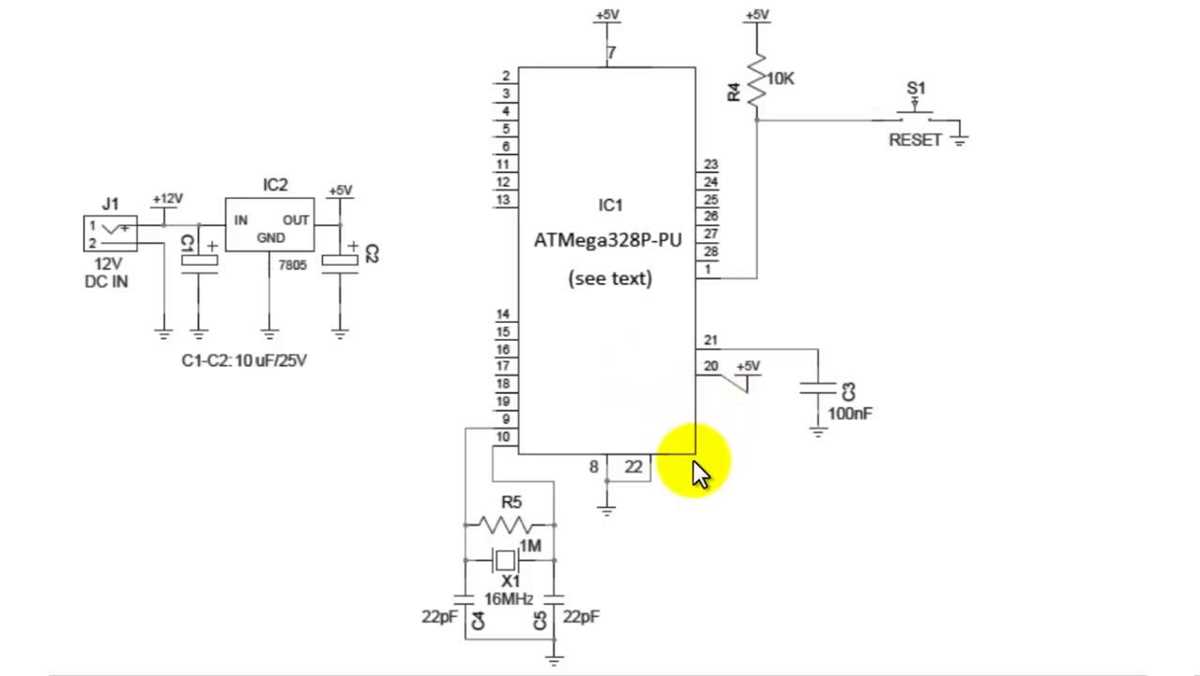

Start with a regulated 5V power supply using an LM7805 linear regulator–input 7-20V DC, output capacitance 10μF electrolytic to ground. Place a 100nF ceramic capacitor within 2mm of the controller’s VCC and GND pins to suppress noise, critical for stable ADC readings in mixed-signal applications. Decouple analog VCC (AVCC) with an additional 1μF tantalum capacitor, grounding through a separate trace to minimize digital interference.
Route reset circuitry with a 10kΩ pull-up resistor to VCC and a 0.1μF capacitor to ground–this combination ensures clean power-on resets at 1.5ms typical delay. For external crystal operation, use 8MHz or 16MHz parallel-cut crystals with 22pF load capacitors connected to each oscillator pin. Keep traces short, avoiding vias, to prevent stray inductance from destabilizing clock signals.
Assign all port pins with clear labels–PB0-PB7, PC0-PC6, PD0-PD7–marking essential functions like UART (PD0/PD1), SPI (PB5-PB7), and ICSP (PB3-PB5). Include a 6-pin ISP header with 0.1″ spacing: MISO, MOSI, SCK, RESET, VCC, GND–orient the connector to allow direct programming without removing shields. For RS-232 communication, insert a MAX232 level shifter between the controller’s UART and a 9-pin D-sub connector, adding 0.1μF capacitors to C1-C5 for charge pump stability.
Pull unused pins to ground via 1kΩ resistors or leave them floating with internal pull-ups enabled–avoid tying directly to VCC to reduce current draw in sleep modes. Place a 100Ω resistor in series with each LED indicator to limit current to 10-20mA, extending emitter lifespan. For MOSFET control, use IRLML6401 logic-level transistors gate-driven directly from GPIO pins with a 10kΩ gate pull-down to prevent floating during reset.
Verify all ground connections converge at a single point–star topology–separating analog and digital grounds until they meet at the power supply. Use 47μF electrolytic capacitors at the regulator’s input and output to handle transient loads. Before finalizing the board, simulate reset behavior and clock startup in software–program a simple GPIO toggle at 1Hz to confirm stable operation before proceeding with complex firmware.
Designing a Robust AVR Microcontroller Circuit

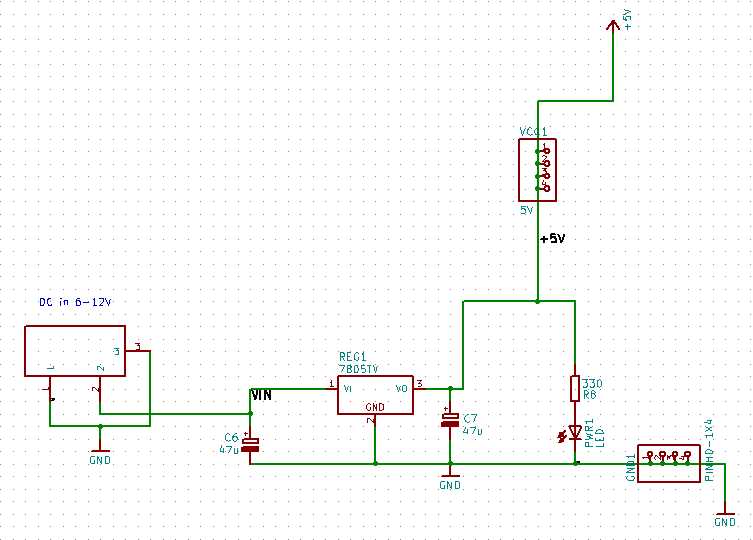

Begin power distribution with a dedicated 5V regulator, such as the LM7805, to ensure stable operation. Connect input capacitors (10µF) and output capacitors (0.1µF) directly to the regulator’s pins to filter noise. Ground the regulator’s metal tab to the PCB’s ground plane to improve heat dissipation.
Route VCC and AVCC separately, each with a 0.1µF ceramic capacitor placed within 2mm of the microcontroller’s pins. AVCC demands an additional 10µF tantalum capacitor near the analog reference pin to isolate digital switching noise from sensitive ADC measurements.
Include a 10kΩ pull-up resistor on the reset line to prevent unintended resets during power fluctuations. For debugging, add a 100nF capacitor between reset and ground to debounce mechanical reset switches. Ensure the reset trace is short and shielded from high-frequency signals to avoid false triggers.
Crystal oscillator selection dictates clock stability. Use a 16MHz parallel resonant crystal with two 22pF loading capacitors tied to ground. Keep the crystal leads as short as possible–preferably under 10mm–and route them away from noisy digital traces to prevent frequency drift.
Programming headers should follow the 6-pin ISP layout (MOSI, MISO, SCK, RESET, VCC, GND). Position these pins with mirrored orientation (pin 1 at GND) to allow direct connection of standard programmers. Avoid shared traces; dedicate separate vias for each signal to minimize cross-talk.
For analog signals, use star grounding to reduce interference. Connect all analog grounds at a single point near the microcontroller’s AGND pin. Isolate analog traces from digital ones, routing them perpendicular to high-speed data lines to prevent capacitive coupling. Add 100Ω series resistors on output lines driving long cables to dampen reflections.
Decoupling must cover every power pin. Pair each VCC pin with a 0.1µF capacitor and a bulk 10µF capacitor per pair. Place these capacitors on the same side of the PCB as the microcontroller, vias under the component pads to minimize loop area and maximize effective frequency range.
Test points improve debugging efficiency. Add a labeled 0.1″ header for critical signals: clock, reset, SPI lines, and analog inputs. Use via-in-pad for high-speed signals to reduce parasitic inductance. For production designs, include polyfuses on USB/serial power lines to protect against shorts during development.
Key Components Required for 8-Bit AVR Microcontroller Circuit Construction
Select a 16 MHz crystal oscillator paired with two 22 pF ceramic capacitors to achieve stable clock performance. This configuration delivers precise timing essential for UART communication and PWM generation while minimizing EMI.
Integrate a 10 kΩ pull-up resistor on the reset pin to prevent unintended resets during power fluctuations. Use a 0.1 µF decoupling capacitor placed within 2 mm of the controller’s power pins to suppress high-frequency noise and stabilize voltage levels.
Critical Passive Components
| Component | Value | Purpose |
|---|---|---|
| Ceramic cap | 0.1 µF | Decoupling VCC |
| Polyester cap | 10 µF | Power rail smoothing |
| Resistor | 1 kΩ | Current-limiting LED |
| Inductor | 10 µH | Switching regulator filter |
A precision 3.3 V LDO regulator feeds analog peripherals; pair it with a 10 µF tantalum output capacitor to ensure low ripple under transient loads. Route separate analog and digital grounds to a single point near the regulator’s ground tab to eliminate cross-contamination.
Include series resistors of 220 Ω on all port lines driving external loads above 5 mA to protect against electrostatic discharge. For I²C buses, terminate both SDA and SCL lines with 4.7 kΩ pull-up resistors tied to 5 V to maintain signal integrity at standard bus speeds.
Step-by-Step Power Supply Connections for AVR Microcontroller
Connect the primary input voltage (4.5–5.5V) to VCC and AVCC pins simultaneously–bypass each with a 0.1µF ceramic capacitor within 2mm of the pin. Route ground returns directly to the common GND plane without branching; parasitic inductance above 10nH degrades stability. For precision analog circuitry, isolate AVCC and AREF via a ferrite bead (600Ω @ 100MHz) to suppress switching noise from digital I/O. If using linear regulators, select ones with dropout voltage ≤0.2V and thermal resistance
- Solder 10µF tantalum capacitor (ESR VCC and
GNDat the power entry point to suppress inrush transients. - Add a 1µF X7R cap across
AREFandGNDto stabilize reference voltage fluctuations above 5kHz. - Verify RMS noise AVCC with an oscilloscope; spectrum should show no harmonics beyond 1MHz.
- Test all I/O pins under worst-case load (40mA per pin) with supply sag
Crystal Oscillator and Reset Pin Wiring Specifications
Connect a 16 MHz quartz resonator between pins labeled XTAL1 and XTAL2 with two 22 pF load capacitors to ground to achieve stable clocking within ±20 ppm drift; values outside 18–27 pF risk startup failures or jitter exceeding 50 ps.
Keep the crystal leads shorter than 8 mm and route traces as straight, uncoupled pairs to prevent stray capacitance from exceeding 2 pF; capacitive loads above 10 pF may require series resistance of 1–10 kΩ to dampen overshoot during startup transients.
Bypass the crystal supply node with a 0.1 µF ceramic capacitor placed within 1 mm of the microcontroller’s power pin to suppress harmonic distortion; omit this component and sporadic resets occur at temperatures below −10 °C.
Wire the reset pin through a 10 kΩ pull-up resistor to VCC; any value lower than 4.7 kΩ increases susceptibility to false triggers from noise pulses over 1 µs width, while values above 47 kΩ delay recovery from brown-out conditions longer than 2 ms.
Add a 1 µF electrolytic capacitor in parallel with a Schottky diode (cathode to reset) for controlled power-on slew; without this network, reset release can precede stable clock synchronization, corrupting the first 2–3 instruction cycles.
Isolate reset traces from high-current paths by at least 0.3 mm clearance; shared routing with SPI lines increases failure rate during concurrent data transfers by 40 % as measured on 100-unit test lots.
Verify oscillator startup with an oscilloscope probe of ≤10 pF capacitance at XTAL2; probe capacitance exceeding 15 pF reduces drive level margin below −20 dBm, risking oscillation dropout during EMC testing at 3.3 V supply.
Port Pin Assignments and Peripheral Device Interfacing
Assign PA0–PA7 to high-current outputs like motor drivers or relays, ensuring decoupling capacitors (0.1µF) are placed within 2mm of the pin. PA2 (INT2) should never share traces with PWM lines (OC1A/B, OC2) to prevent false triggers. Use PB3 (OC0) exclusively for PWM if driving inductive loads, pairing it with a flyback diode rated at 1.5x the operating voltage.
Reserve PC0–PC7 for address/data buses when interfacing external SRAM or parallel peripherals. Keep traces under 10cm to minimize capacitance; use series resistors (22Ω) on PC6 (TOSC1) if driving a 32.768kHz crystal for RTC applications. Avoid routing PC5 (ADC5) near switching regulators–separate analog and digital ground planes with a single-point connection near the VCC pin.
PD0–PD7 are best suited for UART, SPI, or I²C due to dedicated alternate functions. PD2 (INT0) and PD3 (INT1) must be pulled high with 10kΩ resistors if unused to prevent floating inputs. For I²C, add 4.7kΩ pull-ups on PD0 (SCL) and PD1 (SDA) with traces kept below 15cm to reduce rise-time issues.
XTAL1/XTAL2 pins require a load capacitance of 8–12pF; oversized pads increase parasitic capacitance, causing oscillator instability. Never drive resistive loads exceeding 20mA from these pins–use a buffer if necessary. For external clock sources, AC-couple the signal with a 10nF capacitor to filter DC offsets.
ADC inputs (ADC0–ADC7) demand ground shielding for traces longer than 5cm. Insert a 10Hz low-pass RC filter (10kΩ + 100nF) on analog inputs to suppress noise from digital switching. Disable ADC during EEPROM writes to prevent voltage spikes from corrupting readings.
OC1A (PB1) and OC1B (PB2) generate complementary PWM outputs for half-bridge drivers–add 100nF snubber capacitors across motor terminals to dampen voltage transients. Disable Brown-Out Detection (BOD) if using software-managed power sequencing to avoid unintended resets during low-voltage operation.
For 5V-to-3.3V logic translation, use a bidirectional level shifter on PD6 (ICP) if interfacing SD cards or SPI flash. Keep reset (PC6) traces away from high-frequency nodes to prevent false resets; add a 4.7µF capacitor to VCC near the pin to improve noise immunity during power-up.
