Begin by locating the main control box–typically a metal enclosure mounted near the equipment pad. Verify the voltage rating (commonly 240V for high-end models) and confirm the circuit breaker matches this specification. A mismatch risks tripping or equipment failure. Use a multimeter to check incoming power at the L1, L2, and neutral terminals before proceeding. Skipping this step voids troubleshooting efficiency.
Identify the heater relay and pump circuits. Most configurations integrate dual-speed pumps–low for filtration, high for jets. Trace the wires from each motor to the corresponding relay, ensuring they terminate at the correct contact points. Miswiring here causes erratic operation or damage to the windings. Label each wire with heat-resistant tags to avoid confusion during reassembly.
Ground connections demand scrutiny. Locate the grounding lug inside the control box and ensure it bonds to all metallic components–frame, pump housings, and heater casing. Corrosion or loose connections here create safety hazards. For outdoor installations, use dielectric grease on all terminals to resist moisture intrusion. Omitting this step accelerates oxidation.
GFCI protection is non-negotiable. Confirm the breaker is rated for wet environments and test it monthly using the integrated “Test” button. If the system fails to trip, replace the breaker immediately. Secondary GFCI units, often installed near the tub, must also meet NEC standards. Double-check for parallel paths that could bypass protection.
Ozone generators or auxiliary features (lights, audio) require separate circuits. Consult the technical manual for amperage limitations–overloading these circuits is a frequent cause of premature failure. Use marine-grade wire for all external runs, secured in conduit to prevent rodent damage. Exposed wiring near moving parts risks chafing; route these segments meticulously.
Finalize by powering the system in stages. Activate the circulation pump first, then heating elements, followed by jets. Listen for irregular noises or overheating. If the temperature sensor triggers shutdowns, recalibrate or replace it. Document all modifications to the layout for future reference. Professional servicing should occur annually, but owner-performed inspections every three months prevent costly repairs.
Hot Tub Electrical Layout: Installation Walkthrough
Disconnect power at the main breaker before handling any connections–this prevents electrical hazards and equipment damage. Verify the circuit’s voltage matches the manufacturer’s specifications (typically 240V for premium models) by testing at the GFCI box with a multimeter. Route cables through the equipment compartment’s designated entry point, securing them with waterproof conduit clamps spaced every 18 inches to prevent sagging. Connect the black (hot) wire to the top terminal of the heater element, the red (secondary hot) to the circulation pump’s labeled input, and the green/bare (ground) to the bonding lug–use UL-listed copper lugs for all splices.
Test each component sequentially: activate the breaker, measure voltage across the heater terminals (should match supply voltage), then check amperage draw with a clamp meter–expect 15-25A during heating cycles. If readings deviate, inspect connectors for corrosion (clean with electrical contact cleaner) or loose strands (replace frayed wires). For variable-speed pumps, verify tachometer wiring by running a diagnostic cycle–failure may indicate reversed blue/yellow leads. Label all connections with weatherproof tags and photograph the setup before sealing the access panel.
Finding the Electrical Schematic in Official Product Guides
Begin with the product’s physical manual shipped inside the control box panel or beneath the equipment access door. Brands encode schematic sheets on waterproof paper laminated under clear adhesive; peel back carefully to avoid tearing. If missing, retrieve the digital version from the manufacturer’s support portal using the serial number etched on the main pump label–enter it verbatim, excluding dashes or spaces, to bypass search filters.
Key Documentation Sources
| Location | Format | Identifier Needed |
|---|---|---|
| Control box interior | Laminated paper | Product model number |
| Online support portal | PDF download | Serial number |
| Installer quick-start card | Printed cardstock | Barcode scan |
| Customer service chat | Email attachment | Proof of purchase |
For older units lacking online records, request the circuit layout by contacting customer service via the toll-free number listed on the back of the equipment’s compliance label. Specify voltage ratings, pump amperage, and heater kilowatt details from the existing labeling to expedite verification. Technicians often reference legacy archived binders indexed by pump model and component revisions; anticipate a 24–48 hour turnaround for rare schematics.
Mapping Critical Elements and Their Electrical Pathways in Hot Tub Systems

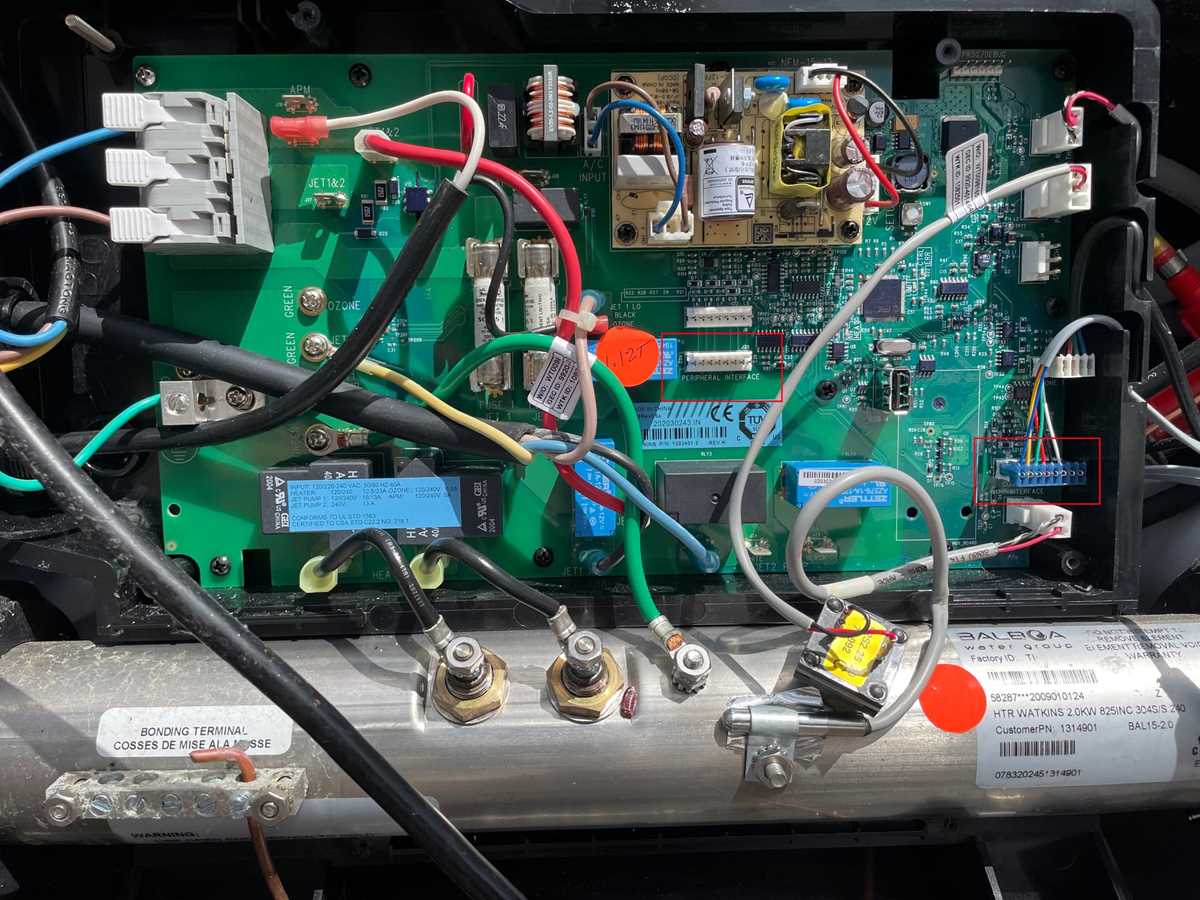

Begin by locating the main control panel–typically housed behind an access panel near the heating mechanism. This unit centralizes signal distribution and safeguards against overloads. Verify its model number matches the schematic to avoid mismatches in component labeling, as subtle variations exist between revisions.
GFCI Protection: Trace the incoming power line to the ground-fault circuit interrupter, often mounted adjacent to the control box. Confirm its amperage rating aligns with the system’s requirements (usually 40–60 amps for residential setups). A tripped GFCI may indicate moisture intrusion or faulty components further downstream.

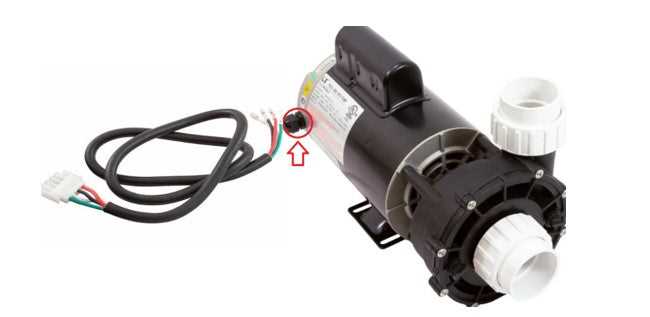

- Pump Circuits: Identify each motor’s dedicated path; these usually split from the main bus. Label wires based on function:
- Red/Black: high-speed operation
- Yellow/Blue: low-speed or auxiliary features
- Green: mandatory grounding
- Heater Assembly: Inspect the thermal cutoff switch before testing continuity. The element should draw 15–40 amps depending on kilowatt rating; cross-reference with voltage specifications to calculate expected current.
- Ozone Generator (if equipped): Follow the thin-gauge wire pair leading to the injector. Check for a fused protection module–failure here causes water quality degradation without tripping other safety devices.
Examine splice connections, especially outdoors. Use waterproof connectors and silicone grease to prevent corrosion. Replace any crimped terminals showing green oxidation or brittleness; these degrade conductivity unpredictably.
Test voltage drop across the temperature sensor at ambient conditions. Readings should stabilize between 0.5–3.3 volts DC; erratic values suggest a loose connection or compromised probe. Replace sensors spiking above 5V or flat-lining at 0V.
Document each relay’s coil resistance using a multimeter. Relays typically measure 50–120 ohms; shorts or infinite readings demand immediate replacement. Note activation sequences–some systems prioritize heating before circulation, while others sync both simultaneously.
Isolate the transformer secondary windings. Low-voltage lines (12–24V) power control circuits and LED indicators. Verify fuse ratings before energizing; mismatched values risk damaging logic boards. Sketch a quick reference of wire junctions, color codes, and terminal numbers for future troubleshooting–photo documentation accelerates reassembly after testing.
Mapping Electrical Pathways from Main Panel to Hot Tub Command Units
Begin by isolating the dedicated breaker assigned to the hydrotherapy system–typically a 50-amp double-pole switch or a 60-amp variant, depending on the model’s power demands. Confirm the breaker is in the “off” position using a non-contact voltage tester before proceeding. Trace the two hot wires (usually black and red, or both black if split-phase) exiting the breaker to their termination at the first disconnect box, which must comply with NEC 680.42 requirements for wet locations.
Examine the disconnect box for corrosion or loose connections–common failure points in high-humidity environments. The hot wires should terminate on the line-side terminals of a GFCI breaker or disconnect within this enclosure. Verify the neutral wire (white) and grounding conductor (green or bare copper) are properly bonded to the enclosure’s grounding bus bar. Miswiring here risks nuisance tripping or hazardous ground faults.
From the disconnect, follow the conduit or cable run to the control assembly. Expect a direct burial or underground-rated cable if the distance exceeds 6 feet, per NEC 300.5. Measure voltage at the disconnect’s load-side terminals with a multimeter–readings should match the breaker rating (240V for 60-amp, 220V for 50-amp systems). If voltage drops below 90% of expected value, inspect for undersized conductors or excessive run length.
At the command unit, identify the terminal block where power enters. The hot wires will connect to L1 and L2 terminals, neutral to the N terminal, and ground to the chassis or a dedicated bus. Check for factory-installed jumpers or bonding straps–these must remain intact to prevent stray voltage. Use a torque screwdriver to confirm connections meet manufacturer specifications (typically 15-20 in-lbs for #8 AWG conductors).
If the system includes auxiliary components (blowers, ozone generators, or circulation pumps), trace their power sources back to the main terminal block. These components may tap into the same GFCI-protected circuit but often require separate 120V lines fused at 15-20 amps. Document each branch circuit on a schematic with conductor sizes, breaker ratings, and termination points for future troubleshooting.
For systems with digital interfaces, locate the low-voltage transformer–usually stepping 120V down to 12V or 24V. Ensure its input wires connect to a non-GFCI-protected circuit to prevent resets disrupting settings. Test transformer output with a multimeter; readings should be ±10% of rated voltage. If voltage is absent, check the fuse or thermal overload before replacing the transformer.
