Begin by mapping reservoir inputs at the system’s entry point, ensuring elevation data aligns with turbine placement. Dam structures must integrate spillway controls to regulate excess flow–position these adjacent to intake gates for immediate overflow diversion. Penstock conduits require precise diameter calculations; undersized pipes amplify friction losses, reducing efficiency by up to 12% at peak loads. Turbine selection hinges on head height: Pelton wheels suit high heads (>300m), Francis designs optimize medium heads (30–300m), while Kaplan variants excel in low-head installations (
Link generators directly to turbines via mechanical coupling to minimize transmission losses–bearing alignments should maintain ±0.05mm tolerance to prevent vibrational fatigue. Busbar configurations demand overcurrent protections; solid-state relays outperform traditional fuses, reacting within 20ms to faults. Transformers step voltage ratios from generation levels (typically 11–25kV) to grid-compatible outputs (110–765kV), requiring dielectric strength tests before energization. Downstream, tailrace channels must slope ≥1:200 to prevent sediment buildup, which can throttle flow by 8% annually if unaddressed.
Control systems centralize monitoring: SCADA interfaces track real-time parameters–pressure drops, vibration spectra, and temperature drift–while PLCs automate gate adjustments based on reservoir levels. Auxiliary circuits for emergency shutdowns must isolate faults without cascading grid disturbances; sectionalizing breakers achieve this with arc-quenching times under 50ms. Battery banks or flywheels provide backup for black-start scenarios, though modern setups prioritize grid-connected sync options with 98.5% response reliability.
For environmental compliance, integrate fish ladders into dam designs–vertical slot variants pass 90% of migratory species compared to 60% for pool-type alternatives. Sediment flushing cycles, scheduled biannually, preserve reservoir capacity; high-velocity sluicing removes 1.5–2.0 Mt of silt per cycle in large installations. Cooling loops for generators and transformers should reuse tailwater when possible, cutting water consumption by 30%. Document every subsystem’s pressure ratings, material grades (e.g., ASTM A516 for pressure vessels), and seismic zones–the latter dictates anchoring specifications for structures ≥15m in height.
Constructing a Visual Layout of Water-Driven Energy Plants

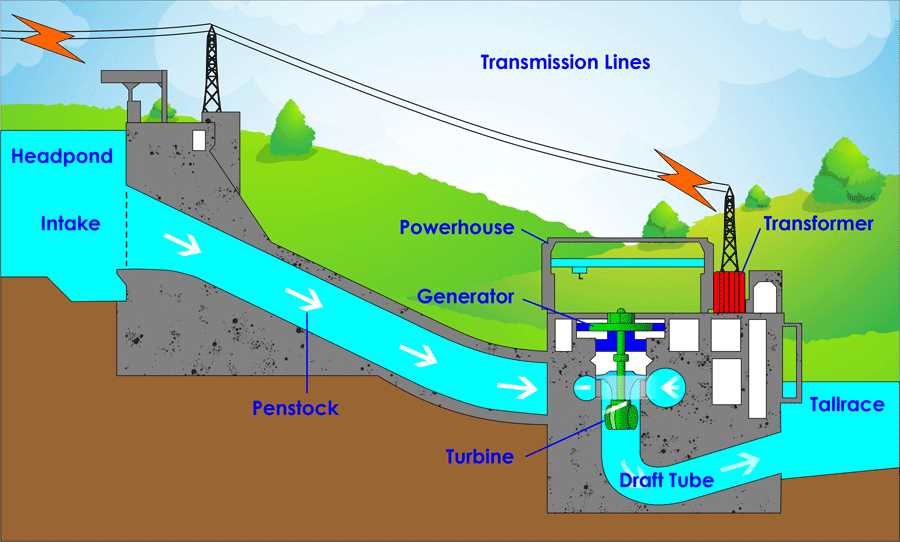

Begin with a vertical alignment of key components to reflect natural flow: reservoir at the top, followed by intake gates, penstock, turbines, generators, transformers, and transmission lines at the base. Use thick arrows to indicate water movement from storage to discharge, ensuring consistent directionality.
Reservoir depiction should occupy 30% of the upper area, shaped as an irregular polygon to mimic natural terrain. Label storage capacity (e.g., 50 million m³) and head height (e.g., 120 m) directly adjacent to the outline. Avoid symmetric designs–real impoundments follow geological contours.
Intake structure requires precise detailing: include trash racks (vertical bars spaced 100-150 mm apart), emergency gates (sluice-style), and low-level outlets. Position these 2-3 cm below the reservoir’s lowest waterline, with arrows marking controlled inflow toward the penstock’s entrance.
Penstocks demand special attention in the layout. Represent them as thick, tapered conduits (wider at inlet, narrower at outlet) descending at a 40-60° angle. Add pressure values (e.g., 1.2 MPa at midpoint) in small text boxes along the pipe. For plants with surge tanks, insert a vertical cylinder between penstock and turbine, connected via a smaller conduit.
Turbine-generator units need separate sections for each type: Francis (for medium heads), Kaplan (low heads), or Pelton (high heads). Sketch Francis wheels as vertical spirals with wicket gates; Kaplan units as bulb-shaped with adjustable blades. Position generators directly below turbines (synchronous, 3-phase, 15 kV output) with cooling water pipes and bearing lubrication circuits attached.
Transformer pads should be rectangular blocks labeled with step-up ratios (e.g., 15 kV/230 kV) and cooling methods (oil-immersed or forced air). Connect them to generators via thick cables, then link to switchyard buses (single-line representation). Include lightning arrestors (zigzag lines) and disconnect switches (open/closed symbols) at critical junctions.
Tailrace channels must show gradual widening toward the downstream river, with arrows indicating water velocity reduction (from 8 m/s at turbine outlet to 1.5 m/s at river confluence). Add debris screens at the exit and fish ladders (if applicable) as parallel inclined planes with resting pools.
Control systems require dedicated inset boxes: governor (mechanical/hydraulic), excitation system (static/digital AVR), and SCADA interface. Place these near the generator, connected via dashed lines to sensors on turbines, transformers, and intake gates. Mark critical telemetry points (flow, temperature, vibration) with diamond-shaped symbols.
Critical Parts of Energy Generation Plants Utilizing Water Flow
Begin by verifying the reservoir’s structural integrity–dam walls must withstand 1.5× design pressure with reinforced concrete or roller-compacted variants, depending on valley geography. Penstocks require a minimum 12% gradient to maintain flow velocity above 6 m/s, reducing sediment buildup and turbine wear. Gate valves controlling inlet flow should feature hydraulic actuators for fail-safe closure within 90 seconds during emergencies, preventing catastrophic pressure surges. Install piezoresistive sensors at 3-meter intervals along penstocks to monitor dynamic pressure gradients in real time.
Turbine and Generator Specifications
Select Francis turbines for heads between 30–600 meters, ensuring runner blades are coated with WC/CrC hardfacing to resist cavitation erosion from suspended solids. Kaplan units suit low-head installations (2–40 meters), but require wicket gates with ±0.5° precision for optimal efficiency under variable flow. Generators must operate at synchronous speeds (75–1000 RPM) matching turbine output; use static excitation systems with oil-film thickness ≥0.05 mm under full load to prevent metal-to-metal contact.
Prioritize transformers with forced-oil circulation and 55°C rise limits for continuous duty cycles, positioned downwind of switchyard cooling fans to avoid overheating. Switchgear must comply with IEC 62271-200 standards, featuring SF₆ insulation at 0.5 MPa to quench arcs in 20 ms. Integrate PLC-based governors with 0.1% speed droop for primary frequency control, avoiding mechanical linkages prone to hysteresis. Tailrace tunnels should maintain subcritical flow conditions (Fr ) to prevent air entrainment, which degrades turbine performance by up to 12%.
Sketching Water Movement Through a Dam Installation
Begin by tracing intake gates positioned at varying elevations along reservoir sidewalls–modern units integrate three-screen filtration (coarse debris, fine sediment, biological barriers) with velocity caps limiting entry speeds to 1.5 m/s to prevent vortex formation. Downstream, penstocks should follow a compound curve: initial 45° descent section reducing cavitation risks, transitioning to horizontal runs with 2% slope for air evacuation, finally terminating in a bellmouth inlet (diameter expanding from 3m to 7m) to accelerate flow uniformity before turbine engagement.
Critical Flow Regulators Along Route
- Surge tanks: Position immediately upstream of turbines–opt for differential type with riser diameter ≤ 1/10 penstock width to absorb pressure waves within 0.3 seconds during load rejection.
- Trash racks: Specify bar spacing ≤ 150mm for Kaplan runners or 75mm for Pelton wheels; incorporate automated rake systems with rake travel ≤ 2m/min to prevent clogging during high-sediment events.
- Bypass valves: Install needle-type valves with linear closing times of 60-90 seconds to avoid hydraulic transients–pressure rise calculations must account for water column elasticity (wave speed: ~1200 m/s).
At turbine entry, delineate spiral casing cross-section reducing logarithmically toward stay vane circumference–Francis runners require inlet-to-runner-area ratio 1.3:1; adjust wicket gate angles to regulate admission arcs: 0° (closed) to 90° (full) with ±0.2° precision servomotors. Tailrace channels must maintain subcritical flow (Froude number 8-12% kinetic energy–incorporate flip buckets if elevation drop exceeds 30m to dissipate residual velocity before return to river course.
Mapping Energy Flow: From Turbine Output to Grid Delivery
Install synchronizing relays between generators and step-up transformers to maintain phase alignment within ±0.5° at nominal voltage deviations of 95-105%. Configuring these relays to trigger at 98% voltage match prevents back-feeding during grid faults. Locate potential transformers (PTs) directly on busbars, not downstream of disconnect switches, to avoid false synchronization signals during switching sequences.
- Route turbine output through isolated-phase bus ducts with segregated cooling channels; airflow velocities must exceed 5 m/s at duct cross-sections to prevent hotspot formation above 80°C.
- Position surge arrestors at both generator terminals and transformer high-voltage bushings–ZnO gapless types rated 10% above highest system voltage (e.g., 24 kV arrestors for 22 kV systems).
- Integrate dissipation reactors at transformer neutrals to clamp fault currents below 2 kA; cores sized for 15-second withstand at 120% of rated fault level.
- Verify core material: grain-oriented silicon steel with 0.23 mm laminations ensures saturation levels remain above 1.8 T under all operating conditions.
Transmission Link Optimization
Deploy fiber-optic OPGW cables along transmission corridors, maintaining minimum 3 m sag between towers at 15°C ambient to prevent lightning-induced flashovers; ensure dielectric strength exceeds 2.5× maximum phase-to-ground voltage for 30 minutes. Segment overhead lines into 50 km blocks with series capacitors–calculate capacitance using X_C = (kV_line)^2 / MVAR_rating, targeting 40% compensation for 400 kV lines to limit voltage drops below 5% during heavy loading. At substations, install breaker-and-a-half schemes rather than ring bus setups: reduce breaker failure probability by 38% through redundant current paths.
- Specify SF₆ breakers with puffer mechanism: blast pressure of 1.5 MPa at contacts opening, arcing times under 2 cycles at 63 kA interrupting capacity.
- Grounding grids must achieve resistance values below 1 Ω at wet conditions–calculate using
R = ρ / (2π × L)where L exceeds 1.5× plant footprint diagonal. - For underground XLPE cables, maintain conductor temperatures below 90°C–install distributed temperature sensing loops every 200 m, with alarm thresholds at 80°C to trigger load shedding.
