Use a minimum 6 AWG copper cable for the hot and neutral lines in a 50-power RV hookup. This gauge handles the load safely–thinner wires risk overheating under prolonged use. Secure connections with tinned copper lugs crimped with a hydraulic tool, not standard pliers, to prevent corrosion and loose fits. Always bond the grounding conductor directly to the RV’s chassis using a dedicated 8 AWG green insulated wire–never rely on metal conduit alone for ground paths.
Install a double-pole 50-breaker in the main panel to isolate the circuit entirely. Label this breaker clearly–confusing it with smaller circuits could damage appliances or trip subpanels unexpectedly. Test voltage at both ends of the run with a true RMS multimeter before energizing. A reading below 240V at the RV inlet indicates voltage drop–lengthen the conductor to 4 AWG or shorten the run if exceeding 100 feet.
Mount the outlet on a non-combustible surface–plywood treated with fire retardant–at least 24 inches above grade to avoid water intrusion. Use a NEMA 14-50 receptacle, not a twist-lock type, as it provides the correct neutral-to-ground separation required for modern RVs. Apply dielectric grease to terminal screws before tightening to 20 in-lbs with a torque screwdriver–over-tightening can crack porcelain insulation.
Run conduit only where physical protection is mandatory–exposed cables in dry locations must still be sunlight-resistant THHN/THWN-2. Bury direct burial cables at 24 inches minimum depth if crossing driveways. Avoid splicing underground; pull continuous lengths from the panel to the outlet to eliminate failure points. Check local codes for GFCI requirements–some jurisdictions mandate them even for hardwired connections.
50-Ampere Recreational Vehicle Electrical Layout: Full Walkthrough
Connect the primary power inlet on your recreational vehicle to a 50-ampere circuit breaker using 6-gauge copper conductors. Ensure the cable meets NEC Article 551 standards for outdoor and mobile use, as thinner wires risk overheating under load.
Split the feed into two 120-volt hot legs, each serving separate subpanels. Label them “Leg A” (black or red) and “Leg B” (red or blue) to prevent cross-connection during maintenance. Verify phase alignment with a multimeter–voltages should read 240V between legs and 120V from each leg to neutral.
Neutral and ground bars must remain isolated in the main distribution box. Bond the neutral only at the central ground point to avoid stray currents. Use a dedicated 8-gauge green copper wire for grounding, running it directly to a grounding rod or the pedestal’s earth connection.
- Subpanel 1 (Leg A): Powers high-demand appliances–air conditioning, microwave, and converter.
- Subpanel 2 (Leg B): Handles lighting, outlets, and smaller devices like water heaters.
- Avoid overloading; total load should not exceed 12,000 watts.
Install surge protectors rated for 120/240 volts on both legs. Mount them near the inlet to safeguard against transient spikes. Models like the Progressive Industries EMS-HW50C provide real-time voltage monitoring and will trip the system if readings fall outside 104–132V or 216–254V ranges.
Key Installation Pitfalls
- Incorrect wire sizing: Using 8-gauge instead of 6-gauge for the main feed reduces capacity by 20% and violates NEC 551.73.
- Loose connections: Torque lugs to 20 in-lbs; under-tightened terminals cause arcing.
- Improper grounding: Never use the neutral as a ground–a floating neutral can energize the chassis.
Test the system with a clamp meter before finalizing. Measure current draw on both legs while running the AC unit–it should not exceed 40 amperes per leg. If readings spike, recheck appliance wattages and redistribute loads. For RVs with onboard generators, ensure automatic transfer switches are installed to prevent backfeeding.
Document the layout with a labeled schematic. Include wire colors, breaker ratings, and subpanel assignments. Store this near the entry point for service technicians. Regularly inspect connections; corrosion-resistant terminals like tin-plated copper reduce oxidation in humid environments.
Understanding the Components of a 50-A Connection for Recreational Vehicles
Begin by verifying the power inlet on your RV–most 50-A inlets feature a four-prong configuration: two 120-V hot legs (typically L1 and L2), one neutral, and one ground. Each hot leg delivers up to 240 V when combined, but the system is designed to split into two separate 120-V circuits for appliances. Confirm the inlet’s rating matches your shore power or generator output using a digital multimeter; mismatches risk overheating or equipment damage.

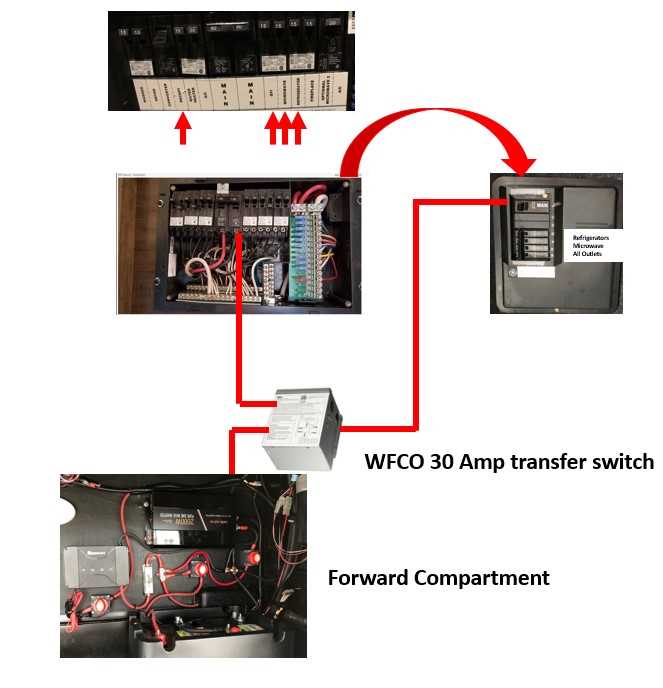

Install a dedicated breaker panel inside the RV with a 50-A main disconnect. This panel distributes current to sub-breakers, usually 20-A or 30-A, for individual circuits (e.g., air conditioning, microwave, outlets). Use copper conductors sized at least 6 AWG for the main feed–smaller gauges increase resistance and voltage drop over distance. For extended cord runs, upgrade to 4 AWG to compensate for losses, especially in high-load scenarios like simultaneous AC and water heater use.
The neutral bus bar must be isolated from the ground bus bar within the panel to prevent parallel paths for current. Cross-bonding neutrals and grounds violates safety codes and creates shock hazards. Label each bus bar clearly–neutral wires (white) connect to the neutral bar, while ground wires (green or bare) terminate at the ground bar. Test continuity between the ground bar and RV chassis to ensure a solid bond; resistance should read near zero ohms.
| Component | Wire Gauge (Copper) | Voltage Drop per 100 ft (120 V Load) |
|---|---|---|
| Main Feeder | 6 AWG | ~3.5 V |
| Sub-Circuit (20 A) | 12 AWG | ~7.2 V |
| Extended Run (>50 ft) | 4 AWG | ~2.1 V |
Select a surge protector rated for 50-A service, preferably with multi-stage protection (transient voltage suppression, open neutral/ground detection, and reverse polarity alerts). Hardwired models sit between the inlet and breaker panel, while plug-in variants connect externally. Avoid cheap models lacking thermal sensors–these fail to disconnect during overheating, risking fires. Test the protector annually by simulating a surge with a clamp meter; expect an immediate disconnect if voltages exceed 132 V.
RV-rated extension cables must handle 50-A loads without derating. Look for cables labeled “STW” (oil-resistant) or “SEOW” (extra durable) with 6 AWG conductors. Avoid household-grade cords–they lack UV resistance and stiffen in cold weather, leading to cracks. Store cords coiled in a breathable bag to prevent moisture buildup; inspect for fraying before each trip. For temporary setups, use a cord management reel to prevent kinks, which increase resistance over time.
Inspect all outlet receptacles for wear–loose connections cause arcing, which erodes contact points. Replace any 120-V outlet showing discoloration or pitting; 20-A receptacles (NEMA 5-20) are common, but 30-A (NEMA TT-30) may appear in older RVs. Use a torque screwdriver to tighten terminal screws to 12-15 in-lbs; overtightening strips threads, while undertightening causes overheating. For 240-V appliances (e.g., electric ranges), verify the outlet matches the NEMA 14-50 configuration used in modern RVs.
Ground fault circuit interrupters (GFCIs) are mandatory for outlets in wet locations (kitchens, bathrooms, exterior). These devices trip at 5 mA leakage within 1/30th of a second–test monthly using the “Test” button. Replace any GFCI that fails to trip after pressing the button; internal components degrade with age. For non-GFCI circuits, add a portable GFCI tester to your toolkit. Never bypass GFCIs–even a minor shock can be fatal in wet conditions.
Monitor power consumption with a clamp-on ammeter or built-in system monitor. Load calculations should account for all devices: a typical RV air conditioner draws 12-16 A, while a microwave uses 10-12 A. Avoid running high-draw appliances simultaneously–this overloads sub-circuits and triggers breakers. For dry camping, prioritize energy-efficient devices and consider a 30-A adapter with a load monitor if downgrading from a 50-A source. Always shut off the main disconnect before performing any maintenance to prevent arcs.
Guide to Installing a 50-Ampere Recreational Vehicle Outlet
Begin by securing a 50-ampere breaker in your main panel–typically a double-pole unit rated for 240 volts. Position it near the top of the box for easier cable routing and ensure the power is off before handling any connections. Label the breaker clearly to prevent accidental activation during maintenance.
Run a 6-gauge copper cable (or 4-gauge aluminum, if cost is a factor) from the breaker to the outlet location. Bury underground conduit at least 18 inches deep if routing outdoors, using Schedule 40 PVC for durability. For indoor runs, mount the conduit along joists or through walls, avoiding sharp bends to prevent wire strain.
Outlet and Ground Installation
Mount the NEMA 14-50 receptacle in a weatherproof box if installing outdoors–plastic or metal based on local code requirements. Drill a ¾-inch hole in the box’s back for the ground rod connection. Drive an 8-foot copper grounding rod at least 6 feet away from the outlet, then bond it to the box using a 6-gauge bare copper wire.
Strip ¾ inch of insulation from each conductor–black (hot), red (hot), white (neutral), and green (ground). Connect the black and red wires to the brass terminals at the top of the receptacle, white to the silver terminal, and green to the green grounding screw. Tighten all screws to 12 inch-pounds using a torque screwdriver to prevent loosening.
Final Checks and Testing

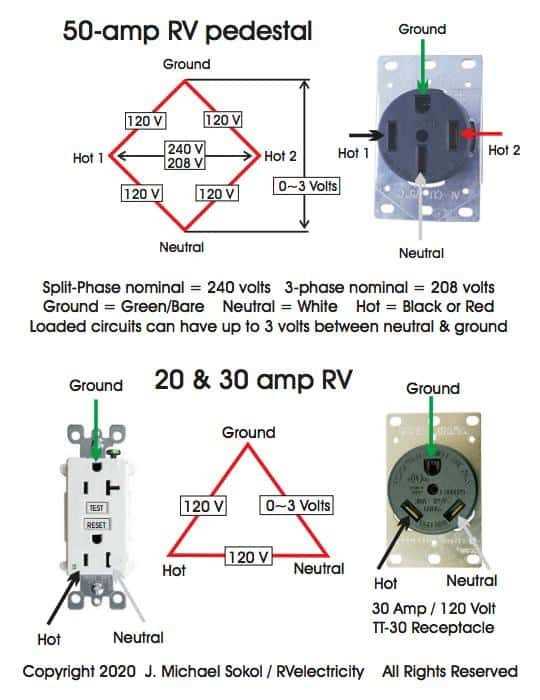

Before energizing, use a multimeter to verify zero volts between conductors and ground. Restore power at the panel, then test the outlet: set the multimeter to 240 volts AC and confirm 240V between the two hot terminals, 120V from each hot to neutral, and zero volts between neutral and ground. If readings deviate, retrace connections for errors.
Seal exposed connections with heat-shrink tubing or liquid electrical tape, then cover the box with a weatherproof lid. For safety, add a lockout tag to the breaker during RV hookup to alert others of live circuits. Store spare 6-gauge wire and a spare 50-ampere plug in the RV’s toolkit for emergency repairs.
