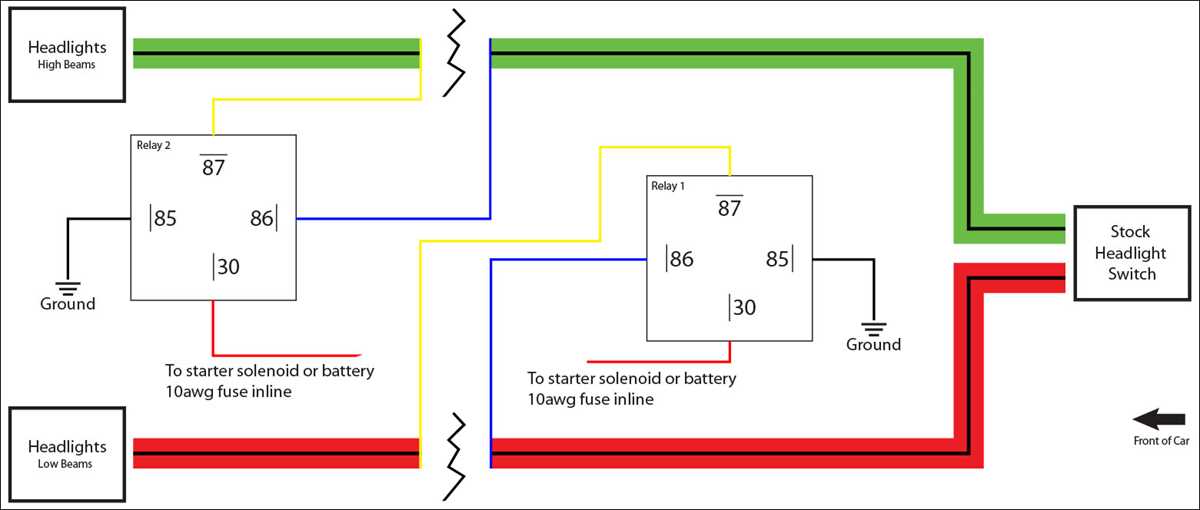

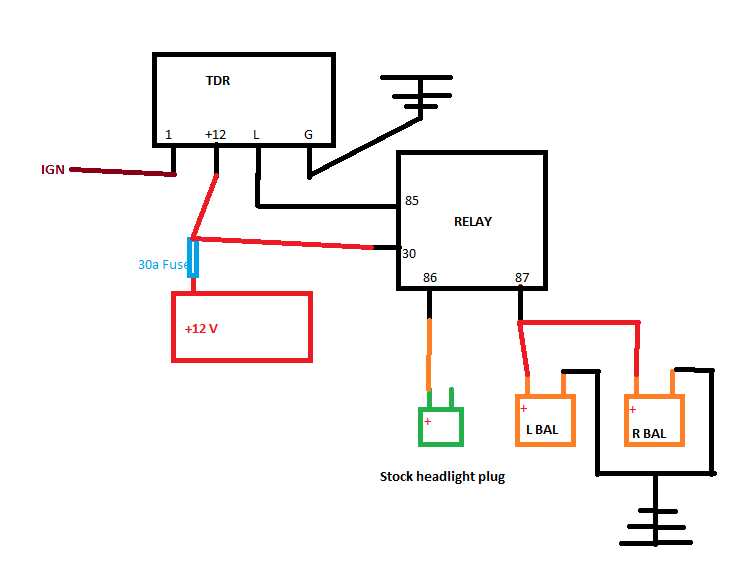

A properly configured electrical switch module for front illumination systems can prevent voltage drops, burnouts, and erratic operation. Use a four-pin SPST configuration as the baseline: pin 85 to ground, pin 86 to the control trigger (steering column stalk or main light switch), pin 30 to the battery via a fuse (minimum 15A), and pin 87 to the bulb sockets. Verify wire gauge–14 AWG for standard halogens, 12 AWG for HID or LED setups. Always include a flyback diode (1N4007) across the coil terminals to suppress inductive spikes when disconnecting.
Trace potential failure points before installation. Check the existing electrical schematic for shared grounds–common corrosion sites on older vehicles often occur at chassis attachment screws. If retrofitting a factory system, locate the OEM harness splice; bypassing it entirely risks triggering false error codes on CAN-bus models. A digital multimeter set to continuity mode should confirm clean pathways between the module output and lamp connectors. If resistance exceeds 0.5 ohms, strip and solder joints instead of relying on crimp connectors prone to oxidation.
Select module specifications based on lamp load. Standard 30/40A relays handle most single-beam units, but dual-filament bulbs require a DPST configuration or separate modules. High-current setups (>150W) demand heavy-duty 70A contacts with heat-resistant Teflon insulation around power leads. Route wiring away from hot exhaust manifolds and sharp edges; secure with split loom tubing and zip ties every 15cm to prevent chafing. Include an inline fuse holder near the battery terminal–never rely solely on the OEM fuse box for secondary circuits.
Avoid daisy-chaining multiple lamps to one output. Each bulb should have dedicated wiring back to the module output terminal. For adaptive systems (auto-leveling, cornering lights), integrate a second control module with feedback sensors, ensuring the CAN lines remain segregated from power circuits. Test the assembled circuit with the engine running at 2000 RPM–voltage readings under load should not drop below 12.8V at the lamp connectors. If flickering persists, add a solid-state voltage stabilizer between the module and bulbs.
Automotive Lighting Circuit Guide
Connect the control circuit’s 85 terminal to a 12V signal source–typically the light switch’s low-current output. Use 16-gauge wire for this path to prevent voltage drop under activation. Ground terminal 86 directly to the chassis with a 12-gauge conductor, ensuring a clean return path; avoid daisy-chaining grounds to prevent interference with sensitive electronics.
Load Path Configuration
Attach the high-beam or low-beam filament’s power input to terminal 30 using 10-gauge cable–this handles up to 30A continuously. Route terminal 87 to the lamp socket with identical gauge wire, bypassing factory fuse blocks if they restrict current flow. Verify the existing fuse in the OEM harness matches the circuit’s rating; upgrade to a 20A blade fuse if driving halogen bulbs or 25A for HID conversions.
For dual-filament setups, split the output from terminal 87 using a Y-splice: one branch to the primary beam, the other to the secondary. Label each branch with heat-shrink tubing–red for high, yellow for low–to simplify future diagnostics. Test activation with a multimeter before reinstalling the front fascia; expected readings are 0.2V drop across terminals 30-87 under load.
How to Identify the Correct Pins on an Automotive Light Switching Module
Examine the module’s housing for engraved labels or symbols. Most manufacturers mark pins with numbers (e.g., 85, 86, 87, 30) or letters (e.g., C, NO, NC). If no markings exist, consult the vehicle’s service manual–it typically includes a pinout reference for the specific switch type.
Use a multimeter in continuity mode to test connections. Connect one probe to a known ground terminal (usually the coil’s negative side, often pin 85 or 86), and the other to suspected load or power pins. A beep confirms the correct circuit path.
Identify the coil terminals first–they’re usually thinner and designed for low-current control signals. One coil pin connects to a switch (low-amperage input), while the other links to ground or a control module. Apply 12V directly to these pins to verify operation–hearing a click indicates proper function.
Locate the common contact (often labeled 30), which serves as the central power feed. It connects to the vehicle’s fuse box or battery via a dedicated line. This pin remains energized regardless of switching state and supplies current to the output terminals.
Testing Output Terminals
Probe the normally open (NO) and normally closed (NC) contacts. With no voltage applied to the coil, the NO contact should show infinite resistance, while the NC contact (if present) registers continuity with the common pin. Energizing the coil reverses these readings–NO closes, NC opens.
Check for voltage drop across the contacts under load. A healthy module shouldn’t exceed 0.2V loss between the common pin and output when powering a bulb or resistor. Higher readings suggest corrosion or wear requiring replacement.
For modules with multiple outputs (e.g., high/low beam variants), compare resistance between all pins. Identical readings on duplicate circuits (e.g., pins 87 and 87a) indicate shared functionality, while isolated pins control separate loads.
Refer to aftermarket documentation if original markings are missing. Aftermarket modules often use standardized layouts, such as Bosch-style pinouts (85: coil, 86: coil, 30: power, 87: output). Cross-reference part numbers with online databases to confirm pin assignments.
Step-by-Step Guide to Connecting Light Control Module Cables
Locate the vehicle’s main power distribution panel beneath the dashboard or hood–this is where the primary fuse box is mounted. Identify the 12V constant power source, typically a thick red cable leading from the battery. Verify voltage with a multimeter to ensure it reads a stable 12–14V before proceeding. Skipping this check risks damaging the module.
Select a 30-amp fuse for the power feed to the control unit. Insert it into an empty slot in the fuse box, connecting the input terminal of the module’s harness to the fuse’s output side. Use a crimp connector or solder joint for this connection–twisting wires alone causes resistance and heat buildup over time.
Connect the module’s ground cable to a bare metal surface on the chassis. Avoid painted or coated areas; sand off corrosion if present. A poor ground causes flickering or intermittent failure. Test continuity with a multimeter–readings above 0.5 ohms indicate a defective connection.
| Component | Wire Gauge | Color Code (Standard) |
|---|---|---|
| Power input | 10–12 AWG | Red |
| Ground | 10–12 AWG | Black |
| Output to lights | 14–16 AWG | Yellow/White |
| Trigger input | 18 AWG | Blue |
Attach the trigger wire to the vehicle’s low-beam switch output. This signal activates the module when the switch is turned on. Secure the connection with a waterproof butt splice–exposure to moisture leads to short circuits. Route all cables away from moving parts or sharp edges to prevent wear.
Complete the circuit by linking the module’s output to the light assembly. Strip 6–8 mm of insulation from each end, twist tightly, and apply heat-shrink tubing or electrical tape to seal. Reinstall the fuse, start the engine, and test functionality. If lights fail, recheck ground and trigger connections first–these are the most common failure points.
Troubleshooting Common Issues
Dim or erratic light output usually indicates a voltage drop. Measure voltage at the light assembly–readings below 11.5V suggest a corroded terminal or undersized cable. Corrosion appears as white powder or greenish residue; clean terminals with a wire brush and apply dielectric grease. If voltage is normal, inspect the module for burned components or loose internal connections.
Frequent Errors in Automotive Light Circuit Connections and Corrective Measures
Choosing undersized conductors for the power feed causes voltage drop and overheating. Use 12-gauge or thicker cables for circuits carrying over 20 amps. Measure actual current draw with a multimeter before selecting wire size–factory specs often list peak inrush values that exceed steady-state operation.
- Observe polarity on the control side: reversing the switch connections leads to relay coil burnout.
- Avoid tapping into existing fuse panels without calculating total load; cumulative current can exceed the panel’s rating.
- Install heat-shrink terminals on all splices; exposed copper corrodes within weeks in high-moisture environments.
Grounding through painted or rusted surfaces creates resistance that mimics bulb failure. Drill a dedicated 8 mm hole and secure the ground terminal directly to bare metal, then apply dielectric grease to prevent oxidation. Verify ground integrity with a continuity test before final assembly.
Ignoring circuit protection by using straight-through connections risks shorting the battery. Insert a 20-amp fuse within 20 cm of the power source. For multiple lights, distribute fuses–one per pair–to isolate faults without disabling the entire array.
Mount the switching module too close to heat sources like exhaust manifolds. Keep it below 80°C ambient; use a plastic junction box at least 15 cm away from thermal surfaces. Test operation after engine reaches full temperature–coil resistance varies with heat, altering pull-in voltage.
- Always disconnect the battery before making connections to prevent accidental shorts.
- Route cables through grommets; sharp edges shear insulation over time.
- Label every connection with numbered tags to simplify troubleshooting later.
- Use a torque screwdriver on terminals–over-tightening strips threads, under-tightening causes intermittent contact.
Assuming factory connectors fit aftermarket components often leads to mismatched pins. Crimp custom terminals if necessary, ensuring mating surfaces align fully. Test continuity through the entire harness before vehicle reassembly–false positives occur if only partial circuits are checked.
