Begin by identifying the power sources–batteries, generators, or AC supplies–marked as straight lines (DC) or sinusoidal waves (AC). Note their polarity or phase: a plus sign or thicker line indicates positive, while arrows or vertical bars signal ground. Voltage values in volts (V) or millivolts (mV) appear near these elements; compare them against component ratings (e.g., resistors labeled in ohms, capacitors in farads) to spot mismatches.
Trace conductors as single horizontal or vertical rules. Junctions form where lines intersect; dots confirm intentional connections, while crossings without dots imply no link. Look for breaks or gaps–these denote switches (mechanical, transistors, or relays). Nearby labels (e.g., S1, Q2) map to legends or tables detailing their states: normally open (NO), closed (NC), or logic levels (HIGH/LOW).
Decipher passive parts first. Resistors use zigzag patterns with values like 470Ω or 10k; capacitors appear as parallel lines (non-polarized) or a curved line (polarized) with microfarad units. Inductors coil into loops, often paired with henry ratings. Semiconductors–diodes (triangles), transistors (three-prong shapes)–require pin orientation: flat sides or dots mark collectors/bases/anodes. Cross-reference these against datasheets for pinouts.
Locate integrated circuits (ICs) as rectangles with numbered pins. Count pins clockwise from a notch or dot–pin 1–then match numbers to reference designators (e.g., U5). Interior labels (e.g., VCC, GND, OUT) align with the IC’s internal block diagram. Verify supply voltages (typical 3.3V or 5V) against nearby decoupling capacitors (usually 0.1µF) to prevent noise.
Check for hidden feedback loops or parallel paths. Dashed lines indicate shielding or mechanical linkages; arrows show signal flow, not current. Thermals (triangle symbols) attach to temperature-sensitive resistors or ICs; note their threshold values (e.g., 25°C). For digital gates (AND, OR, NOT), inputs enter on the left, outputs exit right–validate logic against truth tables.
Measure node voltages with a multimeter: probe test points labeled TP1, TP2, or color-coded wires (red for power, black for ground). Use Kirchhoff’s laws to verify loops–algebraic sums of voltages must equal zero. If a component’s voltage drop deviates (e.g., resistor dissipating 0.7V instead of 5V), suspect shorts, open circuits, or incorrect values.
Interpreting Schematic Blueprints
Begin by identifying the power source–typically a battery, generator, or power supply–marked by symbols like a long and short parallel line or a circle with polarity indicators. Trace its connections to components in one continuous path, noting how current flows from positive to negative terminals. Pay attention to labels such as “Vcc,” “GND,” or voltage values (e.g., “+5V”) to confirm polarity and expected voltage levels at critical points.
- Resistors: Zigzag lines with numeric values (e.g., “470Ω” or “1k”) or color bands.
- Capacitors: Two parallel lines (non-polarized) or a curved line with a straight line (polarized, marked “+”).
- Transistors: Three-terminal symbols like “NPN” (arrow pointing out) or “PNP” (arrow pointing in).
- Switches: Break in a line with a diagonal or lever symbol, often labeled “SW” or “S1.”
Locate control elements–buttons, relays, or ICs–and isolate their pinouts using datasheets. Integrated circuits (ICs) appear as rectangles with numbered pins; pin 1 is usually marked by a dot, notch, or angled corner. Cross-reference these numbers with manufacturer documentation to verify functions like “CLK,” “DATA,” or “Vdd.” Avoid assumptions–some schematics omit pin labels, requiring external verification.
- Scan for ground symbols (a downward triangle or “GND”)–all ground points are electrically common and critical for debugging.
- Check for dashed or dotted lines indicating mechanical linkages (e.g., switches mechanically coupled to potentiometers).
- Highlight high-current paths (thicker lines or bolder strokes) to identify potential heat sources or load-bearing traces.
- Note component groupings–clusters of resistors/capacitors near an IC often form filters or decoupling networks.
Use a multimeter in continuity mode to validate connections if the schematic conflicts with the physical board. Probe test points labeled “TP1” or “PAD2” to confirm signal presence or voltage. Refer to revision notes (e.g., “Rev. B – R10 added”) for last-minute changes not reflected in the primary drawing.
Demystifying Key Schematic Signs and Their Functions
Begin by locating the resistor symbol–a zigzag line or a rectangle with “R” inside. This component restricts current flow; values are often marked alongside, measured in ohms (Ω). Power ratings (e.g., 1/4W, 1W) matter for heat dissipation; ignore this and risk failure.
Capacitors appear as two parallel lines (non-polarized) or one curved line (polarized, like electrolytics). Microfarads (µF) or picofarads (pF) dictate storage capacity. Polarized types demand correct orientation–reverse polarity destroys them instantly.
Transistors split into BJTs (three terminals) and MOSFETs (gate, drain, source). BJTs show an arrow on the emitter (NPN/PNP); MOSFETs lack it but use “T” or “U” shapes. Check datasheets for pinouts–misalignment fries the device.
Switches come as mechanical (open/closed contacts) or momentary (pushbuttons). SPDT (single-pole double-throw) toggles between two paths; DPDT doubles that. Solid-state variants (e.g., optocouplers) isolate circuits via light.
Inductors show coiled loops or filled rectangles. Henries (H) quantify energy storage; RF chokes and transformers add dots to denote phasing. Core materials (air, iron, ferrite) alter frequency response–adjust accordingly.
Diodes let current flow one way, marked by a triangle pointing to a line. LEDs replace the line with an arrow emitting light; zener diodes add a bent line for voltage regulation. Check forward voltage (e.g., 0.7V silicon)–exceeding it clips signals.

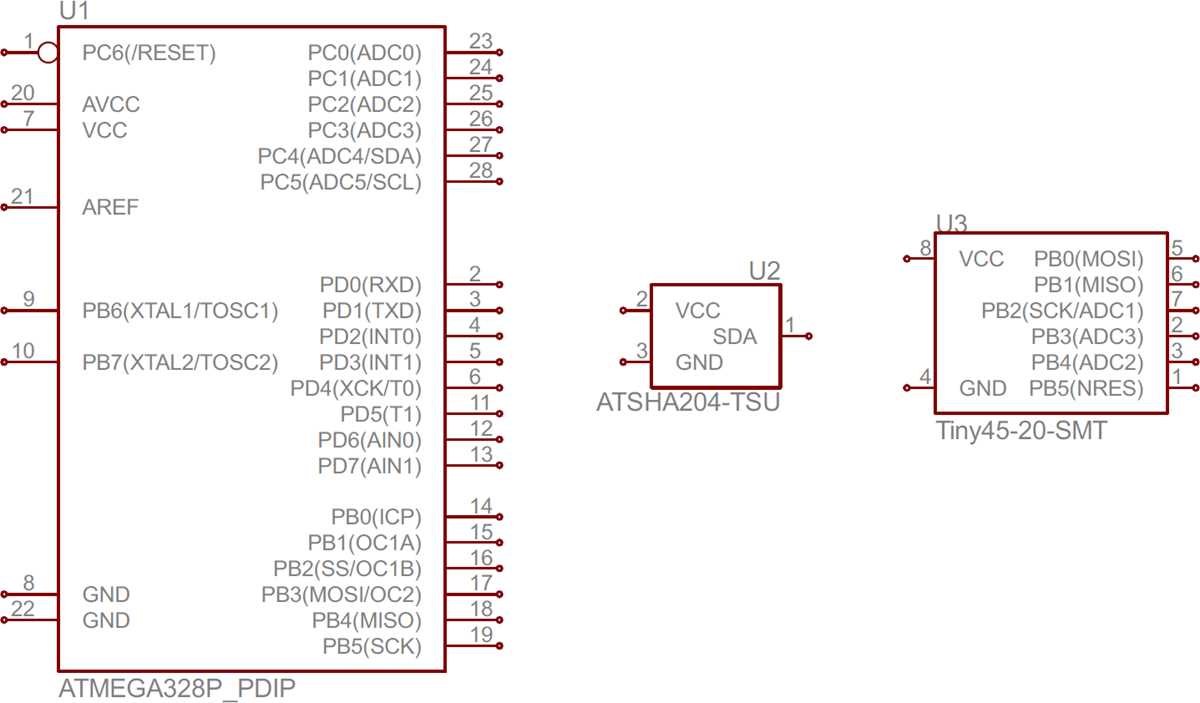

ICs (integrated chips) are rectangles with pin numbers circling the edges. Labels like “LM358” or “ATmega328” hint at function (op-amp, microcontroller). Pin configurations vary–always cross-reference manufacturer specs to avoid shorts.
Understanding Power Sources and Ground References
Start by identifying the primary voltage supply symbols–typically a battery, DC source, or AC mains icon. Standard battery symbols use parallel lines with varying lengths: the longer line represents the positive terminal (+), while the shorter denotes the negative or ground reference (-). AC sources are marked by a sine wave inside a circle or transformer core shapes. Verify voltage ratings adjacent to these symbols; a missing value suggests an incomplete schematic or assumed standard (e.g., 5V, 12V).
Ground references divide into three categories: earth, chassis, and signal grounds. Earth grounds connect to a physical earth rod or building metalwork, denoted by a downward triangle with three horizontal lines. Chassis grounds use a similar symbol but lack the third line–these link components to the equipment’s metal frame. Signal grounds, marked by a single triangle, isolate low-level analog or digital paths from noisy power grounds. Mixing these may induce interference, risking component damage or erratic behavior.
| Symbol | Type | Typical Use | Voltage Noise Tolerance |
|---|---|---|---|
| ▼ | Earth | Safety bonding | <10mV |
| ▽ | Chassis | Frame return path | 50mV–100mV |
| △ | Signal | Low-level analog/digital | <1mV |
Follow power rails from source to load–notate voltage drops across resistors, inductors, and diodes. A short arrow line along the rail often indicates intended current flow direction, though physical electron movement opposes conventional current. Check for fuses or PTC polyfuses: a series rectangle near the supply entry point means overcurrent protection. Diodes in series act as reverse polarity guards; their orientation dictates permissible current direction.
Isolate floating supplies–these lack a direct ground connection, common in isolated DC-DC converters. A transformer symbol with secondary side ungrounded signifies a floating output. Measure differential voltage between the supply terminals, not to a common ground. Ground loops occur when multiple paths share earth or chassis references, introducing AC hum or DC offsets. Break loops with optocouplers, differential amplifiers, or ferrite beads.
Validate ground star points: all signal grounds should converge at a single node close to the power supply. This minimizes ground bounce–voltage spikes caused by rapid current changes across trace inductance. Digital logic (e.g., microcontrollers) often includes separate analog and digital grounds; bridge them at one point only via a 0Ω resistor or ferrite jumper. Capacitors (100nF ceramic) placed within 5mm of IC power pins bypass high-frequency noise to their nearest ground node.
Use a multimeter in continuity mode to trace disconnected symbols. Beep tones confirm paths; open circuits may reveal missing text labels, unintended cuts, or omitted jumpers. Annotate schematic copies with measured voltages–highlight deviations from expected values (e.g., 4.8V instead of 5V). Overlapping ground pours on PCBs require thermal reliefs–small crosshatched connections–preventing soldering difficulties while maintaining low impedance.
Tracing Signal Paths in Sequential and Branched Layouts
Start at the power origin–typically a battery or supply terminal–and follow the conductor towards the first component. In a linear arrangement, each element connects end-to-end; the signal exits one device and enters the next without diversion. Confirm continuity by checking for unbroken lines between nodes, noting voltage drops across each part. If measurements show full supply voltage at the final load, the path is intact. Interruptions or unexpected drops indicate breaks, faulty connections, or mismatched component values.

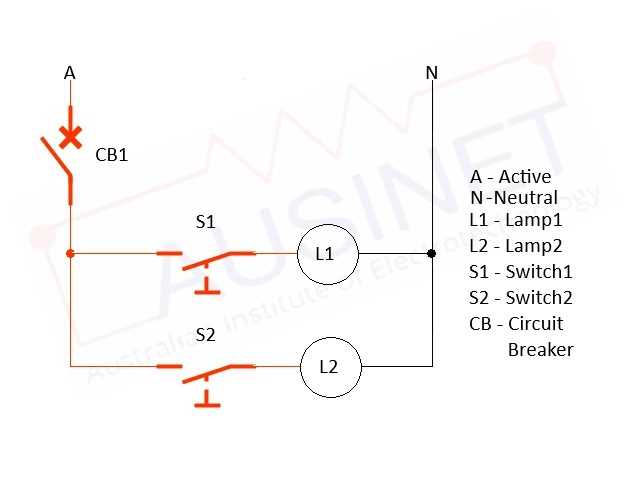

Branched configurations split the current into multiple routes. Identify bifurcation points where the flow divides, then track each branch individually. Use Kirchhoff’s current law: the sum of currents entering a junction equals the sum leaving. Verify this by measuring currents at each split–mismatches reveal shorts, open paths, or incorrect component selection. Label each branch with expected values before testing; deviations pinpoint where troubleshooting should focus. Replace general approximations with precise ohmic calculations for resistors, ensuring predicted currents match observed behavior.
