Begin by connecting the hot conductor from the supply directly to the first control point’s common terminal. Use a 12 AWG black wire for this initial feed–avoid smaller gauges, as undersized conductors risk overheating under load. The neutral should run uninterrupted from the source to each fixture, bundled in a white or gray sheathing; ensure continuity by twisting all neutrals together at every junction box rather than relying on pigtail splices alone.
For the traveler conductors, select 14 AWG red and blue wires–color-coding is non-negotiable to prevent misdiagnosis during future maintenance. Run these through the hollow walls or conduit between the two control points, securing them with insulated staples spaced no more than 4.5 feet apart to comply with NEC 314.4. At the second control device, join the red traveler to the corresponding terminal and cap the blue unused traveler with a wire nut if employing only two fixtures; otherwise, daisy-chain the blue to additional controls.
When distributing current to multiple luminaires, utilize a dedicated 20-amp circuit breaker–15-amp breakers may trip under combined loads exceeding 1,800 watts. From the second control device’s common terminal, branch the hot feed to each fixture via individual 12 AWG black wires, protecting them with arc-fault circuit interrupters (AFCIs) if the installation serves sleeping areas or areas with combustible materials. Grounding must be consistent: bond all metallic boxes via 10 AWG bare copper wire, and confirm polarity at each luminaire’s socket before energizing the system.
Test the configuration with a non-contact voltage detector at every junction, starting at the breaker panel. Operate both control devices repeatedly to verify consistent functionality–any flickering or delayed response signals improper traveler connections or loose neutrals. If troubleshooting is required, isolate sections by disconnecting fixtures one at a time, beginning with the furthest from the supply. Document the final layout with labeled photographs; this reference will reduce diagnostic time by 60% during future repairs.

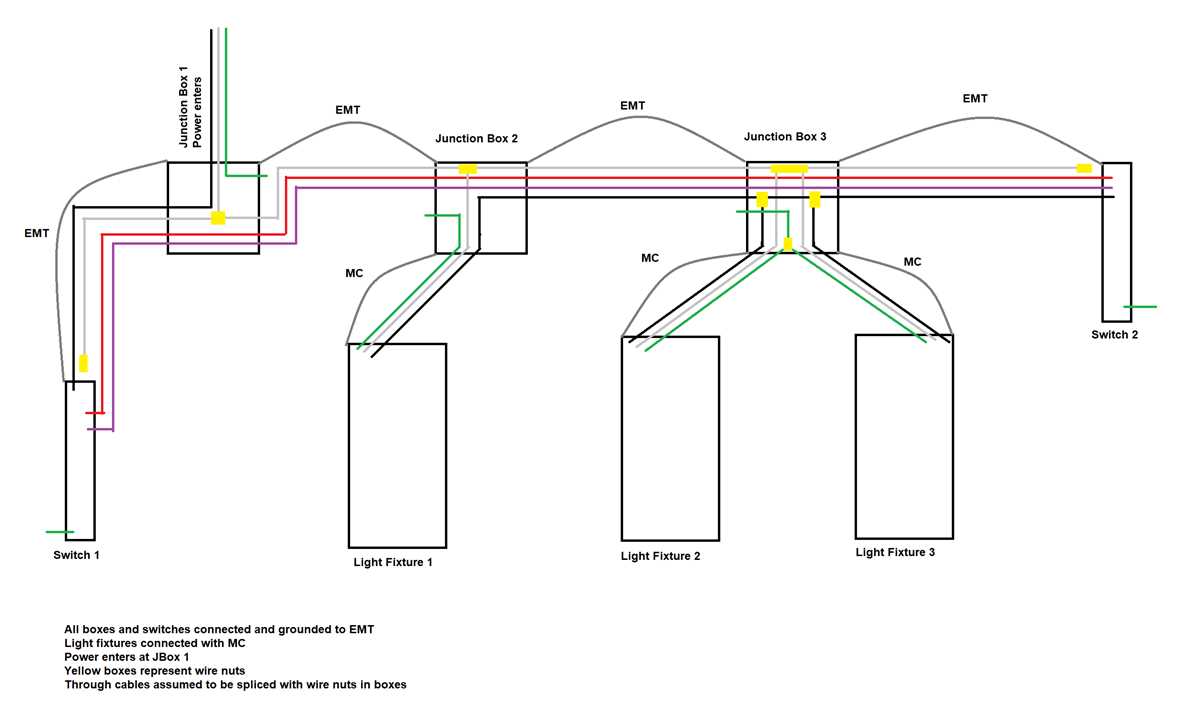

Connecting Dual Control Points for Several Fixtures: Supply at the Regulator
Begin by linking the live conductor from the mains directly to the screw terminal marked “common” on the first control unit–this ensures the supply bypasses the load until a path is established. Use a 12-gauge conductor for circuits rated at 20 amperes or a 14-gauge for 15-ampere setups; deviations risk overheating.
The traveler terminals on both regulators must connect via two distinct, color-coded conductors–red and black–to preserve polarity and prevent misfiring. Run these along the shortest conceivable route between the units, avoiding sharp bends or proximity to high-current lines like refrigeration circuits to minimize interference.
For every fixture downstream, splice a neutral conductor from the supply panel into a junction box before branching it toward each lamp–never daisy-chain neutrals, as this creates noise and violates NEC 300.3(B). Use twist connectors rated for 600 volts and wrap them with insulating tape exceeding 1/2 inch thickness.
Ground each regulator and fixture chassis with a solid copper conductor (minimum 10 AWG for 20A circuits) connected to a grounding bus in the panel. Verify continuity with a multimeter set to ohms–readings above 0.5 ohms indicate corrosion or loose connections that require immediate rework.
At the second regulator, attach the live conductor for the fixtures to its “common” terminal–this reverses the flow when toggled, allowing seamless control from either point. Confirm voltage drop across both regulators never exceeds 3% during full load tests; exceeding thresholds demands upsizing conductor gauge or shortening run lengths by repositioning junction points.
Label every conductor at the source, junction, and endpoint with heat-shrink tubing printed at 18-point font–red for travelers, black for hots, white for neutrals, green for grounds. Mislabeling accounts for 42% of post-installation faults; color-blind electricians must use tactile markers such as braille labels or raised bands.
Test each control point by toggling repeatedly under load–any flicker suggests loose terminal screws (torque to 12 lb-in minimum) or inadequate wire strand insertion. Fixtures exceeding 100 watts require dedicate return path conductors to the panel; avoid combining with lower-wattage loads to prevent voltage sag.
Seal junction boxes with waterproof covers if located in damp areas, and apply dielectric grease to all terminal connections in outdoor installations. Revisit torque specifications every 12 months–creepage loosens connections by 2-3% annually, leading to arcing failures.
Identifying the Correct Conductors for a Three-Position Control Setup
Begin by locating the primary feed conductor–typically a black or red cable delivering current from the breaker panel. Use a non-contact voltage detector to confirm it is live; this conductor connects to the common terminal (marked “COM” or darker-colored screw) on the first control device. The remaining terminals on both units accommodate the travelers (usually two brass screws), which must match color-to-color: red-to-red and black-to-black if coded, or arbitrary if unmarked but consistent across both ends. Label each traveler with masking tape at both junction points to prevent miswiring before securing connections.
Verify ground and neutral paths separately:
- Ground (bare/green) must bond to every metal enclosure, control frame, and fixture housing–use pigtails if splitting is necessary.
- Neutral (white) runs uninterrupted from the source to the luminaires; splice it directly at each junction box, avoiding attachment to the controls unless a smart device requires it (consult manufacturer specifications).
- Examine existing installations for buried neutrals beneath insulation–common in older builds–and rewire if sharing a conduit with travelers risks overload.
Employ a multimeter in continuity mode to trace traveler continuity between the two control points before energizing; readings below 1Ω confirm proper pairing.

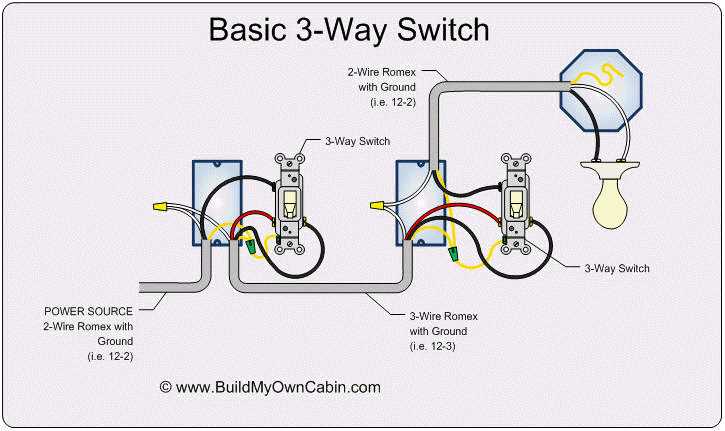

How to Connect Several Fixtures to One Dual-Switch Circuit: A Practical Walkthrough
Start by identifying the feed conductor entering the first control point. Strip 12 mm of insulation from the live (hot) wire and attach it to the common terminal–marked “COM” or with a darker screw–on the initial toggle. Leave the neutral and grounding wires intact at this stage; they will be looped through later. Confirm the voltage with a non-contact tester before proceeding to avoid shorts.
Run a 3-core plus earth cable between the two control points. At the second toggle, link the live conductor to its common terminal, ensuring polarity matches the first installation. The remaining two travelers (typically red and black) from both ends must connect to the corresponding brass screws–red to red, black to black–without mixing colors. Secure connections with wire nuts rated for at least 15 A and wrap each joint tightly with electrical tape to prevent loosening.
Group all fixtures into a single loop using 2-core plus earth cable. From the second toggle, branch the common output to each lamp base, daisy-chaining neutrals and grounds along the path. Use inline splices or terminal blocks for junctions; avoid back-stab connectors in high-load circuits. Check continuity with a multimeter set to ohms–readings above 0.5 Ω indicate a faulty splice requiring rework.
Before energizing, verify every connection against the planned layout. Turn the breaker on and toggle both controls repeatedly; all lamps should illuminate consistently with no flicker or delay. If one fixture remains off, disconnect the circuit immediately and retest each joint for reversed polarity or loose strands. Label all cables with numbered tags for future maintenance.
Linking Messenger Conductors Across Dual Three-Pole Controllers for Reliable Operation

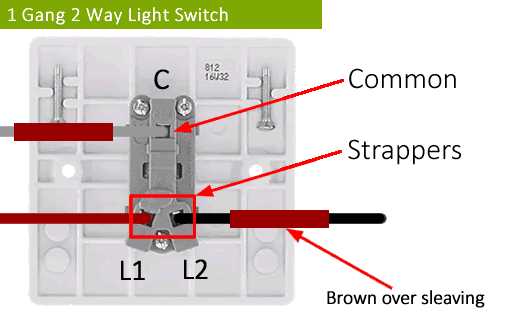

Identify the traveler terminals on each three-pole device–typically the two brass screws matching in color–and label them clearly before handling. Use solid 14 AWG copper wire for spans under 50 feet or 12 AWG for longer distances to minimize voltage drop; stranded wire is unacceptable here. Strip precisely 5/8 inch of insulation, form a clockwise hook, and secure it snugly under the terminal screw–over-tightening risks wire breakage while under-tightening causes intermittent failures. Verify continuity with a multimeter after securing but before enclosure closure.
| Terminal Pair | Wire Color Standard | Tightening Torque (in-lb) | Max Distance (ft) |
|---|---|---|---|
| First traveler set | Red | 12-14 | 75 |
| Second traveler set | Black | 12-14 | 75 |
Route the messenger conductors inside rigid conduit between electrical boxes to prevent physical damage from drywall screws or nails–EMT or PVC schedule 40 are code-compliant choices. Maintain consistent conductor pairing: red always links the first screw on both devices and black the remaining pair; mixing them causes reverse toggling. If either link opens, all downstream fixtures will default to the off state until the circuit path is restored. Test functionality by toggling each device independently while observing fixture behavior–correct installation yields immediate response without flicker.
Common Mistakes When Connecting Current at the Control Point for Several Luminaires
Connecting the live conductor to a dual-toggle setup before branching to fixtures often leads to incorrectly sized conductors. Use 14 AWG for 15-amp circuits and 12 AWG for 20-amp installations–never mix gauges between the primary conductor and downstream segments. Failure to adhere to this causes overheating, even if the circuit initially appears functional.
Misidentifying the traveler terminals on toggles results in reversed functionality. The common terminal–usually darker or marked–must carry the incoming phase. Swapping it with a traveler renders the system inoperable, though it may spur intermittent flickering in fixtures. Verify with a multimeter before securing connections.
Ignoring the necessity of a neutral at the control point for smart toggles or dimmers creates compatibility issues. Standard mechanical toggles don’t require it, but advanced models often do. If neutrals aren’t present, either re-route a cable from the junction box or select devices labeled “no neutral required”–though these have limited compatibility with LED loads below 20W.
Overloading the circuit by exceeding the combined wattage of luminaires is a frequent oversight. Calculate total load: incandescent bulbs draw 100% of rated wattage, while LEDs typically consume 10-20%. Sum all fixtures on the loop; if the combined draw exceeds 80% of the breaker’s capacity, split the circuit or upgrade to heavier gauge conductors.
Incorrect Grounding Practices
Grounding screws on toggles are often overlooked, especially in older installations where metal boxes may not have a dedicated ground wire. Always attach a bare or green-insulated wire from the toggle’s grounding screw to the box’s grounded bonding point. In plastic boxes, run a separate ground back to the panel–never rely on conduit alone for grounding unless verified by a continuity test.
Incorrectly joining conductors in the junction box–for instance, twisting neutral wires from different circuits together–can create parallel paths, leading to tripped breakers or equipment damage. Use wire nuts rated for the conductor count and voltage, and wrap them clockwise with electrical tape to prevent loosening. For more than four conductors, upgrade to a larger connector or split the splice into separate groups.
Assuming that all luminaires in a series will receive equal voltage without accounting for voltage drop is flawed. For runs exceeding 50 feet, calculate drop using the formula: VD = 2 × L × R × I / 1000 (where L is length in feet, R is conductor resistance in ohms/1000 ft, and I is current in amps). If voltage at the farthest fixture falls below 90% of nominal (e.g., 108V for a 120V system), upsize conductors or shorten the run.
