Start repairs by sourcing the official board layout from authorized service providers–third-party uploads often contain errors in signal routing or power delivery annotations. Verify document version against the device’s model identifier (e.g., A2779, A2485) printed on the bottom case; mismatches invalidate component placements and voltage rails.
Critical caution: Trace ground planes before probing–high-capacity batteries (100Wh+) retain charge after disassembly and can arc across 0.1mm gaps. Use an ESR meter to confirm decoupling capacitors maintain ≤5Ω impedance; failing these disrupts firmware updates and sensor calibration cycles. The embedded controller’s JTAG interface (pins 12–17, J4800) bypasses software locks but requires a 3.3V logic analyzer to decode.
Focus on the power tree first: PPBUS_G3H (12.6V), PP3V3_G3H (3.3V), and PP1V8_SLPS2R (1.8V) must stabilize within ±2% before diagnostic mode engages. Schematics mark test points–red (soft power), green (USB-C lanes), and gray (thermal sensor data)–accessible under the palm rest bracket. Replace any corroded LC filters (common near speaker flex cables)–oxidation causes intermittent display artifacts or kernel panics.
For firmware recovery, cross-reference the I/O board pinout with the Thunderbolt 3 retimer IC (Titan Ridge 2C); incorrect reflashes brick SMC communication. MAC address programming requires an external EEPROM flasher configured to 1MHz SPI clock. Always discharge static-sensitive areas with a wrist strap connected to chassis ground–static buildup destroys unshielded RF amplifiers (Wi-Fi 6E modules).
Reverse-Engineering Portable Workstation Circuitry: Hands-On Reference
Locate the power delivery network first. On high-end laptop logic boards, the primary power rails converge near the charging IC (common models: ISL9240, TI BQ series). Probe test points labeled PPBUS_G3H (≈12.6V), PP3V3_G3H (3.3V standby), and PP5V_S5 (5V standby) with a multimeter. If voltages deviate by ±5%, isolate the fault by checking:
- Input fuse resistance (should be <0.5Ω)
- Charging IC thermal shutdown (reflow or replace if overheating)
- Fuel gauge (BQ27Z561) data corruption (requires firmware reflash)

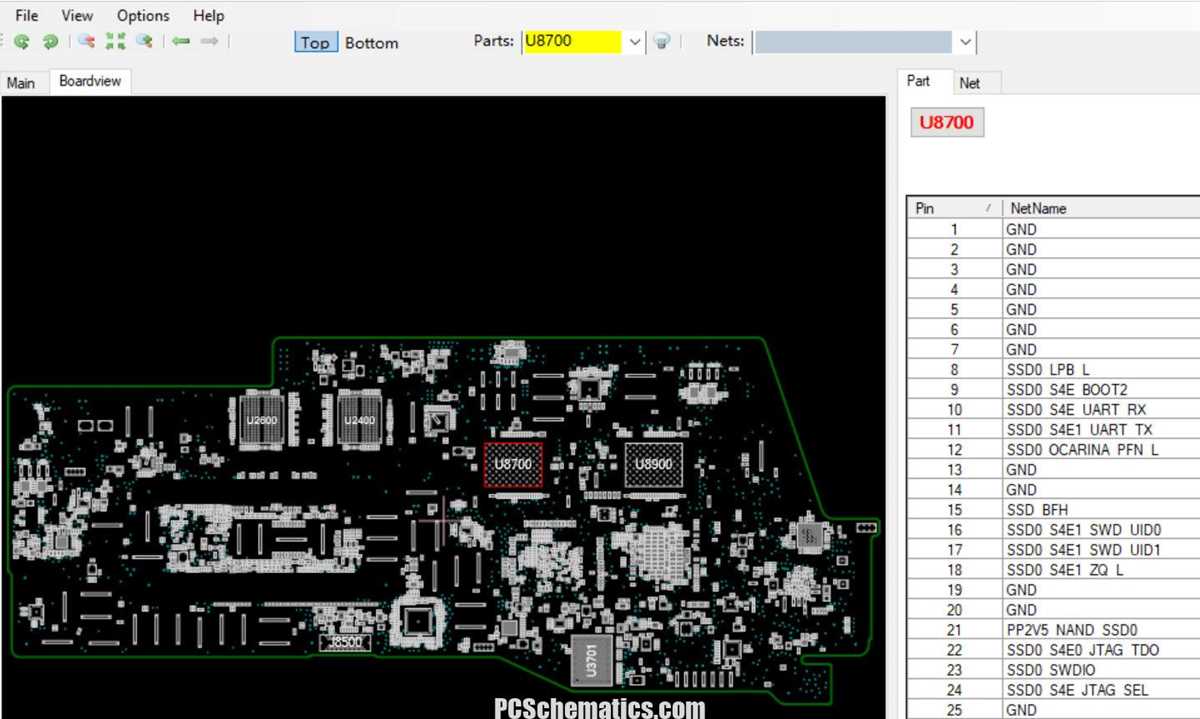

Trace signal paths with a known-good board comparison. Use a high-resolution boardview file (.brd) for your specific model variant (A2141, A1989, etc.). Key layers to inspect:
- Layer 1 (top): CPU power planes and DDR4 traces
- Layer 2: Ground pours and thermal vias
- Layer 4: PCIe lanes (x4 for SSD, x16 for GPU)
Look for micro-cracks in the solder mask or delamination near high-stress areas (hinge flex zones, RAM slots).
Validate USB-C port circuitry systematically. Each port uses a dedicated retimer chip (TI TUSB1042 or Parade PS8740) with these critical pins:
- CC1/CC2: Cable detection (voltage should toggle between 0.2V–2.7V)
- SBU1/SBU2: Sideband use (≈3.3V in DisplayPort alt mode)
- TX1+/TX1-/RX2+/RX2-: Differential pairs (check impedance: 90Ω ±10%)
If ports fail, replace the retimer before suspecting the T2 security chip or Thunderbolt controller (Intel DSL6540).
Diagnose GPU-related issues by analyzing power sequencing. The MXM interface carries PPVCORE_S0_CPU (≈0.8–1.1V) and PPVCORE_S0_GPU (≈0.9–1.05V). Probe these rails during boot:
- Voltage absent? Check the GPU power controller (ISL6237 for older models)
- Voltage present but unstable? Replace decoupling capacitors (10µF, X5R) near the GPU
- Black screen? Boot into Safe Mode to rule out driver corruption
For models with integrated graphics, inspect the FIVR circuit (Intel VCCSA rails).
Repair backlight issues without schematic access. The LED driver (TI LP8556 or Analogix ANX3618) connects to the LCD connector via these lines:
- LED_EN (enable signal, 3.3V)
- LED_PWM (brightness control, 0–3.3V)
- LED+ (high voltage rail, ≈50V)
- LED− (return path)
Test for open circuits on LED+ with a diode mode multimeter (expect ≈0.6V drop). If the driver outputs correct voltage but no backlight, replace the LCD cable or panel.
Recover firmware corruption using a soldered 1.8V UART connection. The debug header (J6100 on 2018+ models) provides access to the bootloader. Required tools:
- USB-to-serial adapter (FTDI FT232H)
- Logic analyzer for 1.8V level shifting
- Open-source Kamakiri firmware (patched for Mac-specific EFI)
Solder wires to TX, RX, GND and run:
python kamakiri.py --target mac --port /dev/ttyUSB0 --baud 115200
If the T2 chip blocks access, bridge R6105 (near the ISL chip) to disable security checks.
Replace the keyboard controller without desoldering the entire board. The microcontroller (Atmel MEGA32U4) is usually under the spacebar. Alternative repair steps:
- Grind off the top of the old MCU with a rotary tool (expose pads)
- Solder new MCU using hot air (350°C, 30s)
- Short COL[0–7] and ROW[0–15] pins temporarily to test matrix
For trackpad issues, reflow the connector (J5100) first–90% of failures stem from cold solder joints under high-capacitance loads.
Clean corrosion from liquid damage using a two-stage process. For saltwater exposure:
- Phase 1: Submerge board in 99% isopropyl alcohol (IPA) for 30 mins, then agitate with a soft-bristle brush. Target areas: U7800 (SMC), LVDS connectors, battery charging circuit.
- Phase 2: Rinse with distilled water, then bake at 50°C for 12 hours to evaporate moisture. Test PP3V3_SUS and PP5V_S4 rails before powering on.
If corrosion persists, replace capacitors marked C19XX (near the CPU) with 22µF 6.3V rated parts–these fail first in short circuits.
Official Laptop Circuit Plans and BoardView Sources
Begin with the manufacturer’s authorized service provider portal. For high-end notebook series, authorized repair centers receive exclusive access to internal technical documentation, including PCB layouts, power delivery maps, and signal flow charts. Secure a business account through the official support channels–verification often requires tax IDs or repair certifications. Once approved, navigate to the “Service Manuals” or “Repair Documentation” section, where board-level schematics are hosted behind encryption. These files typically come in protected PDFs or proprietary viewer formats like AST or BVZ.
Third-party repair aggregators such as Louis Rossmann’s Repair Wiki (rossmanngroup.com/wiki) and iFixit’s Teardown Library (ifixit.com) occasionally publish redacted excerpts of original board files. While full schematics are rarely leaked, these platforms offer partial breakdowns–focus on high-resolution teardown photos and annotated component lists. For BoardView files, specialized tools like BCLK (BoardViewer) or OpenBoardView integrate with leaked BV files distributed in repair forums. Check GitHub repositories tagged with “boardview” or “laptop-repair” for community-maintained archives.
Paid Subscription Services for Professionals
Professional repair databases like Zentraler Serviceleitfaden (ZS) and RepairManuals.com require monthly subscriptions but grant access to OEM-grade circuit plans. ZS, for instance, hosts thousands of laptop repair guides, including detailed motherboard voltage maps and GPIO pinouts. Prices range from $30–$100/month, with some services offering pay-per-schematic downloads. Ensure the provider lists the exact model variant before purchasing–many laptop lines have multiple revisions, each with distinct PCB layouts.
Chinese-language platforms EEVblog Forum and Chiphell are goldmines for leaked or reverse-engineered schematics. Users frequently share .sch (Cadence Allegro), .brd (Eagle), or .zip archives of entire motherboard designs. Filter posts by device model numbers and focus on recent discussions–older threads often link to dead downloads. For maximum reliability, cross-reference findings with the FCC ID database (fcc.gov/oet/ea), where internal photos and block diagrams are occasionally submitted during certification.
When direct sources fail, reverse-engineering tools bridge the gap. JTAG boundary scan adapters (e.g., UrJTAG) can map connections on functional boards, while thermal cameras reveal power delivery paths. Combine these with KiCad or Altium to reconstruct partial netlists. For firmware-level analysis, Ghidra or IDA Pro can extract embedded controller code, which often contains hardware address mappings. Warning: This approach demands electrical engineering expertise and risks permanent device damage.
Critical Hardware Elements in Latest-Gen 14″ and 16″ Portable Workstations (M1/M2 Variants)
Before attempting repairs or modifications, secure the T2-equivalent security chip (M1/M2 SoC) reset procedure by bridging specific test points near the SSD interface. Failure to discharge residual voltage triggers firmware lockdown, voiding all diagnostic efforts. Always use an 8-12 MOhm resistor for precise bridging to avoid permanent damage.
Power delivery networks bifurcate into primary and secondary rails, each governed by distinct PMIC clusters. The primary PMIC (U7800) regulates core processor rails, including VCC_CPU (0.85V) and VCCIO (1.8V), while auxiliary PMICs handle peripherals like Thunderbolt controllers (Titan Ridge) and discrete GPU power islands (where applicable). Measure rail integrity at inductor L8950; deviations above ±5% indicate either PMIC degradation or parasitic load from surrounding capacitors (C8960 series).
Thermal Management System Breakdown
A dual-fan architecture (left/right) governs heat dissipation, with variable RPM curves tied to CPU and GPU die temperature sensors (TS0/TS1). Override fan control via I2C bus (address 0x6A) for diagnostic purposes, but expect thermal throttling if ambient sensors detect excessive heat. Replace fan assemblies only with OEM equivalents; third-party blades disrupt airflow dynamics due to inconsistent bearing tolerances.
| Component | Key Signal | Test Point | Expected Voltage | Failure Symptoms |
|---|---|---|---|---|
| CPU Core PMIC | VCC_CPU | TP8901 | 0.85V ±0.02V | Kernel panics, random reboots |
| Thunderbolt 4 Controller | VBUS_DETECT | TP5400 | 5.1V ±0.1V | Ports unresponsive, charging failures |
| DisplayPort MUX | AUX_CH | TP2300 | 1.2V ±0.05V | External display flickering |
Memory subsystems leverage LPDDR5 soldered directly to the logic board, eliminating traditional DIMM interfaces. Signal integrity relies on precise impedance matching along the data bus (120Ω differential). Probing the MDQ pins (e.g., MDQ4 at U3000) with a high-bandwidth scope (minimum 2 GHz) verifies signal eye patterns; jitter exceeding 15ps indicates either faulty traces or corrupted firmware partitions.
Interconnect Fabric Analysis
The PCIe switch (a proprietary implementation) routes data between the SoC, storage (NVMe), and expansion slots at 32 GT/s lanes. Lane configuration is hardcoded in firmware but can be overridden via SMBus commands to the EC (embedded controller). For storage diagnostics, monitor the REFCLK signal at L5600; sustained oscillations below 99.95 MHz corrupt NAND writes, leading to “disk not ejected properly” errors.
Reverse engineering the active stylus digitizer requires isolating the PN547 NFC controller (U1700) from the touchpad’s force sensors. Injection attacks via the RF_IN pin (TP1701) at 13.56 MHz with -40 dBm power reveal cryptographic handshake protocols. However, disabling NFC entirely through firmware flags (0x84D0 offset) improves battery longevity by ~7% without functional trade-offs.
