Begin by disconnecting the power supply to prevent any unintended activation during setup. Locate the control panel cover on the main unit–typically secured with two Phillips screws–and remove it to access the internal connections. Identify the red, white, and black terminals; these correspond to the primary power inputs and safety sensors. Use 18-gauge solid copper wire for all connections to ensure stable conductivity and reduce voltage drop risks over prolonged use.
Critical step: Attach the red wire to the terminal marked “5V” or “Power” (varies by model). Connect the white wire to the “Common” or “Neutral” terminal. The black wire must be secured to the “Down” or “Close” terminal–verify this in your specific device manual, as incorrect placement can trigger safety overrides or malfunction. For older models (pre-2018), an additional green wire may be required for grounding; tie it to the metal chassis using a crimp connector.
If integrating external accessories like keypads or backup batteries, note the following: Secondary devices often require a separate 24V DC circuit. Use a relay module (Omron MY2N-J or equivalent) to isolate low-voltage components from the opener’s high-current motor circuit. Solder all joints and insulate with heat-shrink tubing rated for 105°C to prevent corrosion or short-circuits in humid environments. Label each wire at both ends to simplify future troubleshooting.
Test the configuration in short bursts–activate the system in 3-second intervals while observing the LED indicators. A steady green light confirms proper operation; a blinking red signal suggests a fault in the sensor loop (check alignment of photo-eye units first). For dual-motor systems, ensure synchronized timing by calibrating the limit switches within 1/8″ of the closed position to prevent excessive strain on the drive mechanism. Record the installation date and wire gauge used for reference during annual maintenance checks.
Electrical Schematic Guide for LiftMaster Motorized Entry Systems
Connect the power supply directly to terminals marked “1” (hot) and “2” (neutral) on the control board–use 14-gauge solid copper wire for all primary circuits. Verify voltage at these points with a multimeter before proceeding; readings should stabilize between 115–125V AC. Skipping this step risks frying the logic board or fuses, particularly in models 8500, 8360, and newer Wi-Fi variants.
Route sensor leads through the designated port labeled “Safety Eyes” or “Photo Eyes.” Ensure red and white wires follow polarity precisely–red to the (+) terminal, white to ground–otherwise, the obstruction detection fails silently, leaving the unit inoperable despite appearing functional. Test by waving an object between sensors; LED indicators should flash rapidly before the motor halts.
Attach wall console cables to “Wall Switch” terminals, observing color coding: yellow for common, blue for open/close command. For battery backup models (e.g., 8550WLB), link the auxiliary power module between “Batt+” and “Batt-“–mismatched connections void warranty and prevent emergency operation during outages. Check continuity using a tone generator if wires exceed 20 feet to avoid signal degradation.
Permanent mount motors require bonding to a grounding rod via a 10-gauge bare copper conductor wired to the chassis ground screw (look for a green or unpainted screw near the antenna). Omitting this step introduces RF interference, causing erratic remote responses or failed homelink pairing in vehicles. Confirm proper grounding by measuring
For smart feature integration (MyQ, HomeKit), locate the accessory port–usually a 4-pin connector near the antenna labeled “Comm” or “Accessory.” Insert the modular plug until it clicks; reverse insertion damages the port permanently. Reboot the unit post-installation; LED should pulse blue within 60 seconds if provisioning succeeds.
Locating the Proper Connection Points on Your LiftMaster Unit
Check the motor housing first–most models display terminal labels etched near where cables attach. Look for “PWR,” “COM,” “SNS,” or numerical markers like “1,” “2,” or “3” to match accessory guides. Newer versions often use color-coded clamps: red delivers 24-volt power, white acts as neutral, and green handles safety sensor loops. Verify polarity for LED lights by touching multimeter leads to each screw–positive readings (usually 20-30V DC) confirm correct placement. Older openers with solid-state boards may lack clear labels; in such cases, reference the embossed numbers next to each screw, which correspond directly to manual schematics.
Inspect the transformer output first if power drops–terminals labeled “T1” and “T2” feed low-voltage circuits. Measure across them: a stable 23-28V AC reading validates proper input before proceeding. For battery backups, locate the battery harness connector, typically marked “BB” near the main control board. Note that reversing polarity here permanently damages the integrated charge regulator; trace each wire back to crimp connectors before disconnecting. Security+ 2.0 models merge all discrete terminals into a single modular jack, requiring specific pinout diagrams–consult unit-specific QR codes printed inside the chassis.
Attach safety sensors with precision–they typically use amber and white leads. Amber plugs into the “SNS” terminal, while white connects to “COM.” Deviating from this sequence prevents auto-reversal functionality, risking operational failure codes (like flashing LED 5-1). Models with MyQ integration often add a third contact for Wi-Fi antennas; this remains labeled “ANT” or “RF.” Avoid mixing antenna wires with sensor cables–misrouting causes signal interference, corrupting app connectivity. Always follow wire gauge recommendations: 22-18 AWG for sensors, heavier 16 AWG for power feeds.
Test every connection with a continuity probe before finalizing. Connect one probe to the motor casing (ground) and the other to suspected common terminals to detect shorts. Detached door control buttons rely on momentary switch circuits–check for a momentary voltage drop (approximately 1.5V) when pressed. DC-type motors add complexity: locate the armature terminals (“A1” and “A2”), then confirm brush holder continuity separately. Reversing these connections swaps motor rotation direction, potentially triggering unexpected movement. For chain-drive models, confirm sprocket engagement alongside electrical matches to prevent mechanical stress during operation.
Replace stripped screws immediately–corroded contact points degrade signal integrity over time. Use dielectric grease on exposed terminals to prevent moisture intrusion in coastal or humid environments. Document each connection with photographs before modifying existing setups; this aids troubleshooting later. High-torque ½ HP motors often split terminal blocks into two sections–identify load-bearing versus ancillary circuits upfront to avoid overloading low-amperage paths. Always disconnect main power at the breaker before opening control panels–capacitors retain lethal charge even when unplugged for hours, posing serious hazard.

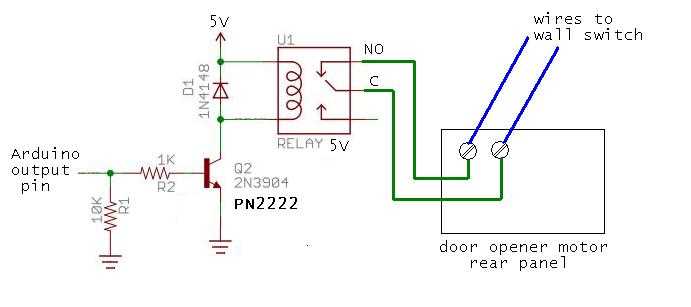

Step-by-Step Guide to Hooking Up Wall Switch Leads to Your Motorized Unit
Disconnect power to the automated mechanism at the circuit breaker before handling any internal components. Locate the terminal strip on the rear panel–typically marked with screws labeled “2” (red) and “3” (white) for standard control interfaces. Strip the ends of the connected leads to expose 6–8 mm of bare copper, ensuring no frayed strands remain.
Attach the red conductor to terminal “2” and the white conductor to terminal “3” using a small flathead screwdriver. Tighten each screw firmly, but avoid overtightening, which can strip the threads or damage the wire insulation. Verify the connections by gently tugging each lead–neither should dislodge with light pressure.
If your model includes a safety sensor loop (brown or purple wires), connect these to terminals “4” and “5” now. Mismatched polarity will disable the unit’s obstruction detection, so double-check the color coding against the manufacturer’s reference sheet. Some variants require additional jumper wires between specific terminals for proper operation–consult the specific model’s documentation.
Re-energize the circuit breaker and test the wall switch. A single press should trigger full travel in one direction, while a second press reverses it. If the unit responds intermittently or not at all, re-examine the terminals for loose screws or corroded contacts. Clean oxidation with fine-grit sandpaper if necessary, then retighten all connections.
For units with light control functionality, connect the corresponding leads (usually blue or black) to terminal “1” and the remaining common wire (often green) to the ground screw. This step varies by series, so confirm compatibility before proceeding. Failure to ground properly may result in erratic behavior or electrical hazards.
Secure all loose wiring with zip ties, routing cables away from moving parts to prevent chafing. Reattach the cover panel, ensuring no wires are pinched between the housing and the frame. Perform a final operational test, including manual release activation, to confirm all safety features engage correctly.

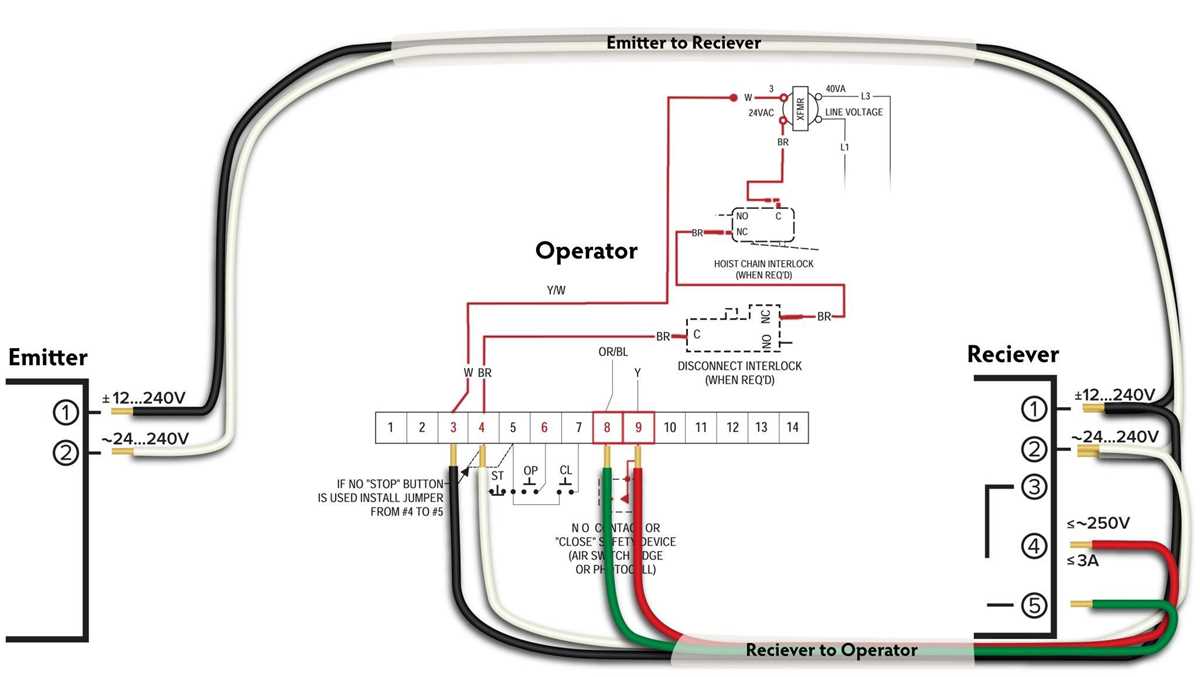

Connecting Safety Beams Without Faults
Disconnect power at the breaker before handling terminal connections. Use a multimeter set to 20V DC to verify zero voltage at the opener’s sensor terminals–proper readings range 4–6V between white and black wires. If values exceed ±0.2V, re-check wire integrity or opener board for shorts.
Step-by-Step Secure Installation
- Align emitter and receiver exactly–misalignment beyond 1/8″ causes interruption. Mount both units no higher than 6″ off the floor, parallel to track rails.
- Run solid 18-gauge wire, avoiding tight bends sharper than 3/4″ radius; kinks create resistance, distorting signals.
- Strip 3/16″ insulation, twist strands clockwise, and secure under terminals with 4–5 inch-pounds torque. Over-tightening cracks solder points.
- Cap exposed ends with heat-shrink tubing–electrical tape degrades under humidity after 18 months.
Test functionality by blocking the beam path: the reversal mechanism should activate within 2 seconds. If delayed, clean lens with isopropyl alcohol (90%+ concentration)–dust or condensation reduces light transmission by up to 30%. Replace sensors if LED flashes slower than once per second; this indicates internal circuit degradation.
