Begin with a passive current loop interface when connecting sensors to PLCs or distributed control modules. A two-conductor arrangement is optimal for most 4–20 milliampere applications, eliminating the need for additional power lines while ensuring stable signal transmission over distances up to 1,000 meters. Use shielded twisted pair cables to suppress electromagnetic interference–ground the shield at a single point near the receiving device to prevent ground loops.
To calculate loop resistance, apply the formula Rtotal = (Vsupply – Vsensor) / 0.020. For a 24 VDC supply and a sensor requiring 10 V at full scale, the permissible loop resistance drops to 700 ohms. Verify component specifications against these values–oversight here causes signal attenuation or device damage.
Connect the cabling in a series circuit: transmitter positive terminal → signal conductor → receiver input → return conductor → transmitter negative terminal. Polarity reversal corrupts readings; label each terminal at both ends during installation. For hazardous environments, select intrinsically safe barriers rated for the installation zone and confirm maximum loop impedance compliance before energizing.
Validate setup using a calibrated milliampere meter in series. At zero percent input, the reading must hold steady at 4 mA; if not, check for loose connections or incorrect sensor offset adjustments. For multi-point installations, use an isolated splitter to branch the signal without introducing ground potential differences–common-mode voltages degrade accuracy by 0.1% per 1 V offset.
Guide to Passive Loop Signal Connection
Connect the transmitter’s positive terminal directly to the power supply’s (+) output using a shielded pair–polarity must match to prevent signal inversion. For a 24VDC source, ensure the loop resistance remains below 600Ω (including all sensors, loads, and cabling) to maintain a stable 4-20mA current. Use twisted pair (minimum 0.5mm² cross-section) with foil shielding grounded at a single point–typically at the control system–to minimize electromagnetic interference (EMI). Avoid branching the circuit; parallel connections distort readings.
Critical Load Placement

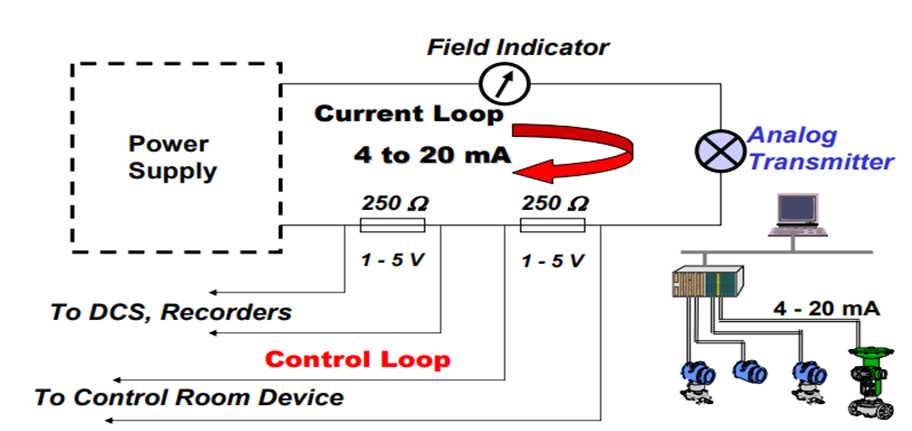

Place the receiver (e.g., PLC analog input) at the loop’s endpoint, not mid-span. Series configuration–power → transmitter → load–preserves signal integrity, while shunt loads (e.g., indicators) require bypass resistors sized for 100m), add a 250Ω precision resistor at the receiver to convert current to 1-5V, ensuring compatibility with high-impedance inputs. Verify the supply’s compliance voltage exceeds the sum of sensor drop (typically 7-15V) and line losses.
Test loop continuity with a multimeter set to current mode (DC) before powering on–expected values: 4mA (zero-scale), 20mA (full-scale). If readings drift, isolate segments: disconnect loads, check cable integrity (ohms per meter: ≤50Ω/km for copper), and confirm transmitter calibration. Faulty grounds often cause erratic behavior; lift suspect grounds one at a time while monitoring stability. For hazardous areas, use Zener barriers or galvanic isolators; never exceed the entity’s maximum capacitance/inductance ratings.
Step-by-Step Guide to Connecting a Passive Current Signal Loop
Start by verifying the sensor’s output specs. Most 4-20mA transmitters in two-conductor configurations require a supply voltage between 12V and 36V DC. Check the device datasheet for the exact range–exceeding it risks damaging the circuit or causing erratic readings.
Identify the positive and negative terminals on both the sensor and the receiving device (PLC, recorder, or display). Label them temporarily with masking tape to avoid swapping lines during installation. A reversed connection will not power the loop, though it typically won’t harm the components.
Connect the positive terminal of the power supply to the positive terminal of the sensor. Route the same line to the positive input of the receiver without splicing–maintain a continuous conductor to minimize resistance. Copper conductors sized at 0.5mm² or thicker reduce voltage drop in loops longer than 100 meters.
- Turn off the power supply before making connections.
- Strip insulation to 8mm–too little risks poor contact; too much risks shorts.
- Secure each joint with a crimp lug instead of solder for field repairs.
After securing all connections, apply power and measure the current with a multimeter set to 20mA DC. Place the meter in series by breaking the circuit between the receiver’s positive input and the return line. A reading below 4mA suggests an open loop or insufficient excitation; above 20mA indicates a fault condition.
Troubleshooting Common Issues
If the loop shows zero current, verify the supply voltage first. A 9V battery, while adequate for bench testing, cannot sustain a field installation over 50 meters. Next, check conductor continuity with a tone generator or multimeter–expect loop resistance below 500 ohms for typical installations.
- Confirm the sensor’s zero and span settings. Factory defaults may not match process conditions.
- Inspect for moisture ingress at junction boxes–seal with silicone if detected.
- Check shield grounding. The shield should connect to ground at the power supply end only to prevent ground loops.
Once stable readings confirm proper operation, terminate access conductors with compression glands to prevent strain. Reapply power and log initial values–any drift greater than ±0.5% mandates recalibration. Document each step, including conductor gauge, loop resistance, and supply voltage, for future reference.
Power Supply Requirements for Two-Lead Current Loop Transmitters
Select a DC power source with a voltage rating between 12 VDC and 36 VDC to ensure stable operation of 4–20 mA loops. Lower voltages risk insufficient compliance for long cable runs, while higher voltages increase power dissipation in the sensing element without improving signal integrity.
Calculate the minimum required voltage with the formula: Vmin = Vsensor + Imax(Rload + Rcable) + Vheadroom. For example, a transmitter needing 10 V at 20 mA across a 250 Ω receiver and 50 Ω line resistance would demand 10 + 0.02(300) + 2 ≈ 18 VDC.
| Transmitter Type | Typical Drop (Vsensor) | Maximum Cable Resistance (Ω/km) |
|---|---|---|
| Pressure | 7–12 | 22–24 |
| Temperature RTD | 9–15 | 18–21 |
| Flow (magnetic) | 10–14 | 20–23 |
Ensure the power supply can deliver continuous current slightly above the maximum loop value, typically 25–30 mA, plus any transient inrush from capacitive loads. A 50 mA supply is adequate for most instruments.
Use a linear regulator or high-quality switching converter with output noise below 10 mVpp at 0–100 kHz. Switching converters should operate above 100 kHz to avoid interference with the current signal band. Filter capacitance must not exceed 10 µF directly across transmitter terminals.
Fuse the positive leg with a slow-blow fuse sized at 1.2–1.5 times the maximum loop current. Place the fuse as close to the power supply as possible to protect against short circuits between the loop and ground. Include reverse polarity protection with a Schottky diode whose forward voltage drop is ≤ 0.4 V.
For remote installations, use a power source with a floating output; avoid grounded supplies unless the loop ground matches the supply ground exactly, within ±0.1 V. Verify loop integrity with a 24 VDC test source before applying production voltage–measuring the expected current offset confirms proper transmitter operation.
Common Errors in Signal Loop Installation and Prevention Techniques
Reversing the polarity of the current loop terminals will cause device failure or erratic readings. Always verify the “+” and “-” markings on transmitters and receivers before connecting. Use a multimeter in diode test mode to confirm correct orientation–most transmitters show a 0.6V drop in the proper direction. Install shunt diodes across input terminals if reverse polarity protection isn’t built into the equipment. Label connections at both ends to prevent future errors.
Neglecting proper grounding introduces noise and drift in 4-20mA circuits. Connect the loop shield at only one point–typically at the power supply negative terminal–to avoid ground loops. Use a dedicated earth ground rod for industrial setups, not building ground or conduit. Check for leakage currents between the shield and signal path with a megohmmeter; values below 1MΩ indicate insulation failure. Twist pair conductors tightly (minimum 8 twists per foot) to reject electromagnetic interference.
Overlooking voltage drop in long runs distorts signal accuracy. Calculate loop resistance: copper cable loses ~4mV per meter per mA at 24AWG. For a 100-meter run at 20mA, expect 8V drop–ensure the power supply exceeds this value plus device compliance (typically 12-36VDC). Use heavier gauge conductors (18AWG for >200m) or a higher supply voltage. Test with a clamp meter set to current mode; fluctuations outside 4-20mA indicate resistive losses or power supply instability.
Tools Required for Validating a Two-Conductor Current Loop Signal Path
Start with a precision multimeter capable of measuring milliampere ranges with an accuracy of ±0.05% or better–models like the Fluke 87V or Keysight 34465A are reliable for this task. Ensure the meter supports true RMS readings to avoid errors from non-sinusoidal waveforms in industrial environments. For field applications, opt for a handheld unit with a minimum 10,000-count display (e.g., Extech EX540) to detect subtle variations in the 4–20 mA span.
For deeper diagnostics, integrate a portable loop calibrator such as the Beamex MC6 or Additel 625. These devices not only validate current levels but also simulate sensor outputs, allowing you to inject controlled signals (e.g., 8 mA, 12 mA, or 16 mA) into the circuit. Key features to prioritize include:
- Bidirectional current sourcing/sinking (±24 mA range).
- Voltage compliance up to 30 VDC to test power supply stability.
- Built-in 24 VDC loop power for standalone testing of passive transmitters.
- Data logging at 1-second intervals to capture transient spikes.
Avoid low-cost “black box” testers–they often lack resolution and introduce ground loops.
Optional but Highly Recommended Instruments
Include an oscilloscope with differential probes (e.g., Tektronix TBS1052B) to identify noise or ripple on the signal path, particularly in systems with PWM-controlled actuators. For environments with stray voltages, a ground loop tracer (Fluke 1630) isolates leakage paths that can distort readings. When working with hazardous area installations, a certified intrinsically safe barrier tester (like the Pepperl+Fuchs KFD2-STC4-EX1) ensures compliance with IEC 61508 SIL ratings–never bypass these checks in explosive atmospheres.
