Start by selecting an ADS1115 analog-to-digital converter (ADC) for its 16-bit resolution and low-noise performance–critical for detecting microamp fluctuations. Pair it with a shunt resistor (0.1Ω to 0.5Ω, depending on expected load) to convert current into a measurable voltage drop. Ensure the resistor’s power rating exceeds 1W to prevent overheating under continuous draw.
Wire the shunt in series with the load, placing the ADC’s input terminals across it. Use differential measurement to reject common-mode noise, especially in high-interference environments like motor drives or switching power supplies. A low-pass filter (10kΩ resistor + 1µF capacitor) at the ADC input will smooth transients from inductive loads.
For calibration, apply a known current (e.g., 1A from a bench supply) and adjust the ADC’s gain setting (±4.096V range for maximum sensitivity). Verify accuracy against a bench multimeter–deviations above 1% require recalculating the resistor value or checking for parasitic resistances in traces. Use Kelvin connections (4-wire sensing) if measuring below 10mA to eliminate lead resistance errors.
Power the ADC from a 3.3V or 5V regulated source, isolating it from load-side transients with a 10µF decoupling capacitor. For dynamic loads, implement a moving average filter in firmware to reduce measurement jitter–sample at 10Hz to 1kHz, depending on response requirements. Log data via I2C to a microcontroller (ESP32, STM32, or Arduino) for display or remote monitoring.
Test under real conditions: attach a variable load (e.g., PWM-driven motor) and confirm readings remain stable across the operating range (10µA to 5A). If noise persists, add a ferrite bead to the power lines or shield the critical traces with a ground pour on the PCB.
Building a Precision Current Measurement System
Start with an INA219 shunt monitoring IC for accurate bidirectional readings up to ±3.2A (±0.8mV drop across 0.1Ω shunt). Configure the onboard 12-bit ADC via I²C by setting the calibration register (0x05) to 5160 for 0.1Ω shunt resistance. This provides resolution down to 100µA with ±0.5% full-scale error at 25°C. Add 0.1µF decoupling capacitors on V+ and V- pins to reject high-frequency noise from switching power supplies.

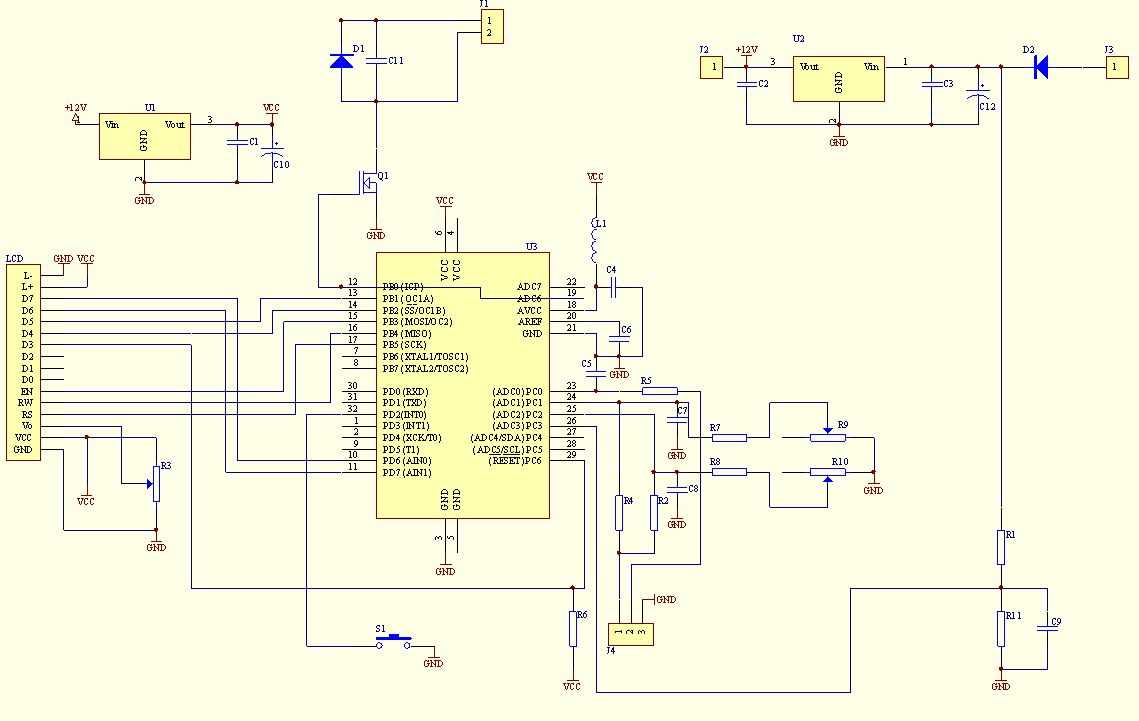

Microcontroller Integration
Use an STM32F103C8T6 with its native I²C peripheral running at 400kHz for real-time data acquisition. Implement DMA transfers to avoid CPU cycles during conversions – configure TIM2 to trigger 100µs conversion intervals. For display output, interface a 16×2 character LCD via 4-bit parallel mode with R/W line tied low to simplify wiring. Sample code should include compensation for temperature drift: apply a -0.03%/°C correction factor above 25°C using onboard ADC readings.
For low-side measurement applications, substitute the INA219 with a MAX4173TASA+ (precision current-sense amplifier) paired with an external 16-bit ADC like ADS1115. This combination achieves ±0.15% accuracy across -40°C to +125°C temp range. Connect the amplifier’s output to the ADC’s differential input with
Critical layout considerations: keep high-current traces (≥5A) at least 3mm wide for 2oz copper, route analog signal paths as short as possible, and place the shunt resistor within 1cm of the measurement IC. For >10A applications, use four 0.01Ω/3W resistors in parallel instead of a single resistor to distribute heat and reduce inductance. Include MOSFET protection against reverse polarity and overcurrent conditions, with gate drive derived from the same 3.3V rail as the measurement circuitry to ensure synchronized operation during faults.
Selecting the Optimal Current Measurement Component for Precision Monitoring
For low-range applications under 5A, opt for a shunt resistor with a resistance below 0.1Ω. Hall-effect sensors introduce noise and lag, making them unsuitable for high-frequency switching (above 10 kHz). Calculate power dissipation using P = I²R–ensure the resistor’s wattage rating exceeds calculated losses by at least 50% to prevent thermal drift. For example, a 0.05Ω shunt at 3A dissipates 0.45W; choose a 1W resistor to maintain stability.

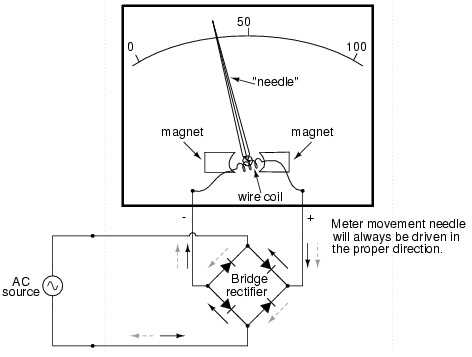

Avoid generic current transformers for DC or pulsed loads–they saturate and produce inaccurate readings. Instead, use fluxgate sensors or magnetoresistive elements for bidirectional DC currents up to 100A. For AC-only measurements, select a transformer with a core material matching your frequency range: ferrite for 1 kHz–1 MHz, silicon steel for 50/60 Hz mains. Check the saturation flux density (Bsat); values below 0.3T risk distortion at higher currents.
- Non-invasive sensors: ACS712 ( Allegro ) handles ±5A to ±30A with 185 mV/A sensitivity. Output is ratiometric–pair with a microcontroller’s ADC using a stable reference voltage (e.g., 5V ±0.1%). Error margin: ±1.5% at 25°C; compensate for temperature drift using a lookup table.
- High-current alternatives: LEM HO series supports 50A–1000A with galvanic isolation up to 3 kV. Response time: 5 µs; use a low-pass filter (cutoff: 1 kHz) to suppress switching noise while retaining accuracy.
- Wide-bandwidth needs: Rogowski coils measure up to 1MA with 0.1% linearity but require an integrator circuit (e.g., OP27 op-amp with 100 kΩ feedback resistor) to convert di/dt to a proportional voltage.
For battery-powered devices, minimize quiescent current: the INA226 (Texas Instruments) consumes 60 µA but delivers 16-bit resolution. Pair it with a shunt resistance generating at least 50 mV full-scale voltage to ensure signal-to-noise ratios above 40 dB. Calibrate offset errors by shorting the input and measuring residual voltage–store this value for software correction.
When measuring pulsed loads (e.g., motor drives or PWM signals), sample at 10× the pulse frequency to avoid aliasing. For example, a 1 kHz PWM signal demands a 10 kHz sampling rate. Use a delta-sigma ADC (e.g., AD7124) for anti-aliasing filtering built-in; otherwise, implement an analog filter with a roll-off at 0.1× the sampling frequency.
Verify sensor linearity under real-world conditions–perform a three-point calibration at 10%, 50%, and 90% of the full scale. Record deviations and apply polynomial correction in firmware. For galvanically isolated applications, ensure creepage and clearance distances meet IEC 60601-1 standards; opt for reinforced insulation (>8 mm) if the environment includes conductive dust or humidity above 80%.

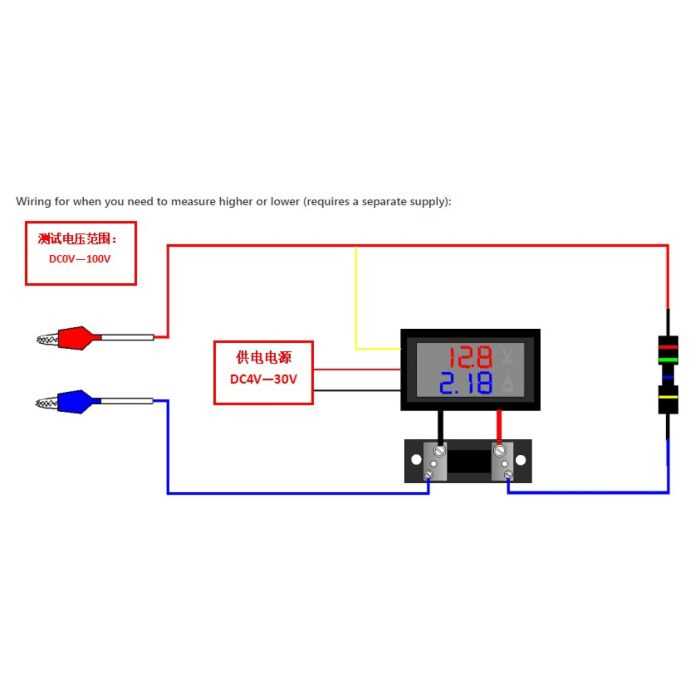

Step-by-Step Assembly of a Shunt Resistor-Based Current Sensing Setup
Select a shunt with a resistance value that matches your measurement range–typically 50 mΩ for currents up to 10 A or 10 mΩ for 50 A loads. Use a 1% tolerance resistor to minimize errors in readings. Solder one terminal directly to the incoming power line, ensuring minimal lead length to reduce parasitic resistance. The second terminal should connect to the load side, creating a low-impedance path for current flow.
Install a precision operational amplifier (e.g., INA219 or LM358) within 2 cm of the shunt to capture the millivolt drop. Configure the op-amp in differential mode with a gain of 20–50×, depending on expected voltage drop (e.g., 50 mV at 10 A). Use a decoupling capacitor (0.1 µF) between the amplifier’s power pins and ground to filter noise. Connect the shunt’s terminals to the amplifier’s inputs with twisted pairs to reject EMI.
For calibration, apply a known current (e.g., 5 A from a bench supply) and adjust a 10 kΩ trimpot on the amplifier’s feedback loop until the output voltage matches the calculated value (e.g., 250 mV for 5 A with 50 mV drop). Verify linearity by testing at 20%, 50%, and 100% of the max current. If readings drift by >1%, check solder joints and resistor stability–thermal effects can introduce errors.
PCB Layout Considerations
Place the shunt on a dedicated ground plane, isolated from high-frequency switching components. Keep high-current traces (>3 A) at least 3 mm wide for 1 oz copper to prevent overheating. Route signal traces (from shunt to amplifier) perpendicular to power traces to avoid coupling. Use a star grounding scheme: connect the shunt’s load-side terminal and amplifier’s reference pin to a single point to prevent ground loops.
Avoid placing the shunt near heat-emitting components (e.g., voltage regulators or MOSFETs). For outdoor use, enclose the assembly in a grounded metal shield to block RF interference. Test the setup with an oscilloscope–spikes >100 mV indicate layout flaws. Finalize by coating sensitive traces with conformal lacquer to prevent oxidation in humid environments.
How to Integrate an ADC with a Microcontroller for Accurate Current Readings
Select an ADC with a resolution of at least 12 bits for current sensing within the 0–5A range, ensuring a theoretical sensitivity of ~1.22 mA per LSB. Pair it with a shunt resistor rated for the expected maximum current; for 5A, a 0.01 Ω resistor with a 50 mV drop at full load provides optimal signal swing without excessive power dissipation. Avoid resistors exceeding 0.1 Ω to prevent heating and nonlinearity in measurements.
Route the ADC input directly to the shunt resistor pads using a Kelvin connection to eliminate trace resistance errors. Place a 100 nF ceramic capacitor between the ADC input and ground to filter noise, positioned no farther than 2 mm from the ADC pin. For microcontrollers with built-in ADCs, enable the internal voltage reference if it offers 0.2% or better accuracy–external references like the MCP1501 (1.024V) improve consistency by eliminating VCC fluctuations.
Calibration Steps for Precision
- Apply a known current (e.g., 1A from a bench supply) through the shunt and record the ADC raw value. Repeat at 2A, 3A, 4A, and 5A to map the transfer function.
- Store the raw values in an array and use linear interpolation (y = mx + b) to calculate the slope (m) and offset (b) from the calibration points. For 16-bit results, ensure the ADC’s full-scale range matches the reference voltage.
- Implement a moving average filter over 16 samples to reduce 50/60 Hz noise; discard the first 2 samples after a current change to avoid settling artifacts.
- Verify accuracy at the ADC’s lowest and highest codes (e.g., 0x0000 and 0x3FFF for 14-bit mode) using a precision multimeter as a reference. Adjust the calibration if errors exceed 0.5%.
For AC measurements, sample at least 10x the input frequency; a 50 Hz signal requires 500 Hz sampling to satisfy Nyquist while capturing waveform harmonics. Use the microcontroller’s DMA to offload ADC reads if real-time processing is required–this prevents data loss during interrupts. Configure the ADC clock below 5 MHz to avoid settling issues; for example, an STM32F4 at 84 MHz uses a prescaler of 8 for a 10.5 MHz ADC clock, sufficient for 1 Msps operation.
Hardware-Specific Optimizations
- AVR (ATmega328P): Enable the ADC’s left-adjust result register (ADLAR) for 8-bit reads when full resolution isn’t needed, reducing conversion time to ~68 µs.
- PIC (dsPIC33): Use the ADC’s oversampling feature (up to 128x) to increase effective resolution beyond 12 bits, improving SNR by ~9 dB per 2x oversampling.
- ARM (STM32): Configure the ADC in dual regular/injected mode to measure current and voltage simultaneously, reducing software overhead for power calculations.
- ESP32: Leverage the ADC’s attenuator settings (0–11 dB gain) to extend the input range; for a 3.3V reference, select 6 dB attenuation for 0–2.2V inputs.
Avoid reading the ADC result during a conversion cycle–this corrupts the sample. For sequential readings, insert a 1 µs delay after starting a conversion to meet the ADC’s minimum acquisition time. If the shunt resistor’s voltage drop is below 10 mV, amplify it with an op-amp (e.g., MCP6002) in a non-inverting configuration (gain = 1 + Rf/Rg) to match the ADC’s full-scale range. Power the op-amp from the same reference as the ADC to reject supply noise.
