For a seamless installation, begin by locating the factory connector behind the dashboard on the driver’s side–specifically the 24-pin plug labeled C1 (dark blue) and C2 (light brown). Use a multimeter to verify pin assignments: pins 3, 4, 6, and 14 on C1 deliver constant 12V, accessory power, ground, and illumination control, respectively. Pins 1, 2, 7, and 8 on C2 provide left front/rear and right front/rear speaker outputs. Mismatching these will result in phase cancellation or damaged components.
Critical connections: splice the aftermarket harness wires directly into the vehicle’s loom using weatherproof butt connectors. Avoid twisting or soldering without heat-shrink tubing–exposed joints corrode within months in humid climates. The dimmer circuit (pin 14, C1) requires a 1kΩ resistor inline to prevent dashboard error codes if retaining factory dimming functionality.
Factory amplifiers in extended-cab models (RPO UQ3/UQ7) use a separate 10-pin connector (light gray). Pins 1-4 carry amplified signals; pins 5-8 supply power/ground. Bypassing these without a load resistor causes the factory amp to remain active, draining the battery. For OEM head unit replacements, integrate a PAC Audio LC21 adapter to retain steering wheel controls and chimes.
Use 18-gauge wire for speakers and 14-gauge for power feeds. Route harnesses along existing loom paths, securing with zip ties every 6 inches to prevent rattling. Ground all components at a single chassis point near the fuse box–shared grounds between amplifiers and head units introduce alternator whine.
Wiring Guide for Your 1996 GMC Sierra Sound System Upgrade

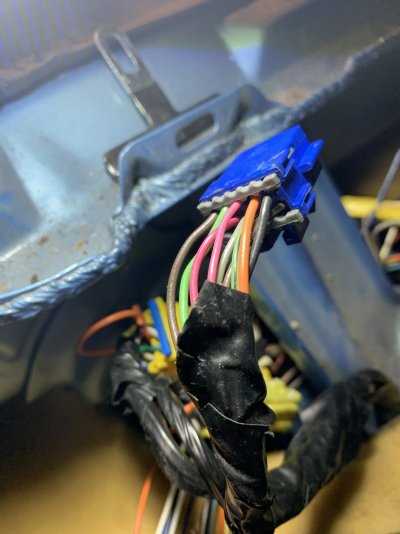

Locate the orange wire labeled “ILLUM” behind the factory radio harness–this powers the dash illumination. Splice it directly to the corresponding orange wire on your aftermarket head unit using a crimp connector or solder joint for stability, avoiding electrical tape alone, which degrades over time. Verify polarity with a multimeter before connection; incorrect pairing risks dimming circuit burnout.
Identify the dark green/white striped wire on the vehicle’s harness–it carries the right-front speaker signal. Match it to the gray wire (right-positive) on your new receiver, then connect the gray/black striped wire (right-negative) to the body ground or a designated grounding point within 18 inches. Strip no more than 1/4 inch of insulation to prevent short circuits, and use heat-shrink tubing over exposed sections.
For amplifier integration, tap the pink wire (constant 12V) at the fuse box, not the radio harness, to maintain battery voltage during engine-off scenarios. Route this wire through a 15-amp fuse holder within 7 inches of the tap point. The yellow wire (switched 12V) should be connected to the ignition wire (purple) on the OEM plug to enable power only when the key is in the “ACC” or “ON” position.
Troubleshooting Common Issues
- Static or distorted audio? Recheck the yellow and gray speaker wires for reversed polarity–swap them at the harness if necessary. Test with a 9V battery: a brief pop indicates correct phase.
- No sound from rear speakers? Probe the brown and brown/white wires with a 12V test light. If dead, inspect the fusible link under the hood near the firewall, often overlooked during upgrades.
- Radio powers off intermittently? Add a relay between the pink wire and ground to prevent voltage drops from triggering the anti-theft feature. Use a 30/40A automotive relay with a dedicated 10A fuse.
The light blue wire, often mistaken for a speaker lead, is the remote turn-on for external amplifiers. Connect it to the blue/white wire on your aftermarket unit if adding a subwoofer–failure to do so leaves powered equipment dormant. For monoblock amplifiers, combine both front and rear ground wires (black and black/white) into a single ring terminal secured to a bare chassis bolt, scraping away paint for solid contact. Avoid using the seat belt anchor bolts–they’re not rated for continuous current.
Document all modifications on a printed schematic annotated with wire gauges and connection types. Store this inside the glovebox alongside spare fuses (10A, 15A, 20A) and a spare set of crimp connectors. Label each wire with masking tape before splicing; a misplaced green/white stripe can ground the entire system, requiring dashboard removal to rectify. For DIY soldering, use 60/40 rosin-core solder–acid-core variants corrode copper over weeks.
Alternative Connection Methods

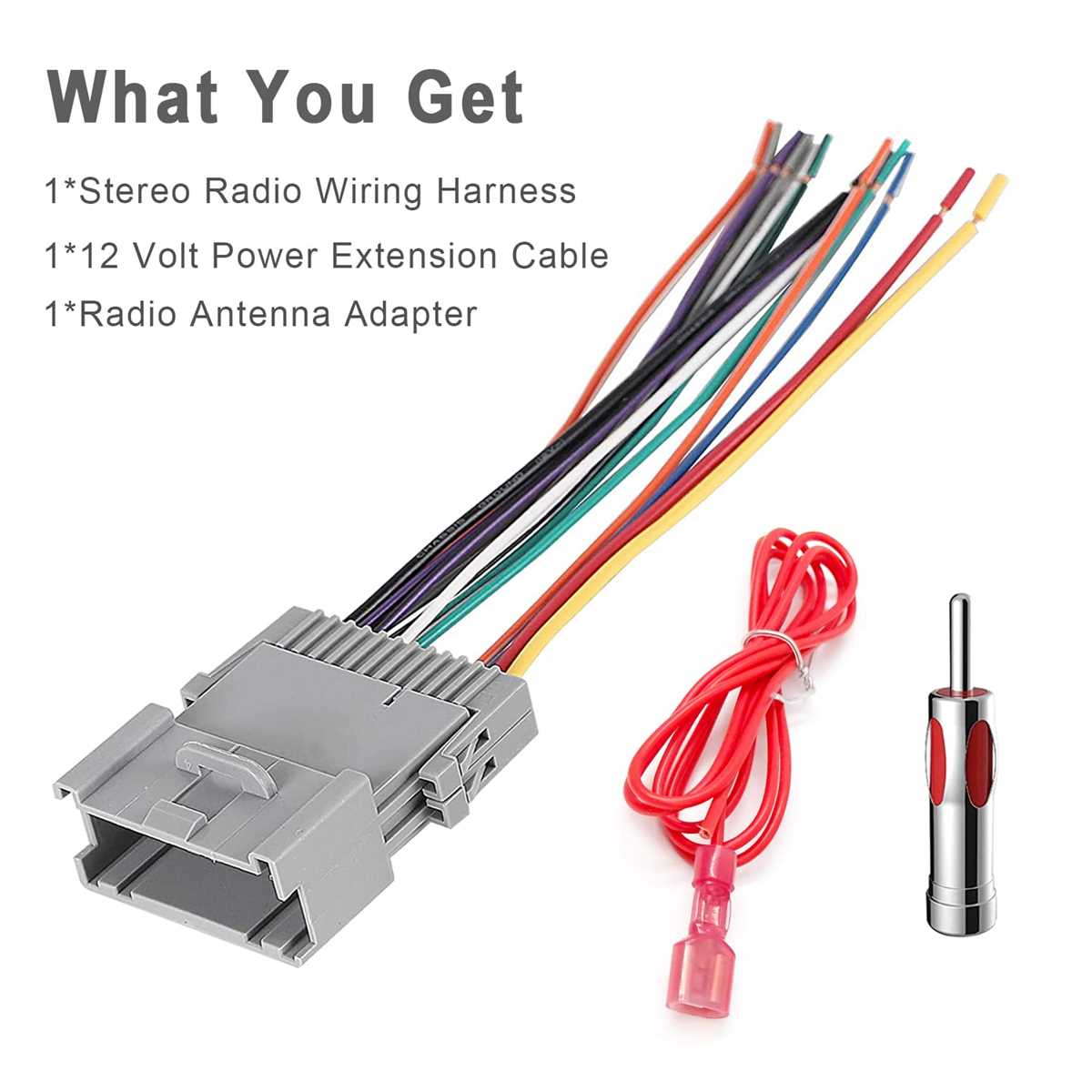

- Zero-resistance adapters: Purchase a GM Class 2 data bypass module if retaining steering wheel controls. Plug it inline between the OEM harness and new head unit–no splicing required. Expect $40–$70 for models compatible with Delphi radios.
- Direct splice kits: Use a 12-pin connector with pre-crimped leads to minimize cutting original wires. These kits include pigtails color-matched to standard aftermarket standards, reducing miswiring risks. Verify compatibility with Clarion, Pioneer, or Sony units before purchase.
- Factory harness extensions: If retaining stock amplifiers, extend the brown and brown/white wires with 16-gauge primary wire. Shielded cable isn’t necessary unless routing alongside ignition coils or distributor wires.
Finding the Original Audio System Cable Assembly in a GMT400 Series Pickup
Begin by removing the lower dash panel beneath the steering column–this section typically snaps off with minimal force using a flat pry tool. Behind this panel, you’ll expose a bundled cable assembly secured by a single 10mm bolt adjacent to the parking brake mechanism. Follow the largest harness cluster downward; it exits through a rectangular firewall grommet near the driver’s left knee bolster. This path leads directly to the factory amplifier location, housed behind the glovebox on early extended-cab models, or beneath the passenger seat on regular-cab variants.
Key identifiers for the main harness include a white label tag marked “AUDIO” with pinout codes and a distinctive 12-pin black connector encased in translucent yellow plastic. Color coding remains consistent across GMT400 platforms: orange stripe delivers switched power, solid gray feeds constant 12V memory, light blue handles antenna trigger, and purple stripe delivers right rear speaker output. Verify continuity with a multimeter if corrosion is suspected–common in vehicles stored outdoors or exposed to road salt.
Harness Access Points and Locations
| Access Point | Location | Fastener Type | Common Issues |
|---|---|---|---|
| Lower Dash Panel | Under Steering Column | Snap-in Retainers | Broken Clips |
| Firewall Grommet | Driver Side Footwell | Rubber Seal | Wiring Chafe |
| Amplifier Housing | Behind Glovebox / Under Passenger Seat | Two 8mm Bolts | Water Ingress |
For vehicles equipped with premium audio options, an additional 4-channel harness bypasses the amplifier entirely and terminates at individual door speakers via thin-gauge twisted pairs. These wires often hide behind rear quarter panel kickstrips in crew-cab models, requiring removal of the rear seat cushion and side trim panels for full exposure. Label each connection immediately after disconnecting to prevent miswiring during reassembly.
Inspect harness sleeves for cracks–especially sections routed along floor pans where moisture accumulates. If compromised, replace damaged segments with automotive-grade heat-shrink tubing and crimp connectors rated for 20 AWG wire. Avoid solder-only repairs; vibration from rough terrain can fracture solder joints over time. Secure harness runs with zip ties every 6 inches to prevent contact with sharp edges or moving pedal assemblies.
Standard Wire Color Codes for Factory Sound System in GM Half-Ton Models
For direct aftermarket integration, match these OEM harness colors precisely: Yellow (12V constant), Orange (ignition-switched 12V), Red (accessory/switched 12V), Black (ground), Dark Blue (rear right positive), Light Blue (rear left positive), Light Green (front right positive), Purple/Violet (front left positive), Gray (rear right negative), Tan/Brown (rear left negative), Dark Green (front right negative), and White (front left negative). Locate the pink dimmer wire if retaining factory lighting control–it typically shares a harness with the orange ignition lead.
Verify ground connections at both the head unit chassis and body frame–corrosion-resistant fasteners prevent intermittent signal loss; solder all splices using heat-shrink tubing and avoid twist-and-tape methods common in substandard installations.
Step-by-Step Guide to Removing the Factory Sound System Without Damaging Connections
Before touching any connectors, disconnect the negative battery terminal to prevent short circuits. Use a 10mm wrench to loosen the clamp on the terminal–wait at least 10 minutes to allow any residual power in the system to dissipate. Failing to do this risks blowing fuses or frying circuit boards during removal.
Locate the trim panel surrounding the sound unit. Most models use spring-loaded clips along the edges; insert a flat plastic pry tool at the bottom corners first, working upward to avoid snapping the plastic tabs. Apply steady pressure–too much force will crack the panel. If resistance increases, check for hidden screws behind small caps or under the ash tray.
Once the trim is free, identify the mounting brackets securing the unit. Typically, there are four 7mm bolts (two on each side) or metal spring clips for snap-in models. For bolt-secured units, rotate them counterclockwise until loose, then wiggle the assembly forward to access the rear connectors. For clip-mounted designs, squeeze the clips while pulling firmly–jerking motions can bend the brackets.
Disconnect the antenna cable first by pressing the release tab on its plastic housing. The feed is thin and can tear if yanked. Next, detach the wiring harness adapter by pinching the release lever (usually black or gray) while pulling straight out. Twisting or angling the connector risks breaking the pins inside. If the harness feels stuck, check for debris or corrosion–clean contacts with electrical contact cleaner if necessary.
Some models include a separate ground wire attached to the chassis via a 13mm bolt. Loosen this last to avoid straining other connections. If the wire is soldered, use a heat gun (not a lighter) to melt the solder while gently tugging the wire free–excessive heat warps the metal sleeve. Store removed components in a labeled bag to prevent mixing screws with similar-sized fasteners from other panels.
For vehicles with integrated climate controls, trace the small ribbon cable linking the display to the main unit. This cable is fragile–handle only by the plastic ends. Slide it out of its socket by pulling parallel to the board; rocking motions misalign the connectors. If reinstalling a new unit, verify dashboard illumination wires match the factory color codes (typically orange or light green) to ensure dimming compatibility.
Reassemble in reverse order, testing each connection by reconnecting the battery and powering the system before fully securing the trim. If static or no sound occurs, recheck the antenna connection–improper seating is the most common post-installation issue. Use dielectric grease on connectors if the vehicle operates in humid climates to prevent oxidation.
