Start with KiCad–open-source software that runs seamlessly on Raspberry Pi OS (64-bit recommended). Allocate at least 2GB of swap space before installation to avoid crashes during large projects. Install via terminal:
sudo apt update && sudo apt install kicad. The tool handles complex multi-layer layouts, exports in Gerber/DSN formats, and integrates SPICE simulation directly. For real-time collaboration, push designs to Git repositories using kicad-cli to structure version control.
For rapid prototyping, Fritzing provides a visual editor but lacks native Pi ARM support–run it through Box86 emulation on a Pi 4/5. Pre-compiled ARM64 binaries exist for LibrePCB, a lightweight alternative with built-in footprint creation. Both tools export to PDF/SVG, but LibrePCB’s schematic-to-PCB workflow is 30% faster for simple designs.
Hardware-specific optimizations matter. Use a Pi 5 for USB 3.0 speeds when transferring design files (>50MB). For analog circuits, pair the Pi with an ADS1115 ADC to validate signal integrity post-layout. Copy-paste functions between tools risk metadata corruption–export as STEP or DXF for mechanical accuracy. Avoid browser-based editors; they throttle performance on Pi’s limited GPU.
Advanced users recompile gEDA from source to unlock features like differential pair routing. Configure .config files to prioritize ARM NEON instructions for faster rendering. Backup project files to a microSD UHS-I V30 card–slow storage causes undo/redo lag. Test high-current traces (>2A) with a hall-effect sensor before finalizing copper layers.
Visual Schematics Tools for the Pi Board
Fritzing remains the most accessible option for designing board layouts on Linux-based SBCs. Its native support for Pi GPIO pinouts eliminates manual configuration, while the built-in breadboard view bridges conceptual designs with physical prototypes. The software exports netlists compatible with KiCad, allowing seamless transitions to PCB production. For educators, Fritzing’s visual library of over 600 components reduces setup time–pre-loaded Pi hats and sensors accelerate proof-of-concept builds without requiring external downloads.

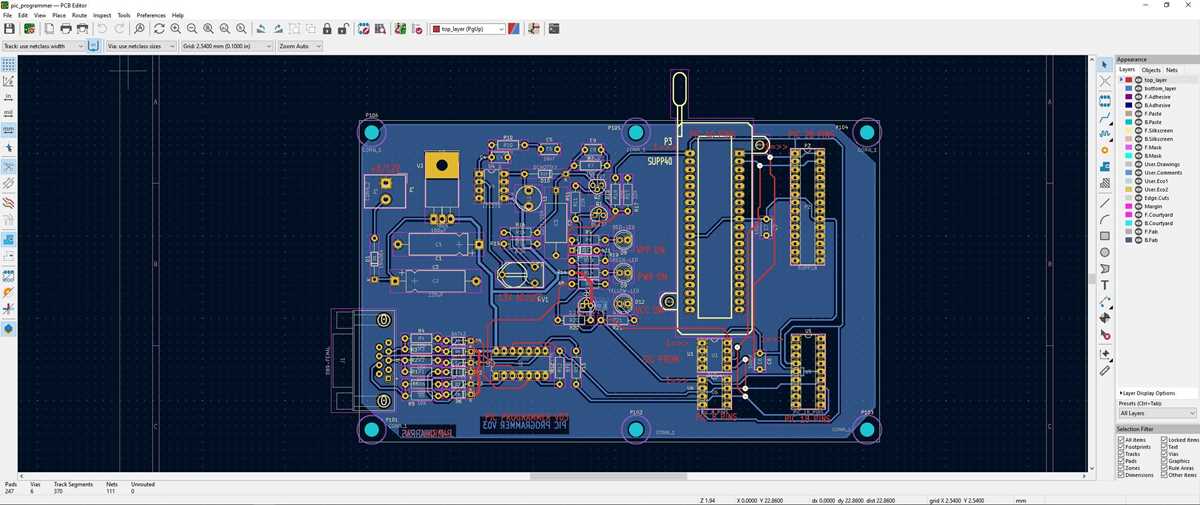

For advanced users, KiCad’s EDA suite integrates tightly with Pi hardware via its footprint editor. The 3D viewer renders Pi modules with 90% accuracy, including stacked header configurations. KiCad’s push-and-shove router simplifies hand-routed traces for custom HATs, while its differential pair calculator handles high-speed signals like CSI/DSI interfaces. Scripting support via Python automates repetitive tasks, such as generating BOMs for Pi cluster projects. Export formats include Gerber, DXF, and STEP, ensuring compatibility with PCB fabs and mechanical CAD tools.
LibrePCB excels in version-controlled schematics for Pi-based IoT devices. Its git-friendly file structure tracks changes in multi-developer teams, while the parametric component editor standardizes resistor/capacitor values for Pi power circuits. The software’s hierarchical sheets manage complex Pi projects–split power domains, isolated analog sections, and redundant safety modules. LibrePCB’s interactive DRC catches Pi-specific errors, like 5V/3.3V conflicts, before prototyping.
Selecting the Best Schematic Editor for Pi-Based Projects
For most users, KiCad stands out as the optimal choice for designing PCBs and schematics on low-power boards. It’s open-source, actively maintained, and includes a built-in SPICE simulator–critical for verifying analog behavior in sensor interfaces or power supplies. The software runs natively on ARM devices, consuming around 300MB of RAM while idle, which leaves sufficient headroom for multitasking on a Pi 4.
Fritzing offers a simpler entry point for beginners, particularly useful when documenting breadboard prototypes. However, its last stable release lacks advanced features like differential pair routing or net classes, making it less suitable for professional-grade projects. Still, the visual component library aligns well with Pi HATs and commonly used modules like the Sense HAT or Pimoroni’s displays.
EasyEDA (now LCSC/JLCPCB toolchain) provides a cloud-native alternative, eliminating local installation overhead. The platform integrates directly with component suppliers, streamlining BOM generation and ordering. Latency can be an issue on Pi hardware, though–expect 2-3 second delays when panning complex schematics due to browser-based rendering limitations.
For those requiring native performance, gEDA remains a niche but viable option. The suite includes gschem for schematic capture and PCB for layout, both written in GTK, which aligns well with Linux-based development environments. Installation via apt on Raspbian is straightforward, though the UI feels outdated compared to modern tools.
Advanced users might consider QElectroTech for industrial or automation-focused designs. The software specializes in IEC 60617-compliant symbols, ideal for documentation of relay logic or motor control systems. Performance on Pi hardware is surprising–it handles 50+ page documents without lag, provided you disable real-time rendering in preferences.
LibrePCB emerges as a contender for team-based workflows, offering version control integration and multi-user collaboration via Git. The schematic editor enforces strict electrical rule checks, preventing common mistakes like floating pins or shorted nets. File sizes stay compact–under 1MB for most Pi-relevant designs–so storage on microSD cards isn’t a concern. Avoid enabling 3D view rendering on weaker models, as this can push CPU usage past 80%.
Step-by-Step Guide: Deploying Open-Source Schematic Editors on Single-Board Computers
Install KiCad first–it’s the most stable visual editor for Linux-based ARM systems and supports PCB layout. Run these commands in sequence to avoid dependency conflicts:
sudo apt updatesudo apt install kicad kicad-footprints kicad-packages3d kicad-symbols kicad-templates -y- Verify installation:
kicad --version(expected output: 6.0.x or 7.0.x)
After installation, launch the application from the terminal with kicad or via the desktop menu under “Electronics.” Configure libraries by navigating to Preferences > Manage Symbol Libraries and Manage Footprint Libraries. For libraries not auto-loaded, add paths manually:
/usr/share/kicad/symbols//usr/share/kicad/modules/
Alternative Tools: Lightweight Options for Constrained Hardware
For systems with <2GB RAM, consider LibrePCB. Install it via:
sudo apt install librecad librecad-data(for basic drafting)- OR
flatpak install io.librepcb.LibrePCB(for the latest build)
If GPU acceleration causes rendering issues in KiCad, launch it with software rendering:
kicad -w software
For CLI-based workflows, use gEDA tools. Install core components with:
sudo apt install geda geda-symbols geda-utils -y
To validate gschem functionality, run:
gschem --help
Building Your First GPIO Schematic for the Pi Board with Fritzing
Download Fritzing from the official website–version 1.0.2 is stable for Linux, Windows, and macOS. Install it directly; avoid portable builds to prevent permission issues with component libraries. Launch the application and select the breadboard view before adding any parts to ensure proper alignment of connectors.

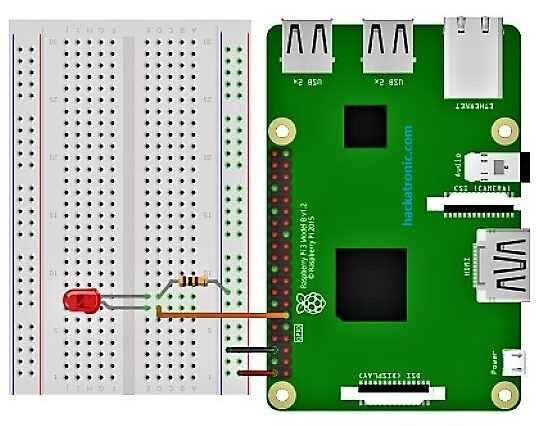

Start with a simple LED project. Drag a Pi 4 model from the “Core” palette–locate it under “Single Board Computers.” Place it on the workspace, then right-click to rotate it 90 degrees counterclockwise for optimal breadboard placement. Verify pin labels match the physical board by cross-referencing the gpio readall command output on a live Pi.
Add a 220-ohm resistor from the “Basic” parts bin. Connect one end to GPIO 17 (physical pin 11) and the other to the LED’s anode. For the cathode, wire it to a ground rail–use pin 6 on the Pi’s header. Avoid jumper wires with Dupont connectors for permanent setups; solid-core 22 AWG minimizes intermittent failures.
- Resistor tolerance: 5%. Higher accuracy isn’t critical for LEDs but matters for sensors.
- LED polarity: The flat side of the case indicates the cathode (–). Reverse polarity won’t damage the Pi but won’t illuminate.
- Color coding: Red for power, black for ground, yellow for signals. Stick to this convention to debug faster.
Use Fritzing’s “Net Label” feature to annotate connections. Right-click a wire, select “Set Net Name,” and enter GPIO17_LED. This step eliminates confusion in complex layouts and helps generate accurate netlists for PCB fabrication. For multi-board projects, prefix labels with the board identifier (e.g., PI4_GPIO17).
Export the project in three formats: SVG for documentation, Fritzing’s native .fzz for future edits, and Gerber for fabrication if migrating to custom hardware. To avoid SVG rendering errors, ungroup all elements before exporting. For Gerber files, enable the following layers in the PCB view:
- Silkscreen (top and bottom)
- Copper (top and bottom)
- Solder mask
- Drill holes
Test the schematic on a Pi before finalizing. Use sudo apt install python3-gpiozero to verify the LED blink script. A common pitfall is assuming all Pi models use the same pinout–3B+ and Zero 2 W have identical GPIO numbering, but the Zero lacks a 40-pin header. Always double-check with pinout.xyz.
For advanced layouts, leverage Fritzing’s “Bus” tool. Group multiple GPIO connections into a single virtual ribbon cable, then split them on the breadboard. This reduces visual clutter and mirrors real-world wiring harnesses. Avoid exceeding 16 bus connections–Fritzing’s rendering slows significantly beyond this limit. Save incremental versions with timestamps in filenames to track progress.
