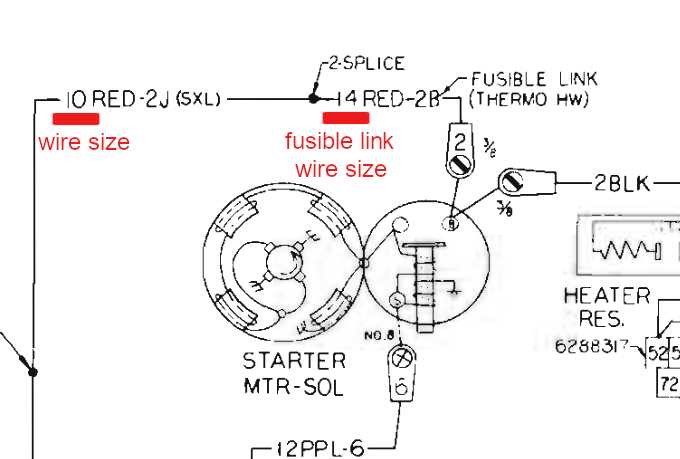

Start by locating the battery feed wire–a 10-gauge red cable originating at the positive terminal and running directly to the starter solenoid. This line carries full system voltage and must be secured with crimp connectors rated for 40 amps. Any corrosion at the terminal points will cause voltage drop; inspect and clean contacts every 12 months using dielectric grease to prevent oxidation.
The ignition control circuit begins at the cylinder-mounted actuator, where a purple wire with a 18-gauge cross-section exits the harness. Trace this wire to the firewall grommet–it should pass through without chafing. Inside the cab, it joins the fusible link assembly before splitting to feed the accessory relay and instrument panel bulb cluster. Failure here manifests as intermittent dash lights; verify continuity with a multimeter set to 200-ohm scale.
At the steering column base, the neutral safety switch interrupts the starter signal unless the transmission is in park or neutral. Test functionality by probing the yellow/black striped wire with the selector lever engaged–voltage should read system level (12–14V) in these positions only. If readings fluctuate, replace the switch using OEM-spec part GM#22557196 to avoid alignment issues with the shift linkage.
The solenoid activation lead–a brown wire with white stripe–exits the actuator harness and terminates at the starter. This path carries momentary high current (up to 50A); use a relay if extending beyond stock length to prevent voltage sag. Route new wiring through existing loom clips to avoid abrasion on the frame rail or exhaust manifolds.
For ground reference, follow the 12-gauge black wire from the battery negative terminal to the engine block stud near the bell housing. Sand the mounting surface to bare metal and apply anti-seize compound before torquing to 30 ft-lb. Poor grounding is the primary cause of hard-start conditions in these models–verify with a load test by cranking while measuring voltage between the starter case and battery post; readings should not exceed 0.5V.

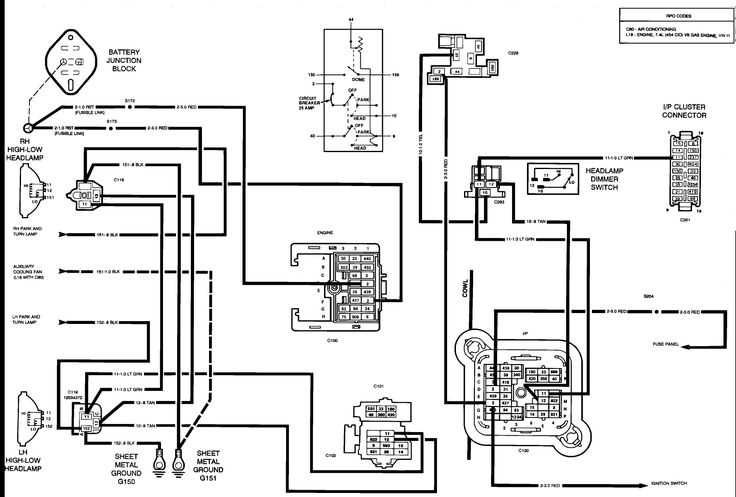

Electrical Schematic Guide for GMC C/K Series Start-Up Circuit
Locate terminal A (battery feed) on the steering column connector–this is the red wire (12 AWG) delivering 12V+ from the fusible link near the firewall. Trace it to terminal B (starter solenoid activation), marked by a yellow stripe (10 AWG), which bypasses the neutral safety relay when the key rotates to “crank.” Disconnect the battery negative cable before probing with a multimeter; resistance between A and B should read ~0.2 ohms. If voltage drops below 10.5V during cranking, inspect the 30-amp fuse under the dash panel–corrosion here mimics a faulty cylinder mechanism.
Color-Coded Connector Pinout
Pin C (purple, 18 AWG) carries ignition-on power to accessories; splice it only with 16 AWG wire to prevent voltage sag. Pin D (brown, 18 AWG) controls the accessory delay module–ground this pin to test dash lights without engaging the motor. Pin E (pink, 16 AWG) feeds the ECM and tachometer; a short here triggers code 54 even if the engine fires. For aftermarket alarms, tap into E with a 1A diode to isolate feedback loops.
Replace the column plug if terminals show pitting–GM part #12368036 fits 1982-1987 full-size models. When rewiring, use heat-shrink tubing over soldered joints; vinyl tape degrades after 7 years in engine bays. Test parking brake safety circuit via the light green wire (Pin F)–it should open when engaged, preventing unexpected starts.
Finding the Electrical Connector for the 1986 C/K Pickup Starter Circuit
Begin by removing the lower dash panel beneath the steering column. The harness connector for the vehicle’s start mechanism is secured to the firewall with a single 10mm bolt, positioned directly above the brake pedal linkage. Disconnect the negative battery terminal first to prevent accidental shorts while working.
The bundle of wires splits into two main sections: a six-terminal plastic plug and a smaller two-wire pigtail. The larger connector contains red, pink, purple, yellow, black, and orange leads–each serving distinct functions:
- Red (battery feed)
- Pink (accessory circuit)
- Purple (starter solenoid activation)
- Yellow (instrument panel lighting)
- Black (ground reference)
- Orange (run circuit via fuse block)
The smaller harness has a white wire (ignition feed) and a brown one (neutral safety switch input).
Trace the conduit from the firewall grommet toward the column assembly. The junction box is hidden behind the turn signal cancelling cam, requiring removal of the upper and lower column covers (five Phillips-head screws total). Use a flashlight to inspect the connections; corrosion often forms around the purple lead due to voltage spikes during cranking cycles.
Test continuity between the firewall connector and column terminals using a multimeter set to 20V DC. Probe the purple wire while someone turns the key to “start”–voltage should read 10-12V. If not, examine the neutral safety switch on the transmission or the fusible link near the battery. Replace any damaged terminals with GM-spec crimp connectors (part #12084214) to ensure proper current flow.
Reassembly requires routing the harness bundle through the original rubber grommet to prevent chafing against sharp metal edges. Secure the lower column shroud first, followed by the dash panel, then reconnect the battery. Verify operation by cycling through all key positions–parking lights, accessories, and engine crank should engage sequentially without hesitation.
Identifying Wire Colors and Their Purposes in the Electrical Start System
Begin by locating the red power lead–this is the primary feed supplying 12V directly from the battery. Trace it from the fuse block to the column harness; it typically connects to the solenoid or starter relay without intermediate splices. Verify continuity with a multimeter before assuming functionality, as corrosion at the terminal block often mimics an open circuit.
The purple (or violet) wire serves as the accessory feed, energizing secondary circuits like the radio, heater fan, and gauges when the key is in the “ACC” or “RUN” position. Check for voltage drop under load (e.g., with headlights on); readings below 11.5V indicate excessive resistance in the column connector or ignition cylinder contacts.
- Pink: Switched power output (key in “RUN” or “START”). Powers the ECM, fuel pump relay, and instrument cluster. If the engine cranks but stalls immediately, probe this wire–low voltage suggests a failing ignition tumbler or corroded splice near the firewall bulkhead.
- Dark Green/White Stripe: Starter signal, activates the solenoid during cranking. Test for 10-12V only when the key is in “START”; any voltage in “RUN” indicates a short to pink or red wires, risking premature starter wear.
- Yellow: Neutral safety switch input (automatic transmissions). Voltage should be present only in “Park” or “Neutral”; missing voltage prevents cranking, while unexpected voltage in gear suggests switch misadjustment or wiring chafing.
- Black: Ground reference for all switched circuits. Attaches to chassis via a ring terminal near the column base. Poor grounding causes intermittent operation–clean the contact surface with a wire brush and re-secure with dielectric grease.
Critical Testing Points
Use a backprobe technique to avoid damaging terminal seals when measuring live circuits. Insert a fine-gauge pin into the connector housing (from the rear) and touch the probe wire–this preserves the integrity of seals while allowing accurate readings. For starter-related issues, focus on the dark green/white stripe lead; cranking voltage should appear only during rotation and drop to 0V immediately after release.
Inspect the orange wire (if equipped) for tachometer signals or A/C clutch control. Erratic voltage here (spiking above 5V or pulsing irregularly) often points to a faulty ECM or interference from aftermarket alarms. Strip 1/4 inch of insulation, twist strands tightly, and solder if fraying is detected–twist-and-tape repairs fail under vibration.
- Label all wires before disconnecting any connectors to avoid confusion during reassembly.
- Spray electrical contact cleaner into the ignition cylinder and rotate the key 20+ times to remove carbon buildup.
- Replace any wire with melted insulation, brittleness, or green oxidation–these failures worsen under load.
Step-by-Step Guide to Testing Electrical Starter Circuit Contacts
Disconnect the battery’s negative terminal before handling any electrical components under the dashboard to prevent short circuits. Locate the activation module–typically a rectangular or cylindrical component with multiple terminals–near the steering column. Use a multimeter set to ohms (Ω) and probe the input and output terminals while rotating the key to the “start” position. A reading below 0.5Ω indicates a viable connection; values above 2Ω signal corrosion or a faulty relay requiring inspection of terminal integrity or replacement.
If resistance tests confirm functional transitions between contacts, proceed to voltage verification. Reattach the battery, set the multimeter to DC voltage (20V range), and probe the module’s power terminal while an assistant cycles the key through each position–”off,” “accessory,” “on,” and “crank.” Record voltages: “off” should read 0V, “accessory” and “on” near 12V, and “crank” momentarily dropping to 8-10V due to starter draw. Deviations outside ±0.5V necessitate tracing the circuit through the fuse block, ignition harness, or solenoid for breaks or voltage drops.
For intermittent failures, employ a test light on the module’s output while wiggling the column-mounted assembly. Illumination flickering or extinguishing pinpoints worn internal contacts or fractured solder joints–common on early-generation designs. Replace the entire assembly if inspection reveals melted plastic, discolored terminals, or erratic behavior under load, as repairs rarely restore consistent performance.
