Start by identifying the power source in your vehicle’s interior fuse box–most modern cars provide a constant-voltage output rated at 19W or higher. Use a multimeter to verify the socket delivers stable current before connecting any device. If readings fluctuate beyond ±0.5V under load, inspect the fuse and wiring harness for corrosion or loose terminals. Replace any damaged connectors with 18-gauge copper wire, ensuring crimp connections are soldered for durability.

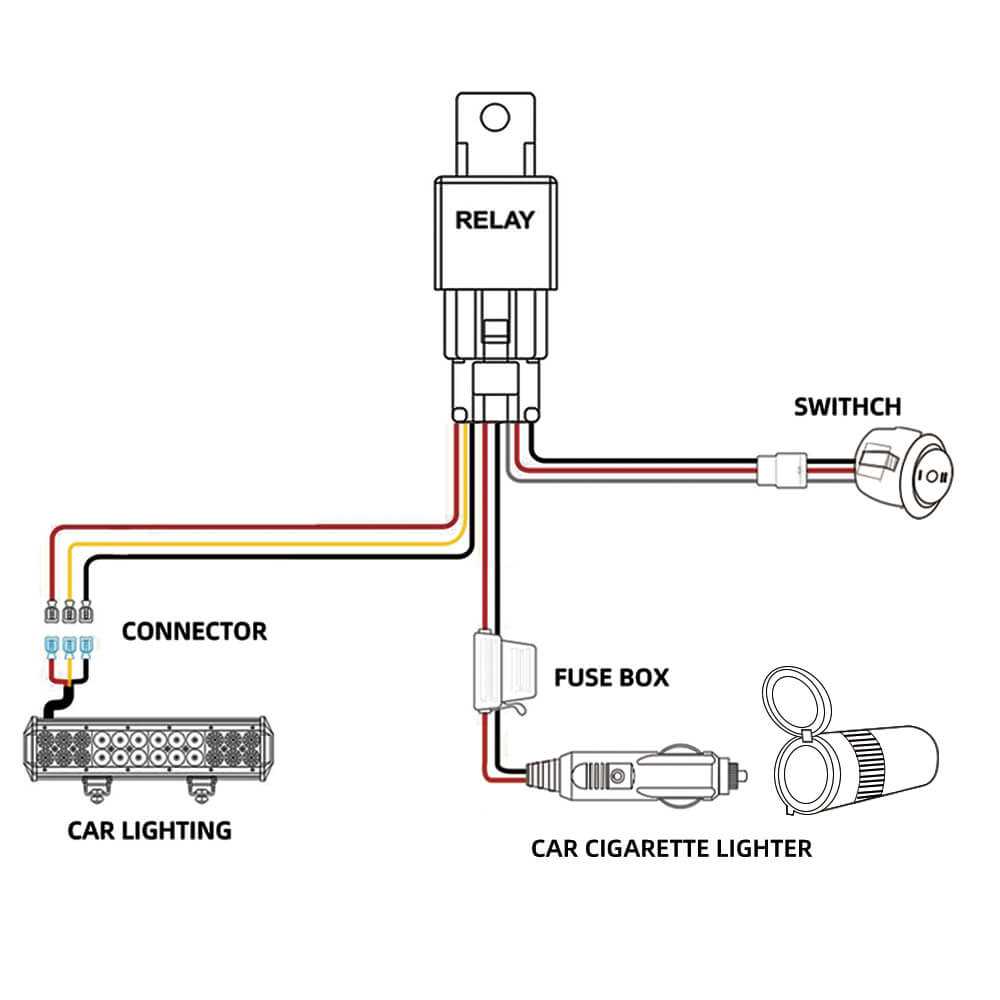

Split the circuit into three functional segments: positive lead, ground return, and fuse protection. The live wire should be routed away from moving components (steering column, pedals) using flexible conduit. Secure all runs with zip ties every 15cm to prevent vibration-induced shorts. Always install an in-line fuse (10A minimum for lighting, 20A for compressors) within 18cm of the power source to comply with ISO 6722 standards.
For polarity-sensitive devices, verify socket orientation–center pin is typically positive, outer sleeve negative. Reverse polarity can damage electronics instantly; use a diode protector (1N4007) if the accessory lacks built-in safeguards. For high-draw applications (over 100W), bypass the internal socket entirely and tap directly into the battery’s positive terminal, adding an additional 30A fuse at the connection point.
Common failure points include oxidized terminals and insufficient gauge wiring. Upgrade factory contacts with gold-plated spade connectors if current exceeds 5A. For marine or off-road use, apply dielectric grease to all junctions to prevent moisture ingress. Test the completed installation under load with a dummy resistor (12Ω for 1A, 4Ω for 3A) before attaching the final device.
Automotive Auxiliary Power Connection Guide
Always verify polarity before connecting any device to a vehicle’s power outlet. The standard configuration includes a positive center pin (typically red or yellow wire) and a negative outer sleeve (black or brown wire). Use a multimeter to confirm: +12.8V to +14.4V on the center pin under engine idle, with the sleeve showing 0V ground. Reverse polarity risks damaging electronics–install an inline fuse (15A–20A) within 15cm of the connector to prevent short circuits. For high-draw accessories like coolers or compressors, use 14–16 AWG wire; thinner gauges may overheat.
Common Wiring Mistakes to Avoid
- Skipping the fuse: Direct battery connections without protection create fire hazards.
- Ignoring voltage drop: Longer than 3m cables require thicker wire (e.g., 12 AWG) to maintain performance.
- Soldering alone: Combine soldering with crimp connectors for mechanical strength under vibration.
- Mixed grounds: Never share the accessory’s ground with the chassis–use a dedicated return path.
For aftermarket installations, disconnect the battery’s negative terminal before handling wires. Shield signal wires (e.g., for USB adapters) with foil tape to block EMI from the alternator. Test under load: A 5V/2A USB port should deliver 4.8V minimum at 50% draw; lower readings indicate poor connections.

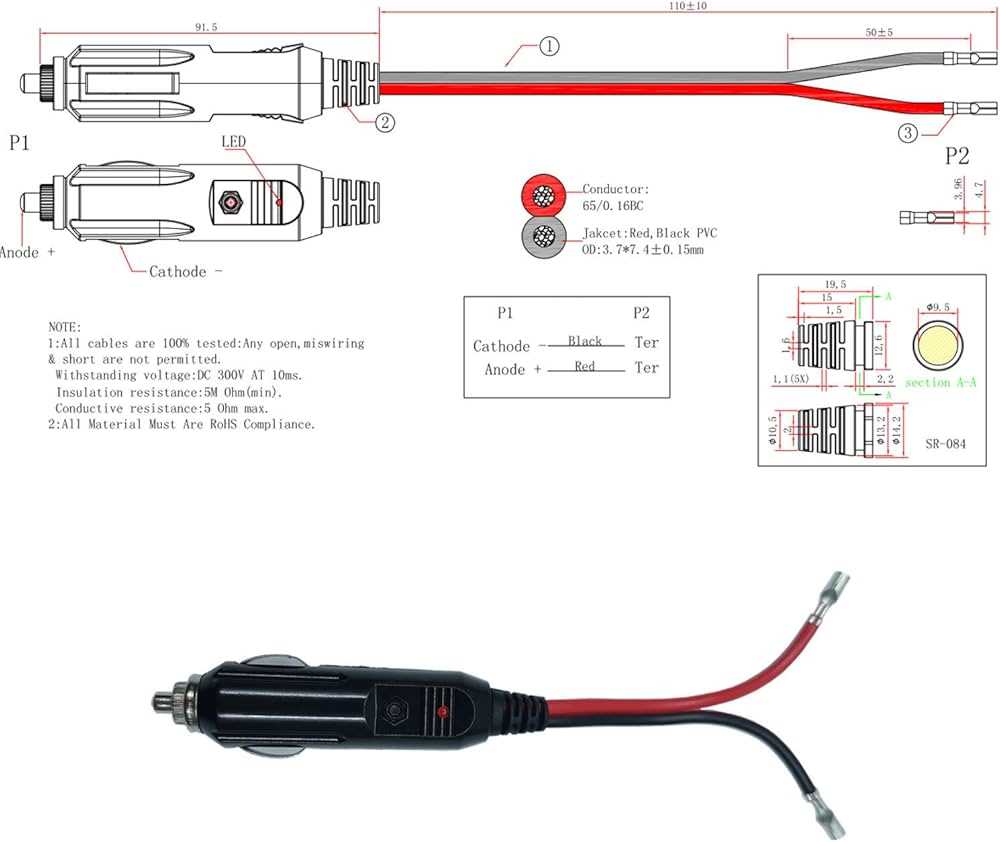

Adapter Pinout Reference
- Positive terminal: 5.5mm diameter, 9.5mm length (standard barrel). Tolerances vary–measure before ordering replacements.
- Negative sleeve: Diameter ranges 6.8mm–7.2mm. Oxidation here causes intermittent failures; clean with 400-grit sandpaper every 6 months.
- Third contact (rare): Some OEM adapters include a 5V/1A logic wire for CAN bus integration–verify with the vehicle’s manual before tapping.
For marine or off-road applications, add waterproof heat-shrink tubing over terminals and seal wire entry points with dielectric grease. Avoid automotive-grade quick disconnects; they corrode in humid conditions. Instead, use tin-plated copper connectors rated for 105°C. If modifying a factory harness, label each wire with its function–splicing errors are the leading cause of warranty claims in power accessory installations.
Identifying the Positive and Negative Leads in a Vehicle Accessory Connector
Locate the seam on the adapter’s plastic housing–most manufacturers mold a faint ridge or a differently colored dot near the center pin. This raised or discolored mark almost always signifies the hot side.
Use a multimeter set to DC volts, probe the center terminal against the outer shell. A reading of 11.5–13.8 V confirms the positive lead; reverse the probes to identify ground. If no meter is available, clip a known 1 W LED between the contacts–illumination pinpoints the energized line.
Color Coding Across Regions
| Region | Typical Hot Wire Color | Ground Wire Color |
|---|---|---|
| North America | Red or orange | Black |
| European Union | Brown or yellow | Blue |
| Japan / South Korea | White or red stripe | Black or black stripe |
| Australia / New Zealand | Red | Green/Yellow |
Strip 3 mm of insulation from each lead. Twist the exposed strands tightly, then tin them with a 25 W iron to prevent fraying. Crimp a 4.8 mm insulated fork terminal onto the hot side and a similar ring or spade onto the return if direct soldering isn’t feasible.
Step-by-Step Guide to Soldering Wires for a Secure Connection
Strip 5–7 mm of insulation from each conductor using a precision cutter. Avoid nicking strands–damaged copper reduces current capacity. Twist strands tightly to prevent fraying during soldering.
Preparing the Joint
- Heat the soldering iron to 350–400°C for lead-based solder or 370–420°C for lead-free alternatives.
- Apply a thin coat of flux to both stripped ends to prevent oxidation.
- Cross wires at a 45-degree angle for maximum contact surface.
Hold the iron tip against the joint for 2–3 seconds before introducing solder. Touch solder to the wire, not the tip–it should melt on contact with the heated metal. Apply just enough solder to fully encase the strands without forming a bulbous blob. Excess solder increases resistance and weakens mechanical strength.
Post-Soldering Steps
- Inspect the joint under a magnifying glass–look for gaps, uneven coverage, or cold solder spots.
- Slide heat-shrink tubing over the joint before cooling. Use a heat gun at 150–200°C until tubing contracts snugly.
- For extra protection, wrap the joint with self-fusing silicone tape, overlapping layers by 50%.
Test conductivity with a multimeter. A properly soldered joint should read near 0 ohms. For high-current applications (above 5A), reinforce the joint with a crimp connector before soldering–solder alone may fatigue under vibration.
Allow the joint to cool undisturbed for 60 seconds. Movement during cooling creates micro-fractures, compromising integrity. Store unused solder in a sealed container with desiccant to prevent oxidation.
For tinned copper wires, use rosin-core solder. Acid-core solder corrodes wiring over time, leading to intermittent failures. Keep a damp sponge nearby to clean the iron tip between joints–contaminants reduce heat transfer efficiency.
Common Pitfalls in Vehicle Socket Connections and How to Prevent Them
Avoid connecting wires directly to the terminal without soldering or using crimp connectors. Stripped ends pressed into the socket degrade over time due to vibration and heat, leading to intermittent power loss. Use heat-shrink tubing after soldering to protect joints from corrosion and short circuits.
Many overlook polarity when assembling accessories. Reversed connections can damage devices instantly. Test polarity with a multimeter before final assembly–positive typically sits at the tip, while the negative connects to the cylindrical sleeve.
Using undersized wire gauges for high-draw devices, like mini-fridges or power inverters, causes voltage drop and overheating. Check device specifications and match wire thickness accordingly. For 10-amp loads, use at least 16 AWG; for 20 amps, upgrade to 12 AWG.
Skipping Fuse Protection
Failing to install an in-line fuse near the power source risks fire if a short occurs. Always place a fuse with a rating slightly above the device’s maximum current draw–typically 110% of its continuous load. For example, a 5-amp accessory requires a 7.5-amp fuse.
Loose terminals inside the socket create resistance, generating heat that melts plastic housings. Ensure metal contacts are clean, tight, and free of oxidation. Apply dielectric grease to connections exposed to moisture or road salt.
Ignoring strain relief leads to wire fatigue near the socket entry point. Secure cables with zip ties or adhesive clips to prevent tugging, especially in mobile setups like trailers or off-road vehicles where movement is constant.
Incorrect Wire Routing
Running wires parallel to signal cables (e.g., audio or sensor lines) induces interference, causing static or erratic device behavior. Separate power and signal wires by at least 6 inches, using shielded cable if unavoidable proximity exists.
Assuming all sockets in a vehicle share the same fuse can overload circuits. Verify each socket’s fuse rating before adding accessories–some share a fuse with other components, limiting total current. Use a circuit tester to confirm available capacity.
Essential Gear for a Reliable Low-Voltage Socket Installation
Start with a multimeter that measures both DC voltage and continuity–preferably one with a backlit display for dim environments. Avoid analog models; digital units with auto-ranging simplify readings, reducing errors during connection checks. Expect to test between 10V and 15V for most automotive circuits, ensuring the socket receives stable power before proceeding.
Use crimp connectors rated for at least 15A, but keep a few 20A spades on hand for heavier loads. Tin-plated copper terminals resist corrosion better than bare metal, while heat-shrink tubing eliminates moisture ingress. Select the right gauge: 18 AWG for light accessories (e.g., phone chargers), 16 AWG for moderate loads (coolers, portable fridges), and 14 AWG for high-draw devices like inverters.
A soldering iron with adjustable temperature (30W–60W) ensures clean joints without melting insulation. Rosin-core solder (60/40 or 63/37) creates stronger bonds than acid-core, which deteriorates copper over time. Pair it with a helping hands tool to free both hands for precision work, especially when securing small terminals.
Wire strippers with a built-in cutter streamline preparation. Look for models with labeled gauge slots to prevent over-stripping, which weakens strands. For frayed ends, a butane-powered soldering gun reaches tight spaces (e.g., dashboard cavities) where a standard iron won’t fit. Keep spare butane canisters; refills sell out during remote projects.
Insulation piercing taps simplify splicing into existing harnesses without cutting wires. Opt for German-made taps with snap-lock mechanisms–they grip securely without crushing conductors. For permanent mods, soldered splices last decades, while crimped taps suit temporary setups (e.g., rally car prep). Always apply dielectric grease to taps in high-vibration areas (off-road, motorcycle installs).
Heat guns with dual-temperature settings (low for tubing, high for thick jackets) handle multiple tasks. Use adhesive-lined shrink tubing on outdoor connections–waterproof seals out road spray and dust. For marine applications, marine-grade tubing with UV inhibitors prevents cracking under direct sunlight. Keep a roll of electrical tape for quick fixes, but avoid it as a primary insulator; it degrades within months.
Fuse holders with blade-style slots (mini or ATO/ATC) protect circuits from shorts. Place them within 7 inches of the power source to minimize fire risk. For 10A–15A loads, use ceramic fuses; automotive glass fuses shatter under heat, leaving circuits exposed. Label each fuse with its amperage and purpose–future troubleshooting depends on it.
Velcro straps or spiral wrap bundle wires neatly, preventing abrasion against sharp metal edges. Spiral wrap expands to accommodate thicker bundles, while zip ties work for permanent routing–just don’t overtighten, or they’ll weaken the insulation. For high-temperature zones (near exhaust manifolds), use PTFE looms; nylon melts at 220°F. Store excess wire in static-resistant bags to avoid kinks before installation.
