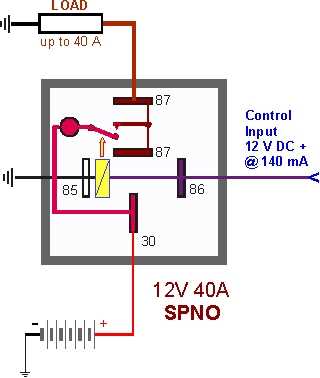

Connecting an automotive-grade 12-unit power switch with a quad-terminal design requires precise terminal pairing. The primary coil contacts–typically labeled 85 and 86–demand direct linkage to the control source, where 85 attaches to ground and 86 receives the trigger signal. This setup ensures immediate response without voltage drop.
For the load terminals, 30 acts as the common input, fed by the power source through a 10-amp fuse for protection. Terminal 87 serves as the output, routed to the device. Avoid splicing multiple loads into this path; excessive current draw risks overheating or erratic switching. Use 14-gauge wire for currents under 7 amps, upgrading to 12-gauge for heavier loads.
Test continuity across all four terminals before finalizing connections. A multimeter reading of 50–120 ohms across 85/86 confirms coil functionality. For load-side verification, energize the circuit and check for full system voltage between 30 and 87 while grounded. Replace the switch if resistance exceeds 150 ohms or voltage fluctuates under load.
Secure all contacts with crimp connectors and heat-shrink tubing to prevent corrosion. Route wires away from sharp edges or moving parts, using zip ties every 6 inches for strain relief. For reversible-switch applications (87a terminal), ensure the normally closed path is isolated to prevent unintended device activation during standby.
Understanding Your 12V 4-Terminal Switch Connection Layout
Begin by identifying the coil terminals on your electromechanical component–these are the two smaller contacts where the control current enters. Label them with temporary markings if the manufacturer’s numbering isn’t visible. Terminals 85 and 86 (industry-standard designation) must receive a low-amperage trigger source, typically from a dashboard toggle, alarm module, or microcontroller output. Ensure this trigger doesn’t exceed 180 milliamps; exceeding this risks burning the coil wire gauge, which averages 0.32 mm in diameter.
Connect the high-power path using terminals 30 and 87–these carry the switched current for accessories like fog lamps, cooling fans, or winch motors. Terminal 30 is always the common input; terminal 87 routes to the load when energized. For inductive loads (motors, transformers), insert a 1N4007 diode backward across terminals 87 and 30 to suppress voltage spikes. On resistive loads (lamps, heaters), this diode can be omitted but verify the maximum contact rating–typically 30 amps continuous, 40 amps intermittent–against your load’s datasheet.
| Terminal Label | Function | Wire Gauge Recommendation | Max Current (A) |
|---|---|---|---|
| 85 | Coil positive | 22-18 AWG | 0.18 |
| 86 | Coil negative or switched ground | 22-18 AWG | 0.18 |
| 30 | Common input | 14-10 AWG | 30-40 |
| 87 | Normally open output | 14-10 AWG | 30-40 |
Route the common input (terminal 30) directly from the power distribution block or fuse panel–avoid splicing this line to prevent voltage drop. Use crimp connectors rated for 35 amps minimum, soldering the joint only on wire gauges smaller than 14 AWG for added mechanical strength. Secure all joints with adhesive-lined heat shrink tubing; polyolefin (4:1 shrink ratio) withstands temperatures up to 125°C and resists automotive fluids.
Test coil continuity with a multimeter set to 200 ohms–expect readings between 60 and 120 ohms. A reading below 30 ohms indicates shorted windings; a reading above 200 ohms suggests corrosion or broken wire strands. For coil activation testing, apply a steady 12.6 volts across terminals 85 and 86–listen for a sharp metallic click, confirming proper armature travel. Measure contact resistance between 30 and 87 in the energized state: it should read 0.03 ohms or less; readings above 0.1 ohms signal pitted or oxidized contacts requiring replacement.
Fuse both the control and load circuits with values based on actual current draw, not circuit breaker size. A 20-amp blade fuse suits most 10 AWG applications, while 12 AWG benefits from a 15-amp fuse. Mount fuses within 7 inches of the power source to prevent undetected short circuits from damaging downstream wiring. For reactive loads (solenoids, compressors), add a 10,000 µF capacitor across the load terminals to smooth voltage fluctuations, prolonging both switch contacts and component lifespan.
Identifying the Terminals on a 4-Pole Electromechanical Switch
Locate the numbering or symbols stamped near each connection point–standard models use 85, 86, 87, and 30. Terminals 85 and 86 form the coil circuit: connect the control signal to 85 (negative) and 86 to the positive trigger. Terminals 87 and 30 manage the load path; 30 acts as the common input, while 87 closes the circuit when the coil energizes. Confirm polarity with a multimeter: a resistance reading between 85 and 86 (typically 50–120 ohms) confirms the coil’s integrity, while continuity between 30 and 87 indicates the switch is engaged.
If markings are absent, trace the internal contacts: the coil wires are thinner, while the load contacts use thicker gauge. Use a 9V battery to test activation–applying current to the coil should produce a distinct click, and a multimeter will show continuity between the load terminals. Check datasheets for exceptions, as some variants swap 87 and 87a (normally closed) positions.

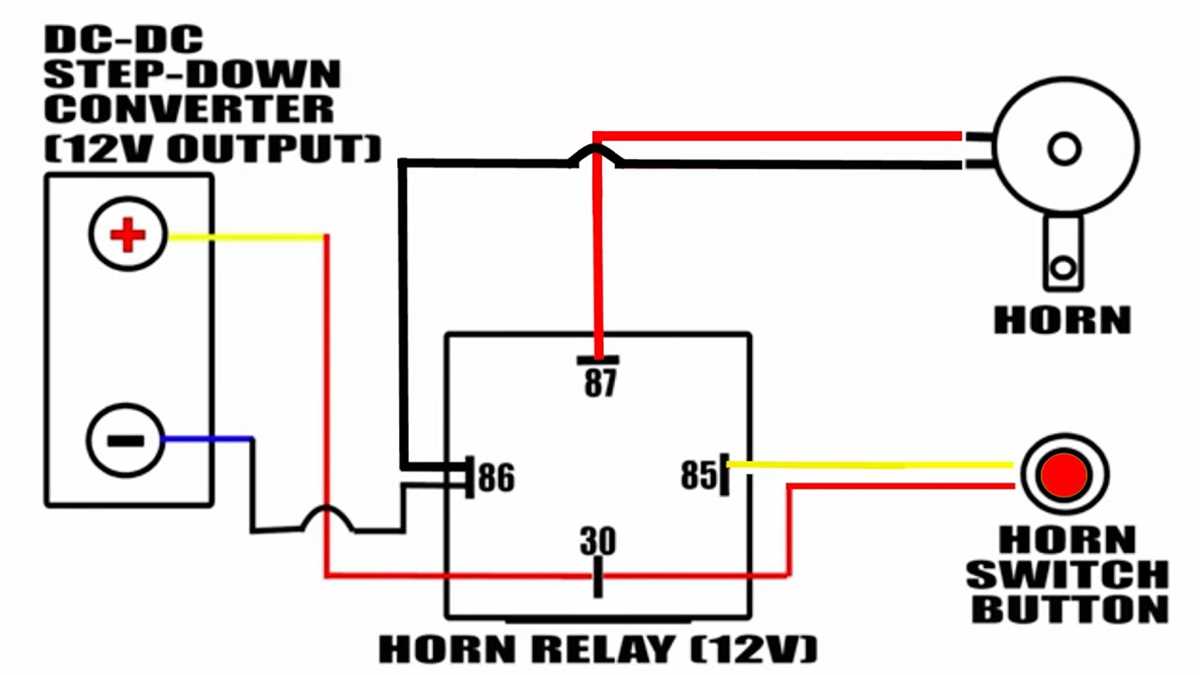

Step-by-Step Connection Guide for a 12V Electromagnetic Switch
Disconnect the power source before handling any connections to prevent shorts or accidental activation. Identify the control circuit terminals–typically labeled 85 and 86–and attach the switched input (+12V trigger) to one terminal, grounding the other to a chassis point or negative lead. For the load circuit, connect the high-current path (terminal 30) to the power feed, then route the output (terminal 87) to the device being controlled, ensuring heavy-gauge wire (14-16 AWG) for currents above 10A. Verify all joints with a multimeter in continuity mode before energizing.
Integrate a flyback diode (1N4007) across the control lines if the trigger originates from an inductive load (e.g., solenoids or motors) to suppress voltage spikes. Secure all terminals with crimp connectors or solder for reliability, avoiding exposed strands. Test the circuit incrementally: first with the trigger signal, then under full load conditions, monitoring for overheating or voltage drop exceeding 0.5V across the switch contacts.
Common Mistakes to Avoid When Connecting a 4-Terminal Switching Module
Mixing up the input and output terminals leads to immediate failures or erratic behavior. A 12-amp automotive module typically labels terminals 85 and 86 for coil control–swapping them cuts power delivery. Verify polarity-sensitive diodes before attaching any leads to prevent back-feeding voltage surges into sensitive circuits. Use a multimeter in continuity mode to confirm pinout markings match manufacturer specifications.
Skipping load capacity checks risks melting contacts on high-current accessories like auxiliary lights or cooling fans. A 30-amp rated switch handles up to 360 watts safely; exceeding this by even 20% invites overheating. Calculate total amperage draw–LEDs consume 0.02 amps each, while halogen lamps demand 4–summing multiple loads under the module’s limit avoids premature failure.
Overlooking wire gauge selection introduces voltage drop over extended runs. For a 15-foot run powering a 15-amp load, 14 AWG copper wire drops 0.3V; upsizing to 12 AWG reduces loss to 0.18V. Corrosion-prone splices under the hood necessitate solder-seal connectors or heat-shrink tubing to prevent intermittent shorts from moisture ingress. Crimping tools must match terminal sizes exactly–loose crimps increase resistance.
Inadequate Fuse Protection
Placing a fuse directly at the power source terminal (usually marked 30) prevents catastrophic short circuits from traveling upstream. A 30-amp module requires a fuse rated no higher than 25 amps for reliable protection–using a 40-amp fuse risks wire insulation melting before the fuse blows. Mini blade fuses melt at 125°C; micro fuses offer faster response times for delicate electronics. Test fuse continuity with a multimeter after installation to confirm unimpeded current flow.
Ignoring Ground Path Integrity
A weak ground connection generates resistance, reducing accessory performance or triggering false activations. Paint, rust, or undercoating on chassis mounting points demand thorough cleaning with a wire brush–bare metal ensures uninterrupted return paths. For a 20-amp accessory, use at least 10 AWG ground wire; smaller gauges elevate voltage drop across the module’s 87 terminal. Measure ground-to-battery voltage with equipment running–readings above 0.5V indicate compromised grounding.
Tools and Materials Required for Connecting an Electrical Switching Device
Begin with a multimeter capable of measuring both direct current at 12V and continuity. The Fluke 17B+ or Klein Tools MM400 are reliable choices, offering accuracy down to 0.1 ohms for secure circuit checks. Avoid cheaper alternatives prone to drift readings under 50 milliohms–they risk false positives during load testing.
For stripping conductors, select a self-adjusting wire stripper with predefined gauge slots, such as the Knipex 12 62 180. Standard pliers-style strippers often crush strands in finer gauges like 18-22 AWG, compromising conductivity. If manual stripping is unavoidable, verify strand integrity under magnification–frayed filaments increase resistance by 10-15%.
- Heat-shrink tubing assortment: Polyolefin 2:1 ratio in diameters from 1.5mm to 6mm. Branded kits like 3M SJ8544 include adhesive-lined options for moisture-prone applications. Generic tubes often shrink unevenly at temperatures below 120°C, leaving voids.
- Crimping tool: Ratcheting design with interchangeable dies, such as Sargent 10-605 or IWISS SN-2460. Non-ratcheting pliers deform crimps, reducing pull-strength by 30%. Match die size precisely to terminal type–insulated vs. non-insulated–using manufacturer specifications.
- Soldering iron: Temperature-controlled model, Hakko FX-888D (30-45W), with a chisel tip for large joints. Avoid high-wattage irons; they desolder adjacent components in densely packed control boxes. Use rosin-core solder (60/40 Sn-Pb) specifically formulated for low-voltage systems–acid-core flux corrodes copper traces within months.
Terminal connectors should be tin-plated copper for corrosion resistance. For high-current paths (10A+), select ring terminals over spade types–lateral forces in vibration-prone environments cause spades to disengage. The TE Connectivity PIDG line includes strain-relief ribs that prevent wire pull-out under 15N force. For signal circuits, bullet connectors like Molex 0022554023 maintain 0.3mm gap tolerances critical for preventing arc faults.
- Use PTFE-insulated hookup wire for temperatures up to 200°C in confined spaces. Standard PVC insulation fails at 80°C under continuous load, releasing hydrogen chloride gas that etches circuit boards.
- Avoid aluminum wire. Its oxide layer increases resistance by 50% vs. copper, requiring antioxidant paste (Noalox) at every joint. Copper-clad aluminum is a cost-driven compromise but still underperforms pure copper in thermal cycling tests.
- For grounding, select tinned braided copper straps (7×0.2mm strands) over solid wire. The strapped design dissipates transient spikes faster, reducing voltage drop by 8% during inductive load switching (e.g., motors or solenoids).
Electrical tape is insufficient for mechanical protection. Instead, use friction tape (Scotch 22) under primary insulation tape (3M Super 33+). The double-layer approach withstands shear forces up to 5kg/cm²–critical for automotive or industrial applications where cables chafe against chassis edges. Avoid vinyl tapes labeled “economy” or “general purpose”; they harden within 12 months, cracking under vibration.
Label every conductor using heat-resistant polyester tags (Brady BMP71-499). Laser-printed labels on PVC fade at 60°C, while polyester maintains legibility at 150°C. For high-density installations, employ color-coded shrink sleeves with alphanumeric codes–visible through insulation, they reduce troubleshooting time by 60% compared to handwritten tags.
Always include a flyback diode (1N4007) in parallel with inductive loads (coils, motors) to clamp voltage spikes exceeding 50V. Omitting it accelerates contact erosion in switching mechanisms, reducing lifecycle from 106 to 104 operations. For bidirectional current flow, substitute with a transient voltage suppression diode (P6KE15CA)–it clamps spikes in both polarities but adds 0.7V forward drop.
