Start with precise component labeling. Each resistor, capacitor, and IC must carry a unique identifier–R1, C5, U3–to avoid ambiguity during assembly or debugging. Use standard naming conventions like IEEE 315 for consistent cross-referencing. Omitting or reusing labels creates hidden failure points in subsequent revisions.
Trace signal paths with intentional routing. Power rails (VCC, GND) should form clearly defined branches, avoiding shared nodes that obscure noise coupling. Separate analog and digital grounds with a single-star connection at the supply to minimize interference. For high-speed traces, maintain controlled impedance by calculating trace width based on Er (dielectric constant) and substrate thickness.
Add test points at critical junctions–clock signals, reset pins, ADC inputs. Without them, diagnosing faults requires probing soldered components, risking pad damage. Label each point in the schematic and PCB silkscreen for easy verification. Include pull-up/pull-down resistors where defaults may cause undefined states, such as I2C buses or microprocessor pins.
Validate net connectivity before finalizing. Use Design Rule Checks (DRC) to flag unconnected pins or floating inputs. Simulate power consumption with worst-case scenarios–account for 20% tolerance on passive components. Export netlists in both SPICE and EDIF formats for compatibility with simulation and layout tools.
Document assumptions directly on the diagram. Specify voltage ranges (3.3V ±5%), current limits, and temperature ratings. Note lead-free solder requirements if the board undergoes reflow. Version control is non-negotiable–attach a changelog detailing modifications like “Replaced LM324 with TLV341 (rail-to-rail)” to prevent regressions.
Building a Functional Electrical Schematic
Start by labeling every component with standardized symbols to avoid misinterpretation. Use IEC 60617 or ANSI Y32.2 for consistency–mismatched symbols lead to errors during assembly or troubleshooting. For resistors, capacitors, and inductors, include exact values (e.g., 4.7kΩ, 100nF, 10μH) and tolerances (±5% unless specified otherwise). Omitting these details forces technicians to reverse-engineer values, increasing downtime.
Organize power rails vertically on the left and right edges of the layout, with ground connections clearly marked. Separate high-voltage (>30V) and low-voltage (
Use net labels instead of direct connections for long or complex traces. Assign descriptive names (e.g., “VCC_5V_SENSOR,” “I2C_SDA”) rather than generic terms like “NET1” to simplify debugging. Group related signals logically–keep clock lines (e.g., SPI CLK) away from high-speed data buses (e.g., DDR) to minimize crosstalk. A 3mm spacing between parallel traces carrying signals above 10MHz prevents interference.
Test points should be added at critical nodes, including:
- Power supply outputs (before and after regulators)
- Signal chain intermediates (e.g., op-amp outputs, ADC inputs)
- Communication lines (e.g., UART TX/RX, CAN bus)
Position them on the edge of the board for easy probing. Assign unique identifiers (e.g., TP1, TP2) cross-referenced in a bill of materials.
For safety-critical designs, include redundant protection components. A transient voltage suppression (TVS) diode rated for the system’s maximum surge (e.g., 600W for automotive applications) must clamp voltages within 10ns. Fuses should be placed in series with power inputs, sized at 125% of the maximum expected current. Thermal vias under high-power components (e.g., MOSFETs) improve heat dissipation by 30–40%, preventing failure rates up to 15%.
| Component | Recommended Placement | Spacing/Precautions |
|---|---|---|
| Decoupling capacitors (100nF) | Within 5mm of IC power pins | Avoid vias between capacitor and pin |
| Ferrite beads | Input of sensitive analog sections | 1-2Ω impedance at 100MHz |
| Pull-up resistors | Open-drain outputs (e.g., I2C) | 2.2kΩ–10kΩ, match VIH/VIL thresholds |
| Schottky diodes | Reverse polarity protection | 0.3V forward drop, 1.5× max load current |
Annotate the schematic with revision history in a corner block:
- Date of modification
- Engineer’s initials
- Brief change description (e.g., “Added ESD diode D5”)
Limit each revision to one logical change to isolate faults. Export the final version in PDF and DXF formats–PDF for review, DXF for CAM systems. Avoid proprietary formats like .SCH to ensure cross-tool compatibility.
For high-frequency designs (>100MHz), calculate trace impedance using:
Z₀ = 87 / √(εᵣ + 1.41) * ln(5.98h / (0.8w + t))
where Z₀ = characteristic impedance, εᵣ = dielectric constant (4.5 for FR-4), h = substrate height (mm), w = trace width (mm), t = trace thickness (μm). Target 50Ω or 75Ω based on termination requirements. Use 4-layer boards with ground planes to reduce inductance by 60% compared to 2-layer designs.
Validate the layout with simulation tools before prototyping. SPICE models for active components (e.g., LTspice for op-amps, MOSFETs) predict transient responses and stability margins. For switched-mode power supplies, verify loop gain/phase using Bode plots–aim for a 45° phase margin at the crossover frequency. Document simulation results in an appendix with screenshots of critical waveforms (e.g., startup overshoot, ripple under load).
Essential Elements for a Reliable Schematic

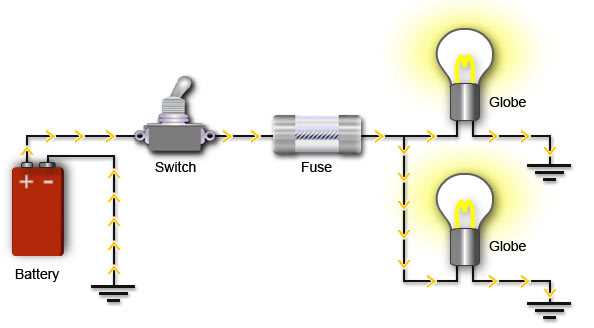

Power sources must be clearly labeled with voltage, current ratings, and polarity. Include batteries, AC/DC adapters, or power rails, specifying exact values–e.g., 5V DC, 12V AC–alongside any protection components like fuses or transient voltage suppressors. Omit vague annotations; precision prevents miswiring.
Signal paths require unambiguous directionality. Use arrows for data lines (I2C, SPI, UART) or power flow, and differentiate between ground types (analog, digital, chassis). Label nets with consistent names–e.g., SCL, VCC_3V3–to avoid confusion during assembly or debugging.
Integrate protection and conditioning components at critical stages. Insert capacitors (0.1µF, 10µF) near IC power pins, resistors (current-limiting, pull-up/down), and diodes (flyback, TVS) where transient spikes occur. Position these directly on the layout without relying on external notes.
Define component footprints with exact physical dimensions–through-hole (THT) vs. surface-mount (SMD), pad spacing, and package type (e.g., SOIC-8, 0603). Cross-reference with part numbers in a dedicated BOM to eliminate guesswork during prototyping. Avoid generic labels like “resistor”; specify 1kΩ 1% 0402 instead.
Grounding strategy demands separate planes for analog and digital sections, connected at a single star point. Mark these distinctly–AGND, DGND–and indicate noise-sensitive traces (e.g., op-amp inputs) requiring shielding. Document decoupling practices directly on the schematic.
Test points and debug interfaces–headers, pads, or vias–must be explicitly shown. Label them with pinouts (e.g., SWD_IO, UART_TX) and reference designators. Include serial numbers or barcodes if traceability is critical. Omit these, and troubleshooting becomes trial-and-error.
Annotations for operational limits–max current, thermal ratings, derating curves–belong on the schematic, not in datasheets. For ICs, summarize key parameters (e.g., Tj max = 125°C) and recommended operating conditions. This ensures builders respect constraints without cross-referencing external documents.
Step-by-Step Guide to Drawing a Clear and Accurate Schematic
Begin by arranging components in logical functional blocks. Group power sources, sensors, microcontrollers, and output devices separately. Keep signal paths flowing left to right or top to bottom–avoid zigzagging lines. Printed layouts follow this convention; mimic it on paper or software to reduce errors.
Use a grid for alignment. Most design tools offer snap-to-grid features; enable them. Components should align on 0.1-inch intervals, matching breadboard and PCB standards. Misaligned parts cause confusion and assembly mistakes. If drawing manually, use graph paper with 0.1-inch squares.

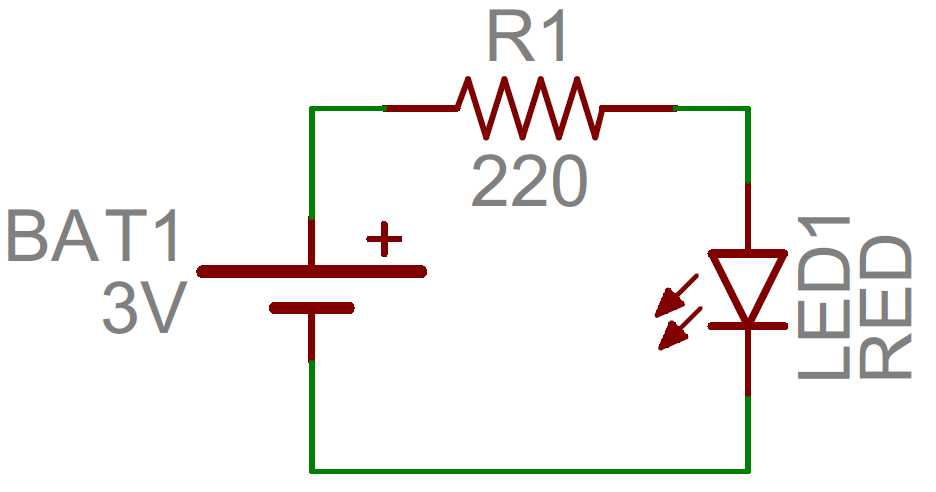

Label every symbol immediately. Assign values, part numbers, or net names directly beside components. Avoid waiting until the end–omitted labels lead to ambiguous connections. For resistors, specify resistance (e.g., “R1 10kΩ”). For ICs, include pin numbers (e.g., “U1 ATmega328P”).
Prioritize signal clarity over aesthetic appeal.
- Avoid crossing wires unless necessary. Use jumpers or rearrange components to minimize intersections.
- Keep high-frequency traces short. Long traces act as antennas; route them first to maintain integrity.
- Differentiate power and ground lines. Use thicker lines (0.25mm) for VCC/GND, standard width (0.15mm) for signals.
- Add test points for critical nodes. Mark them with circles and labels (e.g., “TP1”).
Verify connections with continuity checks. Trace each path from source to destination. Confirm no floating inputs exist–unconnected pins cause erratic behavior. Tools like KiCad’s Electrical Rules Check (ERC) automate this; manually, use a highlighter to mark verified routes.
Document non-standard conventions
Include a legend for custom symbols or unconventional notation. List:
- Color coding for wire types (e.g., red = power, black = ground, blue = data).
- Special markers for pull-up/pull-down resistors or decoupling capacitors.
- Polarity indicators for diodes, electrolytic capacitors, and batteries.
Add notes for future reference, such as “C1 decouples noise at 100nF” or “D1 clamps inductive load spikes.”
Test readability by handing the schematic to someone unfamiliar with the project. Ask them to identify power sources, signal directions, and key components. If they hesitate, revise:
- Simplify tangled connections.
- Replace vague labels with precise terms (e.g., “GPIO5” instead of “PIN”).
- Ensure no component overlaps another; adjust spacing if needed.
A clean design reduces debugging time and accelerates prototyping.
