Begin by verifying the power supply matches the appliance’s requirements–most industrial or heavy-duty devices operate on a split-phase 240-volt circuit with a neutral wire. Use a multimeter to confirm line voltage between the two hot wires (L1 and L2) reads approximately 240 volts, while each hot wire to neutral should show 120 volts. Failure to check these readings risks damaging equipment or creating a fire hazard.
Identify the cable’s conductors: two insulated hot wires (typically red and black), one bare or green grounding wire, and one white neutral wire. Strip 0.6–0.8 cm of insulation from each wire end, ensuring no exposed copper extends beyond the terminal screw. Twist stranded wires clockwise before securing them to prevent loosening over time.
Attach the wires to the terminal block in this order: connect the red and black hot wires to the brass-colored screws on opposite sides of the outlet, ensuring polarity alignment with the appliance’s plug. Secure the white neutral wire to the silver screw and the grounding wire to the green screw at the base. Tighten each screw with 2.8–4 Nm of torque–over-tightening can strip threads, while under-tightening risks arcing.
Mount the outlet into the junction box, aligning the screw holes with the mounting tabs. Use #10-24 or #12-24 screws, depending on the box type, and apply thread-locking compound if vibrations are a concern. Before sealing the cover, perform a load test with the appliance powered off: use a non-contact voltage tester to confirm no live current leaks to the outlet’s exterior.
If the circuit includes a double-pole breaker, ensure it’s rated for 20–50 amps based on the appliance’s draw–check the manufacturer’s plate for exact specs. Label the breaker panel clearly with the outlet’s location and purpose to prevent accidental disruption during maintenance. Avoid daisy-chaining outlets on this circuit; high-voltage devices require dedicated lines to prevent overload.
Electrical Outlet Connection Guide for High-Voltage Appliances

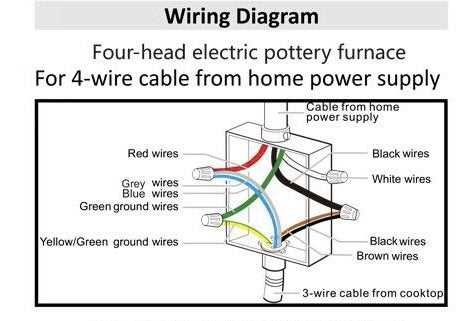

Begin by matching cable colors to terminal screws: red and black wires attach to brass screws (hot terminals), while green or bare copper connects to the green grounding screw. White or gray neutral wires secure to silver screws. Tighten each screw until the conductor resists gentle tugs–loose connections risk arcing.
Verify voltage between terminals using a multimeter before finalizing assembly. Measure across hot terminals (red/black)–readings should align with regional standards (e.g., ±5% of 240V). Check neutral-to-ground for zero volts; deviations indicate reversed polarity or improper bonding.
Critical Safety Checks
Examine insulation integrity–frayed strands increase short-circuit risk. Trim damaged sections cleanly, then strip ⅝ inch of sheathing from each conductor. Twist strands clockwise before inserting under screw plates to prevent stray wires from contacting adjacent terminals.
Use strain relief clamps where cables enter the outlet housing. Tighten just enough to prevent cable pull-out without deforming insulation. Loose strain relief permits wire fatigue at termination points, potentially causing intermittent failures under load.
Label circuits clearly at the breaker panel. For split-phase setups, mark paired breakers with corresponding appliance names to prevent accidental activation during maintenance. Include amperage ratings (e.g., 30A, 50A) to guide future troubleshooting.
Troubleshooting Common Errors
If the outlet trips immediately upon switching, confirm both hot wires carry equal voltage. Uneven readings suggest an open neutral or miswired breaker. Test continuity from neutral terminal to ground–resistance above 1Ω indicates a broken bonding path.
Buzzing noises at the outlet point to loose connections. Shut power, disassemble, and inspect screw torque with a torque screwdriver (target: 12-15 in-lbs). Replace corroded screws or discolored terminals, which impair conductivity over time.
For three-prong configurations, ensure the grounding terminal connects directly to the metal outlet box if present. Plastic boxes require grounding through an additional copper pigtail bonded to the neutral bus bar in the service panel. Skip this step only for double-insulated appliances labeled “no ground required.”

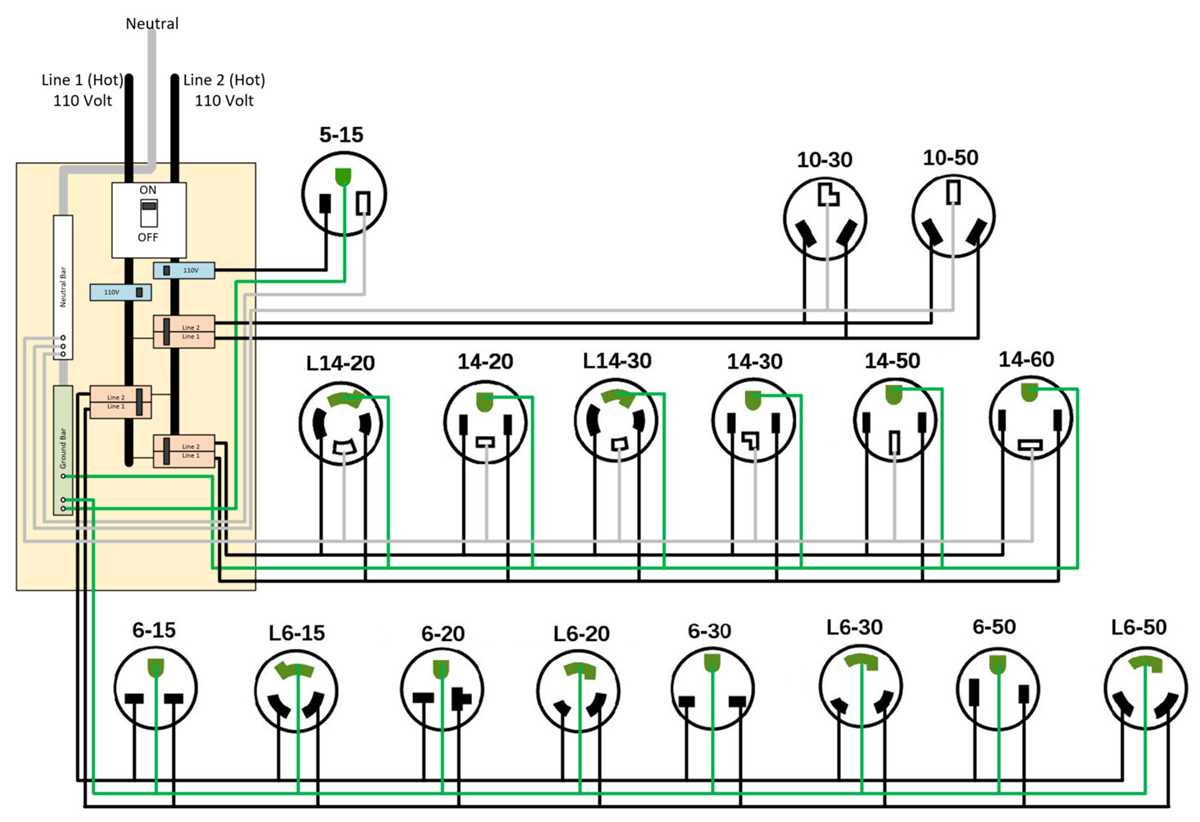

Standard Configurations for 240-Volt Receptacles
Install a NEMA 6-15 outlet for small appliances requiring up to 15 amps. Use 10-gauge copper conductors with a 20-amp circuit breaker to prevent overheating. Connect the red and black hot wires to the brass screws, the white neutral to the chrome screw, and the bare ground to the green screw. Verify torque specifications (18–20 in-lbs for 10-gauge) using a calibrated screwdriver to avoid loose connections.

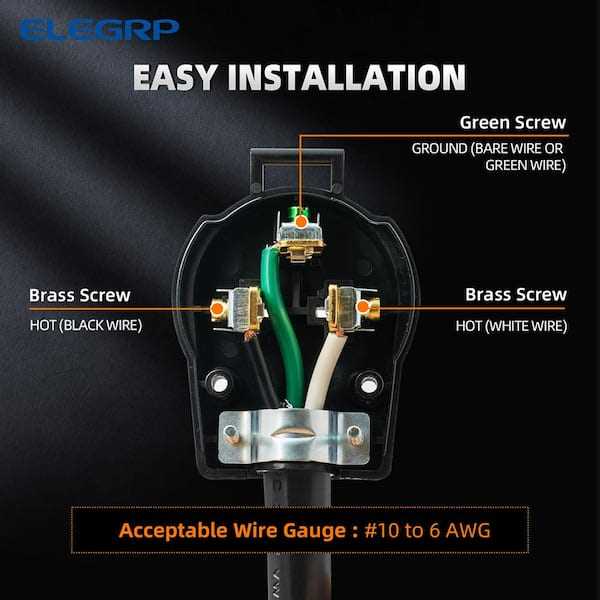

For heavy-duty equipment, opt for a NEMA 6-20 or 6-30 outlet. The 6-20 handles 20 amps with 12-gauge wire, while the 6-30 demands 10-gauge wire and a 30-amp breaker. Follow these terminal assignments:
- NEMA 6-20: X-shaped slots; wire colors match the 6-15 but use a 20-amp breaker.
- NEMA 6-30: Horizontal slots; omit the neutral wire–only hot and ground connections are needed.

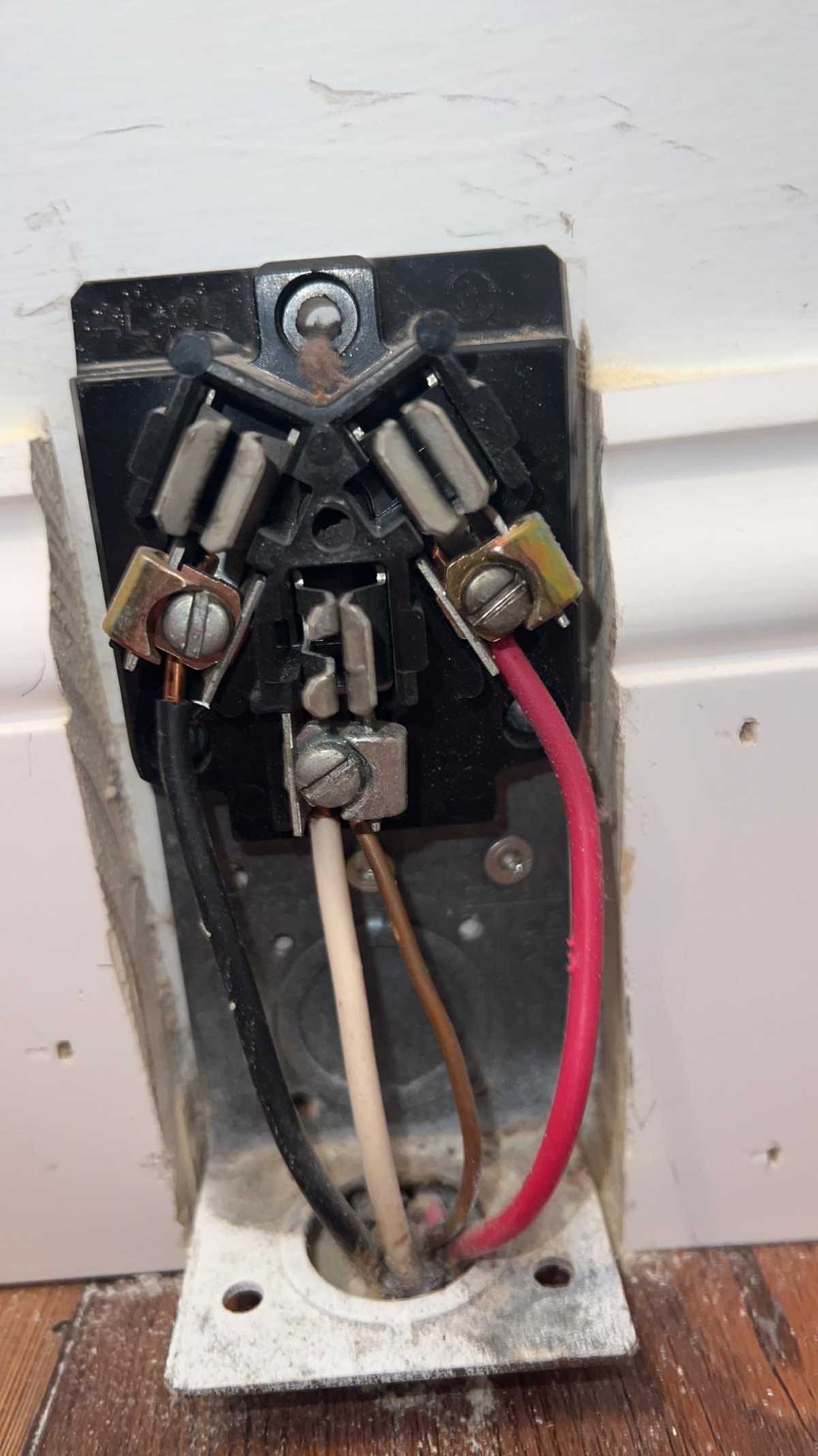

NEMA 14-30 and 14-50 receptacles include a neutral for devices like welders or ranges. For the 14-30, use 10-gauge wire with a 30-amp double-pole breaker. The 14-50 requires 6-gauge wire and a 50-amp breaker. Terminal layout:
- Red/black hots: Brass screws (outer slots).
- White neutral: Chrome screw (center slot).
- Bare ground: Green screw (U-shaped slot).
Dedicated circuits for high-load devices (e.g., dryers, ovens) mandate 8-gauge wire for 40-amp breakers or 6-gauge for 50 amps. Avoid shared neutrals–each circuit must have its own return path. Use a torque wrench to tighten terminals to 25 in-lbs for 6-gauge wire. Label all breaker panels with circuit purposes to simplify future maintenance.
Test every connection with a multimeter after installation. Set the meter to AC voltage (250V scale) and probe the hot and neutral slots–readings should be 240V (±5%). Probe hot to ground: 120V (±3V) confirms proper grounding. If readings deviate, check for reversed wires or loose terminations. Re-test after 24 hours to ensure stability under load.
Specialized outlets like NEMA L6-30 (locking) require curved-blade plugs. Wire identically to the 6-30 but ensure the receptacle’s locking mechanism engages fully. For split-phase systems (e.g., 120/240V), connect the red and black wires to opposite bus bars in the panel to balance the load. Always shut off the main breaker before working and use insulated tools to prevent arcing.
How to Assign Wire Colors in a High-Voltage Connector Safely
Identify the local electrical code requirements before handling any terminal connections. In the U.S., the National Electrical Code (NEC) mandates red for the second hot conductor, black for the primary, white or gray for neutral, and green (or bare copper) for grounding. Confirm these standards match regional regulations–some European systems use brown and blue instead of black and white. Strip each cable to expose 5/8 inch of bare metal, ensuring no insulation remains on the contact surface to prevent overheating.
Secure the wires in the following order: connect the green or bare wire first to the dedicated ground screw, typically positioned at the base of the receptacle. Attach the black conductor to the brass terminal marked L1 or X. Fasten the red wire to the adjacent brass terminal labeled L2 or Y. Finally, terminate the white or gray wire to the silver screw designated for neutral. Torque each screw to 12–15 inch-pounds–overtightening can warp the terminal, while a loose connection risks arcing.
Verify the setup with a multimeter set to AC voltage. Probe between the two hot terminals; readings should approximate 240V. Check from each hot terminal to neutral for 120V. Confirm no voltage exists between neutral and ground. If discrepancies appear, re-examine all connections before energizing the circuit–miswiring can trigger immediate breaker trips or equipment damage.
Essential Gear for Installing High-Voltage Connectors
Start with insulated screwdrivers rated for at least 1000V: flathead #2 and Phillips #2 sizes cover most terminal screws. Non-conductive handles prevent accidental shorts, and models with magnetic tips help retrieve dropped screws in tight junction boxes. For heavier gauge conductors, use a crimping tool with dies matching AWG 6–10 to secure lugs on stranded copper wires without nicking insulation.
Voltage testers are mandatory–choose dual-range non-contact detectors (50–1000V) paired with multimeters (CAT III 600V minimum). Verify tester functionality before and after each use by checking known live circuits. Wear arc-rated gloves (ASTM F2675/F2676) and safety goggles (ANSI Z87.1) when stripping conductors or tightening terminals, as stray strands can create 480V arcs even at “low” voltages.
Wire strippers must match conductor gauge precisely–models with adjustable stops prevent cutting into copper. For 30A+ circuits, use fish tape (non-conductive, 3/16″ width) to pull conductors through conduit, paired with pulling lubricant (rated for THHN/THWN-2). Keep a heat-resistant mat (rated to 200°C) under work areas to prevent burns when soldering ground bonds or heat-shrinking terminals.
Precision Checks Before Energizing
Use a torque screwdriver (range: 5–30 in-lbs) to tighten terminals to manufacturer specs–loose connections cause resistive heating and fire risk. Verify circuit polarity with a receptacle tester before final energization, watching for reversed hot/neutral or open grounds. For NEMA 6-15/6-20 configurations, confirm the neutral slot is properly jumpered if converting from older 3-prong designs to 4-prong setups, using a tamper-proof torque wrench on blocking screws.
