Start by identifying the pin configuration of your connector–most standard household connectors have three or seven pins, depending on the voltage requirements. For a three-pin setup, locate the live (hot), neutral, and earth terminals. The live wire (usually brown or red) connects to the rightmost pin when viewed from the front, the neutral wire (blue or black) to the left, and the earth wire (green/yellow) to the top center. Verify the manufacturer’s specifications before proceeding, as deviations in color coding may apply in older installations or alternative regional standards.
For seven-pin connectors, typically used in higher-power applications like industrial machinery or RV hookups, observe the following sequence: Pin 1 (top center) carries the earth, Pins 2 and 4 (left and right upper) handle auxiliary circuits, while Pins 3, 5, and 6 (bottom triangle) manage primary power delivery. Use a multimeter to confirm continuity–set it to the 20V AC range and probe each pin against a known neutral or earth point to avoid cross-wiring, which risks short circuits or equipment damage.
Strip insulation precisely–6-8mm of exposed conductor ensures secure contact without excessive bare wire. Twist stranded cores tightly to prevent fraying, then crimp using ratchet-type connectors for reliability. Avoid solder-only joints in high-current applications, as heat can melt the connection over time. Secure the assembly with a torque screwdriver (typically 0.5-0.8 Nm for terminal screws) to prevent loosening under vibration or thermal cycling.
Test the completed assembly under load: plug in the device and measure voltage between live and neutral (230V ±10% for EU, 120V ±5% for US). If voltage sags or spikes occur, recheck connections for loose strands, cold joints, or incorrect pin assignments. For three-phase connectors, verify phase rotation using a phase sequence meter to prevent motor damage. Never bypass safety protocols–if in doubt, isolate the circuit at the main breaker before handling any terminations.

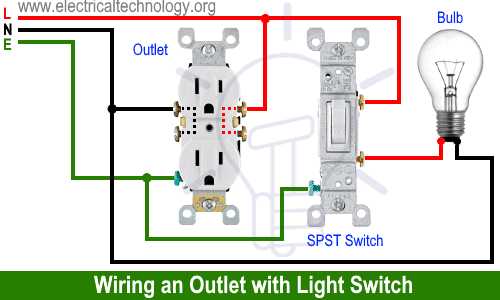

Connecting Electrical Fittings: Step-by-Step Instructions
Always verify the voltage rating of your appliance against the supply source before attaching conductors. Mismatched voltage–such as a 240V device connected to a 120V circuit–can damage equipment or create fire risks. Check the appliance’s nameplate for voltage, amperage, and wattage specs. If the values differ from your outlet, use a compatible adaptor or transformer instead of modifying the connector.
Strip insulation precisely, removing no more than 6mm of sheathing. Exposed copper beyond that increases short-circuit probability, while excess stripping can cause loose connections. Use calibrated wire strippers matched to the conductor gauge (typically 14–12 AWG for household appliances). Twist stranded cores lightly before inserting into terminal screws to prevent stray wires from contacting adjacent terminals.
Securing Terminals Safely
Tighten terminal screws firmly but avoid overtightening. Copper flexes under pressure, and excessive torque can strip threads or break the brass contact plate inside connectors. A torque screwdriver calibrated to 0.5 Nm ensures consistent clamping force. For push-fit sockets, press conductors fully until the internal clamp audibly clicks–partial insertion risks intermittent power loss or overheating.

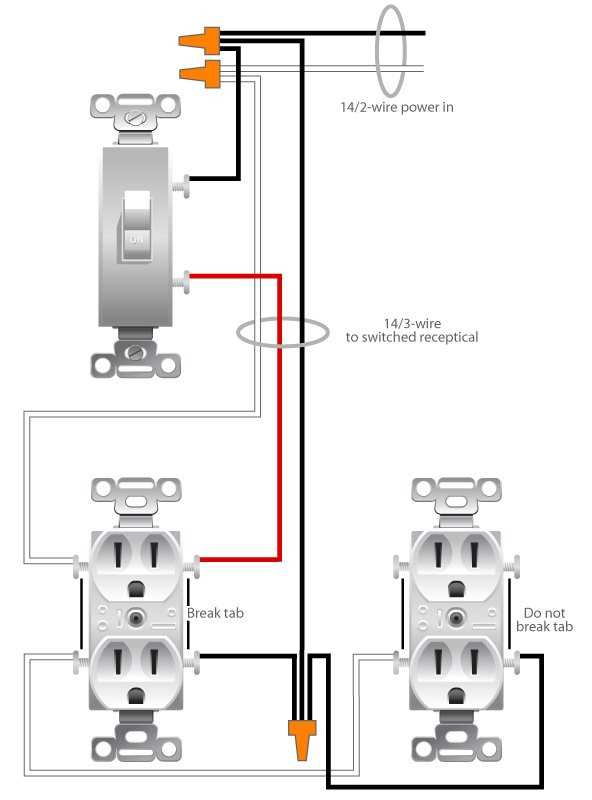

Reversing live and neutral conductors defeats polarity protections built into many appliances. Identify the live (brown/red), neutral (blue/black), and ground (green/yellow) conductors using the color code mandated by local electrical standards. On polarized connectors, live typically aligns with the narrower slot or designated terminal marked “L.” Neutral connects to the broader slot or “N.” Ground always attaches to the circular hole or U-shaped clamp.
After assembly, test continuity with a multimeter before energizing. Set the meter to ohms (Ω) and probe each pin against its corresponding appliance terminal–the reading should be near zero. Any deviation indicates a faulty connection. Finally, wrap the connector assembly in a single layer of electrical tape to insulate terminal screws, then cap with a protective cover rated for the circuit amperage.
Step-by-Step Color Coding for Common Connector Types
Begin by identifying the connector standard–NEMA 5-15 (North America) uses three conductors: green/yellow striped (ground), brass/silver (hot), and white (neutral). For UK BS 1363 (Type G), follow: green/yellow (earth), brown (live), blue (neutral). Ensure the hot/live wire connects to the narrower prong (NEMA) or to the fuse-protected side (BS 1363). Misalignment risks shorts or equipment damage. Use a multimeter to verify voltage: 120V (NEMA) or 230V (BS 1363) between live and neutral.
For IEC C13/C14 (common in PC power supplies), the sequence is:
- Green/yellow: Safety ground (chassis connection)
- Brown: Line (L), supplies voltage
- Blue: Return (N), completes the circuit
When assembling, match pin positions: ground to the central U-shaped slot, line to the right (facing the socket), neutral to the left. Reverse polarity can cause PSU failure. For XLR audio connectors (3-pin), adhere to:
- Pin 1: Shield (bare/drain wire)
- Pin 2: Positive signal (red or white)
- Pin 3: Negative signal (black or green)
Swap pins 2 and 3 to invert signal phase, potentially introducing noise or cancellation. Always label conductors during disassembly to avoid errors during reassembly.
Essential Tools and Supplies for Secure Electrical Connector Installation
Begin with a voltage tester rated for at least 250V AC to verify circuit de-energization before handling conductors. A non-contact pen style tester suffices for initial checks, but a multimeter with a minimum 600V AC/DC range ensures precision–critical when working near service panels or sub-circuits with residual capacitance. For stripping insulation, use side-cutting pliers or a dedicated wire stripper calibrated to AWG 14–10 (1.6–2.6mm²) to prevent nicking conductors, which weakens structural integrity under load cycles.
Core Equipment Requirements
| Tool | Specification/Standard | Purpose |
|---|---|---|
| Phillips screwdriver | #2 tip, insulated shaft (IEC 60900) | Secure terminal screws without conductive contact |
| Needle-nose pliers | 160mm length, serrated jaws | Bend hook-shaped conductor ends for terminal loops |
| Cable sheath stripper | Adjustable depth gauge, 10–20mm range | Remove outer sheath without damaging internal conductors |
| Torque screwdriver | 0.5–2.0 Nm range, calibrated annually | Prevent terminal loosening from thermal expansion |
Select materials based on installation environment and current rating. For 15A circuits, use 14 AWG copper conductors with THHN/THWN-2 insulation and a minimum 90°C rating–polyvinyl chloride degrades above 75°C, risking short circuits under sustained loads. Grounding conductors must match circuit gauge; never substitute aluminum for copper without a listed antioxidant compound (e.g., NOALOX). Choose connectors with IEC or UL 498 certification; polarized types prevent reverse voltage misapplication, while hospital-grade units include redundant strain relief to withstand 22N pull force. Seal outdoor installations with IP67-rated glands and heat-shrink tubing containing adhesive liners to block moisture ingress at splice points.
Diagnosing Unstable or Damaged Outlet Contacts
First, inspect the connector pins for oxidation–commonly seen as a dull, greenish or white film–or corrosion pitting. Use a fiberglass pen or fine-grit sandpaper (800–1000 grit) to clean the metal surfaces, then apply a thin layer of electrical contact grease to prevent future buildup. If the prongs wobble inside the socket, measure their width with calipers; standard EU/US pins should maintain a tolerance of ±0.1mm–deviations indicate bent contacts requiring realignment with needle-nose pliers, ensuring pressure is applied perpendicular to the base to avoid fatiguing the metal. For persistent loosening, check the internal spring tension by inserting a multimeter probe (set to continuity) into each pin socket while gently flexing the connector–audible drops in signal suggest worn springs, which warrant a full socket replacement rather than partial repairs.
Test for intermittent faults by monitoring voltage with an oscilloscope during insertion; transient dips below 190V (AC) or drops exceeding 0.5V (DC) under load confirm degraded junctions. Replace terminal screws showing thread stripping (visible as shiny, worn grooves) with stainless steel alternatives rated for at least 1.5x the circuit’s current (e.g., 15A screws for a 10A line). If insulation near the base appears brittle or discolored, strip back 5mm of sheathing and solder a new joint using 60/40 rosin-core solder–heat-shrink tubing or self-amalgamating tape provides superior moisture resistance compared to electrical tape, reducing risks of tracking paths.
International Connector Standards and Socket Variations
Always verify the local voltage and frequency before connecting any device to a foreign outlet. North America and Japan use 120V at 60Hz, while most of Europe, Asia, and Africa operate on 230V at 50Hz. A mismatch risks damaging equipment or creating fire hazards. High-wattage appliances like hair dryers or kettles often require dual-voltage compatibility–check labels for “100-240V” before traveling.
Type A and B (NEMA 1-15 and 5-15) are dominant in the U.S., Canada, Mexico, and parts of South America. Type A has two flat parallel blades, while Type B adds a grounding pin–critical for safety with metal-cased devices. Never remove the ground pin to fit a non-grounded socket, as this eliminates surge protection. Adapters for these connectors frequently lack grounding; prioritize those with a built-in fuse for extra security.
Europe primarily uses Type C (CEE 7/16) and Type F (CEE 7/4), both rated for 250V. Type C features two round pins with a 4.0mm diameter and 19mm spacing, while Type F adds side grounding clips compatible with Type E sockets. Italy deviates with Type L, offering 10A and 16A variants requiring narrower or thicker pins, respectively–ensure your adapter matches the outlet’s current rating to avoid overheating.
- UK/Ireland (Type G BS 1363): Three rectangular blades in a triangular formation, including a mandatory fuse in the connector itself. Never use an unfused adapter, as UK regulations enforce this for all devices drawing over 700W.
- Australia/New Zealand (Type I AS/NZS 3112): Two slanted blades with an angled ground pin forming an inverted “V”. Polarity matters–align the ground pin upward for proper function.
- Switzerland (Type J SEV 1011): Three round pins in a straight line; the middle pin is offset for safety. Adapters must account for this unique layout to prevent mismatched connections.
Some regions mix standards due to historical infrastructure. South Africa uses Type D (similar to India’s old standard) alongside Type M for high-power devices, while Israel’s Type H features three flat pins forming a “Y”–incompatible with adapters designed for Type C. Always carry a universal adapter with adjustable pins or a country-specific model to avoid last-minute issues.
- Purchase adapters with shuttered sockets (common in the UK, Singapore) to prevent accidental insertion of conductive objects. Children’s safety hinges on this feature.
- Avoid “cheater” connectors that bypass grounding–they violate electrical codes and increase shock risk. Look for CE or UL certification marks.
- For long-term stays, consider having a local electrician install a compatible fixed outlet rather than relying on adapters. This ensures proper grounding and avoids voltage drop from loose connections.
Travel-essential devices like USB-powered gadgets often circumvent outlet differences. However, high-power chargers (e.g., for laptops) may still require voltage conversion despite supporting 100-240V. Check the charger’s input range: a label reading “Input: 100-240V” is safe worldwide, while “Input: 120V” demands a transformer for 230V regions. Overloading a transformer can melt insulation–match wattage ratings precisely.
Smart outlets and IoT devices introduce another layer of complexity. Many EU countries mandate child-resistant designs, rendering generic adapters useless. Before purchasing an adapter, verify compatibility with both the physical socket and local regulations–France, for example, requires adapters to include a “phase-neutral” indicator to comply with NFC 15-100 standards.
