Connect the load wire directly to the common terminal marked on the device–this prevents flickering and ensures consistent power delivery. Identify the neutral bundle in the electrical box; tie it securely to the switch’s neutral connector using a wire nut rated for at least 15A current capacity. Failure to properly secure neutrals can cause intermittent connectivity or device failure under load.
Traveler wires must be attached to the dedicated terminals–swapping them with hot or load wires will render the switch inoperable or create a dangerous short. Use a multimeter set to continuity mode to verify connections before powering the circuit. A 500-ohm resistance reading between traveler terminals confirms correct installation; anything above 10kΩ indicates a loose or incorrect connection.
For three-way configurations, label all wires before disconnecting the existing setup to avoid miswiring. The common wire from the companion switch should pair with the line or load terminal on the primary unit, depending on which end of the circuit supplies power. Test each switch position after installation–both should toggle the fixture without delay or buzzing sounds, which signal poor contact or incompatible bulb types (LED loads below 1W may require a bypass module).
Ground wires must be clamped to the metal box if present, or bonded to the switch’s grounding screw for safety. Avoid backstab connections; use side screws or lever-style clamps for secure, high-conductivity joints. After restoring power, check for heat buildup near connections within the first 30 minutes–excessive warmth indicates overloaded wiring or undersized conductors (use 14 AWG minimum for 15A circuits).
Complete Smart Switch Installation Blueprint
Before starting, disconnect power at the circuit breaker to avoid electrical hazards. Verify the circuit is dead using a non-contact voltage tester on both terminals of the existing switch.
The smart model requires a neutral wire for consistent functionality. Locate the neutral bundle in the electrical box–typically grouped together with white wires. If missing, consult an electrician; retrofitting may be necessary.
- Hot wire (black/red): Connects to the switch’s labeled “Line” or “Common” terminal. Use a wire nut for secure attachment.
- Load wire (black/red): Attaches to the “Load” terminal, directing power to the fixture (e.g., light, fan).
- Neutral wire (white): Join the switch’s neutral terminal to the bundle in the box using a piggyback connector or twist-on cap.
- Ground wire (bare/green): Fasten to the switch’s grounding screw or existing ground wire cluster.

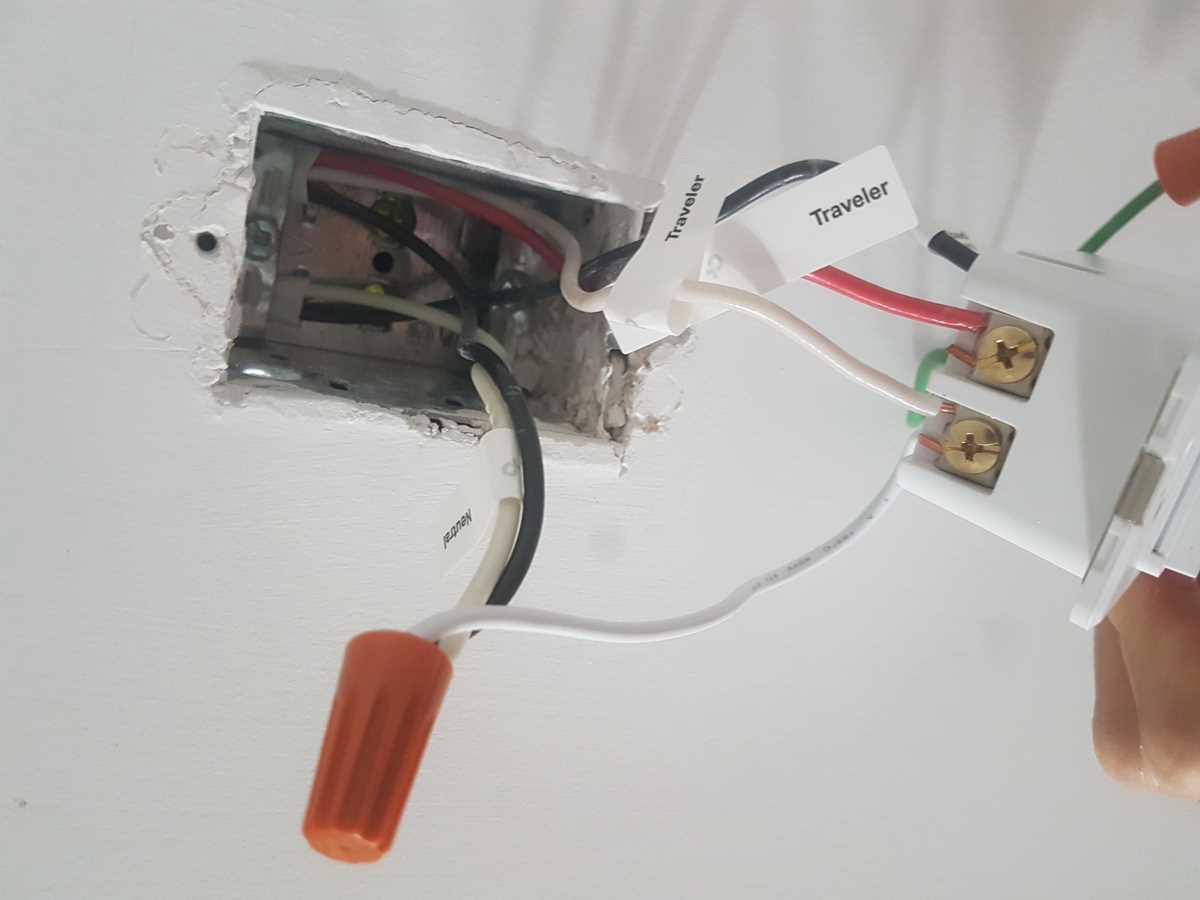

For multi-way configurations, replace the first switch with the smart variant. Identify the traveler wires (usually red or yellow) and connect them to the switch’s corresponding terminals. The second switch retains its mechanical design but wires must align with the smart device’s setup.
After securing all connections, tuck wires neatly into the box. Screw the smart unit into the box, ensuring no wires are pinched or exposed. Restore power at the breaker and test operation via the physical button and companion app.
If the device fails to activate:
- Recheck neutral wire connectivity–this is the primary culprit in 90% of installation errors.
- Confirm the load wire isn’t tied to another switch or outlet downstream.
- Verify firmware updates via the mobile application post-setup.
For dimmable fixtures, ensure compatibility by cross-referencing the switch’s specifications with the bulb type (e.g., LED, incandescent). Non-dimmable models may flicker or overheat when paired incorrectly.
Document the setup by labeling wires behind the switch plate for future reference. A photo with annotations helps during troubleshooting or upgrades.
How to Determine Which Conductors Are Power Sources and Device Feeds in Your Smart Switch Installation
Shut off the circuit breaker for the switch location you’re examining before proceeding. Use a non-contact voltage tester to confirm no current flows through any exposed conductors. Identify the unmarked bundle inside the junction box–one pair delivers mains power from the breaker panel (source), while the other runs to the fixture (feed). The source wires typically enter through the same cable knockout, while the feed exits separately.
Trace insulation coloring: source conductors usually match the standard color scheme of your electrical code (black/red for hot, white for neutral, bare or green for ground). Feed wires may vary if previous installations used different cable types. If both sets appear identical, check for subtle markings like faint stripes, crimped ends, or splices that differentiate the source from the load path.
Attach temporary labels to each wire using small strips of painter’s tape. Mark the ones connected to the breaker as “Panel” and those leading to the light fitting as “Appliance.” Confirm these assignments by cautiously restoring power and testing voltage between the hot and neutral in each pair–only the source should register 120V (or 240V) when measured. Repeat this step after switching the breaker off again to ensure safety.
Inspect the existing switch or dimmer if one remains in place. Note which terminals connect to the source and feed–older toggle switches often use the top screw for the feed and the bottom for the source, though this convention isn’t universal. If the switch has been removed, look for residual wire nuts or pigtail remnants that indicate previous connections. These can reveal which wires were grouped together before the smart device was introduced.
For boxes containing multiple conductors, use a multimeter in continuity mode. Touch one probe to the ground wire and the other to each ungrounded conductor. The source wires should show infinite resistance, while feed wires may display slight continuity if the light fitting contains a bulb with internal connections. Disconnect any splices before testing to isolate each wire’s purpose accurately.
Document the box layout with a quick sketch, noting cable entry points, wire colors, and conductor groupings. Take a photograph for reference once labels are removed–this helps prevent mixing up wires during the final connection. If unsure, leave the feed wires disconnected and powered while observing which fixture remains lit or dead when toggling the circuit breaker.
Once identification is complete, cap each conductor individually with a wire nut before making the permanent connection. Match the source to the smart switch’s designated input terminals and the feed to the output, ensuring polarity aligns with manufacturer guidelines. Verify correct installation by restoring power and testing the device’s responsiveness before closing the junction box.
Step-by-Step Guide to Connecting Your Smart Switch in a Single-Pole Setup
Turn off power at the circuit breaker before handling any electrical components. Use a non-contact voltage tester to confirm the wires are dead. Failure to verify power is off risks serious injury.
Remove the existing switch by unscrewing the faceplate and gently pulling the device from the wall box. Identify the hot (black), neutral (white), and ground (bare copper or green) conductors. If neutral is missing–a common issue in older homes–consult an electrician before proceeding.
- Attach the smart device’s ground wire to the bare copper wire in the box using a wire nut. Twist clockwise until secure.
- Connect the neutral wire from the switch to the neutral bundle in the box. If none exists, this setup won’t function without a neutral.
- Join the black wire from the load (fixture) to the switch’s corresponding terminal. Use pliers to tighten the connection if the switch has screw terminals.
- Connect the incoming power wire (black) to the remaining terminal. Some switches label these “Line” and “Load”–double-check markings to avoid reversing.
Push excess wires back into the box, ensuring no exposed copper remains outside the wire nuts. Secure the switch to the box with mounting screws, then restore power at the breaker. Test functionality by toggling the switch via the app or manually. If the device fails to respond, recheck connections for loose wires or reversed line/load assignments.
- For dimmable lights, ensure the switch is compatible–standard models won’t work with LED dimmers.
- If the fixture has a dedicated fan, use a separate control switch to avoid overloading the circuit.
- Label the breaker for future reference–marking “Smart Switch: Hallway Light” prevents confusion during maintenance.
Resolving Frequent Smart Plug Installation Missteps
Ensure neutral conductors terminate correctly–most failures stem from reversed or loose connections. Verify color coding: white (neutral) must connect to the wider blade slot, while black (line) and red (load) wires attach to the remaining terminals. A non-functional device often traces back to misaligned polarity; test with a multimeter if unsure. Excess wire stripped past 6mm can cause short circuits–trim insulation precisely.
Check for voltage drops across terminals before finalizing setup. If the unit flickers or powers off intermittently, tighten screws to 0.5Nm torque using a calibrated screwdriver. Loose strands create resistance, overheating connectors over time. For split-circuit setups, confirm both traveler wires carry equal potential–uneven distribution trips internal relays. Diagnostic mode (hold reset for 10 seconds) reveals error codes: E1 (overvoltage), E2 (overcurrent), or E3 (overheat).
Ground integrity prevents firmware corruption during surges. Attach the green/bare conductor to the chassis if present; absence risks signal instability. Jumper wires between switches should measure zero ohms–high impedance indicates faulty crimps or oxidized copper. Replace any conductors thinner than 14AWG; undersized gauge causes nuisance tripping under load. If dimming occurs, separate lighting circuits from inductive loads like motors.
Recalibrate after corrections by power-cycling the mains. Observe LED patterns: solid blue confirms readiness, blinking green denotes pairing mode. Chronic failure despite correct setup suggests component fatigue–inspect solder joints under magnification for micro-fractures. Swap suspect units to isolate whether the issue lies with installation or hardware. Document every adjustment to expedite future troubleshooting.
