Begin by switching off the main power at the circuit breaker before touching any connections. Verify the absence of voltage using a multimeter–never rely on guesswork. Faulty assumptions are a leading cause of electrical accidents.
For standard installations, use 12-gauge copper wire for circuits rated at 20 amperes. Larger appliances may require 10-gauge wire, but confirm local codes first. Color codes matter: black (hot), white (neutral), and green or bare (ground). Swap or omit these, and you risk short circuits or fire hazards.
Secure each wire with a torque screwdriver set to manufacturer specifications–typically 12 to 14 inch-pounds for receptacles. Loose connections generate heat, degrading insulation over time. Strip 12mm of insulation, inserting the wire fully into the terminal before tightening. No exposed copper should remain outside the clamp.
For split receptacles, break the brass tab connecting the two hot terminals. This allows independent control of each socket, essential for half-switched configurations. Ensure the ground wire remains intact unless local codes specify otherwise.
Test the installation with a plug-in circuit analyzer. Codes L1-N, L2-N, and L1-L2 should show 120 volts, while ground-neutral should read 0 volts. If readings deviate, recheck connections immediately–correcting errors now prevents failures later.
Use tamper-resistant receptacles in homes with children. These shutters block foreign objects, reducing accidental shocks. For outdoor or bathroom installations, GFCI protection is mandatory within 1 meter of water sources.
Mount the socket flush with the wall plate, leaving no gaps. Misalignment strains wires, leading to eventual failure. If the box sits too deep, use a spacer ring; too shallow, replace the box entirely.
Document the circuit’s purpose and location on the breaker panel. Use indelible markers–future troubleshooting becomes far simpler with clear labels. Store spare parts (receptacles, wire nuts) in a dry, accessible location.
Electrical Socket Connection Guide for Safe Installation

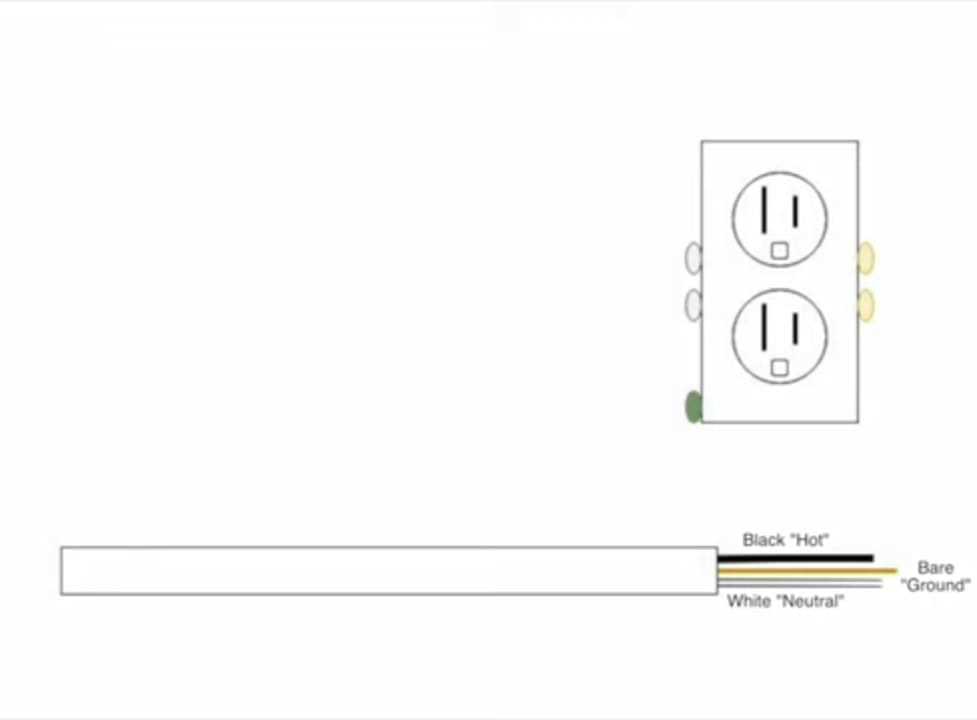

Always verify the circuit breaker is off before handling conductors–use a non-contact voltage detector to confirm no live current remains. For standard 120V AC power points in North America, connect the black (hot) wire to the brass terminal, the white (neutral) to the silver, and the bare or green (ground) to the green screw. In 240V configurations–common for dryers or stoves–attach the red and black hot wires to separate brass terminals, neutral to silver, and ground to green. Failure to match conductors to the correct terminals risks immediate short circuits or delayed fire hazards.
Follow these steps for precise fastening:
- Strip conductor ends to expose 1/2 inch of copper–excess length causes loose connections, while insufficient stripping prevents secure contact.
- Bend stripped ends into a tight U-shape around terminal screws to ensure full engagement; straight wires can slip when tightened.
- Tighten screws firmly–under-torqued connections generate heat, while over-torquing can strip threads or snap terminals.
- Fold conductors neatly into the junction box to avoid pinching–use strain relief clamps where cables enter to prevent insulation damage.
- Test continuity with a multimeter after installation: probe hot-to-neutral should read ~120V, hot-to-ground ~0Ω, neutral-to-ground ~0Ω.
For split-circuit receptacles serving multiple devices, ensure the break-off tab between brass terminals is removed–retaining it links both hot terminals, creating a hazard when connecting unbalanced loads. In environments prone to moisture (kitchens, bathrooms), install GFCI-protected units with weather-resistant cover plates rated NEMA 3R or higher.
How to Identify Hot, Neutral, and Ground Conductors in a Standard Socket
Use a non-contact voltage detector to confirm the live conductor: hold the probe near each terminal slot. The detector will emit an audible alert or flash when sensing the energized lead (smaller slot in North American sockets, right-side slot in Europlugs). Verify this against a known reference–neutral and ground will show no detectable voltage under normal conditions. If testing an ungrounded socket, label the live wire immediately to prevent confusion during installation.
| Socket Type | Live (Hot) Slot | Neutral Slot | Ground Connector |
|---|---|---|---|
| NEMA 5-15 (US/Canada) | Narrower slot (right, ~1/4″ wide) | Wider slot (left, ~5/16″ wide) | Circular/d-shaped hole (bottom) |
| Type F (Europe) | Right slot (230V) | Left slot | Two metal clips on sides |
| BS 1363 (UK) | Bottom-right (T-shaped) | Bottom-left | Top pin (longer) |
For wired terminals, inspect conductor colors: live is typically copper/red/black, neutral is white/blue, and ground is green/yellow or bare. Check sheathing for printed labels–”HOT,” “NEUT,” or “GND”–though color codes take precedence over markings alone. If colors are ambiguous (older installations may use red as live), trace the conductor to the breaker panel: the live wire connects to the circuit breaker, neutral to the bus bar, and ground to the grounding bus or metal enclosure.
Step-by-Step Guide to Installing a Standard Electrical Socket
Turn off the circuit breaker controlling the power source for the connection point. Verify disconnection using a non-contact voltage detector before proceeding.
Required Tools and Materials
- Flat-head screwdriver (4mm tip)
- Wire strippers (12-14 AWG capacity)
- Needle-nose pliers
- Electrical tape (black, rated for 600V)
- Single-gang electrical box (4″ x 2.5″ deep)
- Duplex receptacle (15-amp, 125-volt, tamper-resistant)
- Copper conductors (12 AWG, THHN/THWN): 6″ lengths of black, white, bare/green
Remove the faceplate from the existing junction enclosure if replacing an old unit. Inspect the box for structural integrity–cracks or burn marks require replacement before continuing.
Straighten each conductor using needle-nose pliers, ensuring no bends exceed 90 degrees within 3″ of the stripped end. Strip 5/8″ of insulation from all wire ends, exposing clean copper without nicks. For stranded wire, twist strands clockwise before inserting under terminal screws.

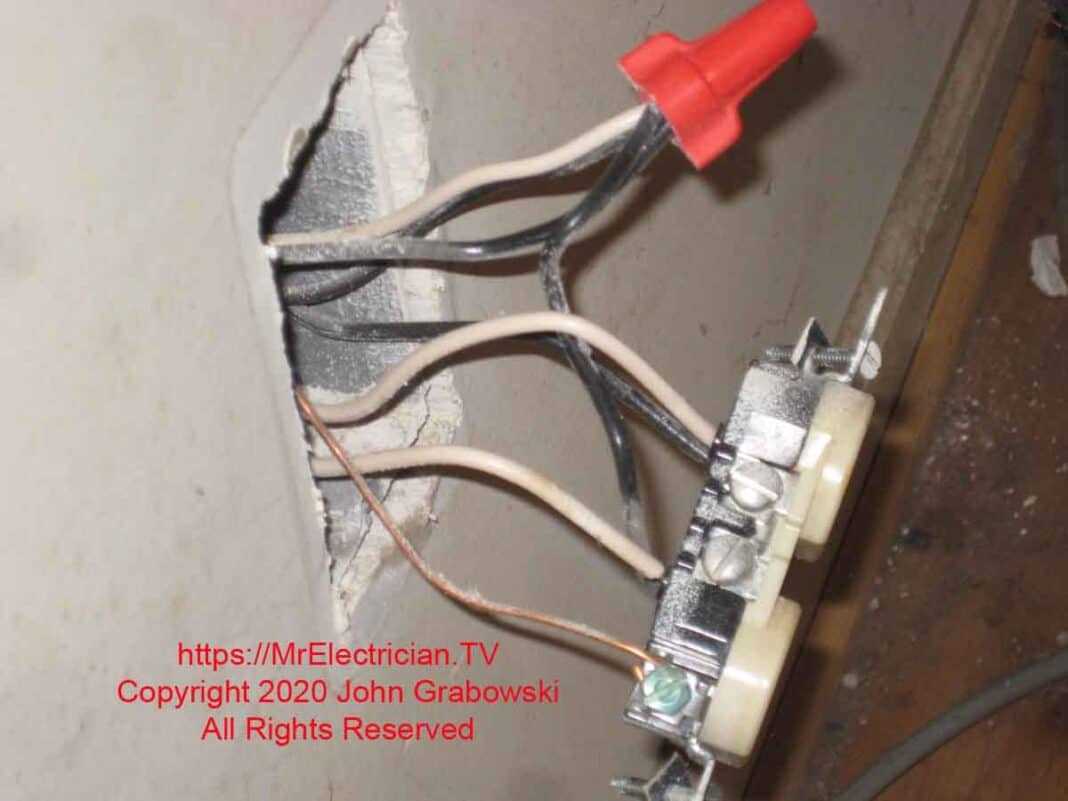

Attach the black (hot) conductor to the brass terminal (right side), white (neutral) to the silver terminal (left side), and bare/green (ground) to the green screw. Tighten screws to 12-15 inch-pounds–over-torquing can deform threads. Loop wires clockwise around screws before tightening to prevent loosening over time.
- Fold conductors neatly into the box, ensuring no insulation is pinched by the box edges.
- Secure the receptacle to the enclosure using the provided #6-32 mounting screws, verifying alignment with the faceplate.
- Wrap electrical tape around the receptacle body, covering all terminal screws to prevent accidental contact during drywall installation.
Restore power at the circuit breaker. Test the connection with a plug-in receptacle analyzer–ensure the “correct wiring” indicator illuminates. For GFCI-protected circuits, press the “test” button to confirm trip functionality before use.
Critical Errors in Electrical Receptacle Installation and Prevention Tactics
Overlooking polarity matching during fixture assembly ranks as the most hazardous yet preventable blunder. Hot terminals (brass) must align with black wires, neutral (silver) with white, and ground (green) with bare copper. Swapping these connections risks appliance damage, fire hazards, or fatal shocks. Verify each connection with a multimeter set to AC voltage–never assume wire colors correspond to function, especially in older buildings where standards differ.
Incorrect Termination Torque
Loose screws cause arcing–a leading ignition source in residential fires. Terminal screws require 12-14 in-lbs of torque for secure contact, yet most installers rely on finger tightness. Use a calibrated torque screwdriver for each termination. Copper wire expands/contracts with heat cycles, so retighten connections after 24 hours of current flow. Aluminum conductors need antioxidant compound applied before termination to prevent oxidation-driven resistance buildup.
Skipping circuit breaker verification before work invites electrocution. Locate the correct breaker using a non-contact voltage tester, then double-check by plugging in a load (e.g., lamp) that should de-energize. Even “verified” dead circuits can re-energize from backfeed–test all conductors separately. Include the ground path in testing; faulty grounds account for 12% of undetected shock hazards. Label breakers immediately after confirmation to prevent future misidentification.
Ignoring junction box fill capacity triggers overheating. Each 14-gauge wire requires 2 cubic inches of box space; 12-gauge needs 2.25. For example, a standard 4″ square box (21 cu in) accommodates nine 14-gauge wires max. Exceeding limits compresses wires, damaging insulation over time. Measure exact box dimensions and calculate volume before adding circuits. Surface-mounted boxes must maintain 1/4″ air gap behind for heat dissipation.
Configuring Half-Switched Power Points for Dual Control
To set up a partially live socket where one socket remains permanently energized while the other operates via a switch, begin by disconnecting the circuit at the breaker. Strip the insulation from a 12-gauge copper conductor for the neutral line, then join it directly to the silver-colored screw terminal on both sockets–no interruption required. For the hot conductor, connect the brass-colored screw of the unswitched socket directly to the incoming power line using a pigtail splice. The switched socket’s brass terminal links to the switch’s output side, ensuring the circuit passes through the toggle before energizing that socket. Secure the grounding conductor to the green screw on each receptacle and bond it to the switch’s grounding terminal if metal-clad. Verify connections with a multimeter: probe between the neutral and unswitched hot terminal should read 120V AC continuously, while the switched side reads zero until the toggle is engaged.
Use 14-3 NM-B cable between the switch and receptacle cluster to carry the return path from the toggle to the half-switched element–red conductor serves as switched leg, black as constant feed. Label each wire with colored tape at both ends before terminating to prevent miswiring; black tape on the red conductor near the switch prevents confusion. Tuck terminals into the box neatly without overtightening, then affix the cover plate finger-tight. Restore power and test both sockets with a plug-in lamp–illumination should toggle on/off via the switch while remaining steady on the unswitched side. If flickering or uneven voltage exists, recheck splice integrity under the wirenut and toggle continuity.
