Start by securing the factory wiring schematic specific to the seventh-generation model released mid-decade. The color-coded connection chart comes bundled in the glove compartment’s owner literature pouch or embedded within the service manual’s electrical section–pages 22-4 through 22-6 typically outline speaker, amplifier, and ignition feeds.
Identify the head unit’s 24-pin harness connector: pins 1-6 (solid colors) carry constant 12V, ACC, and ground; pins 7-12 (striped) feed rear left/right speakers; pins 13-18 handle front speakers. Blue/white wire (pin 19) triggers the power antenna or amplifier remote turn-on. Verify continuity using a multimeter–resistance should measure under 4 ohms across each speaker pair.
Use a direct splice kit for aftermarket installations; avoid twisting wires–crimped connectors coated with heat-shrink insulation prevent corrosion. If retaining steering wheel controls, purchase an ASWC-1 adapter harness; it maps the stock resistive network to the new radio’s input protocol. Test all connections under 80W load before mounting the unit to confirm clean signal transfer.
For dual-DIN upgrades, the climate control faceplate must be partially disassembled–remove two Phillips screws behind the ashtray and gently pry the lower dash panel. The factory harness includes a 4.8mm bullet connector for the ambient temperature sensor; disconnecting it triggers a climate control error code–use a spliced jumper to bypass it without disabling other functions.
Honda JDM Audio Connectivity Guide
Locate the factory harness behind the dash unit–pin A (yellow/red) delivers 12V constant power, while pin B (black) is the chassis ground. Aftermarket head units typically require an ISO adapter; splice the adapter’s red wire to pin A and the brown wire to pin C (illumination, orange) for dash dimming sync. Avoid tapping into the green/white (left rear +) or blue/white (remote antenna) leads unless bypassing the OEM amp–these carry amplified signals that can overload aftermarket inputs.
Color-Coded Connector Breakdown
Harness A: Yellow/red (battery), Black (ground), Orange (illumination), Blue (telephone mute–cap or insulate if unused), Light green/black (reverse signal–optional for backup camera integration). Harness B: Grey (speaker front right +), Grey/black (front right –), White (front left +), White/black (front left –), Green (rear right +), Green/black (rear right –), Purple (rear left +), Purple/black (rear left –). Resist twisting same-color pairs–use crimp connectors and heat shrink tubing to prevent shorts. For subwoofer upgrades, route 12-gauge wire directly from the battery with an in-line fuse (15A) to the amplifier, bypassing the thin OEM speaker wires.
Matching the Right Audio Integration Connectors for Your Honda Model Year

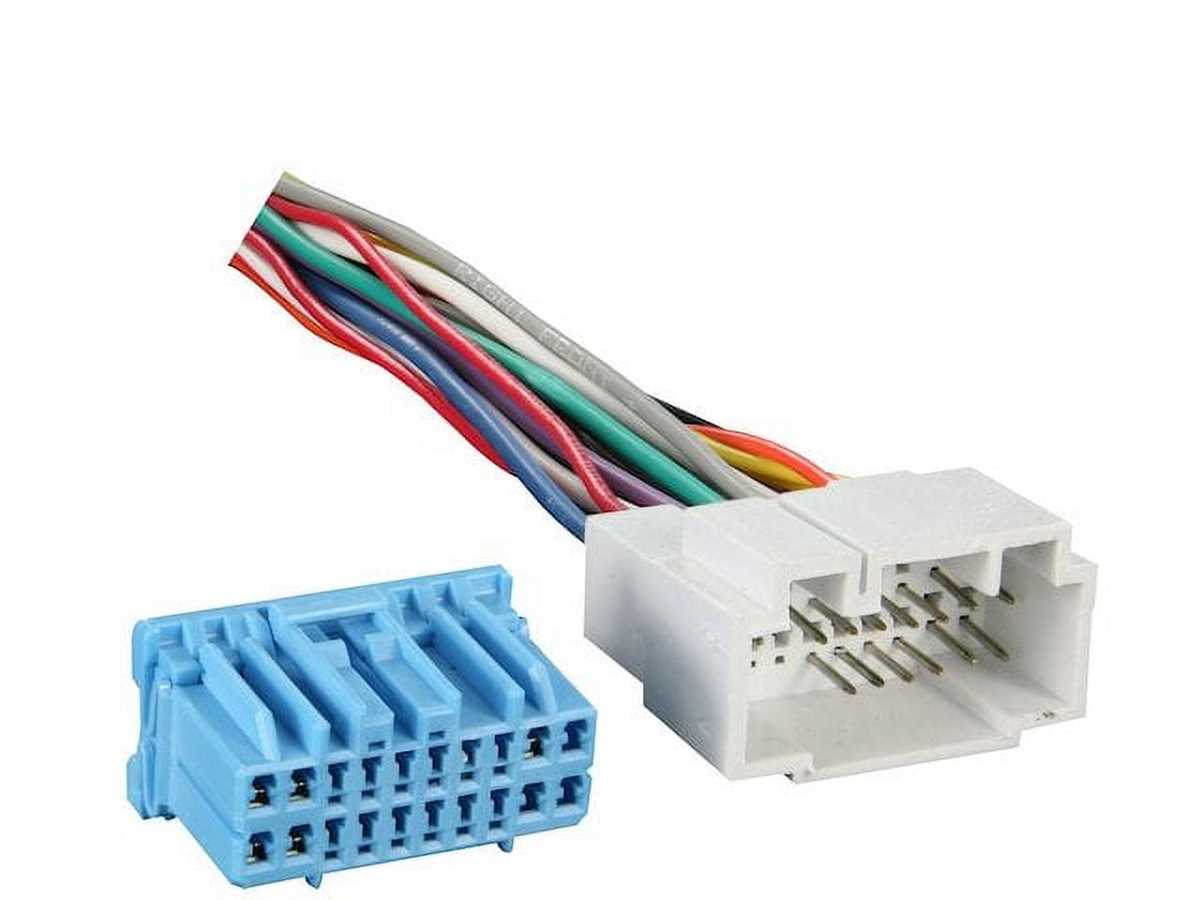

Locate the main interface cluster behind the factory head unit–typically a 20-pin rectangular plug (METRA 70-1761). This plug consolidates speaker outputs, illumination controls, and constant/accessory power feeds. Verify pin assignments using a multimeter: pins 5 (constant 12V), 6 (ground), and 7 (accessory) must return stable readings before proceeding.
| Connector Type | Manufacturer Part | Key Functions |
|---|---|---|
| 20-Pin Main | METRA 70-1761 | Speaker outs, illumination, power feeds |
| 8-Pin Mini ISO | SCOSCHE HA03B | Antanna trigger, mute control |
| RCA Adapter | BOSS BCA30 | Pre-amp outputs for amplifier integration |
For vehicles equipped with premium audio, an additional 8-pin mini ISO connector handles antenna triggering and mute signals. SCOSCHE’s HA03B adapter isolates these signals cleanly–pin 4 carries antenna voltage (12V), while pin 5 manages the mute function via a 2.2kΩ resistor to ground.
Aftermarket amplifiers require RCA-level outputs; bypass the factory harness entirely by tapping the rear of the head unit’s pre-amp section. Use BOSS BCA30 RCA adapters–connect white/black wires directly to front left/right channels and grey/black wires to rear channels. Secure connections with solder and adhesive-lined heat shrink to prevent signal interference.
Color-coding discrepancies between OEM and aftermarket harnesses necessitate cross-referencing before finalizing connections. Factory wires for front door speakers (light blue/white and light green/black) often correspond to aftermarket blue/white and green/black leads–double-check impedance with an ohmmeter (4Ω expected) to avoid phase cancellation.
Troubleshooting Mismatched Plugs
If facing unrecognized plugs, trace wires back to their source–door tweeters typically route through a separate 6-pin white connector adjacent to the glove box. Cutting factory ties here risks losing vehicle settings synchronization; instead, splice corresponding aftermarket wires (purple/white to door tweeters) while preserving the OEM harness intact.
Color-Coded Connections: How to Match Factory Harness Wires
Identify the solid green wire on the left rear channel–this carries the positive signal. Pair it directly with its corresponding harness pin without splicing unless replacing damaged segments. Factory connectors often label these with tiny alphanumeric codes; L+ denotes left positive, confirming the match before attaching.
For power delivery, locate the 12V constant (yellow) and switched accessory (red) leads. These are typically thicker than signal wires, with the yellow maintaining charge even when the ignition is off. Secure both using crimp connectors rated above 18A to prevent voltage drop under high load. Avoid twisting exposed strands; instead, use heat-shrink tubing to insulate joints completely.
- Left Front (+): Light blue stripe
- Left Front (–): Light blue stripe with black trace
- Right Front (+): Solid gray stripe
- Right Front (–): Gray stripe with black trace
- Left Rear (+): Solid green
- Left Rear (–): Green with black trace
- Right Rear (+): Purple stripe
- Right Rear (–): Purple stripe with black trace
Ground wires (black) must terminate on bare metal, preferably near the original chassis point. Sand the surface lightly with 120-grit paper to remove paint or corrosion, then fasten using a star washer for maximum conductivity. A loose ground introduces noise or intermittent failures–verify continuity with a multimeter before finalizing.
Illumination control uses a dimmer-compatible orange lead. Connect this to the factory head unit’s lighting circuit only if retaining dashboard brightness sync; otherwise, cap it with electrical tape to prevent shorts. Never combine illumination wire with 12V sources–this risks dashboard LED burnout.
Test every connection after assembly:
- Activate the system and check each channel for clicks, pops, or distortion.
- Adjust fade/balance settings to isolate faults.
- Verify subwoofer outputs separately if present–low-frequency signals expose poor grounds.
- Inspect all harness plugs for bent pins or debris before securing the head unit.
Disconnect battery during wiring to prevent accidental shorts that may trip fuses or damage circuits.
How to Disconnect the Original Audio Unit Without Harming Electrical Connections
Disconnect the negative battery terminal first. Use a 10mm socket to loosen the clamp on the cable, then slide it off the post. This prevents short circuits while handling the harness and ensures no residual power remains in the circuits. Wait at least five minutes before proceeding.
Remove dashboard trim panels in reverse order of installation. Start with the center console storage bin–pry it upward using a plastic trim tool, then unclip the hazard button panel. Work outward to the climate control bezel, leveraging the tool at the bottom edge near the vents. Avoid forcing clips; apply even pressure to prevent breaking tabs.
Locate the mounting brackets securing the audio unit. Honda typically uses two 8mm bolts–one at each top corner–and a single release tab at the bottom center. Unscrew the bolts with a ratchet extension, then press the tab inward while pulling the unit forward. If resistance occurs, check for hidden screws behind the faceplate.
Identify the harness connectors at the rear of the unit. The main power plug (often rectangular with 12–16 pins) and antenna lead (smaller, single-pin) require different release methods. For the power connector, squeeze the locking tab on the side and pull straight back. The antenna lead usually twists counterclockwise 90 degrees to unlock. Never yank connectors–wiggle gently if stuck.
Inspect the harness wires before separation. Label each connector with masking tape if replacing with aftermarket components, noting functions like constant power (yellow), accessory (red), and ground (black). Use a multimeter to verify voltage: probe the harness side with the ignition off–constant power should read 12V, accessory should drop to 0V.
Store the original unit vertically in a dry location if reused later. Wrap loose connectors in anti-static foam or bubble wrap to prevent pin corrosion. For long-term removal, bundle harnesses with zip ties and route them behind the dash to avoid interference with future installations.
Reconnect the negative battery cable last. Tighten the clamp securely, then cycle the ignition on/off three times to reset electronics. Check all dash functions–lights, climate controls, gauges–to confirm no damage occurred during disassembly.
Troubleshooting Common Grounding Issues in Aftermarket Installations
Start by verifying the grounding point’s conductivity using a multimeter set to ohms. A reading above 0.5 ohms indicates corrosion or insufficient contact–clean the surface with sandpaper or a wire brush until bare metal is exposed. Avoid painted or anodized surfaces; instead, target factory grounding bolts near the chassis or engine block.
Check for shared grounding paths with other electrical components. Aftermarket amplifiers or LED modules often introduce noise when grounded to the same point. Isolate the problematic circuit by relocating its ground wire to a dedicated bolt, ensuring it’s not within 6 inches of alternate ground points to prevent interference.
- Inspect wire gauge: Undersized ground wires create resistance, leading to voltage drops. For 20A loads, use 12 AWG; for 30A, 10 AWG minimum. Replace any wire showing fraying, burns, or discoloration.
- Test connections with a load: Connect a 12V bulb to the ground wire while monitoring voltage at the device. A drop below 11.8V suggests inadequate grounding.
- Avoid daisy-chaining: Each device should terminate directly to a chassis point, not through another component’s ground wire.
Remove factory sealant or adhesive residue around grounding points. Automotive coatings act as insulators–scrape them off before reattaching wires. If rust is present, apply dielectric grease after cleaning to prevent oxidation.
For systems with recurring grounding failures, install a distribution block. Mount it near the battery’s negative terminal, then run individual 4 AWG wires to each device’s ground point. This centralizes grounding and reduces resistance paths.
When diagnosing intermittent issues, tap the ground wire lightly while the system is active. If symptoms change (e.g., audio distortion vanishes), the connection is loose. Crimp and solder all eyelet terminals, then cover with heat-shrink tubing for strain relief.
Measure voltage differential between the grounding point and the device’s power input. A reading above 0.2V under load confirms resistance–reroute the ground wire to a shorter, thicker path. For persistent issues, add a secondary ground strap from the chassis to the vehicle’s frame near the affected device.
