For precise control over single-coil tones, install the selector with the middle lug positioned at the rear–this ensures the bridge and neck pickups engage simultaneously in position 2, eliminating phase cancellation. Use 22-gauge shielded wire for all connections to minimize interference, especially critical in vintage circuits where noise can dominate. The ground wire from the volume pot must solder directly to the back of the pot casing, not bridged through another component, to maintain signal integrity.
Label each wire before stripping: hot (red) from pickups, ground (black), and output (white) to the jack. Test continuity with a multimeter before assembling the cavity–resistance between the bridge pickup hot and the selector’s corresponding lug should read 6-8kΩ (for standard alnico magnets). If measurements deviate, check for cold solder joints or incorrect wire gauge.
For reverse-wound, reverse-polarity (RWRP) middle pickups, omit the capacitor typically bridging positions 1 and 5. Instead, solder a 0.047µF film capacitor between the output lug of the selector and the middle pickup’s ground to preserve hum-canceling properties. Avoid twisting wires inside the cavity–use heat-shrink tubing (not electrical tape) to bundle leads, reducing microphonic feedback.
On SSS configurations, the 3-way’s bridge/neck blend often suffers from impedance mismatch. Extend the tone capacitor (commonly 0.022µF) to include the middle pickup’s ground to balance high-end roll-off. For HSS setups, replace the standard 0.01µF cap with a 0.033µF polyester version to prevent muddiness when engaging the bridge humbucker.
Electrical Layout for Fender-Style 5-Position Pickup Selector

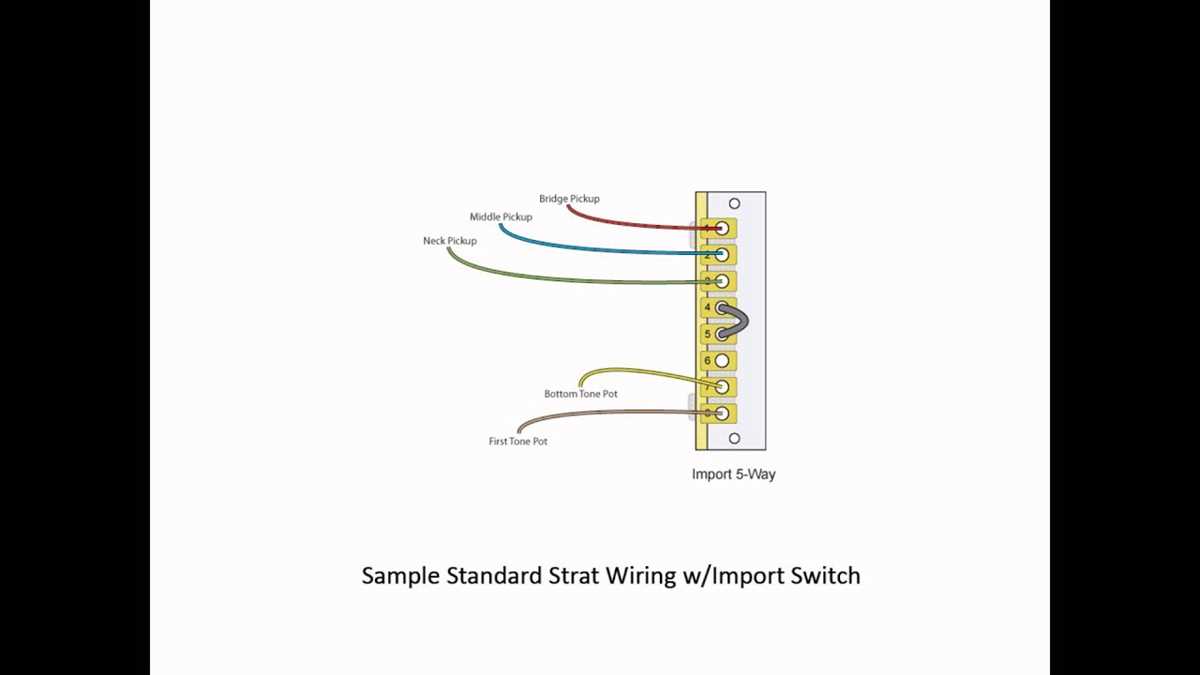

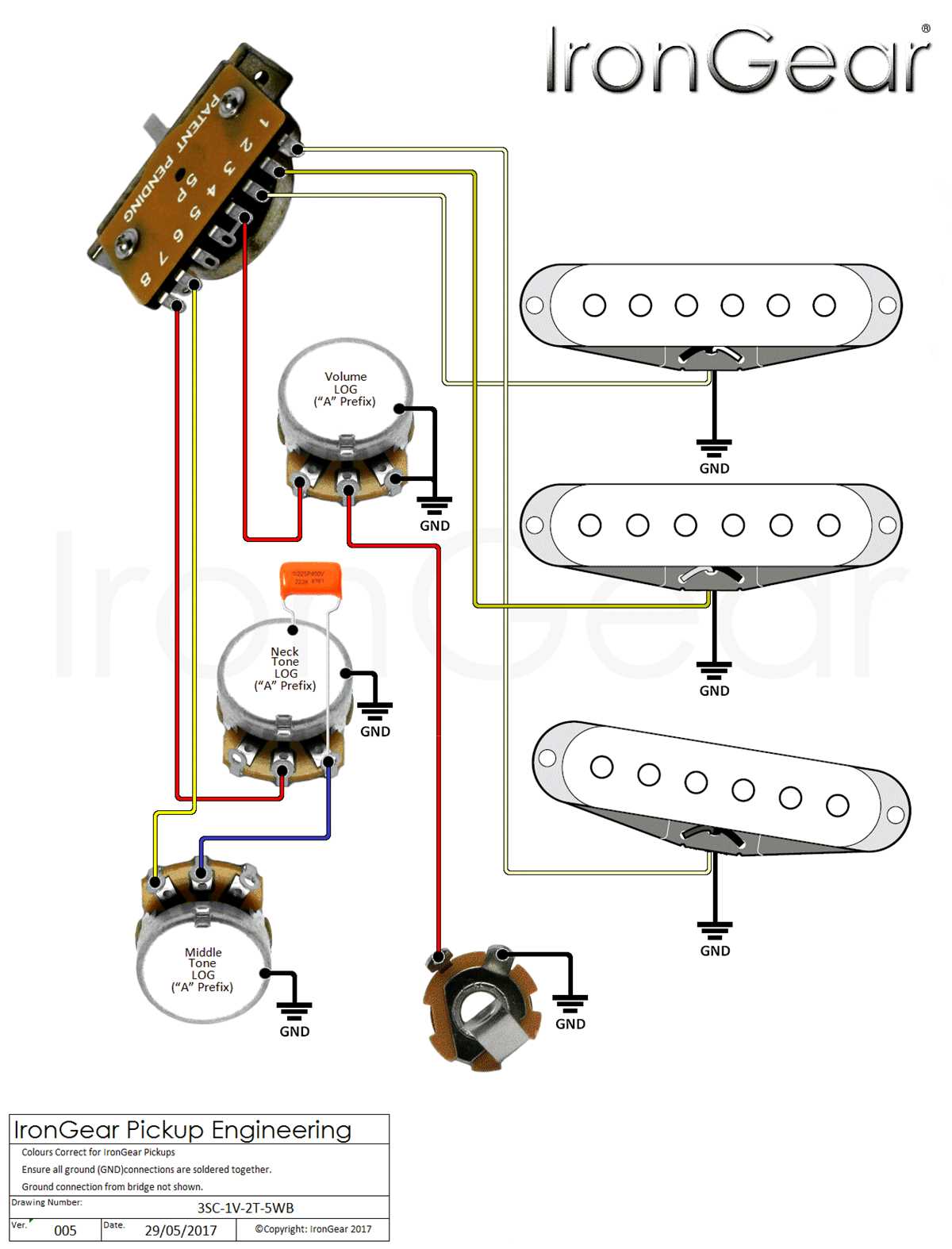

For a standard Fender-style configuration, connect the bridge pickup’s hot lead to the first terminal (marked “Bridge” on most schematics), then route the middle pickup’s hot wire to the adjacent lug. The neck pickup’s hot wire attaches to the third contact point. Ground connections from each pickup must merge into a single wire and connect to the back of the potentiometer casing or a dedicated ground lug.
Ensure the 5-position lever’s common terminal–typically the middle or bottom lug–receives the output wire leading to the volume control. Misrouting this connection causes either dead spots in the lever’s travel or unintended pickup combinations when toggling between positions two and four.
When setting up vintage tone controls, the first capacitor (usually 0.047µF) connects between the volume pot’s wiper and the first tone control’s lug. The second tone capacitor links to the middle pickup’s lug on the lever, blending its signal with the neck pickup in the fourth position. Omitting this bypasses the classic “quack” tone entirely.
Test continuity with a multimeter before soldering. Place one probe on each potentiometer’s input lug while cycling through lever positions–fluctuating resistance indicates a misaligned connection. Inconsistent readings at position three often signal a reversed middle pickup integration.
For hum-canceling setups, twist the middle pickup’s red (hot) and white (split-wire) leads together before soldering them to the lever’s designated contact. The green-yellow striped ground wire must never share a pathway with any hot lead–keep it isolated to prevent noise induction.
Pre-tinned contacts reduce cold solder joints. Apply rosin flux to the lever’s lugs prior to soldering; lead-free alloys require 380°C heat to flow properly. Overheating deforms the lever’s internal plastic framework, causing binding or premature failure.
Label every wire before disassembly. Photograph the original harness layout from multiple angles–restoring incorrect configurations wastes hours troubleshooting phantom phase cancellations or muted taps. Store extra wire lengths coiled beneath the pickguard to avoid sharp bends that fatigue copper strands.
Identifying Terminals on a Fender-Style 5-Position Selector

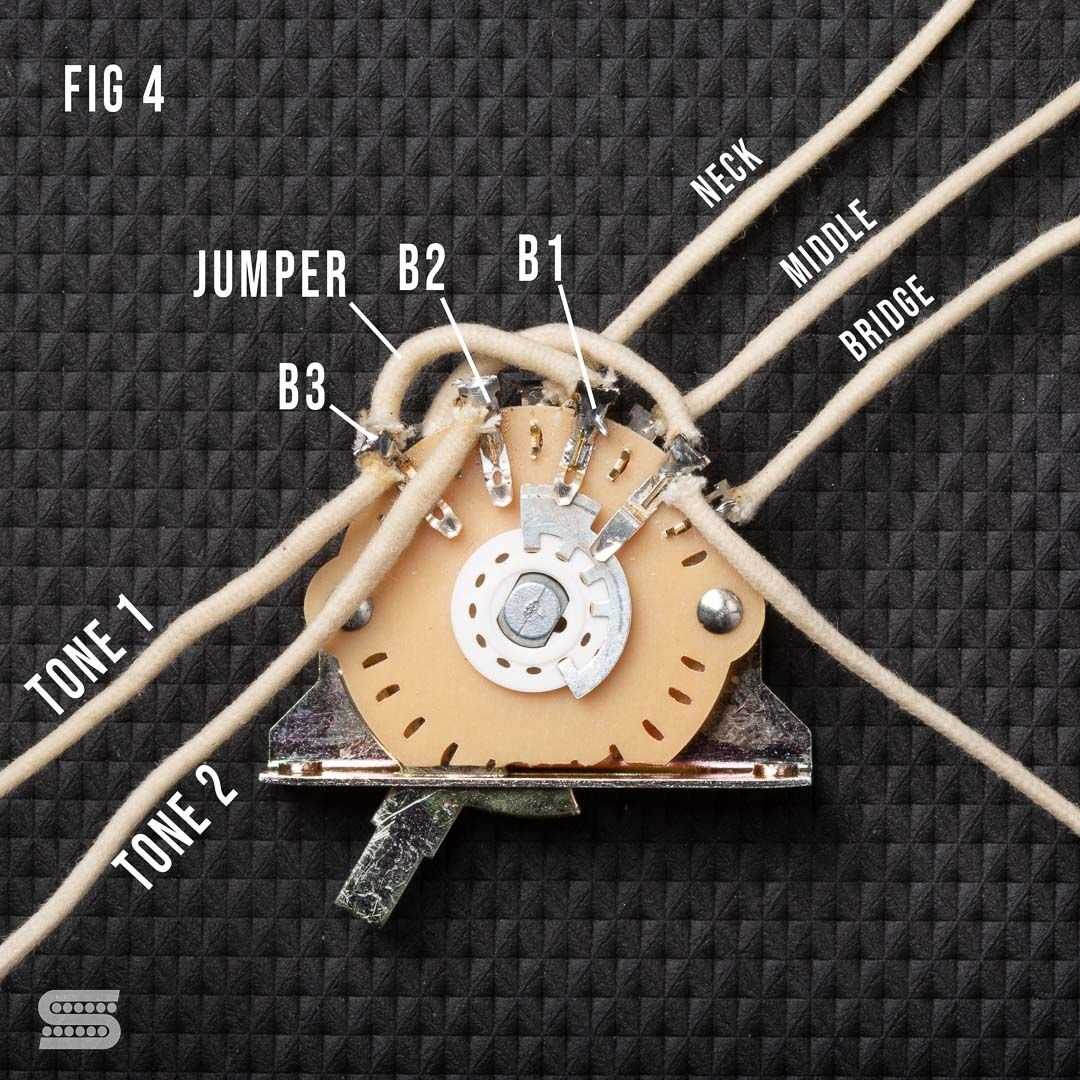

Locate the manufacturer’s markings first–most quality units stamp or etch numbers (1–5) on the base near each contact lug. If absent, flip the component over: the common lug is the lone central terminal on the back, while the front has five arranged in an arc. Use a multimeter in continuity mode to confirm: touch one probe to the central lug and cycle through the others–only three will show connection (positions 1, 3, and 5).
Label the terminals as follows:
- Terminal 1: Bridge pickup hot lead (closest to the edge when facing the unit from the rear).
- Terminal 2: Mid pickup start coil (shared with Terminal 4 in position 4).
- Terminal 3: Neck pickup hot lead (opposite edge from Terminal 1).
- Terminal 4: Mid pickup finish coil (paired with Terminal 2 in position 4).
- Terminal 5: Bridge + mid in series (position 2).
Measure the resistance between the central lug and each terminal in all selector phases. Normal readings:
- Position 1: ~6kΩ (bridge only).
- Position 2: ~12kΩ (bridge and mid in series).
- Position 3: ~6kΩ (mid only).
- Position 4: ~6kΩ (mid divided–both coils in parallel).
- Position 5: ~6kΩ (neck only).
Deviations above 10% indicate worn contacts or incorrect routing.
Visual Inspection Shortcuts
Examine the internal slider–it’s a U-shaped metal piece bridging the central lug to either two (positions 1/5) or three (positions 2/3/4) terminals simultaneously. In positions 2 and 4, the slider touches three terminals, creating two distinct circuits: one for the bridge/mid series and another for the mid’s parallel coils. Look for burnt marks or uneven wear–these identify frequently used positions, often correlating to Terminals 1 or 5.
Trace the wires from each pickup: the bridge’s hot wire should route directly to Terminal 1, the neck to Terminal 3, and the mid’s start/finish wires split between Terminals 2 and 4. Use heat-shrink tubing color codes if the original wiring is intact:
- White = Neck pickup start/finish.
- Black = Bridge and mid ground.
- Red = Mid pickup tap (Terminal 2).
- Green = Mid pickup finish (Terminal 4).
If the slider moves stiffly, apply a single drop of contact cleaner to the central pivot–avoid lubricants, as they attract debris. Replace the unit if the slider exhibits side-to-side play exceeding 0.5mm; loose tolerances cause intermittent signal dropouts in positions 2 and 4.
Test for phase issues by strumming open strings in positions 3 and 4–hum should nearly cancel in position 4. If not, swap the start/finish wires on Terminals 2 and 4. For out-of-phase tones, reverse the neck pickup’s polarity by swapping its hot and ground wires at Terminal 3.
Record which terminal connects to which position before disassembly–most units rotate clockwise when viewed from the rear, correlating Terminal 1 to position 1. If unsure, mark each terminal with a dot of correction fluid before removal; this prevents mix-ups during reinstallation.
Step-by-Step Connection Guide for Neck, Mid, and Bridge Coil Configurations
Begin by soldering the hot wire from the bridge pickup to the third lug (from the right) of the 5-position selector. Use a 22-gauge tinned copper wire for optimal conductivity–avoid thicker strands to prevent stiff lever movement. Strip no more than 3mm of insulation; excess length risks short circuits against adjacent terminals when the plate is reassembled. Confirm the lug’s position with a multimeter in continuity mode: probe the lug and the base of the output jack–correct readings should show 0.2-0.5 ohms resistance.
Attach the neck pickup’s hot lead to the first lug (leftmost) using the same gauge wire. Verify polarity before soldering: the pickup’s north pole should face the strings. Reverse the leads if hum persists when both bridge and neck coils are engaged simultaneously. Secure each joint with a 60-watt soldering iron at 360°C–lower temperatures risk cold solder points that develop micro-fractures under string vibrations.
Bridge the middle coil’s hot wire to the second lug. Ensure this coil’s grounding matches the neck and bridge units; inconsistent grounds cause phase cancellation audible as thin, anemic tone in combined positions. Apply a small drop of rosin flux to the joint before applying solder–this prevents oxidation buildup that degrades signal clarity over time. Clip excess wire flush with lug edges to eliminate accidental shorts when reassembling the control cavity.
Connect the common output lug (center) to the volume pot’s input terminal. Use a 150kΩ logarithmic pot for standard strat-style taper; mismatch here alters volume roll-off characteristics noticeably. Route the wire along the cavity’s edge rather than crossing diagonally–this avoids interference with pickup height adjustment screws during maintenance. Insulate this connection with a 2mm heat-shrink tube to prevent grounding against metal shielding or potentiometer casing.
Ground each pickup’s baseplate to the guitar’s metal shielding using individual 18-gauge braided wire. Avoid daisy-chaining–separate paths reduce ground loops that manifest as 60-cycle hum in high-gain settings. Crimp ring terminals to each braid end, then secure under a single grounding screw; torque to 2.5Nm to prevent loosening from vibrations but avoid overtightening to prevent thread stripping. Test each path with a multimeter: continuity should show less than 0.1 ohms between any pickup baseplate and the bridge ground point.
Load the selector positions: bridge (position 1), bridge+mid (2), mid (3), mid+neck (4), neck (5). Verify each setting by ear through a clean amp channel–combined positions should produce full, balanced output with no noticable drop in volume or high-frequency response. If position 2 or 4 sounds weak, check for out-of-phase conditions: reverse one coil’s leads, then reflow solder joints if needed. Finalize by sealing all cavity openings with conductive copper tape–cut to shape precisely to avoid shorting potentiometer casings or pickup selector contacts.
