Start by locating the factory harness behind the dashboard’s lower panel–specifically the 12-pin connector labeled “C1” (light gray) and “C2” (dark gray). Pin 1 (yellow) delivers constant 12V power, while Pin 4 (red) carries switched ignition voltage. Ground (Pin 2, black) must connect directly to the chassis using a minimum 12-gauge wire to prevent voltage drop. Avoid splicing into existing wires; instead, use crimp connectors or solder with heat-shrink tubing for durability.
Aftermarket stereo units often require an adapter harness (Metra 70-2003 or Axxess ASWC-1 for steering wheel controls). Match speaker wires by resistance: front door tweeters (4-ohm) use smaller gauge (18-20 AWG), while subwoofers (2-ohm) demand thicker 14-16 AWG. Check polarity with a multimeter before finalizing connections–reversing leads on a component system can distort audio and damage amplifiers.
For vehicles with OnStar or Bose premium systems, retain the factory amplifier by splicing into the pink/yellow (left rear) and pink/blue (right rear) wires. Bypass the stock antenna module by connecting the aftermarket head unit’s blue/white wire to the power antenna relay. If installing a backup camera, tap the reverse light circuit (light green/white) for automatic switching.
Test all connections with the ignition in “ACC” mode before reassembling the dash. Static or dropout indicates poor grounding or speaker wire short–recheck crimps and insulation. For memory retention, ensure the yellow constant power wire bypasses any fuses under 20A. Keep the stock wiring diagram handy (GM document #88999816) for reference if upgrading to navigation or satellite modules.
Locating Factory Audio System Connections for Heavy-Duty Pickup Models
Identify the harness port behind the dashboard lower panel on the driver’s side–this is where the vehicle’s sound interface integrates with factory wiring. Remove the trim panel using a small flathead screwdriver or trim removal tool to expose connectors.
- Yellow wire (constant 12V) supplies continuous power to maintain settings.
- Red wire (switched 12V) energizes the audio unit only when ignition is active.
- Black wire serves as the chassis ground and must be secured to bare metal.
- Orange/white stripe delivers illumination for dashboard controls at night.
- Dark green/white stripe sends reverse signal for backup camera activation if equipped.
- Light blue/white stripe carries amplified audio output to external speakers when retained.
Fabricate adapters using female 22-18 AWG Metri-Pack connectors if splicing into existing harnesses to prevent signal degradation. Label each wire with heat-shrink tubing or electrical tape to avoid misconnection during upgrades or replacement.
Factory audio interfaces include:
- A 16-pin black plug for main power, ground, and accessory signals.
- A separate 8-pin grey plug handling speaker outputs front and rear.
- Antenna control via a coaxial cable terminated with an ISO mini-DIN adapter if upgrading to aftermarket units.
Verify pin assignments against a multimeter before connecting replacement hardware–resistance should register 4-8 ohms on speaker wires.
Enable parking brake override by linking the pink wire with a 750-ohm resistor when installing video-capable head units to comply with safety interlocks. Failure to address this will disable display functions while driving.
Matching the Right Adapter for OEM Audio System Upgrades
Locate the GM Class 2 data bus connector on the factory harness–typically a violet wire with a white tracer–before selecting any aftermarket interface. Models predating 2005 often use a 12-pin rectangular plug, while later variants may integrate a separate 8-pin block for amplified systems; verify pin assignments with a multimeter set to continuity mode to avoid signal conflicts. Crutchfield’s MasterSheet documentation codes GM-12A and GM-12B list precise wire functions, but third-party adapters like Metra 70-2003 or Axxess ASWC-1 simplify integration by directly translating OEM protocols to standard ISO connectors.
Check amplifier presence by tracing thick gauge speaker leads (minimum 18 AWG) back to a standalone LOC or power distribution module; if detected, opt for a harness with built-in relay triggers (e.g., Scosche GM03B) to maintain factory fade and balance settings. Avoid universal “one-size” solutions–some adapters omit parking brake or reverse signal wires, critical for video-enabled head units; label each wire with automotive-grade heat-shrink tubing to prevent oxidation at splice points.
Test parasitic draw post-installation: disconnect the battery, insert an ammeter in series, and ensure current leakage remains below 50 mA–higher readings indicate improper grounding or retained accessory power circuits, necessitating a diode kit (e.g., PAC SNI-1) to isolate factory retention modules.
Step-by-Step Guide to Locating the Factory Audio System Harness

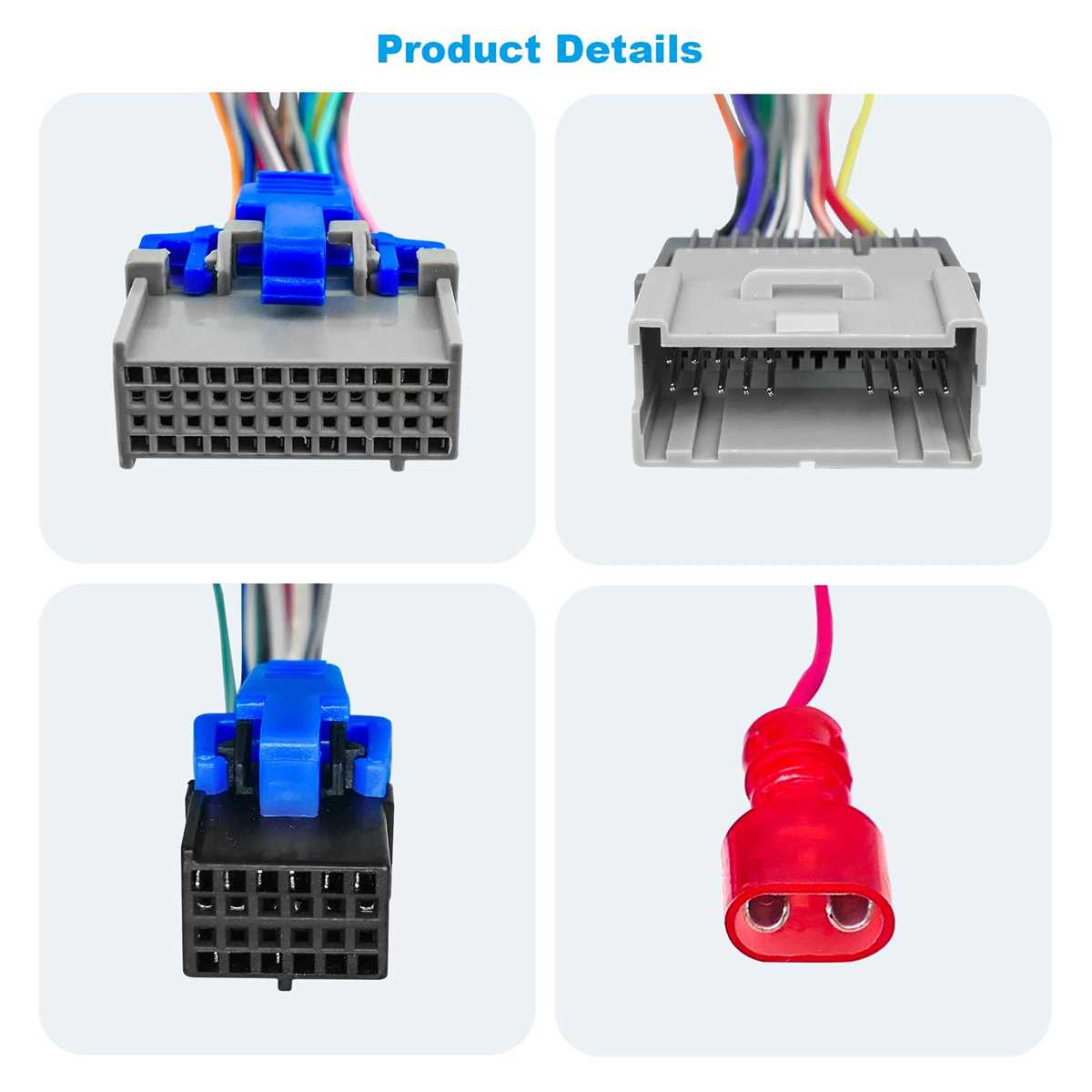

Remove the center dash trim panel by prying along the edges with a flat tool–start at the bottom near the ashtray, then work upward. Disconnect the cigarette lighter and accessory power outlets first to avoid damaging the retainer clips. Behind the lower section, you’ll find a 24-pin rectangular plug (color-coded gray or black) secured by a single T20 Torx screw; this is the OEM harness interface for the audio head unit’s power, speaker, and antenna feeds.
Tracing the Harness Path
Follow the harness bundle downward–it snakes behind the climate control module and terminates at the firewall connector. Use a flashlight to inspect the tight space; the wires split into smaller subgroups: four thicker gauge lines (red, yellow, orange, and pink) handle constant/ignition power, while twelve thinner cables (paired colors) deliver left/right speaker signals. Label each branch with masking tape before unplugging to prevent reversed connections during upgrades.
Decoding Harness Colors and Circuit Roles in Heavy-Duty Pickup Audio Systems
Locate the orange wire (C2, pin 8) first–this carries constant 12V power from the fuse block, bypassing the ignition switch. Verify voltage here before troubleshooting other connections, as most aftermarket installations fail due to lack of persistent juice.
The yellow lead (C1, pin 9) delivers switched 12V, activating only during key-on cycles. Splice this with a 4A fuse near the harness to prevent parasitic drain if retaining factory memory functions. Pair it with the brown/white stripe (ground, C2 pin 10) using a 16-gauge crimp connector–never twist and tape, as corrosion will disrupt signal integrity within months.
Speaker outputs split into four distinct pairs: front/rear left and right. Front channels (gray/+ and light gray/– for right; dark green/+ and brown/white/– for left) carry 2-4 ohms impedance–conflict with 8-ohm aftermarket units risks amplifier overload. Rear outputs (purple/+ and pink/– for right; dark blue/+ and sky blue/– for left) share ground channels but differ in signal strength; rear signals often attenuate faster, requiring 0.5W resistors if balanced fade is critical.
Auxiliary Circuit Nuances
Antenna control (solid pink, C1 pin 6) operates on a 5V logic pulse–direct splicing for aftermarket antennas disrupts AM/FM tuning stability. Use a relay trigger instead, isolating factory tuner from external voltage spikes. For rear-view camera integration, the light green/black stripe (C1 pin 5) outputs composite video; terminate this with a 75-ohm coaxial connector to avoid ghosting artifacts.
Dimmer circuits (gray/violet stripe, C2 pin 6) modulate illumination via a 10k ohm potentiometer–test with a multimeter in *resistance* mode before connecting LED upgrades, as reverse polarity burns traces instantly. Steering wheel controls (purple/white stripe, C1 pin 4) rely on pulse-width modulation; bypassing this for third-party interfaces often requires a CAN bus emulator, sold separately by brands like *Metra* or *Axxess*.
Diagnostic terminals (white/black stripe, C1 pin 1) trigger error codes during shorts–leave this disconnected unless replicating OEM diagnostics. Factory mute (tan/black stripe, C2 pin 5) engages during phone calls; tapping this for aftermarket Bluetooth mutes midrange frequencies, so reroute through a dual-pole switch to retain bass response.
Always strip wires within 3mm of insulation to ensure clean contact. Crimp connections under 20 lbs of pressure–hand tools fail here, leading to intermittent shorts. For solder joints, use rosin-core flux (*never acid-core*), and seal with heat-shrink tubing (*not electrical tape*), as moisture infiltration corrodes copper within weeks in humid climates.
Diagnosing Factory Audio System Electrical Faults
Check for voltage drop across connections before assuming component failure. Use a multimeter to probe the harness at the fuse block and head unit harness–measure between ground and each positive terminal while the ignition is on (ACC or RUN). A reading below 11.5V at any point indicates corrosion, loose terminals, or insufficient gauge wire. Focus on the orange (constant power), yellow (switched), and pink (illumination) circuits; these most frequently degrade due to oxidation or pinched insulation behind the dash cluster. Replace any connector exhibiting heat discoloration or greenish deposits with gold-plated terminals to prevent recurrence.
| Symptom | Likely Cause | Action Steps |
|---|---|---|
| Intermittent audio cut-out | Frayed speaker wire grounding | Test resistance between negative speaker lead and chassis; anything over 0.5 ohms requires re-termination |
| Static or distortion | Capacitor failure in amp circuit | Bypass factory amp with a 4-gauge relay; verify signal clarity before reinstalling aftermarket component |
| Display dims erratically | Faulty dimmer resistor | Locate 10k ohm resistor (R7) on back of unit; replace only after confirming lower-than-7V on purple wire |
| No power | Blown fuse #18 (10A) | Inspect fuse block under hood; if intact, probe LM7805 regulator on mainboard for 5V output |
