Install a three-phase contactor setup with mechanical interlocking to prevent simultaneous activation of opposing movement circuits. Use NC (normally closed) auxiliary contacts on each primary relay to break the opposing coil circuit before the NO (normally open) main contacts energize. This eliminates risk of phase-to-phase shorts during direction switching.
Select overload protection devices rated for 110-125% of full-load current. Position thermal elements directly upstream of motor terminals rather than on the main bus to ensure precise detection of overload conditions during both clockwise and counterclockwise operations.
Wire the control circuit through a maintained-start pushbutton assembly. Incorporate a momentary-stop button in series with both coil circuits to allow immediate disengagement without relying on power disconnect switches. Use 24V DC control voltage for safer low-voltage operation.
Place a flyback diode across each contactor coil to suppress voltage spikes. Calculate reverse voltage ratings at 5x the control voltage to prevent damage to sensitive control components. Ensure the diode cathode connects to the positive side of the coil.
Test the setup under no-load conditions before connecting to machinery. Verify voltage drop across all three phases remains balanced within ±2% during both rotational modes. Measure current draw at start-up–it should not exceed 6-8x the running current for more than 5 seconds.
Label all conductors with phase identifiers and function codes. Use color-coded sleeves for easy troubleshooting: yellow for forward control, blue for reverse, red for common stops, and green for safety circuits. Secure all connections with torque-controlled crimping tools to prevent loosening under vibration.
Incorporate a pilot light for each rotational mode, wired in parallel with the respective coil. This provides immediate visual confirmation of active direction without relying on audible cues from the drive system.

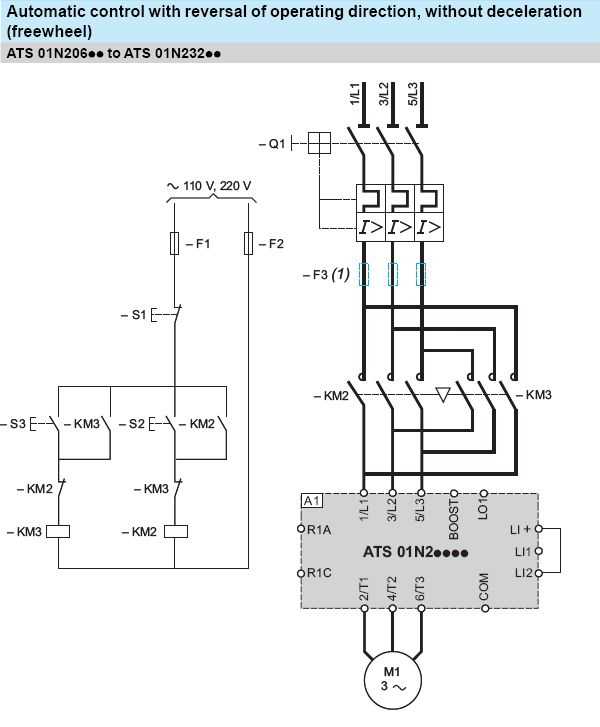

Electrical Schematic for Bidirectional Control of an Actuator
Use a three-phase contactor arrangement with two mechanically interlocked units to prevent accidental phase crossover. Ensure the primary relay (K1) handles clockwise rotation while the secondary (K2) manages counterclockwise. Connect L1, L2, and L3 to K1’s upper terminals, then route K1’s lower outputs to the actuator’s U, V, W inputs. For K2, swap L1 and L2 at the upper terminals before linking to the same U, V, W posts.
Install a Normally Open (NO) pushbutton for each directional command, wired in series with its respective contactor coil. Place a single Normally Closed (NC) stop button upstream of both circuits to cut power instantly. Include auxiliary contacts from each contactor in opposition: when K1 energizes, its NC contact in K2’s coil circuit must break, and vice versa. This dual interlock guarantees safety even if mechanical failure occurs.
Add thermal overload relay (F2) in series with the common supply line before splitting to K1 and K2. Set the trip class to Class 10 for standard induction machines; adjust to Class 20 if frequent starts or high inertia loads exist. Position the relay’s NC contacts in the control circuit so overload conditions drop both coils simultaneously, preventing backfeed.
Label every conductor with heat-shrink sleeves: blue for neutral, brown/black/gray for phases, yellow-green for earth. Crimp terminals with 6 mm² lugs for main power paths; use 1.5 mm² for control wiring. Torque all screw connections to 2.5 Nm with a calibrated driver–overtightening damages threads, undertightening risks arcing.
Control Circuit Refinements
Embed a 24 VDC auxiliary supply isolated from the main lines for pushbutton illumination and status LEDs. Wire green LEDs across each coil to indicate activation; use red LED in parallel with the stop button for fault visibility. Diode clamp circuits across coils suppress voltage spikes–1N4007 suffices for coils rated up to 12 A; upgrade to 1N5408 for higher currents.
For remote operation, substitute pushbuttons with relay outputs from a PLC or Arduino. Maintain the same interlock logic: when output Q0.1 (clockwise) activates, Q0.2 (counterclockwise) must remain off. Include a watchdog timer that cuts all outputs if heartbeat signal fails–prevents runaway conditions.
Test the setup with a megohmmeter before applying power. Measure phase-to-phase and phase-to-earth resistance–expect >1 GΩ for dry installations. Energize at reduced voltage (20% rated) while monitoring coil currents with a clamp meter. Confirm torque halts immediately when stop pushbutton is pressed or overload relay trips. Only after successful low-voltage trials proceed to full voltage commissioning.
Core Elements for Bidirectional Control Switching Systems
Install a heavy-duty three-phase contactor rated at least 20% above the operational current of the load. For a 10HP induction drive operating at 415V, select a 25A contactor with AC-3 utilization category to ensure prolonged mechanical and electrical lifecycle under frequent directional changes. Verify coil voltage matches the control circuit–typically 220VAC or 24VDC–to prevent coil burnout or erratic operation.
Protection Devices and Auxiliary Components
Integrate inverse-time thermal overload relays calibrated to 1.05–1.2 times the full-load ampere rating. For a 15A application, set the relay between 15.75A and 18A to trip within 3–8 seconds at 600% overload. Use auxiliary NO/NC contacts on both contactors for electrical interlocking–mechanically linkage is insufficient, risking phase-to-phase short circuits during simultaneous coil energization. Select pushbuttons with non-deteriorating silver alloy contacts to maintain reliable command signaling under 1 million operations.
Power disconnect switches must handle 125% of the combined normal and locked-rotor currents. For a 20HP system with 52A running current and 312A stall current, specify a 100A fusible disconnect or a molded-case circuit breaker with adjustable thermal-magnetic trip settings. Ensure the enclosure meets NEMA 4X for outdoor installations–corrosion-resistant stainless steel hardware prevents premature failure in humid or saline environments. Wiring gauge calculations consider ambient temperature derating: use 8AWG copper conductors for 40A circuits at 40°C maximum ambient.
Snubber circuits employing RC networks across contactor coils suppress voltage transients above 1000V/s. Fit a 0.1µF capacitor in series with a 100Ω resistor across coil terminals to eliminate false tripping from back-EMF during coil de-energization. Verify terminal block spacing to prevent creepage–minimum 8mm clearance for 600V applications–or employ finger-safe insulating barriers for exposed connections.

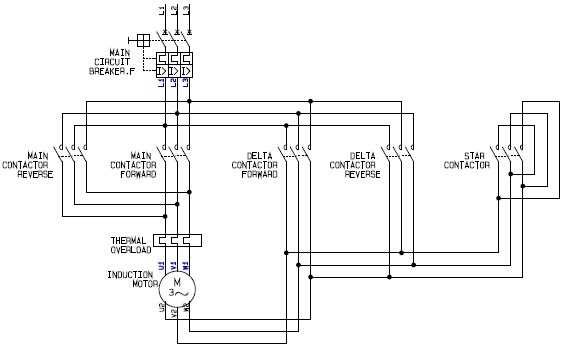

Constructing the Current Path for Bidirectional Actuator Control
Begin by mounting the main contactor units (K1, K2) with a minimum spacing of 20mm between adjacent components to prevent thermal interference. Use M6 copper busbars for phase connections, ensuring torque values of 8–10Nm for terminal screws to avoid overheating at high loads. Install thermal overload relays (F2) directly beneath the contactors, positioned so their reset buttons remain accessible without disassembly.
Route the supply conductors (L1, L2, L3) from the fused disconnect switch to K1’s upper terminals in a zigzag pattern to equalize conductor length and impedance. Connect K1’s lower terminals to F2, then proceed to the actuator via 4mm² flexible cable for currents up to 20A. For K2’s directional reversal circuit, swap phases L1 and L2 at K2’s upper terminals–label these conductors with heat-shrink tubing (red/black) to eliminate confusion during troubleshooting.
| Component | Wire Gauge (mm²) | Crimp Lug Type |
|---|---|---|
| Main supply to K1 | 6 | Ring, tin-plated |
| K1 output to F2 | 4 | Fork, insulated |
| K2 crossing conductors | 4 | Ring, insulated |
| Ground bus to chassis | 10 | Compression, bare |
Insert snubber circuits across each contactor coil–100Ω resistors in series with 0.1µF capacitors–to suppress voltage spikes exceeding 400V. Secure wiring harnesses with nylon ties every 150mm, avoiding sharp edges and heating elements. Verify all connections with a megohmmeter at 1000V DC; acceptable insulation resistance exceeds 1MΩ. Energize the circuit through a variac starting at 50V AC, gradually increasing while monitoring for contactor chatter or coil overheating.
Terminate protective earth directly to the actuator’s mounting plate using a star washer to penetrate surface oxidation. For actuators above 5HP, add a shunt trip breaker (Q1) rated 125% of full-load current between the disconnect switch and K1. Position the control transformer (T1) with its primary winding tapped at 400V if supply voltage fluctuates beyond ±10%–secondary side must deliver 24V AC for auxiliary circuits regardless of primary variations.
Control Circuit Configuration for Bidirectional Actuator Operation
Use a three-wire command network with momentary control pads to ensure fail-safe operation. Wire the primary activation switch in series with normally open auxiliary contacts from the power relay to maintain self-latching after release–this prevents accidental disengagement during transit. Include a thermal overload protector rated at 125% of the actuator’s steady-state load for immediate fault clearance without manual reset.
Directional switching requirements:
- Install dual mechanically interlocked relays to block simultaneous power delivery to opposing coils–prevents phase-to-phase shorts during transition.
- Connect the second relay’s common terminal to the clockwise output and its normally closed contact to the counter-clockwise line for seamless reversals.
- Insert a 300 ms delay timer between the stop signal and the reverse command to eliminate transient torque spikes during polarity inversion.
Fail-Safe Provisions
Integrate a current-sensing module that interrupts both contactors when line amperage exceeds 1.8× nominal for over 200 ms–effective detection of stalled rotor or misaligned gears. Route all command inputs through a single pole, double-throw emergency break switch; pressing it drops power immediately across both relays and resets the self-latching loop, restoring default off position within 150 ms regardless of operator action.
