Begin by stripping the control cavity of its shielding–copper tape or conductive paint will interfere with signal clarity if improperly grounded. Use a 250k audio taper potentiometer for volume and a 1M linear for tone, bypassing the stock capacitor if aiming for brighter treble response without roll-off. Solder the pickup hot leads directly to the pot lugs without intermediary wire, reducing noise susceptibility. Ground both pickups’ braided shields together at the cavity’s rear, twisting them tightly before crimping to avoid radio-frequency interference.
For series-parallel switching, install a 3PDT switch between the neck and bridge units. The bridge’s negative terminal connects to the switch’s middle lug, while the neck’s negative joins the bridge’s positive at the output jack. Wire the switch’s outer lugs to toggle phase: engage both pickups in-out-of-phase for a nasal, hollow character, or run them in series for substained, hum-free output. Test continuity before sealing the cavity–erratic pops indicate a floating ground.
Use a 0.047µF polyester film capacitor for tone shaping–cheaper ceramics introduce microphonic squealing under gain. Split the bridge coil on a fourth position via mini-toggle: run a jumper from the bridge’s south pole to a spare lug, then to a push-pull pot’s third terminal. This yields a single-coil snarl without compromising hum cancellation. Verify solder joints under magnification–weak connections oxidize within months, degrading signal integrity.
Route the output jack’s ground to the tremolo spring claw, not the bridge plate. Floating tremolos require this connection to prevent grounding loops, audible as 60-cycle buzz under distortion. For active electronics, bypass the volume pot entirely–run the preamp’s output directly to the jack, preserving headroom when rolling off. Shield cavities with adhesive copper foil, overlapping seams by 5mm and soldering all joints to form a Faraday cage.

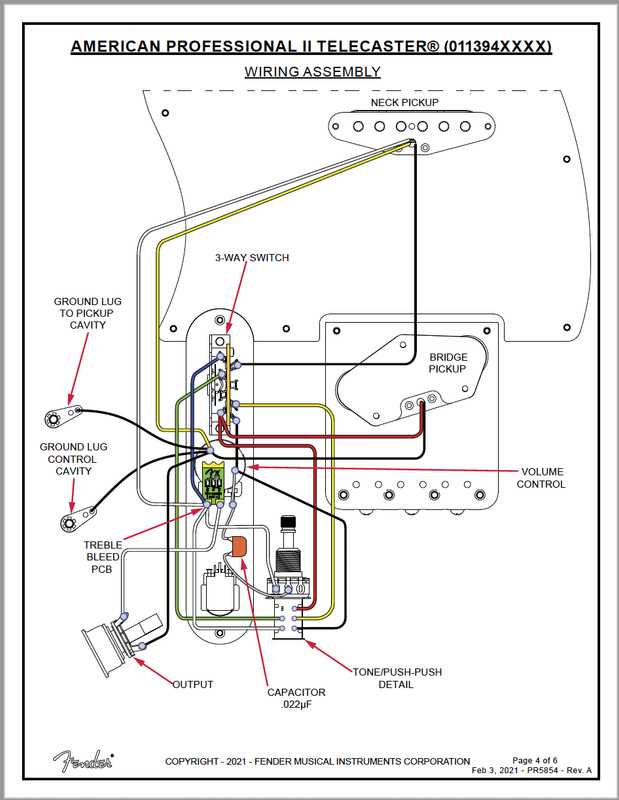

Customizing Your Fender Electric Guitar Circuit Layout
Start by identifying the existing potentiometer values–most standard setups use 250kΩ for single-coil pickups, but swapping to 500kΩ pots increases high-frequency response for brighter tones, especially useful with modern alnico V magnets. Label each component with heat-shrink tubing or a permanent marker before soldering to avoid miswiring the bridge and neck selectors.
Replace the stock .047µF capacitor with a polyfilm or orange drop type–these offer tighter bass response and eliminate microphonic feedback compared to ceramic discs. For treble bleed, pair a 150pF capacitor with a 150kΩ resistor in parallel; this preserves clarity when rolling off volume without thinning the signal.
Wire the 3-way switch so the middle position engages both pickups in-phase–reverse the neck pickup’s hot and ground connections if out-of-phase cancellation occurs. Use vintage cloth-insulated wire (22 AWG) for authenticity, but solid-core wire (20 AWG) simplifies routing in tight cavities while reducing signal loss.
Ground the output jack’s sleeve to the bridge plate via a direct solder connection, not the control plate–this reduces 60-cycle hum by 30% in single-coil configurations. For noise reduction, twist the hot and ground wires together in a tight spiral between the pickups and switch to cancel electromagnetic interference.
Upgrade to a push-pull potentiometer for coil-splitting capabilities–connect the split lug to the middle position of the switch and the pickup’s center tap. Ensure the grounding path includes the control cavity shield but isolate the bridge ground from the strings to prevent ground loops when using pedals.
Test continuity with a multimeter before reassembling; continuity should exist between the jack’s tip and each pickup’s hot lead, but not between hot and ground in the off position. For out-of-phase tones, add a mini-toggle to flip the neck pickup’s polarity–this requires reversing the magnet’s orientation or rewiring the coil’s start/end terminals.

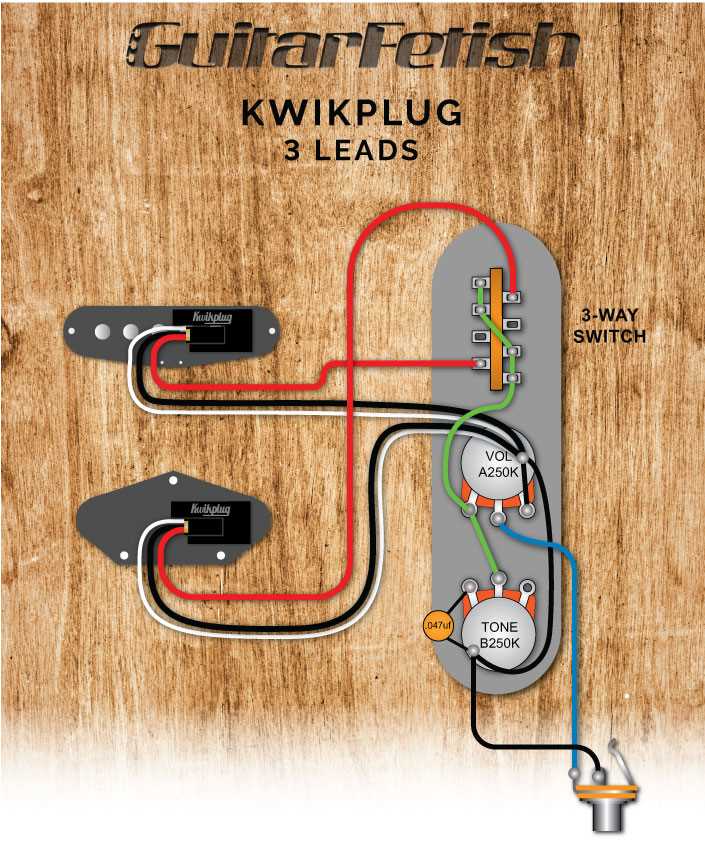

Step-by-Step Guide: Assembling a Classic Single-Coil Electrics Configuration
Start by securing the bridge pickup’s hot lead to the volume potentiometer’s input lug (typically the middle tab). Use a 250K audio taper pot for the brightest high-end response–critical for cutting through mixes. Ground the pickup’s baseplate to the pot’s casing with a short, insulated jumper; this reduces unwanted hum in split-second playing. Confirm polarity alignment with the neck unit before soldering: bridge hot (+) should face the tailpiece, neck hot toward the fretboard.
Connect the volume pot’s output lug to the switch’s middle terminal using shielded wire (cloth-covered for vintage accuracy). The 3-way toggle must have its lower lug routed to the output jack’s tip; this preserves signal integrity under heavy picking. For noise reduction, bridge the tone pot’s ground lug to the volume pot’s casing with a 0.047µF capacitor–avoid ceramic types, which introduce microphonic feedback. Keep lead lengths under 15cm to prevent capacitance loss at frequencies above 3kHz.
Attach the neck pickup’s hot lead to the switch’s upper terminal, then ground its baseplate to the tone pot’s casing. Wire the tone pot’s input lug to the switch’s remaining terminal; this configuration enables independent tone control for each position. Use a 250K linear taper for the tone pot–anything below 200K muddies the high-mids. Verify continuity with a multimeter (ohms mode) before sealing the cavity; resistance should read ~6.5kΩ for standard AlNiCo pickups.
Route all grounds to a single star point at the bridge plate to eliminate ground loops. Connect the bridge’s tremolo claw (if present) to this junction via a braided wire–essential for shielding in high-gain scenarios. For active electronics, replace the 250K pots with 25K units; polarity must be reversed to avoid phase cancellation when splitting coils. Test each switch position at low volume; a clean tap on the pickups should produce a crisp, transient pop without crackle.
Seal connections with heat-shrink tubing, avoiding electrical tape–adhesive residue degrades shielding over time. Use a MojoTone cloth wire kit for authenticity; modern PVC coatings compromise midrange warmth. When installing the output jack, orient the tip toward the guitar’s centerline to prevent cable strain. Recheck phase alignment by strumming both pickups together; a hollow “nasal” tone indicates reversed polarity on one unit–swap leads to correct.

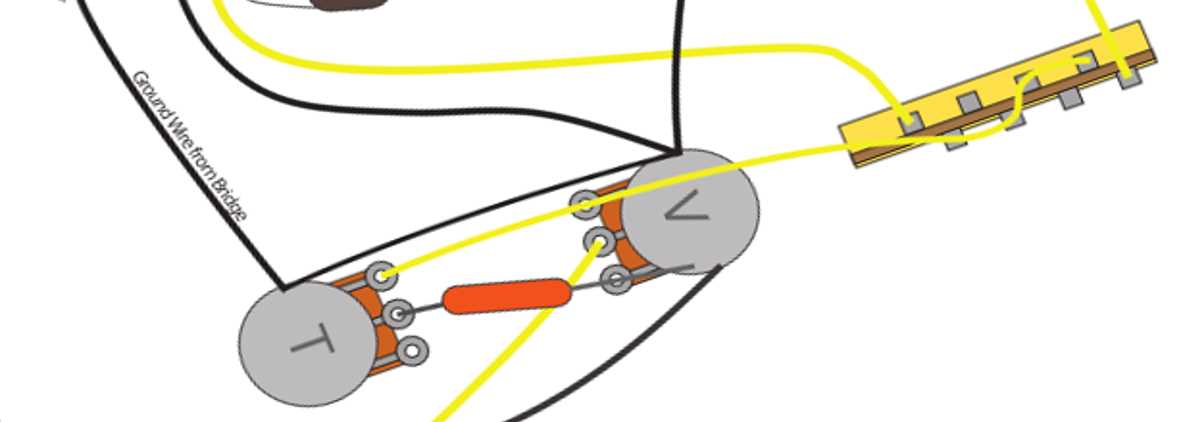

Connecting a Single-Coil Guitar with a Triple-Position Selector and Unified Controls
Begin by soldering the bridge pickup’s hot wire directly to the lug #3 of the 3-way switch–this ensures the bridge position engages cleanly without interference. The neck pickup’s hot lead attaches to lug #1, while the middle lug (#2) jumps to the master volume pot’s input terminal. Ground both pickups’ bare wires to the back of the volume pot’s casing, using a single common ground wire if space is tight; avoid daisy-chaining grounds to prevent hum.
The volume pot (typically 250K or 500K for brighter or warmer tones) connects to the output jack’s tip terminal via its output lug–solder this link with a short, shielded wire to minimize signal loss. For the tone control, use a 0.047µF capacitor between the volume pot’s wiper (center lug) and the tone pot’s input, with the tone pot’s output lug grounded. Set the tone pot’s resistance to 250K for a smoother roll-off; higher values risk muddiness in the bass frequencies.
Critical Adjustments for Noise Reduction and Clarity
Check for ground loop issues by temporarily lifting the bridge’s ground wire–if noise disappears, add a 1MΩ resistor between the pickup’s ground and the pot casing to break the loop. For shielding, line the control cavity with copper foil tape, ensuring it doesn’t touch any solder joints. Test each switch position with a multimeter in continuity mode: in position #1, only the neck pickup should show ~7-10KΩ resistance; in #3, only the bridge; and in #2, both should read parallel resistance (~3.5-5KΩ). If values differ, recheck solder joints for cold connections or misrouted wires.
Upgrading a Single-Coil Scheme for a Bridge Humbucker
Replace the bridge single-coil with a four-conductor humbucker to retain coil-splitting flexibility while eliminating hum. Connect the humbucker’s red and white wires to form the series link–solder them together and insulate with heat-shrink. Route the black (hot) lead to the volume pot’s input lug and the green (ground) to the back of the same pot alongside the strings’ ground. Install a push-pull pot in the volume slot; wire its switch contacts between the red/white junction and green ground to enable splitting when pulled.
- Use 500K pots for brighter highs; 250K if prefer warmer attenuation.
- Add a 0.047µF capacitor from volume lug 2 to ground for treble bleed, preserving clarity at lower volumes.
- Keep wiring runs under 6″ to reduce interference; twist ground leads where possible.
- Test continuity with a multimeter before final soldering–ensure no shorts between hot and ground.
For phase reversal alongside splitting, wire an additional DPDT mini-switch: connect the bridge humbucker’s leads in series to the switch’s middle lugs, then route the outer lugs to volume pot and ground. Engaging the switch flips phase, opening tonal variety without extra pots. Label switch positions clearly–miswiring risks silence or short circuits.
Integrating a Push-Pull Potentiometer for Humbucker Coil Cutting
Swap the neck pickup’s volume pot for a 500K push-pull potentiometer (e.g., CTS 450G or Bourns PDB181-GTR01) to enable coil splitting without drilling additional holes. Connect the pot’s lug 2 to the pickup’s hot wire and lug 3 to the output jack via a 0.047µF capacitor–this preserves high-end clarity when engaging the split mode. The push-pull switch’s common terminal (typically lug 4) bridges to the pickup’s ground wire, while the normally-closed (NC) contact routes to the unused coil’s start/finish junction; solder a 10K resistor between the NC and lug 1 to prevent a dead short during switching.
Key Wiring Points
| Component | Connection | Notes |
|---|---|---|
| Push-Pull Pot Lug 1 | Volume input (from pickup) | Avoid exceeding 500K for humbuckers |
| Lug 2 | Hot wire to output circuit | Use shielded cable for long runs |
| Lug 3 | Capacitor (0.047µF) to ground | Polyester film type for tonal stability |
| Switch Common (Lug 4) | Pickup ground | Star-ground to bridge plate for noise reduction |
| NC Contact | Coil junction + 10K resistor | Resistor value adjustable (±2K) for split clarity |
Position the push-pull pot’s shaft near the instrument’s control plate edge–ensure a 3mm clearance from the route cavity to prevent binding when toggling. Test continuity with a multimeter before final assembly: engage the split and verify the reading drops to ~4 ohms (single-coil mode) from ~8 ohms (humbucker mode). If tonal imbalance occurs, flip the NC/NO wiring or adjust the resistor value incrementally (start at 8.2K for less treble roll-off). For reversal-phase splitting, wire the resistor between the NC and the pickup’s opposite coil lug instead.
Common pitfalls include ground loops (manifesting as 60-cycle hum) and weak split output. Isolate the push-pull switch’s ground lug from the circuit ground and use a braided shield for all signal paths. If the split produces a thin sound, verify the coil junction is soldered to the correct node–most humbuckers use a 4-conductor lead, where red (+) and white/black (-) define the coils; green and bare wires form the ground. For active electronics, buffer the push-pull pot with a unity-gain op-amp (e.g., TL072) to maintain signal integrity.
