Begin by locating the existing chime unit–typically a small, rectangular device installed near your main entrance. Identify the transformer wires (usually two low-voltage conductors, often colored red and white) and confirm the voltage matches the manufacturer’s specifications (typically 16-24 VAC). Most modern video door systems require a dedicated power source; attempting to share an underpowered circuit will result in intermittent functionality or failed boot cycles.
Use a non-contact voltage tester to verify the transformer is live before handling any conductors. Shut off power at the breaker panel–failure to do so risks damaging sensitive electronics or causing a short. Strip 6-8 mm of insulation from each wire using precision wire strippers, ensuring clean cuts to prevent frayed strands that could touch adjacent terminals and create faults.

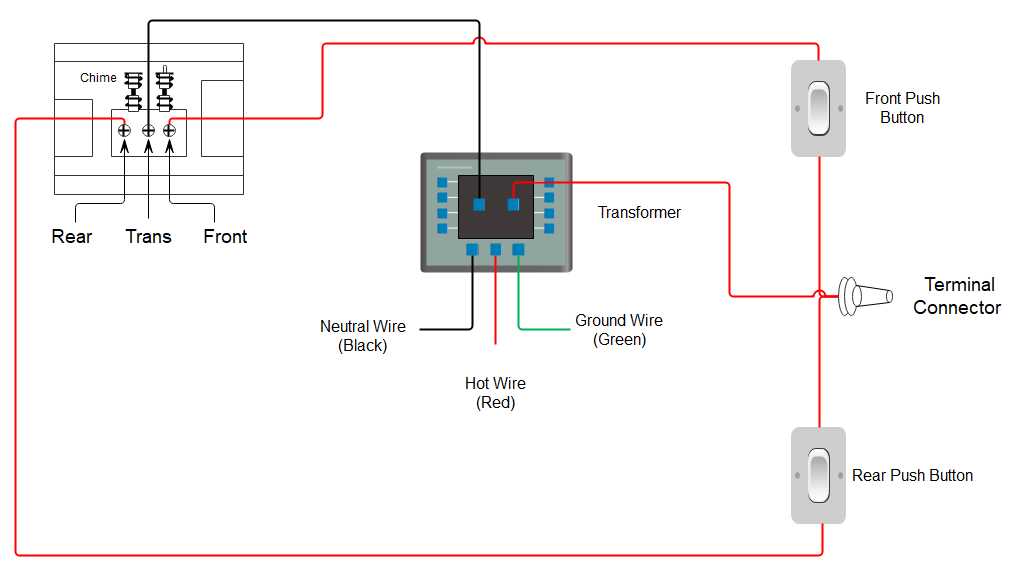

Connect the low-voltage leads from the video entry device to the corresponding terminals on the chime unit: attach the power wire (often marked “trans”) to the transformer’s positive terminal and the front wire to the chime’s designated port. Secure connections with small terminal screws, tightening just enough to prevent loosening–over-torquing can strip threads or crack the plastic housing.
If integrating with an existing mechanical chime, bridge the front and trans wires with a jumper (a short length of spare conductor) to maintain chime functionality. Without this bypass, the unit may power on but won’t trigger an audible alert. Run a continuity test with a multimeter to confirm the circuit is intact before restoring power.
For battery-backed models, ensure the internal power cell is fully charged before finalizing connections–some units draw initial current surges that can fail if the battery voltage dips below 3.6V. Mount the device bracket with supplied screws, leveling it precisely; misalignment distorts motion detection zones and causes false alerts. Route excess wiring into the electrical box, avoiding tight bends that can stress conductors over time.
Restore power and observe the LED status indicators–steady blue confirms correct wiring, while rapid blinking suggests a voltage mismatch or loose connection. Test the system three times (motion, doorbell press, and live view) to verify all features respond without latency. If issues persist, trace wiring backward, checking each terminal for oxidation or improper contact.
Electrical Connection Guide for Smart Entry Devices

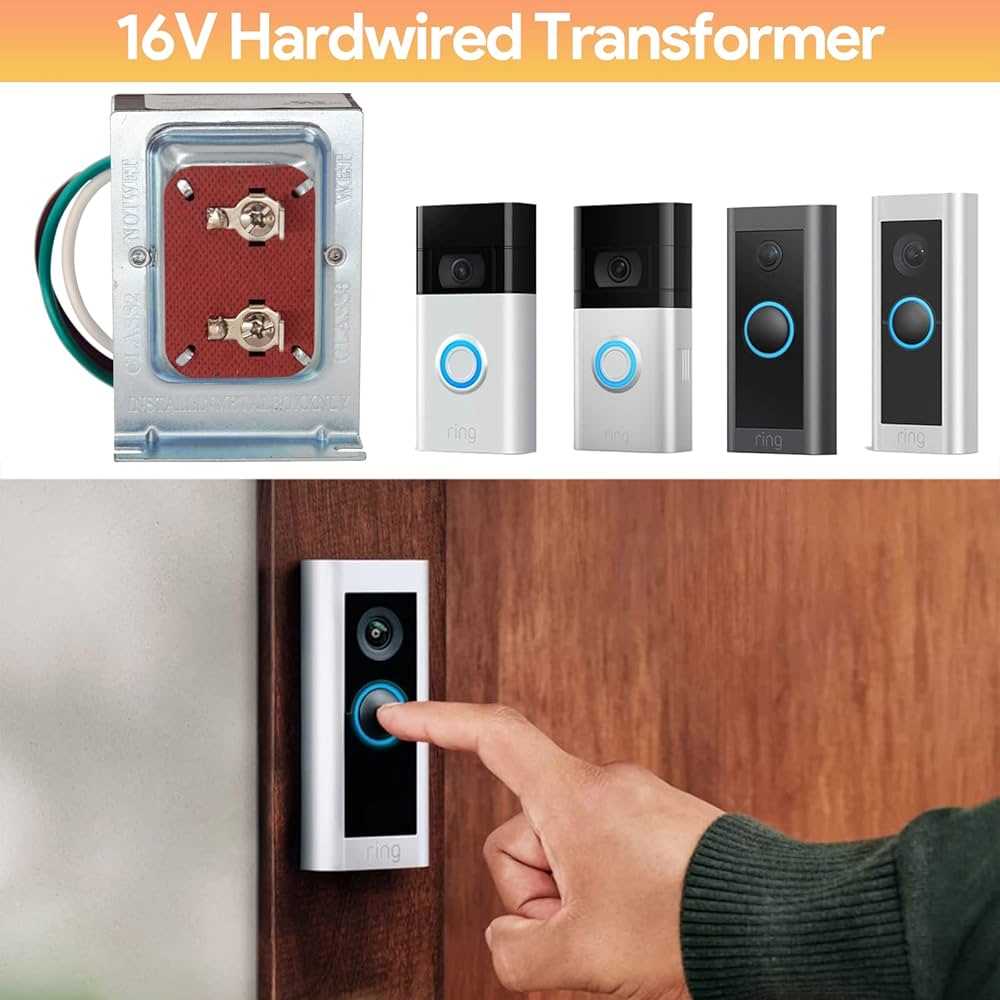

Begin by identifying the transformer powering your existing chime system–most modern installations require a minimum 16V AC output with at least 10VA capacity. Older transformers, particularly those from homes built before 2010, may deliver 8-12V, which is insufficient for consistent operation. Upgrading the transformer is non-negotiable if voltage falls below 16V; failure to do so risks intermittent functionality or complete device shutdown.
Locate the two low-voltage wires connected to your traditional chime–typically labeled “Front” and “Transformer.” These will serve as the primary connection points for the smart device. Use a multimeter to confirm which wire carries the active circuit; the reading should stabilize around 16-24V AC when the button is pressed. If readings fluctuate wildly or drop below 15V, inspect the wiring for corrosion or loose connections, particularly at junction boxes where insulation degradation commonly occurs.
Below is a reference table for compatible voltage ranges and recommended actions:
| Voltage Range (AC) | Device Compatibility | Required Action |
|---|---|---|
| 8-12V | Not supported | Replace transformer immediately |
| 13-15V | Partial functionality | Upgrade transformer or use compatible power adapter |
| 16-24V | Fully supported | Proceed with installation |
| Above 24V | Risk of damage | Install voltage regulator |
For devices installed without an existing mechanical chime, opt for a plug-in adapter rated for 16V/30VA. These adapters convert standard household current into the precise low-voltage output needed, bypassing the need for complex rewiring. Ensure the adapter’s plug matches your region’s electrical outlets–North American models use Type A/B plugs, while European variants require Type C/F.
When stripping insulation from the wires, limit exposed copper to 6-8mm to prevent short circuits. Use wire nuts or Wago connectors for secure attachments, crimping them tightly to eliminate intermittent connections. If the existing wires are brittle or show signs of oxidation, replace them entirely with 18-20 AWG solid copper wire, as thinner or stranded variants may overheat under sustained current.
Troubleshooting Common Issues
If the smart device fails to power on after connection, verify the breaker controlling the doorbell circuit hasn’t tripped–especially in older homes with outdated electrical panels. Reset the breaker and recheck voltage; if the problem persists, the transformer may be undersized or defective. Substitute it with a new 16V/30VA model before proceeding further.
Humidity-prone environments demand additional precautions. Apply dielectric grease to all connection points to prevent corrosion, particularly in coastal regions where salt air accelerates oxidation. Silicone-based sealant can be applied around the backplate edges to block moisture ingress, though ensure it doesn’t interfere with wiring contacts. Regularly inspect connections every 6-12 months for oxidation or loose fittings in high-moisture areas.
Essential Equipment and Supplies for Power Connection Setup
Use a multimeter with a minimum 600V AC rating to verify voltage levels at terminals–nominal readings should fall between 16-24V AC for transformers or 110-240V AC for direct mains connections. A non-contact voltage tester helps confirm live circuits without physical contact, reducing arc flash risk during preliminary checks. Include insulated screwdrivers (4mm and 6.5mm flat-head), specifically rated for 1000V, to prevent short circuits when securing terminals. For stubborn fasteners, a precision torque screwdriver (0.5-2.0 Nm range) prevents over-tightening, which can crack housing or strip threads.
- Primary conductors: 18-20 AWG, solid copper, THHN/THWN-2 rated for indoor/outdoor use–avoid stranded wire unless splicing with ultrasonic welding or crimp connectors (red, 16-22 AWG) to prevent oxidation.
- Low-voltage transformer: Match device specs (e.g., 10VA minimum for standard setups, 30VA for power-hungry variants). Verify compatibility with UL-Listed Class 2 transformers to comply with NEC Article 725.
- Junction box: Weatherproof PVC or die-cast aluminum (NEMA 3R rated) if mounting outdoors; 4×4-inch dimensions accommodate connector blocks. Use gasketed covers to seal entry points.
- Fasteners: Stainless steel #8-32 machine screws (1/2″ length) for secure mounting on brick/masonry–pair with plastic anchors (3/16″ diameter) if drilling into hollow surfaces. Thread-locking adhesive (medium-strength) prevents loosening from vibration.
- Termination aids: Heat-shrink tubing (polyolefin, 3:1 shrink ratio, 3/8″ diameter) for insulated splices; electrical tape (vinyl, 7 mil) as backup. Wire strippers with 18-20 AWG notches ensure clean cuts without nicking conductors.
- Grounding components: Copper pigtail (14 AWG, green insulation) bonded to grounding screws; grounding lugs (tin-plated copper) for panels without dedicated grounding bars.
How to Link Your Smart Entry Chime to Preinstalled Electrical Leads
First, verify the voltage at your transformer using a multimeter. Most video-enabled entry chimes require between 16 and 24 volts AC; a lower reading could cause intermittent failures or slow charging. If the output falls outside this range, replace the transformer before proceeding–no firmware update or bypass setup will compensate for insufficient power.

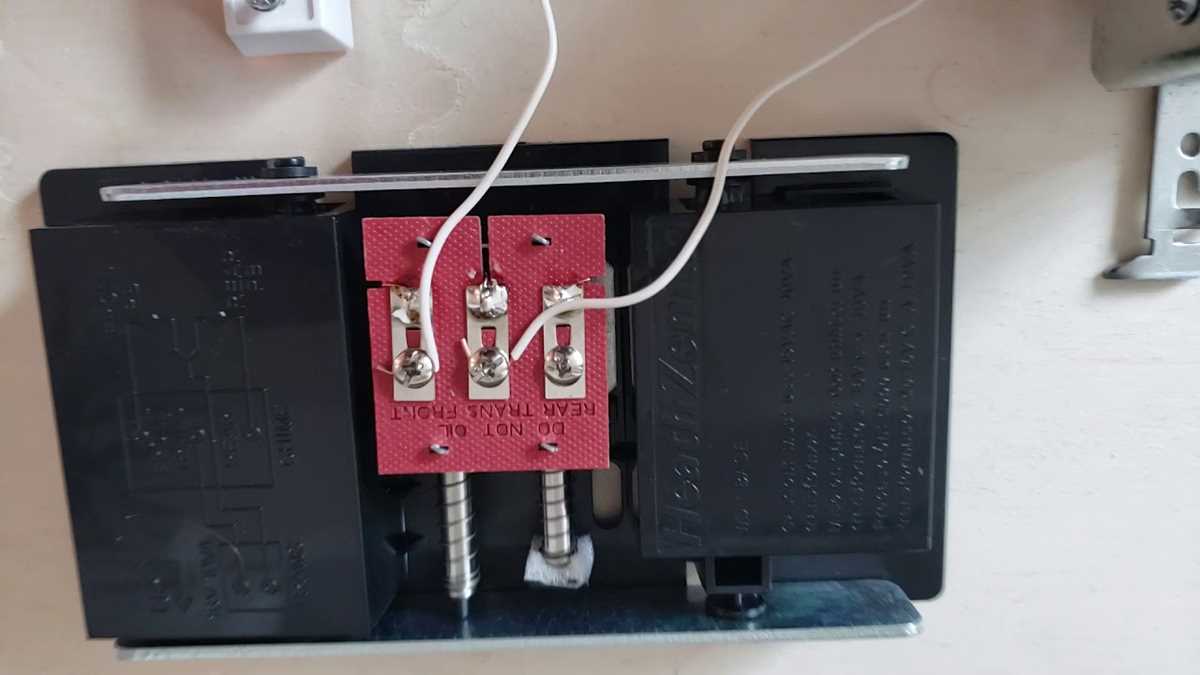

Turn off the circuit breaker controlling the existing chime terminals. Label each lead with masking tape–front terminal, rear terminal, and common–to eliminate confusion during reconnection. Use needle-nose pliers to loosen the screw terminals, gently remove the old chime wires, and secure them away from touching metal surfaces to prevent accidental shorts.
Attach the provided adapter bracket with the screw holes aligned over the existing mounting plate. Ensure the bracket lies flat against the wall; uneven placement can misalign the camera lens. Feed the chime leads through the center hole and strip 6 mm of insulation. Twist the copper strands clockwise to prevent fraying, then insert each end into the corresponding terminal on the smart device backplate: hot wire to the front screw, neutral to the rear, and ground to the dedicated grounding post.
If your setup includes a mechanical chime, bridge the chime’s front and rear terminals with the included diode jumper. Omitting this step will prevent the device from signaling properly, even if Wi-Fi connectivity appears stable. For digital chimes, insert the provided resistor instead; refer to your device’s compatibility list for exact resistance values–usually 470 Ω or 1 kΩ.
Re-energize the circuit at the breaker, then press and hold the setup button on the device for 20 seconds until the LED pulses white. Launch the companion app, select “Add Device,” and follow the on-screen prompts. The app detects voltage inconsistencies and alerts you to incorrect terminal connections–fix any miswiring before completing enrollment.
Perform a test signal by pressing the activation button. Listen for confirmation tones; if absent, revisit the diode or resistor installation. For hardwired configurations without battery backup, confirm that the device maintains power through a brief disconnection test–removing and reconnecting the circuit breaker should not interrupt functionality.
