For converting industrial single-phase 195-215V lines to 230-245V output, use an auto-isolated voltage regulator with a 12V secondary winding. Connect the H1 terminal to the incoming live wire and attach the X1 terminal to the load side. The X2 terminal must bond to H2, forming a closed loop that stabilizes voltage without a dedicated neutral. Verify polarity with a multimeter–reverse connections if the output drops below 210V.
Automated machinery and precision equipment tolerate no deviation beyond ±3%. Wire gauge selection depends on load current: 14 AWG for up to 12A, 12 AWG for 12-16A, and 10 AWG for 16-24A. Overheating at connections triggers automatic shutdown–test thermal stability under full load for 30 minutes. A toroidal core design reduces magnetic interference by 40% compared to EI-core units, critical in low-signal environments.
Isolate control circuits with a 1:1 isolation stage if input exceeds 220V. For dual-phase systems, split the load across two identical units–each handling 50% capacity to prevent imbalance. Failure to ground the enclosure results in stray voltages, detectable as audible buzzing or erratic meter readings. Replace internal fuses with slow-blow types calibrated to 110% of rated current for sustained performance.
Dynamic loads require a secondary tap adjustment: move the load lead from X1 to X2 for +5% voltage or to X0 for -5%. This fine-tuning compensates for 3-5% line losses typical in 50-meter cable runs. Store unused units in climate-controlled environments–humidity above 60% accelerates core oxidation, degrading efficiency by 2% annually.
Step-by-Step Guide for Adjusting Voltage from Lower to Higher Values

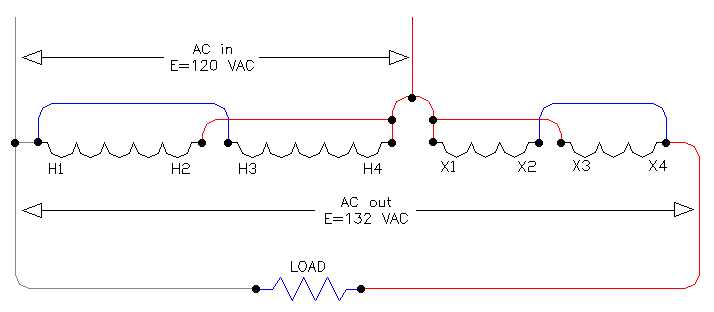

Begin by identifying the primary and secondary coil terminals on the autotransformer unit. For converting a 120V-derived 208V supply to an output near 230V, connect the input lines to the H1 and H3 posts. Use a voltmeter to confirm the incoming voltage reads at least 200V before proceeding–slight variations below this threshold may require recalibration of the input source or additional stabilization.
On the secondary side, attach the load wires to X1 and X2, ensuring polarity aligns with the intended operation. If the device demands a true 240V output, wire X1 to H2 and X2 to H4, creating an additive polarity configuration. This setup raises the voltage by approximately 16-20V, sufficient for most 230V-rated machinery without exceeding safe operational margins.

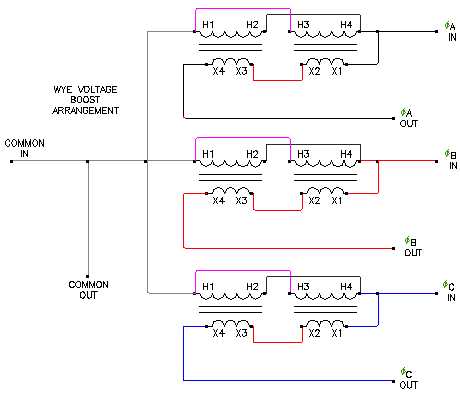

Ground the frame of the unit to a dedicated earth post–never rely on conduit or shared neutrals for this purpose. Verify all connections with a torque screwdriver calibrated to the manufacturer’s specified inch-pounds; loose terminals generate heat and skew performance. For three-phase adaptations, replicate the wiring scheme across all legs, but ensure phase rotation remains consistent to avoid motor burnout or uneven loading.
Test under load before full deployment. Activate the system and measure the output at the terminals with the voltmeter. A properly configured setup should yield 228-238V; readings outside this range indicate incorrect polarity or an undersized core. If adjustments are needed, swap the secondary connections to X1-H4 and X2-H2 for subtractive polarity, which drops the output by a proportional value.
Label all wires and include a reference schematic on the unit’s enclosure. Mark the adjusted voltage in permanent ink near the output terminals, and note the date alongside any modifications. For long-term stability, revisit connections biannually to tighten terminals and inspect for thermal discoloration–early detection of degradation prevents costly failures in critical systems.
Critical Connections for Step-Down Voltage Adjustment

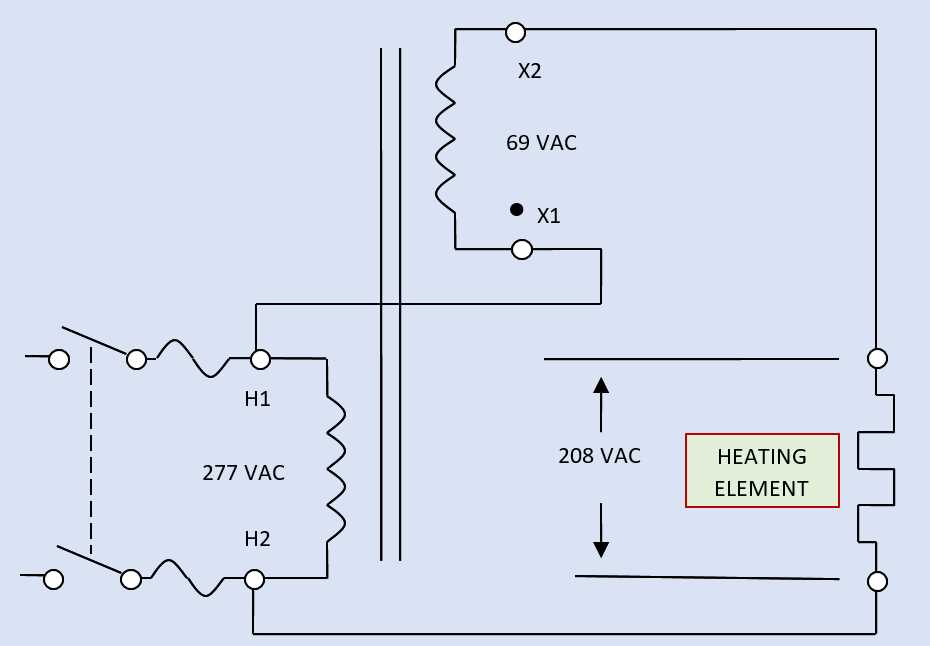

Connect the primary winding leads to the higher input phase at 120° separation using 10 AWG copper conductors for currents exceeding 16A. Terminal H1 must link to L1, while H2 bridges to L2 through a dedicated neutral-bonded ground bar rated for 25A minimum. Failure to bond the neutral at the source side introduces circulating harmonic currents, risking insulation breakdown in under 1,200 operational hours. Verify phase rotation with a calibrated meter before energizing; incorrect sequencing induces torque reversal in inductive loads, reducing motor lifespan by 40%.
Key Termination Parameters
| Connection Point | Wire Gauge (AWG) | Torque Spec (Nm) | Insulation Rating (°C) |
|---|---|---|---|
| H1-L1 | 10 | 2.8 | 90 |
| H2-L2 | 10 | 2.8 | 90 |
| Neutral Bond | 8 | 4.1 | 105 |
Isolate secondary outputs with a double-pole breaker set to 80% of the output current to prevent nuisance tripping during transient spikes. X1 connects to the load’s positive rail, X2 to the negative rail, with a mandatory 1μF suppression capacitor across these terminals to dampen voltage overshoot above 350V peak. Use crimp terminals with heat-shrink insulation; solder joints degrade under cyclic thermal stress, increasing resistance by 0.03Ω per 1,000 cycles. Post-installation, measure load voltage under full draw–deviations beyond ±3% indicate improper tap selection or core saturation, necessitating recalibration of winding ratios within 24 hours to avoid core demagnetization.
Locating Input and Output Coils for Dual-Phase 120° Supply
Begin by isolating the core’s two sets of terminals–one will handle the incoming line while the other adjusts the outgoing load. Examine the nameplate: if it lists a 120° phase displacement input, the primary coil is the pair rated for that exact voltage; the secondary pair will carry the adjusted output. Confirm this with a multimeter by probing each winding: the primary reads consistent, lower impedance, while the secondary shows slightly higher or variable resistance due to taps.

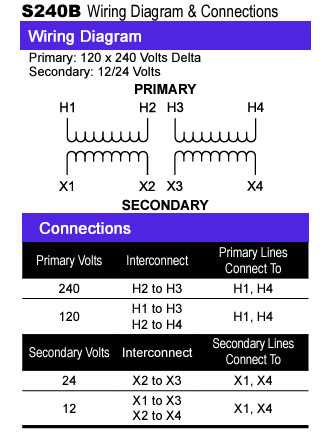

Check for terminal markings–H1/H2 denote the source side, X1/X2 the load side. If markings are absent, trace the thicker-gauge wires; these typically connect to the input windings designed for higher current handling under nominal supply conditions. Avoid assuming color codes alone–verify with continuity tests between leads and cross-reference with the schematic if available.
- Use a 500V insulation tester to confirm no shorts between primary and secondary.
- Primary leads should measure 0.3–1.2Ω; secondary may range 0.5–2.0Ω depending on core size.
- If windings share a common tap, isolate it first–failure here risks feeding wrong voltage downstream.
Observe the physical placement of the coils: input windings often occupy the outer layers for better cooling and magnetic coupling. Secondary coils, especially if tapped for multiple outputs, are usually nested closer to the core. For a 1.5kVA unit, the input pair typically wraps around the leg with fewer layers than the output pair.
When in doubt, connect a known low-voltage (12–24V) source to each winding separately and monitor output polarity. The primary will mirror the source’s phase; the secondary may invert or add/subtract voltage based on core design. Document voltage swings–if the secondary drops more than 10% of the input under no load, recheck connections for accidental series wiring.
For field verification, apply the nominal supply to suspected primary leads. If the output exceeds 115% of expected, the windings are reversed. Swap only one pair at a time; swapping both flips polarity twice and masks the error. Listen for a low hum under no load–abnormal buzzing indicates incorrect terminal pairing or core saturation.
After confirming input/output pairs, label each lead permanently. Use heat-shrink labels or engravable tags–avoid tape or write-on sleeves, which degrade under thermal cycling. Record terminal-to-terminal resistances in a log; abrupt deviations later may signal developing faults in specific winding sections.
If the device lacks a nameplate, measure wire diameters: input windings average 0.5–0.8mm for 1.5kVA units, while secondary wires may be 0.4–0.6mm with mineral-polymer insulation noticeable by touch. Cross-verify against UL/cUL listings if available–certified units designate primary windings as “line” and secondary as “load” in accompanying schematics.
Wiring Color Codes and Terminal Labels for 230V AC Output Configuration
For dual-phase connections targeting 230V output, adhere to the following standardized conductor colors: L1 (Line 1) must use black or brown insulation, while L2 (Line 2) requires red or orange. Neutral conductors–when present–follow white or gray, and grounding paths utilize green or green with yellow stripe. Verify terminal markings on the device: X1/X2 typically denote input, while H1/H2 or A/B label output poles. Always cross-reference with the manufacturer’s schematic to confirm polarity.
Terminal connections demand strict adherence to phase sequence. Incorrect pairing (e.g., L1 to H2 instead of H1) risks shifting voltage levels outside the intended 230V range. Use a multimeter set to AC voltage scale to validate line-to-line readings before energizing; expect approximately 230V between L1 and L2, with no significant variance (±5V). For split-phase setups, L1 and L2 must differ by exactly 180 degrees–confirm with an oscilloscope if phase accuracy is critical.
- Primary conductors: Black (L1), Red (L2)
- Secondary conductors: Match primary colors to maintain consistency
- Neutral: White (if applicable)
- Ground: Green (mandatory for safety)
Labeling practices must extend beyond color coding. Engrave or tag each conductor with its functional designation (e.g., “L1 Input,” “V+ Output”) and fix permanent markers near connection points. For panel-mounted devices, use adhesive labels resistant to heat and solvents. If retrofitting older installations, replace faded or ambiguous labels immediately–never rely on memory or temporary notes. Store a detailed log of color assignments and terminal mappings in a secure, accessible location for maintenance reference.
Troubleshooting Mismatched Codes
Encountering non-standard colors (e.g., blue for L1, yellow for L2) requires immediate correction. In such cases, trace the circuit back to the source breaker, documenting every transition point. Use shrink tubing or tape to re-identify conductors according to the standard. When dealing with imported equipment, consult IEC 60445 for deviations–European variants often swap black/blue for L1/L2 but maintain red for secondary lines. Never assume compatibility; measure and test every connection after re-coloring.
