Begin by identifying the power source: a 120-volt household circuit provides the safest foundation for standard fixtures. Measure the current draw of your bulbs–LED clusters rarely exceed 15 watts, while incandescent types may demand 60 watts or more–to ensure the switch and cable gauge meet load requirements. Use 14-gauge copper conductors for runs under 50 feet when handling 15 amperes; 12-gauge becomes mandatory beyond this threshold or for heavier currents.
Ground all metallic components without exception. Fasten a green or bare copper wire to the metal junction box, then bond it to the fixture’s earth terminal. Omitting this risks shocks if insulation fails or moisture infiltrates. Verify continuity with a multimeter before energizing–readings should show near-zero resistance between earth and neutral at the service panel.
Connect the neutral conductor (white sheath) directly to the bulb socket’s threaded base unless the fixture includes a dedicated neutral post. Never splice neutrals mid-run; centralize them at the first junction box to simplify troubleshooting. Hot wires (black or red) must terminate at the switch, then proceed to the socket’s center contact. Use quick-connect push-in terminals only for solid-core wire; stranded conductors require a secure twist-on wire nut followed by a wrap of electrical tape.
Install a dual-pole circuit breaker if merging lighting and outlets on the same branch–this isolates faults more effectively than a single-pole device. Label both breaker and junction boxes with permanent marker: note voltage, circuit purpose, and maximum amperage. Keep a non-contact voltage tester within reach during every phase; confirm circuits are dead before handling bare wires.
Mount switches within arm’s reach of doorways–48 inches above finished floor meets code for accessibility. Recessed cans require thermal protection; ensure springs or clips secure the trim firmly to prevent heat buildup around the housing. For dimmable circuits, pair LED-compatible dimmers with matching bulbs to avoid flicker; verify compatibility through manufacturer datasheets.
Connecting Electrical Schematics for Illumination Systems

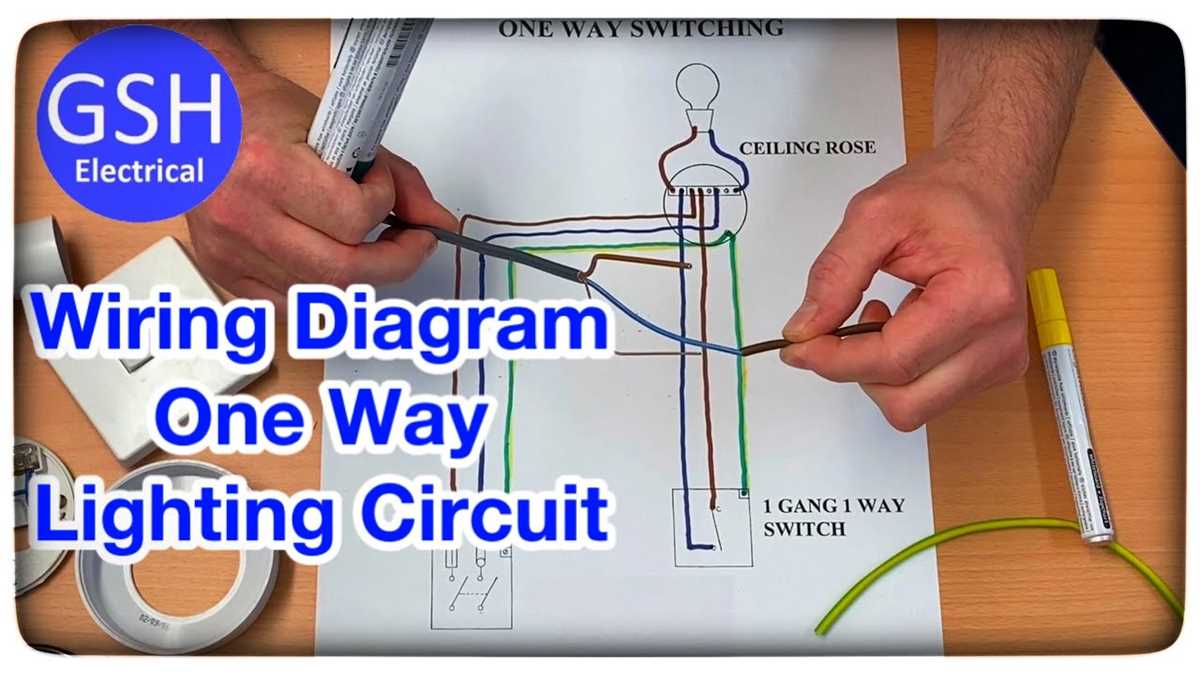

Begin by ensuring the main power supply is disconnected before handling any circuit connections. Identify the live (hot), neutral, and ground conductors in your installation–typically color-coded as black (live), white (neutral), and green or bare (ground) in residential setups. For a basic single-switch setup, attach the live wire to the switch’s input terminal, then route the output from the switch to the fixture’s hot terminal. Complete the circuit by connecting the neutral directly to the fixture and grounding all components to prevent electrical faults.
- Use a multimeter to verify zero voltage between conductors before making connections.
- For dimmable fixtures, insert a compatible dimmer module between the switch and the load wire, ensuring it matches the bulb type (LED, halogen, incandescent).

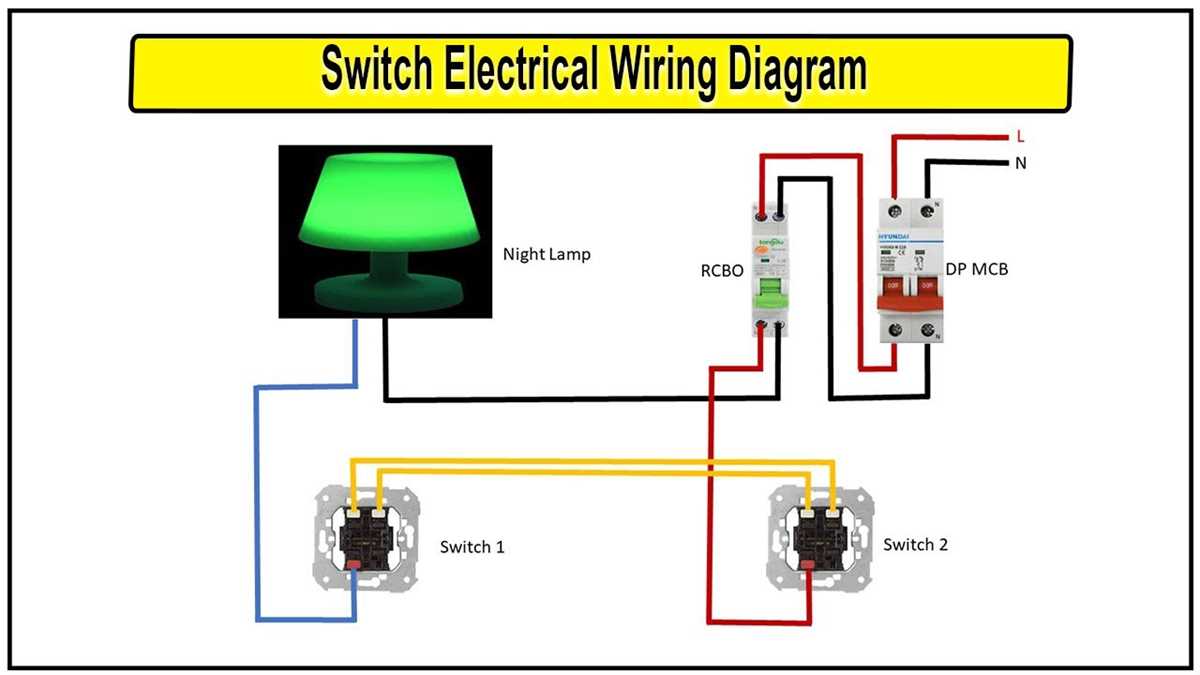

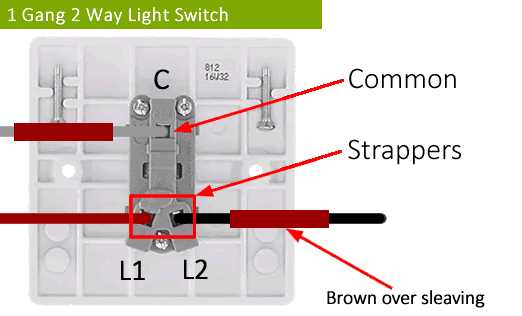

- In multi-way switching (e.g., hallway controls), employ three-way switches with travelers–connect the common terminal of one switch to live, and the other to the fixture; travelers link the switch pairs.
- For outdoor or wet locations, seal junction boxes with waterproof gaskets and use corrosion-resistant terminals.
Advanced Circuit Configurations
When linking multiple fixtures (e.g., chandeliers or track lighting), parallel connections ensure uniform brightness–split the live feed to each unit while maintaining shared neutral and ground paths. For smart lighting integration, wire the control module (e.g., Zigbee or Wi-Fi relay) inline with the live feed, retaining manual override switches where required. Always consult local electrical codes: in North America, NEC mandates AFCI protection for bedroom circuits and GFCI for bathrooms/kitchens if lighting is part of the circuit.
Test all connections with a non-contact voltage detector before restoring power. Label circuit breakers to simplify future troubleshooting–mark each breaker with fixture locations (e.g., “Garage Overhead 15A”). If wiring exceeds 12-gauge capacity (20A circuits), upgrade to 10-gauge conductors to prevent overheating. For installations with aluminum wiring (common in homes built before 1970), apply antioxidant paste to terminals and use pigtail connectors with copper wires to avoid oxidation-related failures.
Key Elements Required for an Illumination Setup
Begin by selecting a power source capable of delivering stable voltage–typically 12V DC for low-voltage systems or 120/230V AC for household installations. Verify the source meets the fixture’s wattage demands to prevent overloads. A mismatched supply risks flickering or premature failure.
Choose conductors sized for the current load: 18 AWG for small bulbs under 5W, 14 AWG for standard household paths up to 15A, and 12 AWG for extended runs. Copper offers superior conductivity over aluminum, reducing voltage drops in long spans. Strip insulation precisely–excess bare wire invites shorts.
Core Parts Breakdown
- Switches: Toggle types suit simple on/off control; dimmers require compatible LED drivers. Verify maximum load ratings–e.g., a 600W dimmer won’t support eight 100W incandescent equivalents.
- Fuses/Circuit Breakers: Install inline fuses (3A–15A) near the source for protection. Magnetic breakers trip faster than thermal types during surges. Size at 125% of the circuit’s maximum current.
- Transformers (for low-voltage): Toroidal models reduce EMI better than E-I cores. Match input voltage to your mains; output must align with the fixture. Overloading burns coils.
Opt for solid-state relays over mechanical ones for frequent switching. SSR handle 25A at 240V without arcing, ideal for automation. Ensure compatibility with your control signal–3–32V DC triggers are common.
For outdoor setups, enclosures must meet IP65 or higher. Polycarbonate resists UV degradation better than PVC. Seal entry points with gland connectors to block moisture. Corrosion-proof terminals (tin-plated) outlast bare copper in humid environments.
Connection Methods
- Screw Terminals: Torque to 0.5–0.7 Nm; overtightening cracks casings. Use star washers to prevent loosening from vibration.
- Soldered Joints: Tin wires before twisting to prevent oxidation. Heat-shrink tubing insulates better than electrical tape, which degrades over time.
- Wire Nuts: Twist clockwise before capping. Minimum two full twists of stripped wire–loose strands cause resistance hotspots.
Test continuity with a multimeter before energizing. Probe across switch contacts in the “off” position–should read OL (open loop). After activation, voltage should match the supply. Any drop >3% indicates faulty conductors or connections.
Ventilation matters for high-output fixtures. LEDs last 50% longer at 50°C vs. 80°C. Mount drivers on aluminum heat sinks, not wood. Thermal paste improves heat transfer–apply sparingly to avoid shorting components.
Step-by-Step Installation of a Basic Wall Control
Disconnect the circuit at the breaker panel–verify absence of current with a voltage tester before touching any conductors. Strip 3/8 inch of insulation from each wire end using lineman’s pliers; twist copper strands tightly to prevent fraying. Loop each stripped end clockwise around terminal screws, ensuring the loop diameter fits snugly under the screw heads without overlapping insulation.
Terminal Connections and Secure Mounting
| Wire Color | Terminal Type | Tightening Torque (lb·in) | Visual Check |
|---|---|---|---|
| Black (hot) | Brass | 12-15 | No exposed copper beyond loop |
| White (neutral return) | Silver | 12-15 | Insulation flush to terminal base |
| Green/bare (ground) | Green hex | 15-18 | Full wire contact under screw |
Align the switch frame with the wall box, gently folding conductors behind the device–avoid sharp bends within 1 inch of stripped ends. Secure the unit with two mounting screws, ensuring the switch sits flush to the wall surface. Restore power at the breaker, toggle the control twice to confirm instantaneous response and absence of hum or flicker.
Connecting Several Fixtures to a Single Control
Begin by cutting power at the circuit breaker to prevent energized conductors during installation. Use a non-contact voltage tester to confirm no current remains in the cables before handling them. Strip 12-15mm of insulation from each conductor end using wire strippers–longer leads risk short circuits, shorter ones may pull loose from terminals.
Identify the feed cable entering the switch box: the live (hot) conductor is typically black, red, or another color excluding white, green, or bare copper. The neutral (white) and ground (green or bare) must bypass the switch and connect directly to luminaires. Route the live through the switch using a pigtail splice to maintain continuity to all fixtures.
Twist the pigtail ends of the live conductors together with the switch’s feed wire using lineman’s pliers. Secure with a twist-on connector rated for the gauge–minimum 14 AWG for 15A circuits, 12 AWG for 20A. Ensure all connections are tight; loose splices generate heat and may fail over time. Tug each wire gently to verify strength.
For multiple luminaires, run a single loop from the switch to each fixture box using NM-B cable. Avoid daisy-chaining more than three fixtures per circuit to prevent voltage drop–measure with a multimeter if total wattage exceeds 80% of the circuit’s capacity. For long runs, upsize conductors to 12 AWG or use a shared neutral configuration if local codes permit.
At each fixture, join the incoming live to the luminaire’s black (or equivalent) lead, and the neutral to white. Grounds must bond to all metal components–connect bare or green wires to junction boxes, switches, and fixtures using crimp sleeves or green grounding screws. Verify polarity with a circuit tester: probe the live terminal and neutral (not ground) to confirm proper operation.
Use cable clamps inside junction boxes to prevent chafing against sharp edges. Non-metallic boxes require internal clamps; metal boxes use built-in or external clamps. Ensure box fill does not exceed capacity: count 1 for each conductor, 2 for splices, and 1 for cable clamps–8 AWG box with 6 conductors requires minimum 18 cubic inches.
Insulate all splices with heat-shrink tubing or self-adhesive electrical tape, wrapping halfway up each insulated lead. Fold excess cable neatly into boxes; avoid coiling tightly to reduce inductive heating. Secure fixtures to boxes with mounting screws, not just twist locks, to support weight and prevent vibration loosening connections.

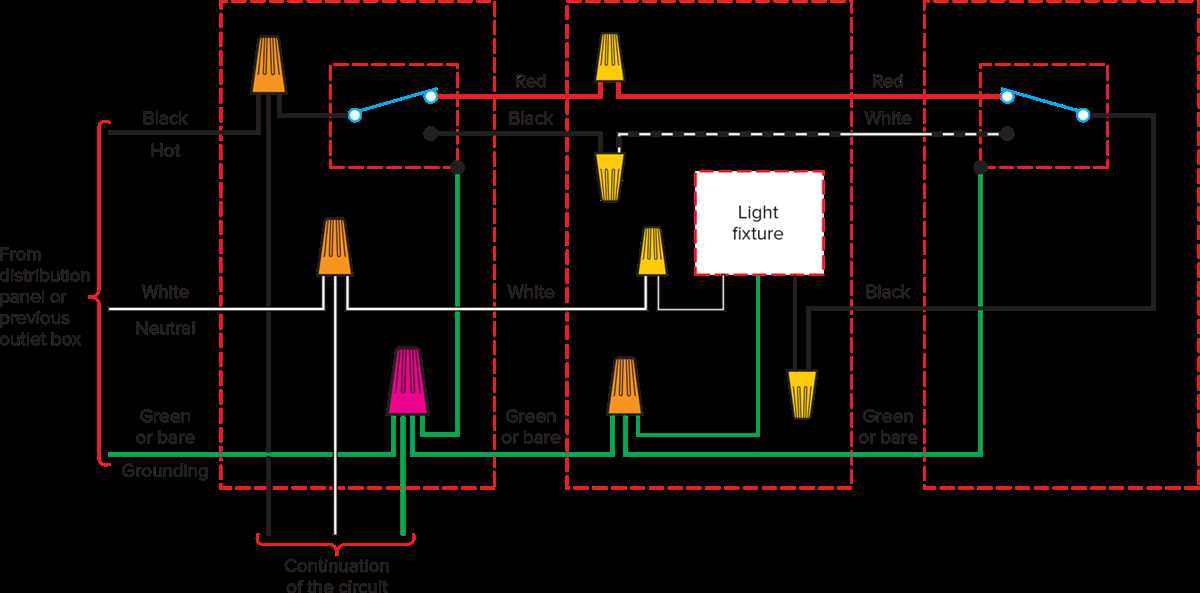

Restore power and test each luminaire individually. If one fails, check for reversed polarity, loose connections, or blown bulbs–LEDs and CFLs may not illuminate with incorrect wiring. For three-way controls, add a traveler conductor between switches and ensure both controls interrupt the live path. Document the setup with a simple sketch showing cable routes and circuit labeling for future reference.
