Begin by locating the primary power disconnect near the burner assembly–typically a double-pole switch or circuit breaker rated for 30 amps at 240V. Verify the line voltage with a multimeter before handling terminals to avoid hazardous shorts. Confirm the neutral busbar in the service panel is properly grounded; corroded or loose connections here account for 40% of heating unit failures.
Trace the low-voltage control circuit from the thermostat to the ignition module. The transformer supplying 24V must maintain ±10% tolerance under load; deviations indicate either primary coil degradation or secondary wiring resistance exceeding 1.5 ohms. Replace transformers showing voltage drops below 21.6V AC–marginal units cause intermittent flame failure.
Examine the high-limit switch mounted above the combustion chamber. Set to trip at 200°F (93°C), this safety device interrupts power to the fuel pump if stack temperatures exceed safe thresholds. Test continuity with the system cold; infinite resistance mandates immediate replacement. Bypass attempts void manufacturer warranties and violate NFPA 31 standards.
Connect the flame sensor directly to the control board via 18-gauge copper wire, ensuring no splices within 12 inches of the burner assembly. Faulty sensing rods–often misdiagnosed as ignitor issues–cause 3-second shutdown cycles. Clean rods with 120-grit emery cloth every 200 operating hours to remove carbon buildup disrupting signal return.
For AC motors driving the fuel pump and blower, wire the run capacitor in series with the start winding. Capacitors rated below 15 µF for 1/3 HP motors will fail to achieve locked rotor torque, leading to overheating. Test capacitors at full line voltage using an analog meter; needle deflection confirming proper microfarad storage eliminates nuisance breaker trips.
Heating System Electrical Layout: Step-by-Step Installation Guide
Begin by disconnecting power at the main breaker–verify zero voltage with a multimeter before touching any connections. Locate the control panel, typically a metal enclosure with labeled terminals. If replacing an older unit, photograph the existing setup to replicate wiring sequences accurately.
Identify the key components: burner motor (120V), ignition transformer (10,000V output), circulator pump (1/8 HP typical), and thermostat sub-base. Use 14-gauge copper wire for 15-amp circuits and 12-gauge for 20-amp lines–never undersize conductors for motor loads.
Connect the line voltage side first. Run a dedicated circuit from the breaker panel to the unit’s primary disconnect switch (double-pole, 240V). Terminate black and red wires on the L1/L2 terminals, white (neutral) to the N bus, and green/bare ground to the chassis. For 120V models, omit the red conductor–use only black (hot), white (neutral), and ground.
| Component | Voltage | Wire Gauge | Color Code |
|---|---|---|---|
| Burner motor | 120V | 14 AWG | Black (hot), White (neutral) |
| Ignition transformer | 240V input / 10kV output | 14 AWG | Black/Red (L1/L2), White (neutral) |
| Circulator pump | 120V or 240V | 14 AWG (120V) / 12 AWG (240V) | Black (hot), White (neutral) or Black/Red (L1/L2) |
| Thermostat | 24V | 18 AWG | Red (R), White (W), Green (G) |
Route low-voltage wiring separately from high-voltage lines to prevent interference. Connect thermostat wires: red (R) to the 24V transformer output, white (W) to the burner relay, and green (G) to the circuit board ground. Use crimp connectors or terminal blocks–never twist and tape.
Test the ignition sequence first. Activate the system via the thermostat; listen for the burner motor spin-up (3–5 seconds), followed by a faint buzz from the ignition transformer. If the burner fails to light, check the cad cell (light sensor)–clean its lens with isopropyl alcohol and verify its resistance drops below 1,600 ohms when exposed to flame.
Secure all wires with zip ties, keeping them 1 inch away from moving parts and exhaust vents. Label each wire at both ends with shrink tubing or adhesive tags. For outdoor installations, use liquid-tight conduit and silicone-sealed junction boxes to prevent moisture ingress.
Final checks: toggle the breaker three times, ensuring the system cycles normally. Measure current draw at the burner motor (typical: 3–5 amps) and circulator pump (1–2 amps). If readings exceed nameplate values by 10%, inspect for obstructed airflow or undersized wiring.

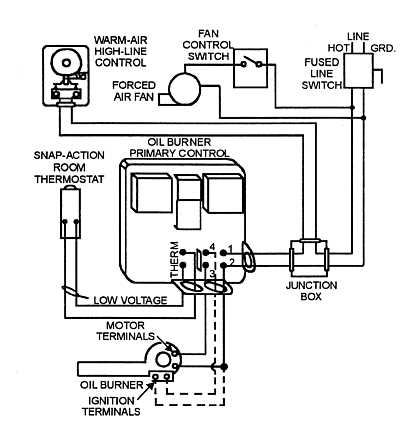

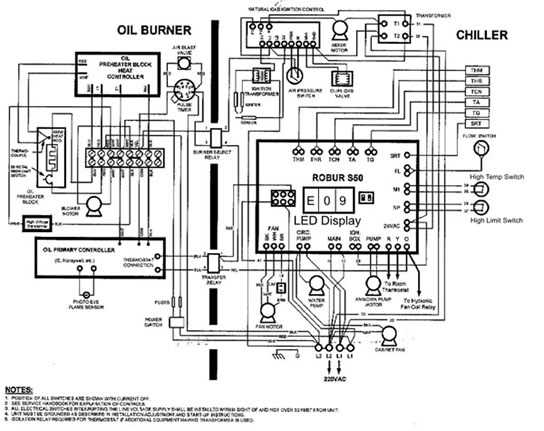

Recognizing Critical Parts in Heating Unit Electrical Blueprints
Trace the primary circuit breaker–typically a 30-60 amp double-pole switch–marked on schematics as the entry point for high-voltage supply. Verify its rating matches the nameplate specifications of the combustion apparatus to prevent overload. If the schematic labels it as “main disconnect,” cross-reference with physical terminals; mismatches indicate either outdated documentation or installation errors requiring immediate correction.
Locate the thermostat relay, often depicted adjacent to low-voltage control lines (24V). This component bridges user settings and ignition sequences; its coil symbol will connect to R and W terminals, while contacts link to burner motor or fuel valve actuators. Inspect for thermal fuses integrated into relay assemblies–these small, disk-shaped elements reset automatically but fail permanently under prolonged high temperatures, necessitating exact replacement models.
Identify fuel delivery controls: pump motor solenoids, pressure switches, and ignition transformers. Pump mechanisms appear as shaded rectangles with coil symbols, paired with pressure sensors (nozzle-side diagrams distinguish between single-stage and two-stage variants). Ignition transformers–displayed as zigzag symbols–require secondary voltage checks (10kV+), as degraded winding insulation manifests as intermittent ignition failures without error codes.
Examine safety interlocks–flame sensors, proof-of-draft switches, and high-limit cutoffs–clustered near combustion chambers. On blueprints, these resemble normally open/normally closed switches in series with burner motor circuits. Heat-activated limits use bimetallic strips; test continuity by manually tripping with a multimeter before assuming control board faults. Always confirm neutral pathways for sensor feedback loops–missing ground references cause false lockouts despite functional heat exchangers.
Step-by-Step Connections for the Main Heating System Control Module
Verify power shutdown at the breaker panel before handling any terminals. Label each cable with masking tape and a marker–trace circuits back to their origin if labels are missing.
Locate the control module cover screws–typically two Philips-head fasteners–and remove the panel carefully. Ground yourself by touching the metal chassis to prevent static damage. The module usually exposes 8–12 screw terminals, aligned in two rows. Confirm terminal designations against the manufacturer’s manual–color-coding may vary across brands.
- L1, L2 (Power Input): Connect the live conductor cables from the dedicated 240V circuit breaker. Use 10-gauge wire for systems under 30 amps, 8-gauge for higher draw units. Terminate securely with ring connectors, tightened to 18–22 in-lbs torque.
- T – Thermostat: Attach the low-voltage (24V) red (R) and white (W) leads from the room temperature sensor. Polarity is critical–reverse connection causes erratic cycling. For multi-stage systems, include the orange (O/B) wire for heat pump coordination.
Inspect the safety interlocks next. The high-limit switch (normally closed) wires to terminal “H” or “HL” without splices. The pressure switch (often two-wire, 18 AWG) connects to “P1” and “P2″–confirm continuity with a multimeter before securing. Loose terminals here trigger immediate shutdowns.
Ignition and Combustion Sequencing
Route the ignition cable to the designated “IGN” terminal. Use 14-gauge solid copper wire, avoiding aluminum due to oxidation risks. The flame sensor (single-strand, 18-gauge) attaches to “FLAME” or “FS”–position it within 0.25” of the burner assembly for accurate detection. Clean the sensor rod annually with steel wool to remove carbon buildup.
- Check resistance across motor leads–expect 5–20 ohms for a functional inducer unit. Terminate the motor’s black (power) and white (neutral) wires to “MOT” or “IND.” For ECM motors, add a third blue (signal) wire to the control’s “COM” terminal.
- Wire the combustion blower’s safety switch in series with the motor circuit. A faulty switch (infinite resistance) prevents startup–test with a continuity setting on your meter.
- Splice the oil valve solenoid’s leads (no polarity) to “OILV” or “SV.” Use crimp connectors rated for 300V, then cover with heat-shrink tubing. A missing signal here halts fuel delivery.
Restore the control module cover with screws torqued to 12–15 in-lbs. Energize the breaker panel and observe the startup sequence–listen for the inducer motor priming for 10–15 seconds before ignition. If the unit stalls, recheck terminal tightness and wire gauge compliance. Log all connections in a notebook for future reference.
Diagnosing Frequent Electrical Faults in Heating Systems
Check the high-limit switch first if the unit fails to ignite–it trips at 180°F to prevent overheating. Use a multimeter to verify continuity; a reading above 0.5 ohms indicates a faulty switch. Replace with an identical model (e.g., Honeywell L4064B or equivalent) to avoid calibration mismatches.
Inspect the thermostat wiring for loose connections, especially at the R, W, and C terminals. A common issue is corroded terminals causing intermittent signals–clean with emery cloth or replace the thermostat if oxidation persists. Ensure the control board’s 24V circuit isn’t overloaded; total amperage shouldn’t exceed 1.2A across all connected components.
If the burner motor hums but doesn’t start, test the capacitor with a capacitance meter–values should match the label (±5%). A failed capacitor (typically 10–20 µF for single-phase motors) requires exact replacement; mismatched microfarads cause overheating or failure. For persistent motor issues, measure winding resistance: readings below 10 ohms suggest shorted windings, necessitating motor replacement.
Trace ignition cables for fraying near heat exchangers–arc faults often occur where insulation degrades. Replace any damaged wires with 16 AWG silicone-coated cable rated for 250°C. Verify the flame sensor’s integrity by cleaning with fine steel wool; a weak signal (
