Begin by securing a licensed electrician if unfamiliar with high-voltage circuits even if the installation seems straightforward. Connect the generator’s output terminals directly to the primary contactor within the control panel, ensuring polarity matches manufacturer specifications–polarity errors risk damaging both equipment and home wiring systems. Generac models like the 200-Amp RTS series require separate neutral and ground connections at the panel; bond them only at the main service entrance to prevent ground loops under load.
Verify voltage ratings before energizing–most residential units operate at 240V split-phase, but industrial variants (e.g., 480V three-phase) demand different relay configurations. Install surge suppressors on all input lines rated at least 20% above expected transient spikes; undersized suppressors fail during initial start-up when inductive loads draw 3–5× rated current. Label every terminal block with permanent markers–misrouted wires can overload the generator’s exciter circuit, leading to failed auto-start sequences.
Test under load by simulating a utility failure after full connection: disconnect the main breaker while monitoring amperage through a clamp meter. If the system hesitates or stalls, recheck the 120V control voltage path–weak signals often trace back to corroded auxiliary contacts in the relay assemblies. Replace any relay showing pitting or resistance above 0.5Ω; marginal components degrade rapidly under repeated cycling.
Include a bypass switch for manual operation–most configurations place it upstream of the automatic unit, allowing uninterrupted power during maintenance. Route all control wiring through 1/2-inch conduit to shield from electromagnetic interference; improper shielding can trigger false sensor readings, causing premature switchover or engine shutdown. Ground the metal housing to a driven copper rod at least 8 feet deep, bonded with #6 AWG bare wire–adequate grounding reduces noise and prevents stray currents from interfering with microprocessor logic.
Document the final layout with digital photographs before sealing panels; this simplifies troubleshooting years later. Schedule quarterly inspections focusing on tightness of all connections–aluminum wires (common in older installations) may require anti-oxidant compound regreasing at terminals to prevent high-resistance failures. Keep spare fuses for the control circuit in an accessible location; blown fuses often mimic more serious faults like failed coils or broken sensors.
Connecting a Generac Power Management Module: Key Electrical Schematics
Begin by locating the main utility feed lines–these connect to the L1, L2, L3 terminals on the upper left side of the control panel. Verify feeder amperage (typically 100A, 150A, or 200A) matches the breaker rating stamped on the enclosure. Mismatches risk overheating or tripping; upgrade conductors if undersized. Grounding must use #6 AWG copper minimum–bond directly to the enclosure chassis via torque-controlled terminals (refer to NEC 250.12).
- Install generator output cables (usually 4/0 AWG) to the emergency load terminals–polarity matters: black to X1, red to X2, blue to X3.
- Neutral connections require isolation–attach utility neutral (white) to the N1 bus, generator neutral to N2. Cross-bonding voids warranty.
- Seal unused knockout openings with 3/4″ conduit stoppers (UL-listed); moisture ingress corrodes terminals within 12 months.
Configure the control selector switch before energizing. Set the mode dial to “Auto” for seamless switchover–manual override (“Manual”) is for maintenance only. Test sensors by simulating a 5-second power loss; the relay should engage within 10 seconds (measured with multimeter at auxiliary contacts). Delay smooths transient spikes–factory default 30-second delay can be reprogrammed via dip switches SW1-SW4 on the internal board.
- Label every conductor at both ends with permanent shrink tubing–color-coding alone fails OSHA audits.
- Tighten all terminal lugs to 45 in-lbs with calibrated torque driver–over-tightening warps busbars.
- Before final energization, perform a 10-minute dry run–monitor ammeter on the generator dashboard for stable ~5% voltage variation.
Locating Critical Elements in ATS Electrical Layouts
Begin by verifying the utility power input terminals: these are typically labeled L1, L2, and L3 for three-phase systems or L1 and N for single-phase units. Generac’s modular designs often position these at the top left of the enclosure, marked with color-coded wires–black for L1, red for L2, and blue or brown for L3. Confirm torque specifications (usually 12–15 in-lbs) and use a calibrated torque screwdriver to prevent loosening over time, which can cause arcing.
The standby power connections demand identical scrutiny. Expect the generator feed to enter on the opposite side, matching the utility terminals but with labels like G1, G2, G3 or simply GEN. Misalignment here–such as swapping L1 and G1–will reverse phase rotation, damaging motors in pumps or HVAC systems. Check for a neutral busbar near the bottom; it should be bonded to the enclosure in standby-only configurations but isolated in separately derived systems per NEC 250.30.
Control Circuit Priorities
Trace the exercise control wires (usually 14–18 AWG, striped or white) from the ATS to the generator’s start terminal. This pair–often a single solid conductor and a striped return–must be shielded with twisted pairs to reject EMI from nearby relays. Locate the 24V or 120V control transformer; its fuse (typically 1–3A slow-blow) protects against transient surges during transfers. Replace fuses with exact replacements–never upsize–as Generac’s firmware assumes specific current thresholds for timeout cycles.
Battery backup terminations (marked B+ and B-) sit adjacent to the control module. Use dielectric grease on these connections to prevent corrosion, especially in coastal or high-humidity installations. The control board itself will have LED indicators: solid green confirms normal operation, while blinking red signals faults like under-voltage or loss of phase. Refer to the unit’s LED code guide–common sequences include:
- 1 blink: Utility power stable
- 2 blinks: Transfer in progress
- 3 blinks: Generator overspeed
Load lugs require particular attention. Generac’s 200A and 400A models use aluminum busbars, which necessitate Belleville washers and an anti-oxidant compound (Noalox or equivalent) to maintain conductivity. Torque these to 50–60 in-lbs. For split-bus designs, ensure the lower lugs (typically 50A–100A) are fed via individual breakers, not joined with main lugs–cross-wiring here voids UL certification and creates fire risks.

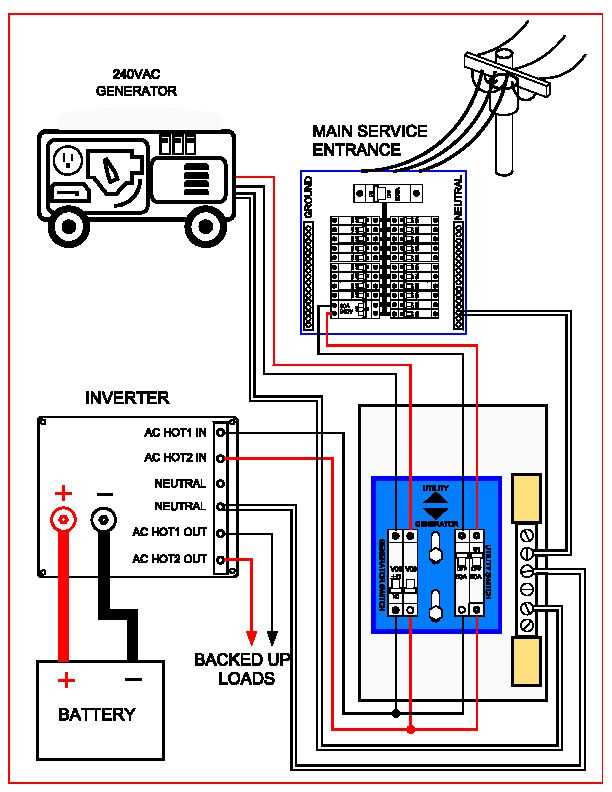

Step-by-Step Connection of Utility and Backup Power Sources
Shut off the main circuit breaker before initiating any work. Identify the incoming service conductors–typically two hot wires (L1, L2) and a neutral–originating from the utility panel. Verify their gauge matches the transfer mechanism’s rating: 6 AWG for 60 A systems, 2 AWG for 100 A, or 1/0 AWG for 200 A. Strip 1/2 inch of insulation from each conductor, ensuring no exposed copper extends beyond the terminal block.
Connect the utility feed first. Land L1 and L2 to the upper lugs of the transfer unit’s utility compartment, securing each with a torque wrench set to 35 lb-ft. Attach the neutral to the designated bus bar, separating it from the backup neutral path–misrouting here creates a parallel neutral, risking 120 V on bonded circuits during backup mode. Use a multimeter to confirm absence of voltage across any terminal before proceeding.
Backup Power Integration
Route the generator’s output leads through a flexible conduit, sized per NEC Table 310.16–1/2-inch EMT for 30 A, 3/4-inch for 50 A. Terminate the leads at the transfer unit’s generator terminals, observing the same torque specifications. Label each conductor: red (L1), black (L2), and white (neutral). Ground both systems independently–utility via 6 AWG copper to the service entrance rod, generator via 8 AWG copper to the transfer unit’s grounding bus.
| Conductor | Utility Torque (lb-ft) | Generator Torque (lb-ft) | Insulation Color |
|---|---|---|---|
| L1 | 35 | 30 | Red/Black |
| L2 | 35 | 30 | Black |
| Neutral | 25 | 20 | White |
| Ground | 45 | 40 | Green/Bare |
Test continuity between neutrals with a megohmmeter; readings above 1 MΩ indicate correct isolation. Energize the utility first, then the generator, monitoring for voltage parity on L1/L2 (240 V ±5%) and neutral-to-ground (0 V). If imbalance exceeds 3 V, recheck bonding screws–loose connections can trip GFI circuits. Finalize by sealing all conduit entries with duct seal to prevent moisture ingress.
Proper Grounding and Neutral Bonding in Backup Power Systems
Connect the neutral conductor to the grounding bus only at the main service panel–never within the standby power assembly or subpanels. This single bonding point prevents parallel neutral paths that can induce circulating currents, tripping ground-fault detectors or creating hazardous touch potentials during grid-return events. Verify bonding integrity with a 3-LED circuit tester; absence of a bonded-neutral indication in downstream panels signifies compliance.
Grounding electrodes must terminate directly to the enclosure’s ground bar using at least #6 AWG THWN copper–no splices, clamps, or paint-encrusted surfaces. Install a listed ground rod driven 8 ft. minimum, spaced no less than 6 ft. from the primary electrode, bonded with #4 AWG copper via irreversible compression fittings. Resistance-to-ground should measure under 25 ohms; if exceeded, drive an additional rod or augment with electrolytic grounding plates.
Separate equipment grounding conductors (EGCs) from neutrals in all branch circuits, including those feeding critical loads. Use green THHN conductors sized per NEC Table 250.122–#10 AWG for 30A circuits, #8 for 50A, escalating linearly. Avoid shared conduits between EGCs and phase conductors; inductive coupling introduces noise into sensitive electronics like medical devices or PLCs.
After installation, inject a 30mA leakage current via a megohmmeter between the neutral bus and ground. A reading above 0.1 ohms indicates abnormal resistance–inspect terminations for oxidation, torque settings (25 lb·ft for #4, 40 lb·ft for #2), and verify all bonding jumpers remain intact under vibration. Re-torque annually; corrosion-inhibiting joint compound mitigates galling in aluminum-to-copper connections.
