For reliable torque control in three-phase induction motors, connect terminals U2, V2, and W2 to the drive’s power output–observe line-to-line voltage specifications (400–480VAC ±10%). Bypass capacitors (0.1µF, 275VAC) across each phase leg reduce EMI; ground shields at both ends of motor cables if runs exceed 50 meters. Input terminals L1, L2, and L3 accept incoming mains–verify fuse ratings (typically 2.5x the drive’s full-load current) and coordinate with upstream breakers.
Control signals demand precise wiring: analog input 1 (+10VDC reference) pairs with AI1 (0–10VDC) for speed reference–ensure a low-impedance path (
Grounding follows a star topology: drive chassis (PE terminal) bonds to earth rod (
ACS580 Connection Layout: Practical Installation Steps
Begin by verifying the drive’s rated voltage against the local supply. The ACS580 supports 200–240 V (±10%), 380–480 V (±10%), and 500–690 V (±10%) configurations. Mismatched input will trip protective features or damage components. Use a multimeter to confirm line voltage before fastening any conductors; transient spikes often exceed nominal values by 15%.
Route power cables through the designated ducts, maintaining a minimum 150 mm separation from control lines. The main terminals (U1, V1, W1) accept copper conductors sized per the manual’s derating curves–typically 1.5–50 mm² for outputs up to 37 kW and 70–240 mm² for higher ratings. Torque values range from 0.5 Nm (M4 screws) to 10 Nm (M10), and overtightening shears the threads, voiding the warranty. Ground the PE terminal to the enclosure’s conductive surface, not just the frame; stray currents induce EMI that corrupts feedback signals.

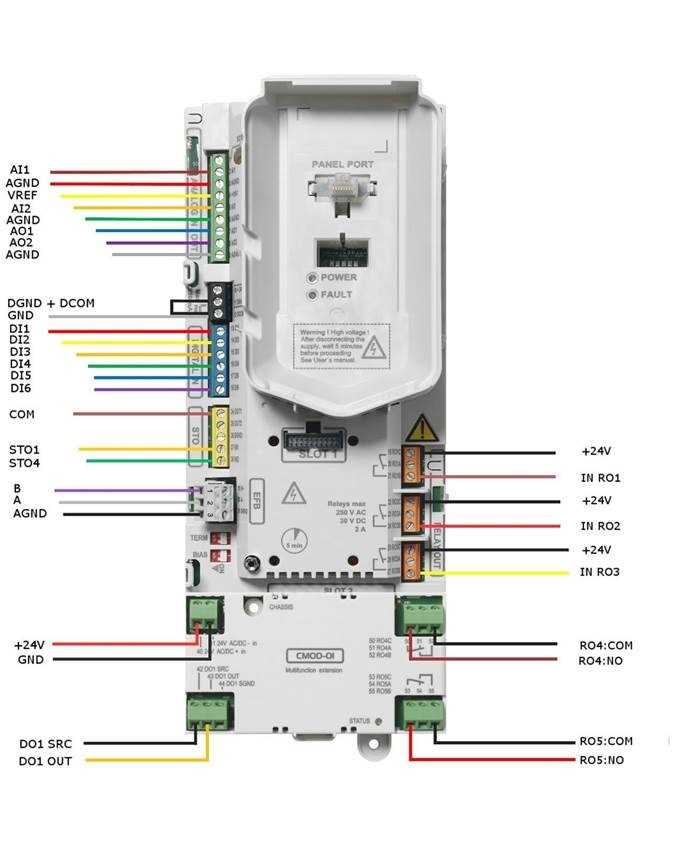

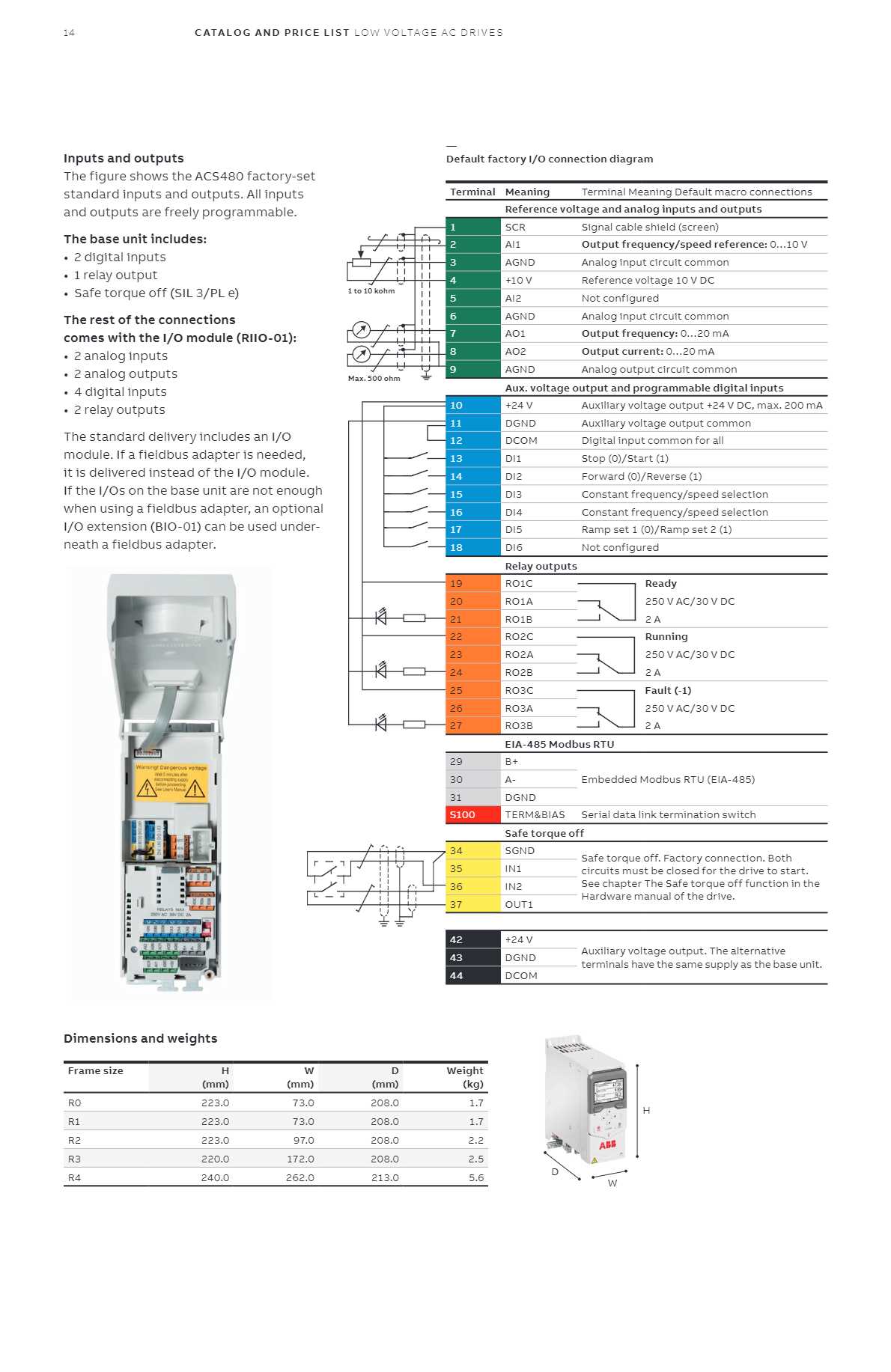

Terminal Pinout for I/O and Feedback Loops
| Label | Function | Cable Gauge (mm²) | Max Voltage (V) |
|---|---|---|---|
| AI1 | Analog input (0–10 V/4–20 mA) | 0.5–2.5 | 30 |
| DI1–DI6 | Digital inputs (Sink/Source) | 0.14–1.5 | 24 |
| RO1–RO3 | Relay outputs (250 VAC/30 VDC) | 0.5–4 | 300 |
| AO1 | Analog output (0–20 mA/0–10 V) | 0.5–1.5 | 15 |
Shield all signal cables with braided copper foil, grounding only at one end to prevent ground loops. Analog inputs reject 50 Hz noise when terminated with 120 Ω resistors at the source, available as pre-configured jumpers on the control board. Digital inputs default to PNP logic; switch to NPN via parameter 30.01 for legacy PLCs. Never route AC and DC cables in the same conduit–inductive coupling corrupts encoder pulses, leading to erratic speed control. For encoder feedback, use the 12 VDC supply on pins X1:15–16; exceed 100 mA draw and the drive enters fault mode.
After securing conductors, power up the drive in parameter mode 10.01 (Local Control) to verify no alarms appear. Monitor terminal 0.01 (Status Word) via the keypad; bit 0 flags undervoltage, bit 2 indicates short-circuit protection activation. If the motor fails to rotate, swap phases L1/L2 at the drive’s output–modern motors lack phase-sensitive windings, but sensors misalign. For braking circuits, connect resistors to terminals B+ and B–, ensuring the value matches the drive’s internal calculations (e.g., 10 Ω for 7.5 kW, 5 Ω for 22 kW). Overvoltage faults (code 32) often stem from undersized resistors, not improper torque settings.
Common Pitfalls and Corrective Actions
Overcurrent errors (code 23) usually result from incorrect motor identification. Run parameter group 99 to auto-tune inductance and resistance values–manual entries deviating >10% from factory defaults cause instability. Torque fluctuations at low speeds (below 10 Hz) disappear after enabling flux optimization (parameter 20.03). If the keypad displays “EEPROM failure,” replace the control board immediately; rewriting firmware via DriveWindow does not resolve hardware corruption. Always upgrade firmware before configuring multi-drive synchronization; version mismatches (e.g., v2.80 with v3.10) desynchronize speed references.
Identifying Power Terminals for Input and Output Connections
Locate the main power terminals on the drive’s control panel–these are typically labeled L1, L2, L3 for three-phase input or L, N for single-phase configurations. Verify the voltage rating marked adjacent to these terminals; mismatched voltage causes immediate failure or erratic operation. Use a multimeter to confirm live connections before proceeding–measure between L1-L2 (or L-N) to ensure the expected AC voltage (e.g., 230V, 400V) is present.
For output connections, trace the terminals labeled U, V, W–these deliver controlled power to the motor. Ensure the motor’s nameplate matches the drive’s output specifications (current, voltage, frequency) to prevent overheating or insulation damage. Connect motor leads to U, V, W in the correct phase sequence; reversing U and V causes the motor to rotate backward. Secure all connections with torque-rated crimp lugs to avoid loosening under vibration.
Critical Terminal Checks
- Ground terminal (PE): Must be bonded to the system grounding bus with a conductor sized per local electrical codes (minimum 10 AWG for 400V installations).
- DC bus terminals (+DC, -DC if present): Only accessible in regenerative drives; confirm polarity before connecting braking resistors or external power supplies.
- Control power (12V, 24V): Verify auxiliary power is within ±10% of nominal voltage to prevent false trips in relays or digital inputs.
Label each terminal block with indelible ink after wiring–include phase designation (L1/L2/L3), voltage, and function (e.g., “Motor U”). Use heat-shrink tubing on exposed terminations to reduce short-circuit risks. For drives with integrated EMC filters, connect the ground lug directly to the chassis via a dedicated M4/M5 bolt; avoid daisy-chaining ground wires. Test motor rotation at low frequency (5 Hz) before applying full load to detect miswiring.
Safety and Compliance
- Disconnect all power sources and discharge DC bus capacitors (5-minute wait for >600V systems) before terminal access.
- Use CAT III rated test probes for 400V+ measurements to protect against transient voltages.
- Check for terminal block overheating (max 70°C) during initial load testing–replace overheated components immediately.
- Document terminal assignments in the system logbook, including wire gauge, insulation type, and connection torque (e.g., 2.5 N·m for M4 screws).
Step-by-Step Connection Guide for Control Circuit Activation and Deactivation Commands
Begin by identifying the designated terminals for command inputs on the drive’s interface–typically labeled as DI1 (Start) and DI2 (Stop). Connect a maintained push-button or relay contact to DI1 using a 0.75 mm² shielded cable, ensuring the positive control signal (+24V DC) is sourced from an isolated power supply to prevent voltage spikes. Route the cable away from high-current AC lines to minimize electromagnetic interference. For DI2, use a normally closed (NC) contact tied to ground or 0V potential; this default state ensures fail-safe operation if the circuit opens unexpectedly. Verify the drive’s parameter settings for these inputs (e.g., 99.01 for DI1 function and 99.02 for DI2) to confirm they are configured as “Start” and “Stop”, respectively–adjust if necessary via the keypad or proprietary software interface.
For enhanced reliability when implementing remote operation, integrate a latching relay between the physical buttons and the drive’s terminals. Wire the relay coil to the DI1 circuit so that momentary activation of the Start button energizes the relay, maintaining the command until DI2 is triggered. This method eliminates the need for continuous button pressure, reducing wear on mechanical components. Test the configuration by measuring voltage at the terminals with a multimeter: DI1 should read 24V when active and 0V when inactive, while DI2 must toggle between 0V (normal) and +24V (active) to halt the drive. Document the cable routes and terminal assignments in a schematic for future troubleshooting.
Safety and Validation Checks
Prior to commissioning, disconnect the drive’s power and verify insulation resistance between all signal cables and ground–values below 1 MΩ indicate potential shorts requiring re-routing or additional shielding. Reconnect power and simulate a Stop command by activating DI2; observe the drive’s response–it should decelerate smoothly without erratic behavior or alarm codes. If the drive fails to respond, check the input voltage levels at the terminals with an oscilloscope; signal ringing or noise suggests poor grounding or incorrect cable type (use twisted-pair for critical signals). Finally, confirm the drive’s motor protection settings (Group 31 parameters) align with the connected load’s specifications to prevent nuisance trips during normal operation.
Integrating Analog and Digital I/O for Precise Speed Control Inputs
Use a 0–10 V DC analog input for primary speed reference signals to ensure linear responsiveness across the full operational range. Connect the signal source directly to terminals 14 (AO+) and 15 (AO–) on the control module, verifying polarity to prevent reversed scaling. Ground the reference’s negative side at the controller’s common terminal (e.g., 12) rather than chassis ground to minimize noise interference.
For digital control, configure a pulse-width modulation (PWM) input via opto-isolated inputs 5–8, setting the carrier frequency to 4 kHz with a duty cycle range of 0–100%. Match the pull-up resistor value to the source’s output impedance (typically 1–2.2 kΩ) to maintain signal integrity. Avoid mixing voltage levels–ensure the PWM source operates at 24 V DC if the control module’s inputs are rated for the same voltage.
Combine analog and digital signals only when necessary, using a dedicated summing terminal if the drive supports it. For hybrid setups, prioritize the analog input as the master reference, overriding digital signals through parameter group [Speed Ref Sel]. Enable low-pass filtering (10–50 ms) on the analog path to suppress transient spikes without introducing excessive delay.
Test signal accuracy by disconnecting the motor load and observing the drive’s displayed reference value under varying inputs. A mismatch of >0.5 V or 2% PWM duty cycle indicates wiring errors, grounding loops, or impedance mismatches. Isolate each signal path with shielded twisted pairs, terminating the shield at only one end (drive side) to prevent ground loops.
For fail-safe operation, route critical speed references through redundant paths–duplicate analog inputs or a secondary communication bus (e.g., Modbus RTU). Configure the drive to fallback to a pre-defined safe value if primary signals deviate beyond ±10% of their nominal range for more than 200 ms.
