Start by identifying the terminals on the component–two input contacts at the center, paired with corresponding output points on either side. Misalignment here guarantees failure, so confirm each marked position before proceeding. Use a multimeter in continuity mode to verify which contacts close when the lever moves up or down; cross-check with the manufacturer’s datasheet if available. Common errors stem from assuming pin layouts without testing–never skip this step.

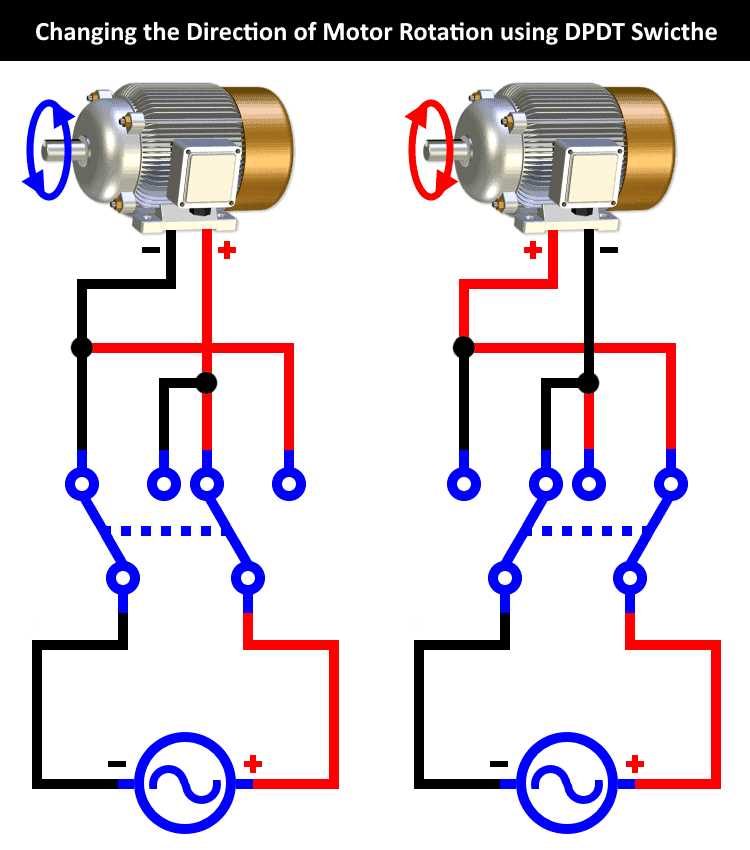

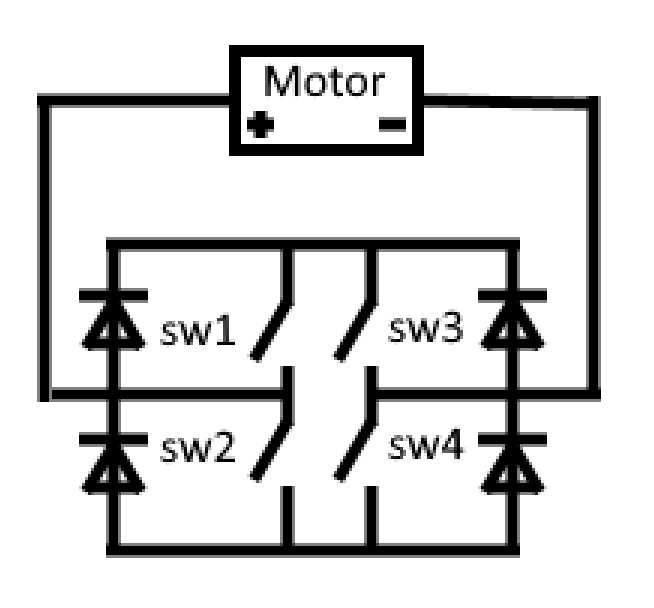

For basic polarity reversal, link the load (a DC motor, for instance) to the outer terminals, then route the power source to the inner contacts. Push the actuator to one side, and the motor spins clockwise; flip it, and the current reverses direction. This setup demands proper grounding–connect the negative terminal directly to the power supply’s ground, not through the mechanism, to prevent voltage drops or erratic behavior under load.
When integrating into circuits with sensitive components (relays, microcontrollers), isolate signal paths from power lines using optocouplers or dedicated power channels. A single erroneous connection can fry a 3.3V logic board if 12V jumps across the wrong terminal. Always include a current-limiting resistor (220Ω–1kΩ) on any shared ground pathways to safeguard against short circuits during switching transients.
Install a snubber network (a 0.1µF capacitor paired with a 100Ω resistor) across the contacts if arcing becomes noticeable. This prolongs lifespan, especially in inductive-load applications like solenoids or transformers where back EMF can exceed 100V spikes. Check arc duration with an oscilloscope if available–anything beyond 2 milliseconds indicates the need for better suppression.
Mount the component vertically to minimize debris accumulation on exposed terminals. Secure wiring with heat-shrink tubing or terminal blocks rated for at least 150% of expected current draw. Loose strands cause intermittent faults that are nearly impossible to trace without dissembling the entire assembly. Label every connection immediately after testing–it saves hours during future diagnostics.
Connecting a Double-Pole Double-Throw Mechanism: Essential Layouts
Start with identifying the six terminals on your toggle configuration–two common input contacts positioned centrally and four output connectors flanking them. Label these systematically: left common (COM1), right common (COM2), top-left (TL), bottom-left (BL), top-right (TR), and bottom-right (BR). Mistakes often occur when polarities are misaligned, so verify each terminal’s role before proceeding.
For a basic on-off-on setup, link COM1 and COM2 to the power source. Route TL and TR to the first load circuit, then BL and BR to the second. This arrangement allows independent control of two separate paths while maintaining mechanical synchronization. Ensure the voltage rating matches both the mechanism and load requirements–exceeding limits risks permanent damage.
Polarized applications demand precise pairing. Attach positive leads to TL and BL, negatives to TR and BR if directing current to LED arrays or motors. Miswiring here reverses polarity, potentially causing equipment failure or unsafe operation. Double-check connections with a multimeter in continuity mode before applying power.

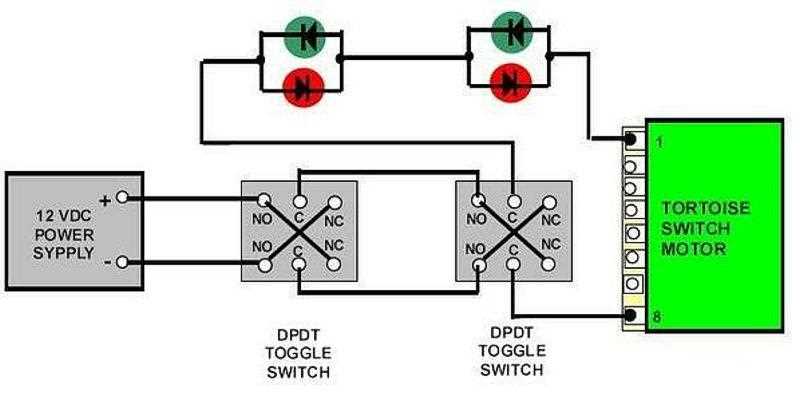

Reversing motor direction? Connect the field terminals across TL-BR and BL-TR. Activating one throw energizes the motor clockwise; flipping the lever reverses rotation instantly. Avoid sudden direction changes at high RPMs–gradual transitions prevent mechanical stress and extend component lifespan.
Momentary configurations require spring-loaded mechanics. Wire COM1/COM2 to the voltage input, then connect TL/BL to start functions and TR/BR to stop actions. This pattern suits push-button interfaces where temporary engagement is necessary, like emergency stops or throttle controls.
Heavy-duty applications benefit from soldered joints and heat-shrink tubing. Crimp connectors introduce resistance and may loosen over time. Use 16-18 AWG wire for typical loads; upsize to 12 AWG for high-current demands exceeding 10A. Secure cables with nylon ties near stress points to prevent vibration-induced wear.
Test every setup under load before finalizing. Observe thermal performance–abnormal heating indicates resistive losses or undersized conductors. Document terminal assignments and circuit behaviors for future troubleshooting or modifications. Replace any mechanism showing excessive arcing or pitted contacts immediately to maintain reliable operation.
Understanding Terminal Labels on a Double-Pole Double-Throw Toggle

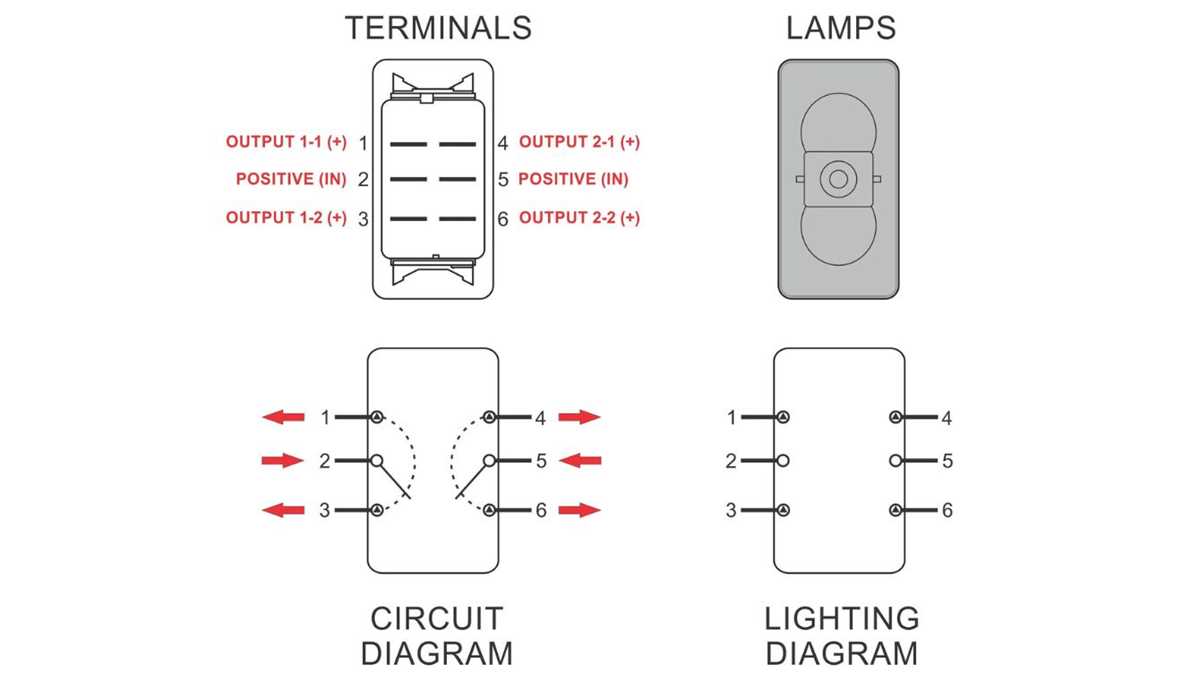

Always verify the pinout of your mechanical selector before connecting any circuit. Most dual-action toggles follow a standardized numbering scheme, but variations exist–especially in miniature or specialty models. The common arrangement labels terminals as follows: 1-2-3 on one side and 4-5-6 on the opposite side. Terminals 1 and 6 are typically the input poles, while 2-3 and 4-5 serve as the throw outputs for each pole. Misidentifying these can lead to reversed signals or short circuits.
Test continuity with a multimeter to confirm functionality. Activate the lever in both positions and check which pairs close. For a standard configuration:
| Lever Position | Closed Contacts |
|---|---|
| Up | 1-2 / 4-5 |
| Down | 1-3 / 4-6 |
Deviations from this pattern often signal a center-off variant or a latching mechanism. Center-off models add a neutral state where no contacts connect, while latching types maintain position without holding the lever. Manufacturers like Cherry, NKK, and Omron document these distinctions in datasheets–consult them if markings are unclear.
Color-coding wires before soldering prevents confusion. Assign distinct hues to each pole and its corresponding throws. For example:
- Pole 1: Red (input)
- Throw 2: Orange
- Throw 3: Yellow
- Pole 4: Black (input)
- Throw 5: Green
- Throw 6: Blue
This system ensures consistency when integrating the component into audio routing, motor direction control, or signal switching setups. Reversing throws (e.g., connecting 2-3 instead of 3-2) inverts the expected behavior, which may be intentional for polarity-sensitive applications but disastrous for others.
Miniature toggles (e.g., sub-12mm diameter) frequently omit printed labels due to size constraints. In such cases, use a magnifying lens to identify tiny embossed numbers molded into the housing. These markings are often near the base of the lever and may require angled light to discern. If absent, rely on the multimeter method described earlier–never assume symmetry between poles.
Common Pitfalls with Terminal Misinterpretation
Reverse-engineering an existing assembly without notes is error-prone. A common mistake involves treating the two poles as independent single-throw units, ignoring that throws 2 and 5 (or 3 and 6) should toggle synchronously. Bypassing this synchronization disrupts dual-channel applications, such as stereo audio crossovers or bipolar stepper motor drives. Always validate both poles switch identically under test conditions.
Environmental factors affect terminal visibility. Corrosion, solder flux residue, or industrial coatings can obscure labels. Clean contacts with isopropyl alcohol or a fiberglass brush before finalizing connections. For longevity, apply dielectric grease to terminals in high-humidity environments–this prevents oxidation without interfering with conductivity.
Step-by-Step Connection Guide for Basic Power Control
Identify the terminal pairs on the toggle mechanism–locate the two sets of brass screws or solder lugs on opposite sides of the component. Mark them with tape or a marker: one pair handles the input, the other manages the load. Confirm continuity with a multimeter in resistance mode; terminals bridging in one position should open completely in the alternate state.
Connect the power source to the common terminals–solder or secure the positive lead from a battery or DC supply to the inner lug of the first pair, and ground to the inner lug of the opposite pair. Verify polarity matches the device’s requirements; reversing these can damage sensitive electronics or LED indicators. For AC applications, ensure the voltage rating of the device exceeds the supply by at least 20%.
Attach the output device–route the live wire from the chosen outer terminal to the motor, bulb, or circuit input. Secure the return path from the device’s negative terminal to the remaining outer screw on the opposite side. Use heat-shrink tubing or electrical tape around exposed joints to prevent shorts, especially in high-vibration environments like automotive or industrial setups.
Test the setup before finalizing–flip the lever multiple times while observing voltage at the load with a meter. Listen for unusual sounds (buzzing, arcing) that indicate loose connections or overload. If the device stays energized in both positions, recheck terminal assignments; cross-wiring is a common error causing unintended behavior.
Harden the installation–anchor the mechanism to a chassis or panel with screws or adhesives to prevent movement from dislodging wires. For high-current applications (>5A), use thick gauge wire (18AWG or lower) and crimp connectors instead of bare strands. Avoid exceeding the device’s ampacity rating; consult the datasheet for de-rating factors under prolonged use.
Add protective elements if needed–insert a fuse in series with the power feed for overcurrent protection, matching its value to 125% of the circuit’s expected maximum draw. For inductive loads (relays, solenoids), include a flyback diode across the terminals to absorb voltage spikes when switching off. Position the diode with the cathode toward the positive side to block normal flow but allow reverse current during collapse.
Label every wire and terminal–use color-coded sleeves or numbered tags to simplify future troubleshooting. Document the configuration in a notebook or digital schematic for reference; misplaced notes often lead to errors during modifications or repairs. Include wire lengths, gauge, and termination points to streamline rework.
Validate under real conditions–operate the system for several minutes while monitoring temperature at connection points and the device housing. Excessive heat indicates resistance issues; re-tighten loose joints or replace damaged wires. For repeated cycling, consider a sealed device rated for washdown or outdoor use if moisture exposure is likely.
