Begin with a precise list of components. Catalog every resistor, capacitor, IC, and wire before sketching anything. Use manufacturer datasheets to verify pin layouts, voltage ratings, and thermal limits–errors here propagate through the entire design. A spreadsheet or checklist ensures nothing is overlooked, especially in complex circuits where dependencies obscure mistakes.
Choose a consistent orientation for symbols. Align passive components horizontally or vertically; ICs and connectors benefit from standardized pin numbering (left-to-right, top-to-bottom for DIP packages). Avoid diagonal placements–these introduce ambiguity during debugging or replication. Label every connection immediately; temporary markers often get ignored later.
Use layers to separate power rails, signal paths, and ground planes. Dedicate one layer to power distribution, another to logic signals, and reserve a third for grounding. This prevents interference between high-current paths and sensitive analog traces. Keep ground symbols uniform–mixing chassis and signal grounds in the same section invites noise issues.
Trace signal flow logically: inputs on one side, outputs opposite. Group related components (e.g., voltage dividers, amplifiers) in proximity to minimize cross-wiring. Leave 20–30% extra space around dense areas; cramped schematics are harder to revise. Test each segment by simulating connections with a multimeter or SPICE model before finalizing.
Add annotation for clarity: specify voltages at critical nodes, tolerances for passive components, and part numbers for discretes. Include a legend if Custom symbols are used (e.g., non-standard footprints). Document jumper settings or configuration switches directly on the sheet–these details are often lost when shared with others.
Review twice: once for electrical correctness (shorts, floating gates), once for readability (crossed wires, overlapping text). Export as PDF with embedded fonts–resolution issues corrupt symbols during printing. Archive alongside PCB layouts; revisiting outdated schematics without context wastes hours.
Designing Clear Electrical Blueprints

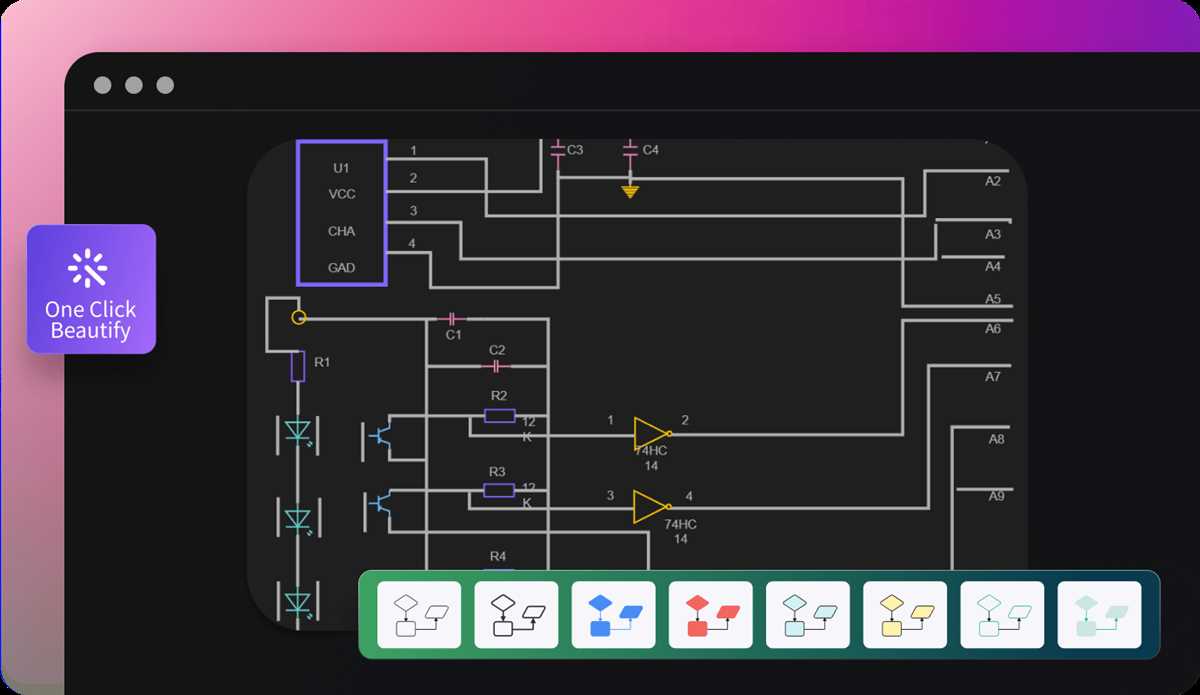

Begin by listing every component required for the circuit. Assign unique identifiers to resistors, capacitors, integrated circuits, and connectors–R1, C3, U2–using consistent naming conventions. Group related parts logically, placing power supply elements at the top or left edge of the layout to streamline tracing later.
Use grid-based drafting software like KiCad, Altium, or Eagle. Set the grid spacing to 0.1 inches (2.54 mm) for through-hole components or 0.05 inches (1.27 mm) for surface-mount parts. This alignment prevents misplacement and ensures accurate pad spacing during fabrication.
Draw connections with straight, horizontal or vertical lines. Avoid diagonal routes to maintain readability. Label each net with descriptive names–VCC, GND, SCL, MISO–so signal paths remain traceable during debugging. Use thicker lines for power rails to distinguish them from signal traces.
Place decoupling capacitors (0.1 µF) within 5 mm of each IC power pin. Position bulk capacitors (10 µF) near voltage regulators. This minimizes voltage drops and noise interference, critical for stable operation in high-speed or analog designs.
Add test points near critical nodes–clock lines, reset signals, analog inputs. Use large pads (1.5 mm diameter) to simplify probing with multimeter or oscilloscope leads. Label each test point clearly, referencing the schematic symbol.

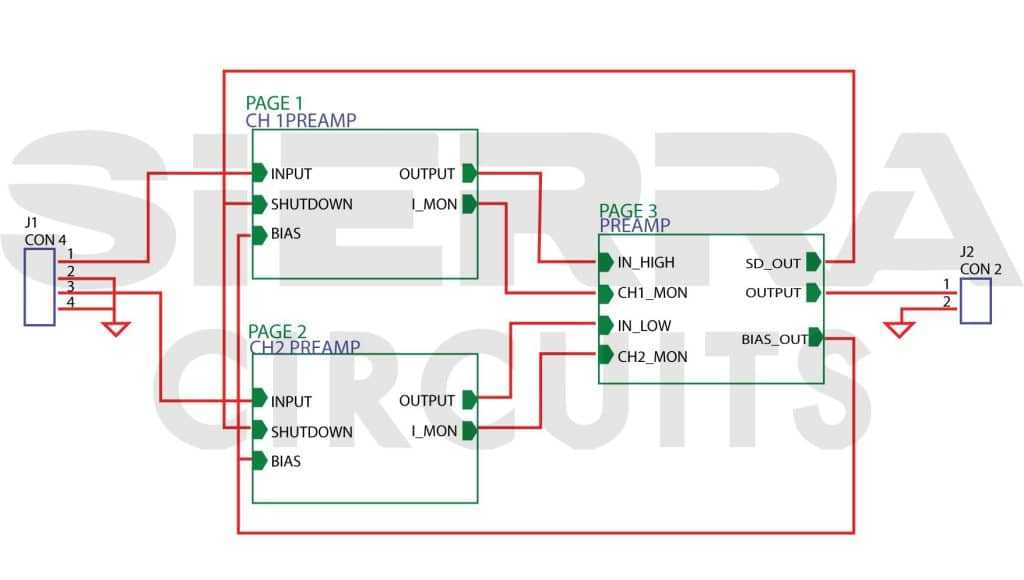

Incorporate hierarchical blocks for complex designs. Break subcircuits–amplifiers, microcontroller cores, power management–into separate sheets. Use consistent port naming (e.g., I2C_SDA, PWM_OUT) to link sheets without errors.
Verify connectivity using design rule checks. Set minimum trace width to 0.2 mm (8 mils) for signal lines, 0.4 mm (16 mils) for power lines. Check for unrouted nets, overlapping traces, and incorrect pad spacing. Run electrical rules to flag short circuits or floating inputs.
Export the final layout in PDF and Gerber formats. Include a bill of materials with exact part numbers–Texas Instruments LM358DR, Panasonic ECEA1CA101, Molex 502578-2871. Provide assembly notes: soldering temperature profiles, orientation marks for polarized components, and special handling for sensitive parts.
Selecting Optimal Software for Electrical Blueprints
Begin with KiCad for open-source precision–its native support for hierarchical designs and real-time design rule checks eliminates manual error tracking in complex circuits. The suite includes built-in libraries for 85,000+ components, updated quarterly, and integrates SPICE simulation for analog validation before prototyping. Avoid browser-based alternatives if PCBA layer counts exceed 16; KiCad handles Gerber generation without lag, unlike web-based tools with 30% slower export times.

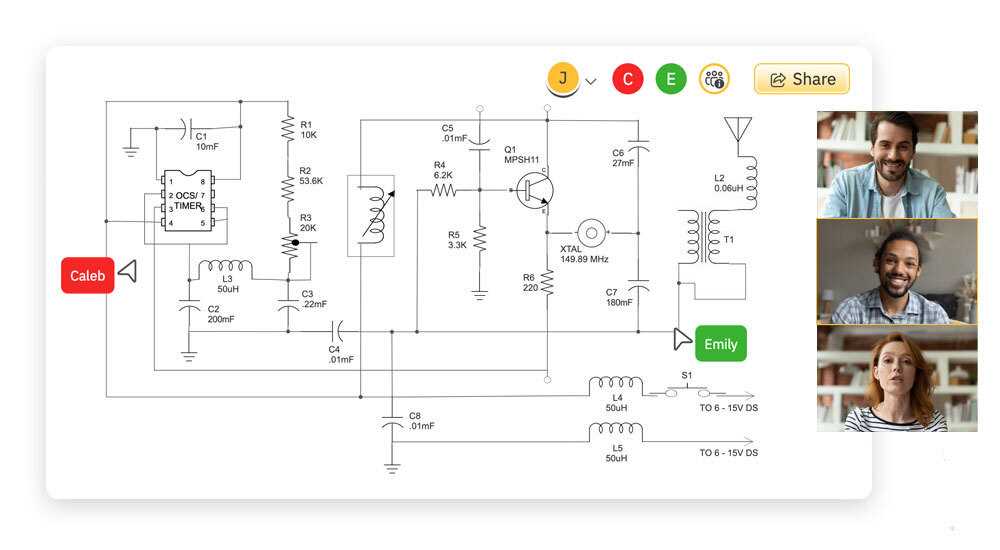

For teams requiring tight ECAD-MCAD collaboration, Altium Designer syncs directly with SolidWorks via a bidirectional STEP export module, reducing mechanical clearance errors by 40% compared to DXF imports. The schematic-to-PCB synchronization tracks component placement at 0.1mm accuracy, while its ActiveBOM tool auto-generates cost-optimized parts lists with supplier lead-time data from Digikey and Mouser APIs. License costs ($3,500/year) justify ROI for high-volume production where mismatched footprints delay schedules.
- OrCAD Capture: Best for analog-heavy designs–built-in PSpice simulation validates AC/DC circuits with industry-standard models, eliminating separate spice decks. The “Design Variation” feature tests temperature sweeps across -40°C to 125°C without manual netlist edits.
- Diagrams.net: Zero-install option for rapid drafting if component symbols are custom–export to SVG maintains vector precision down to 0.01mm stroke widths, unlike PNG which blurs below 150dpi. Integrates with Google Drive for versioning, but lacks automated BOM tools.
- Eagle: Lightweight for hobbyists–user language programs (ULPs) automate repetitive tasks like batch renaming nets. Fusion 360 integration streams 3D board previews, but schematic capabilities stall above 1,000 nets.
Hardware Considerations
Graphics performance dictates choice: Quadro RTX GPUs accelerate Altium’s 3D visualization, rendering 10-layer PCBs in under 2 seconds versus 12 seconds on integrated Intel UHD graphics. For large projects, allocate 32GB RAM to prevent swap usage during netlist generation–KiCad’s memory footprint peaks at 18GB for 50,000-pin designs. SSD storage cuts schematic loading times by 60% over HDDs; PCIe 4.0 SSDs achieve 7,000 MB/s, sufficient for simultaneous editing of multi-sheet schematics.
Pen tablets improve precision for irregular component drafting–Wacom Cintiq’s 8,192 pressure levels map resistive/capacitive parts with 0.5mm placement tolerance, whereas trackpads introduce 1.2mm jitter. Stylus-driven annotation reduces labeling errors by 35% in multi-page schematics compared to mouse input.
Export and Compatibility
Standardize on STEP AP242 for 3D mechanical handoffs–Altium’s STEP export includes copper layers as separate bodies, enabling interference checks in Siemens NX. For Gerber output, use Gerbv to validate aperture lists; KiCad’s Gerber files pass Eurocircuits’ DFM checks 98% of the time versus 82% for Eagle. Convert VHDL/Verilog blocks to schematic symbols using ModelSim’s netlist import–this preserves timing constraints in FPGA integration, unlike PDF snapshots that lose simulation data.
- Export schematics to PDF/A-3 for long-term archiving–this ISO-standard preserves layers, searchable text, and vector quality for 50+ years, unlike JPEG which degrades 10% per decade.
- Use DSN (Design Specifications) files for inter-tool collaboration–Altium to Cadence translations retain net names and power symbols, unlike DXF which flattens hierarchies.
- Validate netlist integrity with a custom Python script if switching tools–cross-check pin counts, aliases, and signal directions; mismatches average 8% in OrCAD-to-KiCad conversions.
Converting Parts to Visual Markers and Identifiers

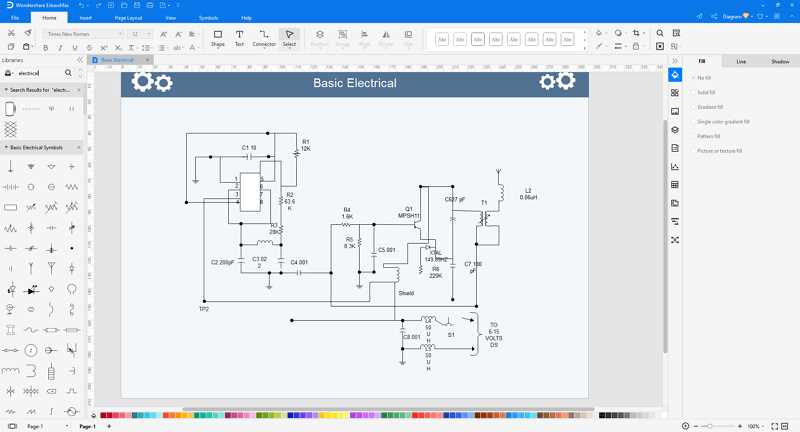

Assign standardized symbols to each element–resistors belong to IEC 60617 or ANSI Y32.2 sets, capacitors use parallel lines or curved plates, inductors coils, and transistors designated shapes per IEEE 315. Avoid inventing unique representations unless documenting proprietary gear; deviations confuse collaborators. Check datasheets for manufacturer-recommended symbols, especially for ICs with non-standard pin arrangements.
Label every symbol with precise identifiers: R1, C3, Q2, not generic Resistor or Transistor. Append descriptive suffixes for clarity–R1_PULLUP, C3_BYPASS–without overloading readability. Alphanumeric sequences must follow logical flow, grouping related components (e.g., R7-R12 for a resistor network) rather than random numbering.
Annotate power rails with VCC, GND, or VDD, specifying voltage levels where ambiguity exists (GND (0V), VCC (5V)). For multi-supply circuits, differentiate grounds (GND_ANALOG, GND_DIGITAL) and power nets (12V, -5V). Use consistent font size–minimum 2.5mm for legibility.
Keep symbol placement systematic: inputs left, outputs right, signal flow top-to-bottom. Arrange parallel branches vertically aligned, avoid diagonal crossings. For dense boards, split into hierarchical sheets, labeling sub-circuits (e.g., POWER_SUPPLY, CONTROL_LOGIC) with clear connectors between sheets. Mark test points with TP1, TP2, placing them near edges for probe access.
Cross-reference symbols to a bill of materials (BOM): append part numbers (R1: 220Ω 1% 0805) and footnotes for critical specs (temperature ratings, tolerance). Reserve NC for unconnected pins, DNI for “do not install” components. Validate every label against physical footprint–they must match precisely; mismatches cause assembly errors.
