Locate the ignition switch connector in the upper right section of the vehicle’s control panel–denoted by a five-pin harness marked P, B, S, G, and L. Mismatched connections here will prevent engine turnover, even with a charged battery. Verify the P terminal links directly to the solenoid’s larger post via an 8-gauge red cable; any corrosion on this path reduces starting current below the required 250 amps.
Trace the white-yellow stripe wire from the alternator’s stator to the voltage regulator. If voltage output drops below 13.8V at 3000 RPM, inspect the stator windings for continuity–readings should not exceed 0.5 ohms between any two terminals. Replace components showing shorts or opens, as partial failures cause erratic charging cycles.
The safety interlock circuit relies on three micro-switches: brake pedal, PTO engagement, and seat occupancy. Bypass testing involves jumpering the brake switch terminals; if the engine cranks, replace the switch–its contacts must close at pedal depression depths between 12-18mm. Seat switches fail silently; measure resistance when seated–acceptable range is 0-2 ohms.
Headlamp circuits often share a fused lead with the ignition coil. A blown 10-amp fuse during night operation indicates a short in the headlamp housing or wiring loom. Probe with a multimeter set to diode check–any reading below 0.3V between the chassis and lamp terminal confirms a grounded circuit.
Identify the solenoid’s smaller control wire, typically purple with a yellow tracer. This line draws 0.3-0.5 amps during cranking; excessive current suggests a failing solenoid coil or relay. Test coil resistance–should read 18-25 ohms at terminals; readings outside this range require part replacement.

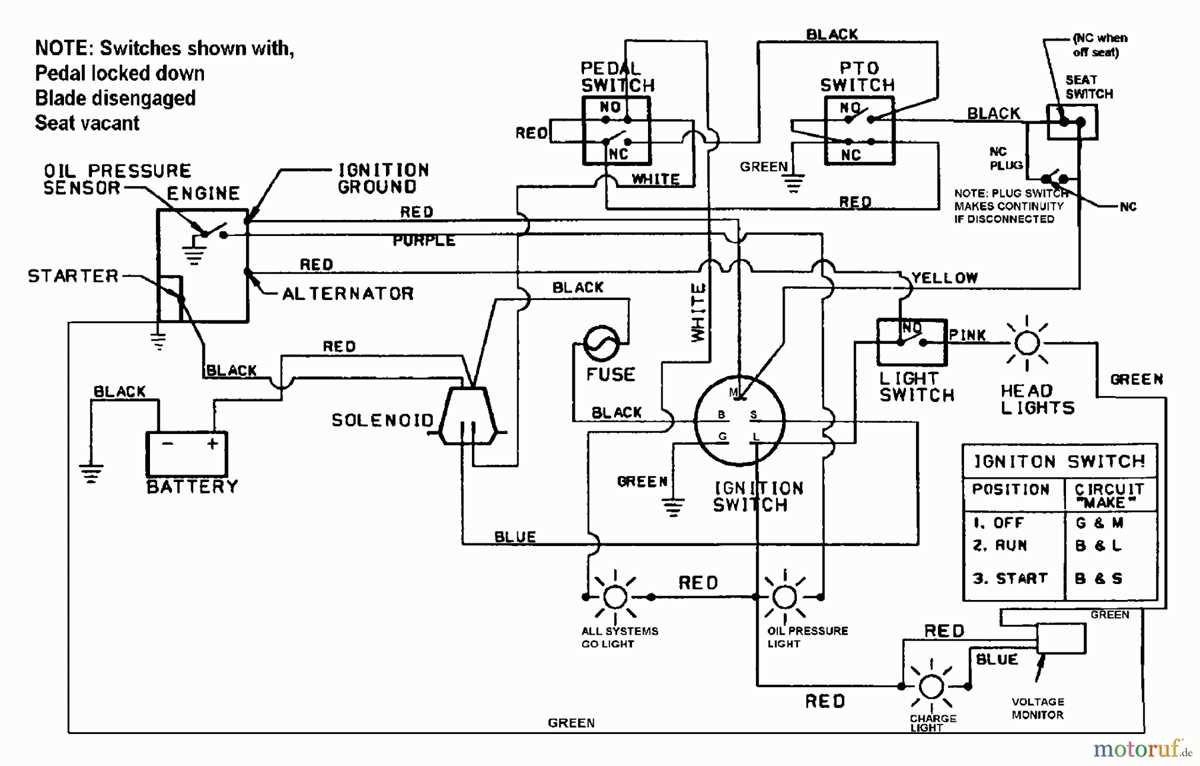

Electrical Schematic Guide for Craftsman Riding Mowers
Locate the ignition switch harness first–it’s the central hub for all power distribution. On most models like the 917.273421 or 287727, this connects directly to the battery’s positive terminal via a 10-gauge red wire, branching into three key circuits: starter solenoid, lights, and accessories. Verify the fuse block near the battery; a 30-amp fuse protects the main line, while smaller 15-amp fuses safeguard auxiliary circuits. Replace blown fuses with exact replacements–using higher-rated alternatives risks overheating.
- Starter solenoid: Follow the thick red cable from the ignition to the solenoid. If the engine cranks but doesn’t start, check for voltage at the solenoid’s small terminal (should read 12V when the key is turned). Corrosion here is common–clean with a wire brush or replace if pitted.
- Safety switches: Seat, brake, and PTO switches must close for operation. Test continuity with a multimeter: seat switch (beneath the seat) should show zero ohms when compressed; brake switch (near pedal) activates when depressed. Failed switches cause intermittent no-start issues.
- Charging system: The alternator (stator) and regulator-rectifier combo outputs 14-14.8V when running. Probe the yellow stator wires at the harness connector–any reading below 13V indicates stator failure or loose connections at the flywheel magnets.
Trace the ground circuit next. The negative battery terminal links to the engine block via a 6-gauge black wire, then branches to the chassis via a 12-gauge black/white striped wire. Loose or corroded grounds mimic electrical failures–scrub connections with emery cloth and secure with star washers to prevent rotation. For models with electric PTO, ensure the clutch wire (blue/yellow stripe) has continuity between the switch and clutch coil; resistance should measure 2.5-3.5 ohms.
Headlight circuits vary by model year. Early 2000s units use a single 1156 bulb powered by a brown wire, while later models (post-2015) incorporate LED assemblies with separate high/low beam wires (gray and orange). Test bulbs individually–LEDs fail silently, unlike incandescents which show filament breakage. For decks with electric blades, the orange PTO wire engages at 12V when toggled; voltage drops often stem from worn brushes in the deck motor.
- Disconnect the battery before probing circuits to avoid shorts.
- Label all connectors before disassembly–color codes repeat across circuits.
- Use dielectric grease on terminals to prevent corrosion.
- For intermittent issues, wiggle-test wires along their length to locate breaks.
- Replace damaged wire harnesses in sections–don’t splice unless necessary.
Finding the Electrical Bundle on Your Garden Machine
Start by tilting the seat forward or removing it entirely–most models secure it with two bolts beneath the rear edge. The central connector cluster lies directly under the operator’s position, shielded by a plastic cover or rubber gasket. On units built after 2015, look for a labeled panel near the battery tray; earlier versions may have the harness tucked beneath the fuel tank, requiring tank removal if access remains restricted.
Trace the main power lines from the ignition switch downward–they typically split into three branches: one heading toward the front lights, another routing to the solenoid and starter motor, and a third looping back to the PTO and deck engagement controls. If the bundle appears frayed or corroded, focus on junctions near the transmission housing, where moisture tends to collect due to condensation from the deck lift mechanism.
The ground strap often causes intermittent failures. Locate the thick black cable bolted to the engine block or chassis rail–ensure the connection surface is bare metal, free of paint or oxidation. Tighten the 10mm bolt firmly but avoid over-torquing, which can strip the threads on aluminum blocks. Use dielectric grease on the terminal to prevent future corrosion.
Component-Specific Pathways
| Component | Route | Critical Checkpoints |
|---|---|---|
| Headlamps | Runs along the left frame rail beneath the hood | Inspect for chafing where the line passes over the steering linkage |
| Solenoid | Attached to starter motor; single red wire from ignition | Verify the 12-gauge connection isn’t loose–vibration can loosen it over time |
| PTO Switch | Mid-mounted below dashboard, branching to mower deck | Check the black/yellow wire for burns at the splice near the engagement lever |
| Hour Meter | Integrated into instrument cluster; purple wire taps ignition | Confirm crimp connectors haven’t separated under vibration |
Disconnect the negative battery terminal before probing any connections to avoid short circuits. Use a multimeter set to continuity mode to test for breaks–probes inserted into each pin of a connector should register near 0 ohms; if readings exceed 2 ohms, the conductor may be damaged internally. Replace any section where insulation is brittle or cracked, as exposure accelerates failure during temperature swings.
Blade engagement issues often stem from a compromised bundle near the deck pulleys. After removing the deck, follow the orange and brown lines–they terminate at the electric clutch. Tug gently on each wire: if any moves freely within the sheath, the internal wire is broken and requires full replacement, not just a splice. Secure loose sections with zip ties every 6 inches to prevent vibration-induced wear.
Key Electrical Parts in Your Garden Machine Schematics
Locate the solenoid near the battery terminals–its two thick cables connect directly to the starter motor. Verify the voltage regulator, typically mounted on the engine block or frame, by checking for a three- or four-pin plug and heat sink; mismatched readings here often cause charging failures. Trace ignition switch leads (marked B, S, M, L, or G) to ensure they route to the correct relays and fuses; a misaligned S-terminal can disable cranking.
Critical Connector Pinouts
Inspect the 6-way ignition harness plug: pins 1 (battery hot), 2 (ground), 3 (accessory), 4 (ignition), 5 (starter), and 6 (lights) must match the ECM or fuse box labeling. The PTO switch uses a dedicated 3-pin connector–black (ground), red (12V input), and yellow (output to clutch); corrosion here triggers intermittent engagement. Measure continuity on safety switches (seat, brake, blade) with a multimeter; resistances above 1Ω indicate faulty contacts requiring replacement.
Step-by-Step Tracing of Ignition Switch Connections
Locate the key assembly’s backplate–most riding mower variants expose this after removing the dashboard panel. Use a multimeter set to continuity mode to confirm the switch terminals without relying on color codes alone, as manufacturers occasionally deviate from standard schemes.
Identify the primary terminals first:
- Battery (B): Always connected directly to the power source, typically marked with a stud or thicker gauge wire.
- Accessory (A): Energized when the key is turned to the first position, often linking to lights or hour meters.
- Ignition (I): Supplies current to the starter solenoid and spark module when engaged.
- Solenoid (S): Momentarily bridges to the ignition terminal during cranking; check for a separate thinner wire.
Attach one multimeter probe to the battery terminal, then test each remaining connection while rotating the key. Note which terminals show voltage at each position–this reveals the switch’s internal contacts. A common failure occurs when the ignition terminal loses continuity while cranking, causing intermittent starting issues.
Trace each wire from the switch to its endpoint:
- Battery lead → fuse → main harness junction.
- Ignition lead → coil pack → spark plug wires (if equipped).
- Solenoid lead → starter relay or directly to the starter motor.
- Accessory lead → optional circuits like lighting kits.
Check for corrosion at the terminals–white or green deposits require cleaning with a wire brush and dielectric grease application. If the switch uses a push-in connector, press firmly while testing; loose fits cause erratic operation. For models with a security chip, ensure the transponder aligns properly when reattaching the key cylinder.
Replace the switch if internal contacts show pitting or burn marks. Match the terminal layout precisely–some aftermarket replacements reverse the solenoid and ignition pins. Reassemble the dashboard, securing wires with zip ties to prevent chafing against moving parts like the steering column.
Verify operation by cycling the key through all positions while observing voltage at each terminal. The solenoid should click audibly during cranking, and the engine should maintain steady RPMs after release. If flickering lights or stalling occurs, re-examine the accessory circuit for parasitic draws.
