For reliable towing, start with the ISO 11446 standard configuration–this ensures compatibility with European and many Asian vehicles. The 13-socket layout consolidates power, lighting, and brake signals into a single interface, eliminating the need for adapters. If your setup includes a caravan or heavy-duty load, prioritize thick-gauge cables (2.5 mm² or larger) for the power feed to prevent voltage drop over long distances.
Grounding is critical: connect the earth terminal directly to the vehicle’s chassis using a clean, corrosion-free bolt. Avoid daisy-chaining grounds through trailers, as this can introduce resistance and flickering lights. For vehicles with electronic stability control (ESC), verify that the CAN bus-compatible socket is installed–older adapters may trigger warning lights or disable safety systems.
Test each circuit with a multimeter before first use. Check for 12V at the permanent power outlet (typically socket 9) and verify brake/turn signals illuminate within 200 milliseconds of activation. If migrating from a 7-socket setup, note that sockets 10–13 handle reverse lights, charging circuits, and auxiliary functions–omit these only if your load doesn’t require them. Always use waterproof connectors (IP67 rated) and seal exposed wires with dielectric grease to prevent oxidation.
For off-road use, add a surge protector between the vehicle battery and the permanent power circuit to safeguard against voltage spikes. Replace any damaged cables immediately–frayed wires increase resistance, leading to overheating hazards. When splicing, avoid solderless connectors; instead, crimp and heat-shrink each joint for durability. Keep spare fuses (10A–20A) on hand, as sudden loads (e.g., fridge startup) can trigger false alarms.
13-Point Socket Connection: Full Installation Handbook
Begin by identifying the socket’s numbered layout–positions one through thirteen correspond to specific functions. European-standard plugs label the first seven slots identically to the ISO 1724 configuration, ensuring broad compatibility with towing vehicles. Slots eight through thirteen handle advanced features like reversing lights, battery charging, and auxiliary circuits for caravans or heavy equipment. Verify the socket type against your vehicle’s manual before proceeding.
Attach each wire to the correct terminal using crimp connectors or solder for durability. Use a multimeter to confirm continuity between the plug and the vehicle’s harness, preventing shorts or misconnections. For instance, slot five (road illumination) must align with the vehicle’s running light circuit, while slot nine (permanent 12V power) requires a direct connection to the battery, protected by a 10A fuse. Misalignment here risks damaging sensitive electronics.
Isolate auxiliary circuits–such as slots twelve (charging line for caravan batteries) and thirteen (ground return for extra functions)–with relays if the load exceeds 10A. Relay installation prevents voltage drop over long cables, which is critical for stable power delivery to refrigerators or inverters in mobile setups. Label all connections clearly with heat-shrink tubing to simplify future troubleshooting. Avoid twisting wires together; use waterproof junction blocks rated for outdoor use.
Common Mistakes and Fixes
Incorrect grounding (slot three) is the most frequent failure. Connect it to the vehicle’s chassis via a dedicated bolt, scraping off paint or corrosion to ensure a clean metal contact. Loose connections create intermittent faults, especially in slots one, four, and six (left/right indicators and brake lights). Use dielectric grease on terminals to prevent oxidation, particularly in wet climates. If the ABS or stability control warning light activates after installation, recheck slot eleven–this link must match the vehicle’s CAN bus system or a dedicated sensor line.
For caravans with integrated motor movers, slot twelve’s charging line must include a split-charge relay to prioritize vehicle battery health. Without it, the starter battery may drain during extended off-grid use. Test the setup by activating each function individually–turn signals, brake lights, fog lights–while monitoring for flickering or dim output. Flickering signals poor grounding or insufficient wire gauge, while dim lights indicate voltage drop, often resolved by upgrading from 1.5mm² to 2.5mm² cables.
Mount the socket on a rigid bracket to prevent vibration damage from uneven roads. Use a plastic or rubber boot to shield the plug when not in use, securing it with a latch to avoid accidental disconnection. Store a printed pinout reference in the vehicle’s glove box–many failures occur due to misremembered configurations. Regularly inspect for frayed wires or melted insulation, replacing any compromised segments immediately. A well-maintained system lasts decades without issue.
Decoding the 13-Point Vehicle Socket Configuration and Contact Roles
Identify the socket’s orientation before connecting–align the notch on the plug’s upper side with the matching slot in the outlet. This prevents reversed insertion, which can damage circuits or cause malfunctions. Verify the connector’s condition: corrosion on terminals disrupts signal flow, especially for lighting and ABS systems.
The 13-point layout follows a standardized sequence, but not all positions are active in every setup. Check the vehicle’s manual to confirm which contacts are wired. Common active positions include:

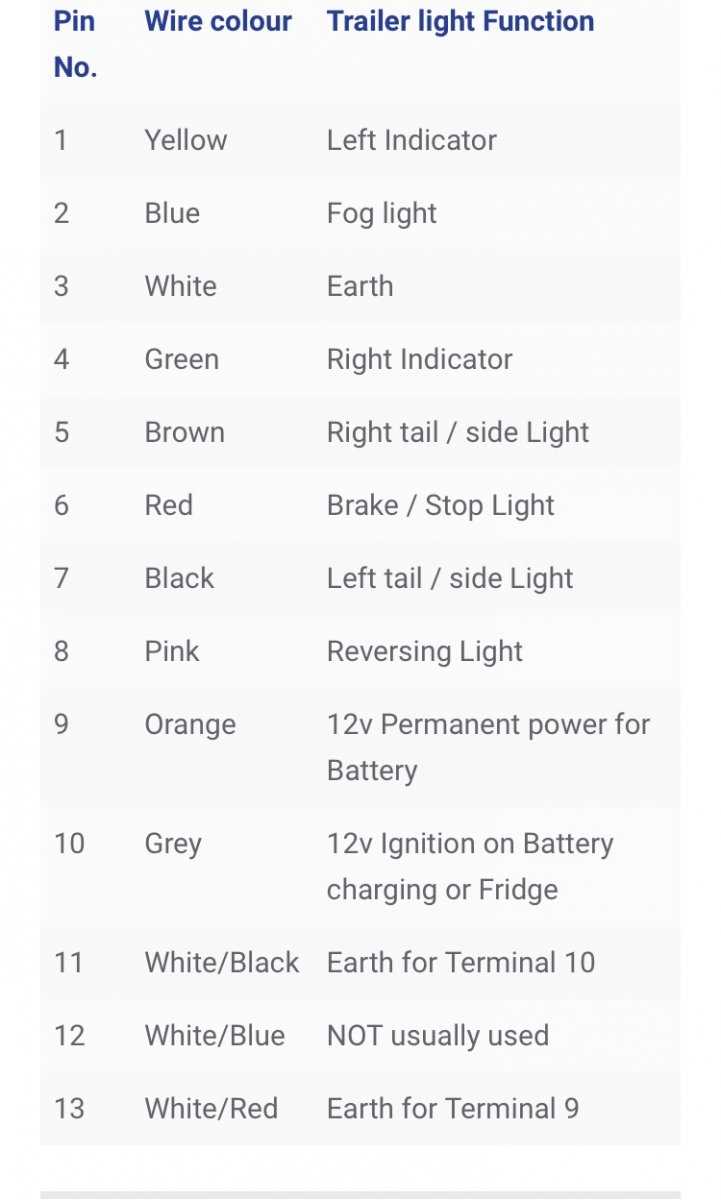

- Position 1 (Yellow, Left Indicator): Pulsing signal for lane changes. Test with a multimeter–voltage should toggle between 0V and 12V in sync with the vehicle’s blinkers.
- Position 3 (White, Ground): Critical return path for all circuits. Ensure a solid connection to the chassis; loose grounds cause intermittent failures.
- Position 4 (Green, Right Indicator): Mirror of position 1 but for the opposite side. Faulty signals often stem from frayed cables near the coupling joint.
Positions 5 through 7 handle brake lights, fog lamps, and reverse lights. Brake output (typically red) should deliver 12V when the pedal is pressed–no voltage indicates a fuse or switch issue. Fog contact (often blue) activates only if the tow vehicle’s fog system is engaged; reverse contact (black) powers backup lights and may trigger auxiliary functions like a camera.
The auxiliary power line (position 9, typically brown) supplies constant or ignition-controlled 12V for accessories. Draw exceeds 20A can trip the circuit; use a relay for high-demand devices like refrigerators or winches. Positions 10 and 11 (orange and grey) manage charging and battery isolation–critical for caravans with onboard batteries. Voltage here should match the tow vehicle’s battery (13.8–14.4V when running).
Always use a dedicated connector grease on terminals to prevent oxidation, especially in humid or salty environments. For stability control systems (position 12, purple), ensure the signal mimics the tow vehicle’s wheel-speed sensors–discrepancies trigger false ABS interventions. Test continuity with a loaded circuit: an open wire may pass a multimeter test but fail under real-world current.
Label each wire at both ends before splicing or replacing. Confusing the auxiliary power (brown) with the charging line (grey) can drain the caravan battery. Use heat-shrink tubing for splices–electrical tape degrades over time. If retrofitting an older coupling, prioritize upgrading the ground path first; inadequate return paths cause erratic behavior in all other systems.

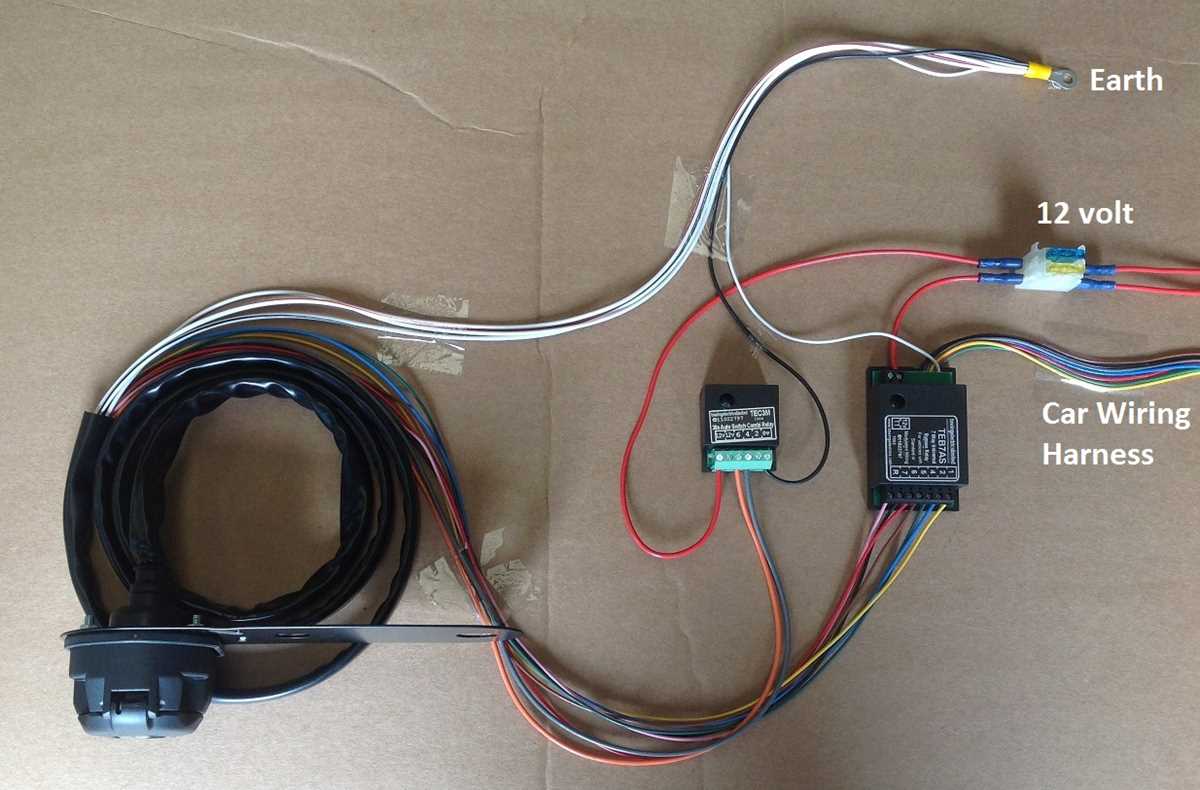

Guide to Connecting Your 13-Contact Vehicle Socket
Begin by stripping 8mm of insulation from each cable end, ensuring no bare strands extend beyond the terminal housing. Match the wire colors to the standardized ISO 11446 configuration: yellow (left turn/brake), green (right turn/brake), brown (tail lights), blue (electric brakes), red (reverse lights), black (permanent 12V), and white (ground). Crimp terminals securely using a ratcheting tool–loose connections cause voltage drops and intermittent failures.
Mount the socket bracket to a rigid surface, aligned with the tow bar’s height specifications (typically 400–450mm from ground level). Route cables through the tow arm in a loop to prevent strain during sharp turns or suspension movement. Secure excess length with UV-resistant clips or spiral wrap, spacing them every 300mm to avoid sagging that could snag on debris.
Test each circuit with a multimeter before finalizing the connection: set the dial to 20V DC and probe the socket contacts while activating the corresponding vehicle function (e.g., brake pedal for stop lamps, turn signal lever for indicators). Expected readings: 12–14V for powered circuits, 0V for ground. Deviations indicate faulty relays, blown fuses, or corroded junction points–trace these with a scan tool before proceeding.
Apply dielectric grease to the socket contacts and seal the housing with a weatherproof boot. Recheck all connections after 50km of towing; thermal cycling can reveal loose terminals. For European-spec vehicles, note that the purple auxiliary (pin 12) often carries battery charging for caravans–verify this circuit last, as mismatches here risk damaging sensitive onboard electronics.
Common Connection Errors and How to Resolve Them
Skipping ground verification leads to intermittent failures. Check the ground cable–often the white conductor–between the vehicle and the towed unit. Corrosion or loose clamps will disrupt signal flow. Clean surfaces with a wire brush, apply dielectric grease, and secure tightly to the chassis, not a painted surface.
Mixing up the yellow and green terminals causes reverse light malfunctions. The yellow carries the left turn signal; green, the right. Swap them back if brake lights activate when the turn signal is engaged. Use a multimeter to test each cable at the connector–voltage should appear only when the corresponding light is on.
Ignoring voltage drop across long cables results in dim lights. Measure voltage at the lamp socket–if below 11V, upgrade to thicker gauge cables. Avoid automotive-grade wires thinner than 16 AWG; 14 AWG is minimum for runs over 15 feet. Route cables away from sharp edges and heat sources to prevent insulation damage.
Overlooking fuse protection risks fire. Install a 15-amp fuse near the battery for the power feed (typically brown or red). If the circuit trips repeatedly, inspect for shorts–rubbed-through insulation or exposed strands touching the frame are common culprits.
Assuming all adapters are compatible causes incompatibility. Not all 13-way connectors work with 7-way systems. Verify pin assignments before splicing; some aftermarket adapters reverse the 12V auxiliary feed and ground positions. Label cables during installation to avoid miswiring later.
Test every function before hitting the road. Activate turn signals, brakes, and running lights individually, then observe the towed unit’s response. Have an assistant watch from behind while you operate controls–bulbs may light but remain dim due to poor grounds or corroded bulb sockets.
Using tape or crimp connectors instead of solder undermines reliability. Vibration loosens taped joints; moisture invades crimped terminals. Solder joints combined with heat-shrink tubing withstand vibrations and weather. For quick repairs, use waterproof butt connectors with adhesive lining.
Quick Diagnostic Checks
No lights at all? Check the main fuse and ground first. Single-function failure? Focus on that specific feed–trace it from the connector to the bulb socket. Flickering lights suggest a loose connection; wiggle each connector and cable segment while observing the lights. Intermittent issues often stem from a single faulty joint–systematically isolate each one.
