Begin with the main power feed–connect the live wire directly to the terminal marked “LINE” on the regulator. Use a 12-gauge wire for most industrial setups (1.5 HP or below); for larger units (2 HP+), upgrade to 10-gauge to prevent voltage drop. The neutral wire attaches to the adjacent terminal labeled “NEUTRAL”–ensure it’s tightened to 12 in-lbs torque to avoid loose connections.
Next, locate the motor lead output terminals, typically marked “LOAD”. The red (hot) wire from the compressor motor connects here, while the black (common) wire ties into the neutral bus. For dual-voltage motors, verify the correct wiring configuration (Δ or Y) before proceeding–mismatches can cause immediate motor failure. Ground the regulator chassis with a green/bare wire to the compressor’s metal frame; use a #8 AWG ground wire for systems exceeding 115V.
The pressure adjustment mechanism requires precise calibration. Set the cut-in (start) pressure to 90 PSI for standard applications; adjust the cut-out (stop) to 125 PSI by turning the spring-loaded bolt clockwise. For high-demand setups (e.g., sandblasting), widen the range to 80–150 PSI, but never exceed the tank’s maximum rated pressure. Use a liquid-filled gauge for accurate readings–dry gauges fail under frequent vibration.
Install a thermal overload protector between the regulator and motor if the unit lacks built-in safeguards. Wire it in series with the LOAD circuit–this disrupts power at 160°F, preventing motor burnout. For external unloaders (common in 5+ HP systems), connect the unloader solenoid to the regulator’s “UNLOADER” terminal; this ensures rapid tank depressurization between cycles. Test the setup with a multimeter–verify 0V at cut-out and 120/240V at cut-in before full operation.
Connecting a Pump Control Valve: Key Electrical Layouts
Start by identifying the power source terminals on the regulator–typically labeled “L1” and “L2” for single-phase systems or “L1,” “L2,” and “L3” for three-phase setups. Use 12-gauge copper conductors for currents under 20A; for higher loads, upgrade to 10-gauge. Securely strip 1/2 inch of insulation from each wire end, then attach to the corresponding screw terminals using a torque screwdriver set to 12 inch-pounds to prevent loosening over time.
Grounding is non-negotiable. Connect a green or bare copper wire from the motor’s grounding terminal to the regulator’s grounding screw, then route it to the main service panel’s grounding bus. For NEMA-rated setups, match the wire colors: black to line, white to neutral, green to ground. Verify voltage requirements–standard units operate at 120V or 240V AC–but some industrial models demand 480V; check the nameplate before proceeding.
Common Wire Configuration Variations
| System Type | Wire Colors | Terminal Labels | Torque (in-lb) |
|---|---|---|---|
| 120V Single-Phase | Black (Hot), White (Neutral), Green (Ground) | L (Hot), N (Neutral), ⏚ (Ground) | 10–12 |
| 240V Single-Phase | Black (Hot1), Red (Hot2), Green (Ground) | L1, L2, ⏚ | 12–15 |
| 480V Three-Phase | Black (Phase1), Red (Phase2), Blue (Phase3), Green (Ground) | L1, L2, L3, ⏚ | 18–22 |
After securing all conductors, test the circuit with a multimeter. Set the device to AC voltage mode and confirm readings between hot terminals (e.g., L1 to L2) match the expected voltage (e.g., 240V). If the reading fluctuates by more than ±5V, recheck connections for frayed strands or loose screws. For dual-stage regulators, ensure the differential between cut-in and cut-out pressures aligns with manufacturer specs–most residential units operate at 90–125 PSI, while industrial variants scale to 175 PSI.
Label all wires at both ends with heat-shrink tubing or wrap-around tags. Include the date and technician’s initials for traceability during future maintenance. For enclosed units, use a waterproof junction box with IP67 rating if installed outdoors. Avoid daisy-chaining multiple regulators; instead, dedicate a separate breaker (15A for 120V, 20A for 240V) for each unit to prevent nuisance tripping during startup surges.
Key Elements to Recognize in an Automatic Regulator Circuit Configuration

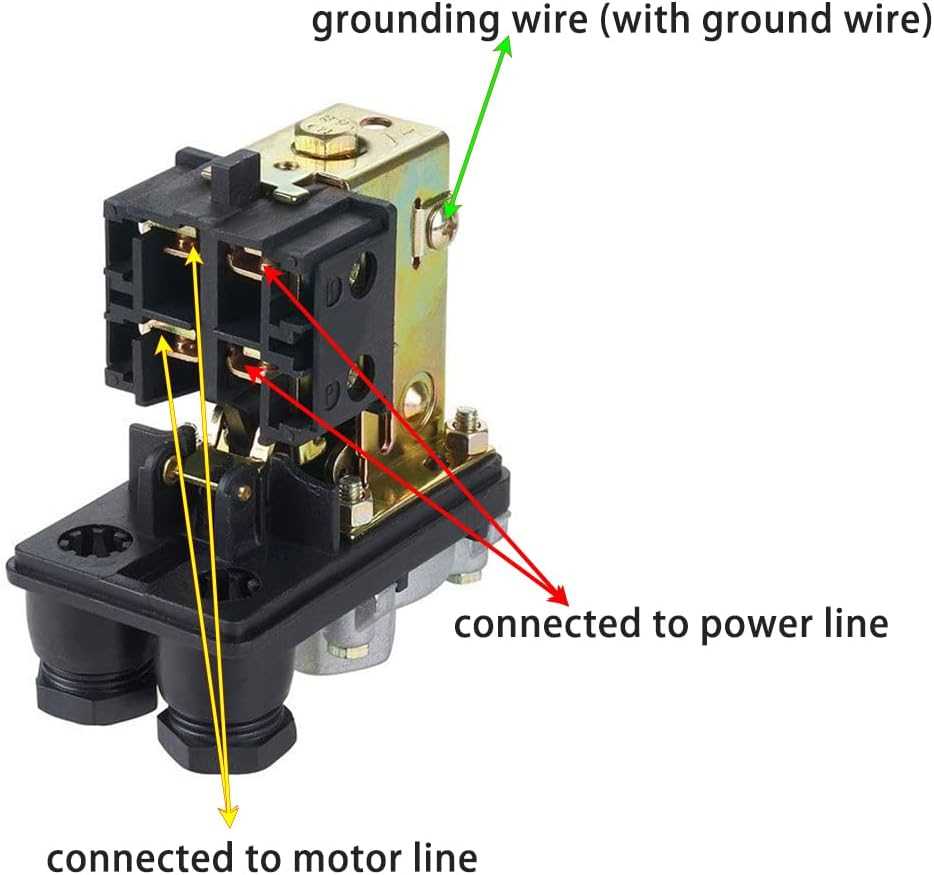

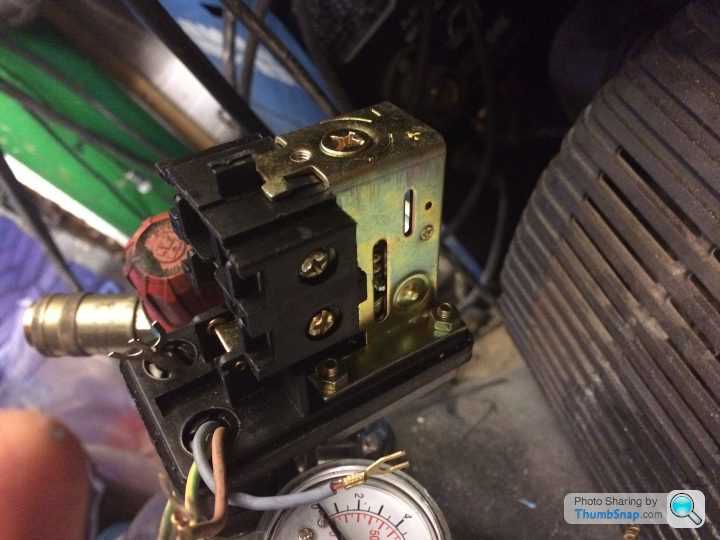

Start by locating the control module terminals. Most setups include labeled contact points: typically marked as “LINE,” “LOAD,” “COMMON,” and “GROUND.” The LINE terminal connects to the incoming power source, while LOAD routes current to the motor startup relay. COMMON acts as the neutral reference point. Verify these labels before proceeding–misidentification leads to reversed polarity or failed activation.
Examine the adjustment dials. Two primary controls exist: the cut-in and cut-out selectors. The cut-in dial determines the lower PSI threshold where the system energizes, usually set between 90-100 PSI. The cut-out dial governs the upper limit, commonly 120-130 PSI. Rotate each dial while observing calibrated markings–precise settings prevent over-cycling or inadequate storage tank filling.
- Primary relay: Handles high-amp motor engagement; size appropriately for horsepower rating (1.5 HP = 12-15 amp relay).
- Thermal overload protector: Mounted near motor housing; interrupts power if overheating occurs. Test resistance across terminals–should read near zero ohms when cool.
- Unloader valve: Releases trapped air during shutdown; locate at control box outlet. Manual release ensures proper venting before maintenance.
Check capacitor placement if present. Start capacitors (round, cylindrical) connect parallel to motor windings, boosting initial torque. Run capacitors (oval, flatter) maintain smooth operation. Use a multimeter to verify microfarad rating matches motor specifications–deviations cause improper startup or accelerated wear.
Identify safety mechanisms. Pressure relief valves (red or yellow) vent excess force at 150-175% of cut-out setting. Test by lifting release lever–air should escape immediately. If blocked, replace promptly to avoid catastrophic failure. Separate overpressure cutoff mechanisms may trigger at 10-15 PSI above cut-out, shutting down the unit entirely.
Trace conductor paths. Thick gauge cables (10-12 AWG) carry motor current, while thinner wires (14-16 AWG) connect control circuits. Follow each lead from terminal to component–loose or corroded junctions create resistive heating. Use crimp connectors rated for the system’s voltage (typically 120/240V AC).
- Isolate the circuit breaker prior to inspection.
- Measure voltage across LINE and COMMON–should match supply voltage.
- Confirm LOAD terminal voltage drops to zero when cut-out is reached.
- Check continuity between COMMON and GROUND–should show minimal resistance.
Document findings. Sketch terminal locations, dial settings, and wire colors. Note manufacturer-specific deviations (e.g., Franklin Electric uses black/dark blue for LINE, Honeywell prefers red/white). Cross-reference with equipment manuals if discrepancies arise–generic assumptions risk damage. Reassemble only after validating each connection matches your schematic.
Step-by-Step Guide to Connecting Conductors on a Single-Phase Control Device
Shut off the main power supply at the circuit breaker before handling any terminals. Verify absence of voltage using a multimeter set to the AC range–probe the incoming line contacts to ensure readings below 10V. Identify the live (hot), neutral, and ground leads on the motor attachment: live wires typically carry black or red insulation, neutral wires are white, and ground wires are green or bare copper.
Attach the live conductor first: strip ½ inch of insulation from the wire end, loop it clockwise around the corresponding terminal screw, and tighten to 12-15 inch-pounds of torque. Secure the neutral lead the same way on its designated terminal. For the ground connection, crimp a ring terminal onto the bare wire if the device lacks a dedicated ground stud, then fasten it under a screw head or to a dedicated ground post with 18-22 inch-pounds of torque. Confirm all connections remain free of stray strands or insulation fragments.
Connect the load side next: route the motor’s live conductor through the switch’s internal contacts and attach it to the outgoing terminal, again ensuring a ½-inch stripped end and clockwise loop. Repeat for the neutral wire if the motor requires it; some single-phase setups use a common neutral. Ground the motor chassis to the same ground bus as the control device. Recheck torque values–loose contacts generate heat and risk premature failure.
Final Inspection and Testing
Restore power at the breaker and observe the switch operation under load: depress the unloader valve to release trapped pressure, then start the pump. Monitor for unusual noises, arcing, or excessive heat at terminals during the first 10-minute run cycle. If voltage readings between incoming and outgoing terminals differ by more than 5V, re-tighten connections or inspect for corroded contacts. Label all wires with heat-shrink tubing or permanent marker for future servicing.
Critical Errors in Connecting a Dual-Voltage Regulator for Pneumatic Systems
Misconfiguring voltage selector terminals ranks as the most frequent technical blunder. Dual-voltage mechanisms–typically 120V/240V–require precise jumper placement between L1/L2 for 240V operation or bridge L1 to neutral for 120V. Installers often reverse polarity or omit jumpers entirely, forcing the motor to operate at half-rated voltage. Verify terminal markings with a multimeter before energizing; L1/L2 paired jumpers must show continuity for high-voltage operation, while solo bridging violates safety margins. Mismatched voltage causes thermal overload, tripping breakers within 90-120 seconds of startup.
Neglecting pressure port calibration during installation introduces cascading failures. The unloader valve port (0.25″ NPT) must align with the tank’s maximum PSI rating–commonly 125-175 PSI for industrial units. Over-tightening crushes O-rings, creating leaks that trigger constant cycling; under-tightening risks pipe dope extruding into the unloader mechanism. Use thread sealant rated for pneumatic applications, applying a 0.5mm bead exclusively to male threads. Reverse the regulator’s differential screw (CW lowers cut-in, CCW raises it) in quarter-turn increments, then verify with a calibrated gauge–adjustments exceeding 5 PSI increments destabilize system responsiveness.
