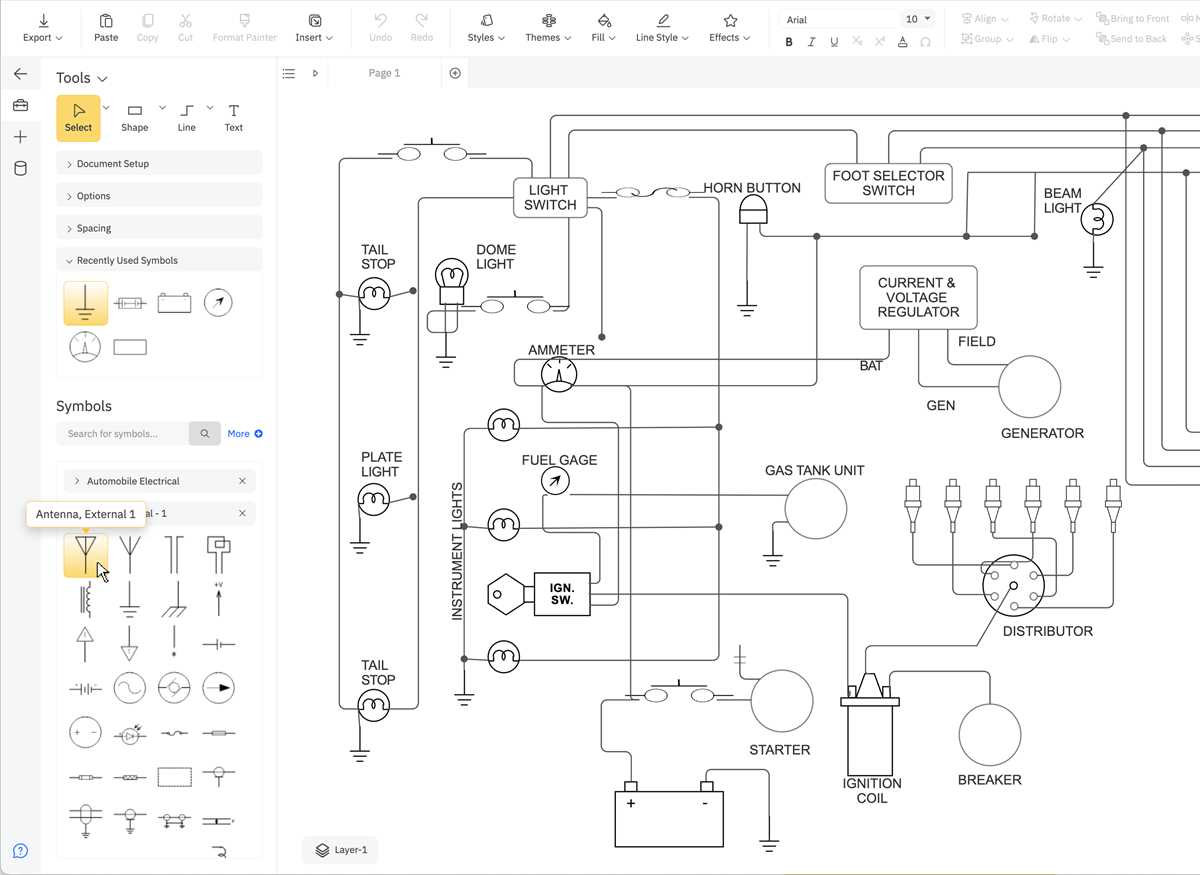

Use IEC 60617 or IEEE 315 for baseline reference–these sets govern nearly all technical drawings in industrial and grid systems. Each mark represents a distinct component: a resistor shows as a zigzag line, while a fuse appears as a rectangle split by a diagonal slash. Capacitors are drawn as parallel lines, with a curved line indicating polarization. Measure spacing precisely–most standards set 1.5 mm gaps between adjacent lines for clarity.
Ground symbols vary by application. A single downward-pointing triangle denotes chassis ground, while a triangle with one horizontal bar beneath signifies earth ground in high-power contexts. Transformers require concentric circles or interleaved loops, depending on winding visibility. Switches differ by pole count–single-pole shows a single break, double-pole uses two parallel breaks. Always verify orientation–rotated marks often change function.
Circuits operating above 50V demand extra annotation. Label voltage ratings within 3 mm of the mark and use arrows for current direction. For AC, add sine-wave notation adjacent to conductive paths. Battery marks differ between single-cell and multi-cell configurations–single-cell shows two parallel lines, multi-cell adds extra lines. Cross-reference ANSI Y32.2 for legacy equipment, as older prints may use non-standard variations.
Digital schematics replace analog marks with logic gates: AND, OR, and NOT gates have distinct triangular shapes. PCB layouts use filled rectangles for vias and hollow squares for test points. Always separate analog and digital sections with dotted lines to prevent confusion. Color-code critical paths–red for power, blue for signal–to enhance readability during assembly.
For motor controls, use NEMA MG 1 as a reference. Contactors appear as single breaks with actuator lines, relays use mirrored switch symbols. Three-phase systems require numbered conductors–L1, L2, L3–and neutral marked as N. Verify physical pinouts against the drawing–mismatches cause irreversible damage to drives and inverters.
Exports to international markets must comply with local standards. German DIN uses different capacitor markings, while Japanese JIS inverts certain transistor symbols. Retain both versions in project archives to avoid redesign costs. Never assume legacy prints match current norms–trace each line before powering systems.

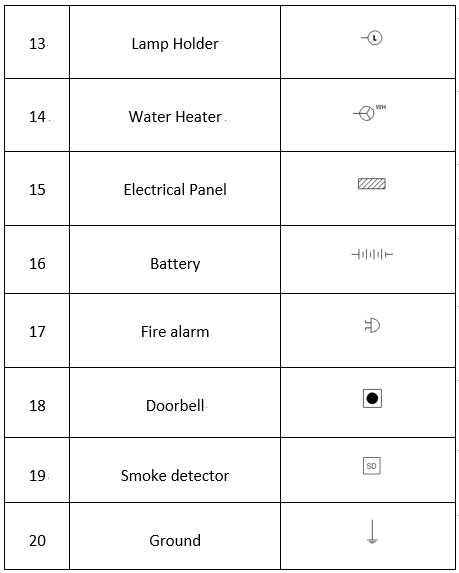

Electrical Schematic Icons: Essential Elements to Master
Begin by memorizing core graphical representations used in circuit plans–ground nodes, resistors, and power sources form the foundation. A solid line with three descending bars denotes a direct earth connection, while a zigzag line represents a fixed-value resistor (e.g., 470Ω). For voltage sources, use a long line parallel to a shorter one for DC and two wavy lines for AC. These basics appear in nearly every schematic, so accuracy here prevents misinterpretation later.
Use these variations for common components:
- Capacitors: Two parallel lines (fixed) or one curved line (polarized).
- Inductors: Series of loops or a filled rectangle for ferrite-core types.
- Switches: Break in the line with a diagonal slash (SPST) or additional branches (SPDT, DPDT).
- Diodes/LEDs: Triangle pointing to a line (standard) or a triangle with two parallel lines (Zener).
- Transistors: Three lines converging (BJT) with emitter/collector arrows, or a circle with gate/source/drain labels (FET).
Label every icon with concise annotations–values (e.g., “10k”), part numbers (e.g., “2N3904”), or functions (e.g., “PWM input”)–to eliminate ambiguity. For integrated circuits, replace abstract symbols with a rectangle detailing pinouts (e.g., “VCC 5V” on pin 8). In complex layouts, group related icons into functional blocks (e.g., “Power Supply”) and highlight signal paths with thicker lines. Cross-reference icons with datasheets during assembly to confirm pin assignments and voltage tolerances.
Common Power Source and Distribution Symbols in Electrical Schematics
Use a battery symbol (|| or |–|) to denote a direct current source, specifying the voltage value adjacent to the icon–e.g., 12V, 24V, or 48V. For multi-cell configurations, stack the plates with dashed lines between them to indicate internal divisions. Label polarity clearly: a longer line for the positive terminal, a shorter one for negative.
Ground symbols require strict differentiation. Employ the chassis ground (⏚) for metal enclosure connections, while earth ground (⏛) must represent a true physical connection to the earth via a rod or plate. Avoid mixing them in the same circuit–chassis grounds accumulate noise, whereas earth grounds provide safety isolation.
Alternating current sources demand the generator or AC supply symbol (⏦), typically a circle with a sine wave inside. Annotate frequency in Hertz (e.g., 50Hz, 60Hz) and voltage (e.g., 230V) beside it. For three-phase supplies, use three overlapping circles with phased labels (L1, L2, L3) or a single circle divided into three equal segments.
Busbars and Junctions
Represent busbars with a thick horizontal or vertical line–bold for main power distribution, thinner for sub-feeds. Assign unique identifiers (e.g., BB-1, BB-2) and color-code if multiple voltage levels coexist (red for 400V, blue for 24V). Tap-offs should branch at 90° angles, labeled with wire gauge and circuit designation.
Fuses and circuit breakers use distinct icons: a rectangle with a diagonal line (⎓) for fuses, a switch-like symbol (⏼) for breakers. Always pair with a rating–amps for fuses (e.g., 10A), trip curve and frame size for breakers (e.g., C16). Position them immediately downstream of the power source, never after loads.
Transformers require precise core representation: a pair of coils (⏫) for single-phase, three coils (Δ or Y) for three-phase. Note turns ratio (e.g., 1:10), primary/secondary voltages (e.g., 480V/120V), and VA rating. For isolation transformers, add shielding notation between windings. Avoid schematic ambiguity–label winding polarities (dot convention) to prevent reverse connections.
Load distribution symbols–resistive (⎯⎯), inductive (⌇), or capacitive (⎓)–should align with real-world components. Group loads logically (motor starters, lighting circuits) and connect them via dedicated lines to the busbar, not daisy-chained. Use junction dots (●) only at intentional connections; omit them for crossed wires without contact.
Understanding Switches and Control Devices in Electrical Schematics

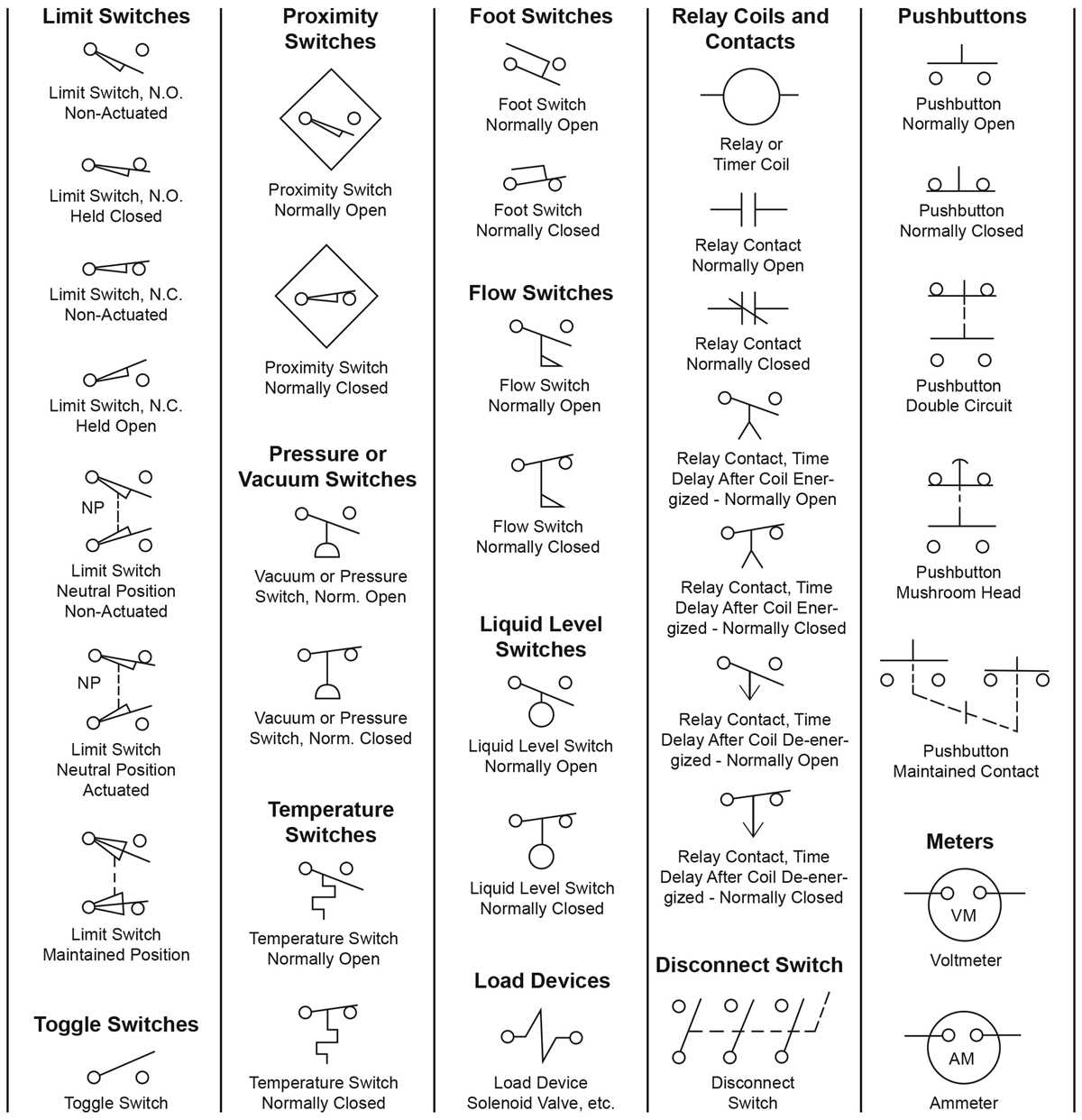

Start by identifying the type of switch depicted–mechanical contacts use solid lines for poles and dashed lines for throws, while proximity or solid-state devices often include a small rectangle with additional markers like a “P” for proximity or “T” for transistorized. A single-pole, single-throw (SPST) switch will show two terminals connected by a straight or angled line; add a second line branching off to indicate a single-pole, double-throw (SPDT) variant. Double-pole configurations (DPST or DPDT) mirror this layout but split into two parallel sets of lines–always count terminals to confirm the exact type.

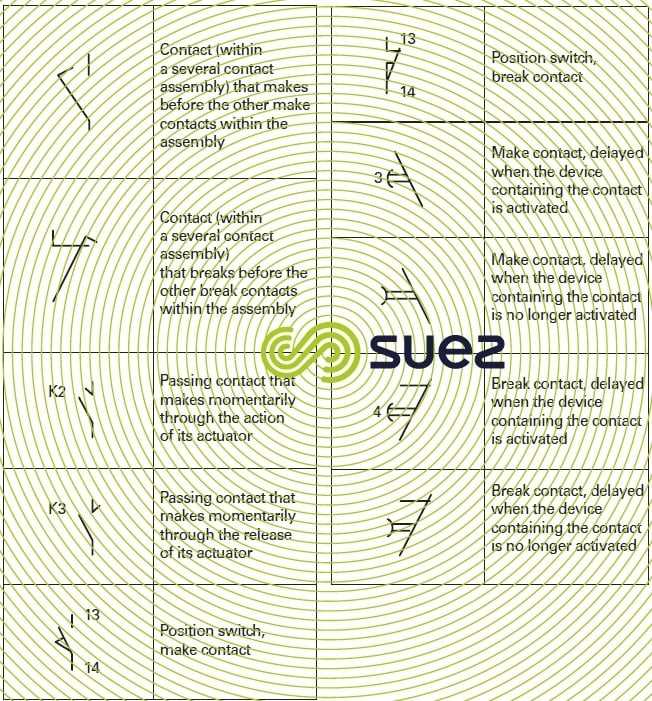

Control relays follow a distinct pattern: coil symbols resemble a stretched rectangle or a circular loop with two perpendicular lines (denoting the coil), while contact sets align with switch conventions but may include a small dot at the intersection to signify normally closed (NC) or normally open (NO) states. Look for auxiliary contact markers–numbers like “5-6” or “7-8” indicate specific terminal pairs in multi-pole relays. Time-delay relays add a small clock-face icon near the coil, with arrows pointing left (delay-on) or right (delay-off).
Key Variations to Watch For
Pressure switches integrate a diaphragm symbol (a curved line or arrow over the contacts), often paired with labels like “PS” for pressure-sensitive units. Temperature controls use a thermometer icon (a vertical line with a bulb at the base) adjacent to contacts. Momentary pushbuttons replace standard switch lines with a small circle indicating transient operation–filled circles denote NC, hollow circles NO. For rotary switches, track the number of radial lines extending from the central shaft to determine positions (e.g., three lines = three-way selector).
Always cross-reference the legend or manufacturer datasheets for non-uniform representations–some schematics use proprietary symbols for PLC-controlled devices, combining standard contact drawings with unique alphanumeric codes (e.g., “CR1,” “LS2”). When troubleshooting, trace the circuit path: a missing connection at a pushbutton’s filled circle suggests a stuck NO contact, while an unexpected path through a relay coil hints at an energized state. Prioritize verifying terminal labels (e.g., “COM,” “NO,” “NC”) over aesthetic details–misinterpretation here leads to incorrect wiring sequences.
How to Identify Resistors, Capacitors, and Other Passive Components
Examine the component’s body for numeric or alphanumeric markings–resistors typically use a series of colored bands or printed values like “4.7K” or “100R,” while capacitors may display values in microfarads (μF) or picofarads (pF), often with voltage ratings (e.g., “10μF 25V”). For through-hole resistors, decode the colored bands using the EIA standard: the first two bands represent significant digits, the third is the multiplier, and the fourth indicates tolerance (gold = ±5%, silver = ±10%). Ceramic capacitors often bear abbreviated codes like “104,” translating to 100,000 pF (or 0.1 μF).
Measure resistance with a multimeter to confirm resistor values–place probes on each terminal and verify the reading matches the marked value within tolerance. For capacitors, use a capacitance meter or a multimeter with this function: disconnect the component from the circuit, discharge it safely, then measure. If the meter reads significantly lower than the marked value, the capacitor may be degraded. Polarized capacitors (electrolytic or tantalum) have distinct markings: a stripe or minus sign denotes the negative terminal, while non-polarized types lack this indicator.
Distinguishing Component Types by Physical Traits
| Component | Shape | Markings | Key Characteristics |
|---|---|---|---|
| Resistor | Axial (thin cylinder) or SMD (rectangular) | Colored bands or printed numbers | Fixed value; SMDs may have codes like “4R7” for 4.7Ω |
| Ceramic Capacitor | Small, disc-shaped or rectangular | Three-digit code (e.g., “102” = 1,000 pF) | Non-polarized; low capacitance (pF-nF range) |
| Electrolytic Capacitor | Cylindrical with vented top | μF value + voltage rating; stripe for negative terminal | Polarized; high capacitance (μF range) |
| Inductor | Toroidal or cylindrical coil | Printed value in Henries (e.g., “10μH”) or colored bands | Often ferrite core; SMDs may lack markings |
SMD (surface-mount) resistors and capacitors lack traditional leads and are identified by printed codes. Resistors use a three- or four-digit code: “220” means 22Ω, while “473” translates to 47,000Ω (47kΩ). Capacitors may use a similar system but include a letter for tolerance (e.g., “474J” = 0.47μF ±5%). If markings are unclear, refer to the circuit’s parts list or manufacturer datasheet–values may also be printed on the PCB silkscreen near the component.
Check for polarity in diodes, LEDs, and electrolytic capacitors: diodes have a line indicating the cathode, while LEDs have a flat edge or shorter lead for the negative terminal. Inductors rarely indicate polarity but can be identified by their coil shape or magnetic core. For axial components, orientation often aligns with the schematic layout–positive terminals face the same direction (e.g., toward higher voltage traces). If in doubt, test continuity with a multimeter to map the circuit path.
Quick Reference for Common Codes
Memorize these abbreviations to speed up identification:
- Resistors: “K” = kilo-ohm (e.g., “4K7” = 4.7kΩ), “R” = decimal point (e.g., “2R2” = 2.2Ω)
- Capacitors: “μ” = microfarad (e.g., “10μ” = 10μF), “n” = nanofarad (e.g., “4n7” = 4.7nF)
- Tolerance: “J” = ±5%, “K” = ±10%, “M” = ±20%
For unmarked components, use a multimeter in continuity mode to detect shorts or opens–inductors may show near-zero resistance, while capacitors register as open circuits after charging. Always discharge capacitors by placing a resistor across their terminals before handling to avoid shocks or damage to test equipment.
