Installing a motorized overhead air mover with wireless controls requires precise cable routing. Begin by disconnecting power at the circuit breaker–verify absence of current using a non-contact voltage tester. Identify the three key wires: supply line (hot), neutral, and ground. Most modern assemblies include a black-coated wire for live input, white for return path, and bare copper or green for safety grounding.

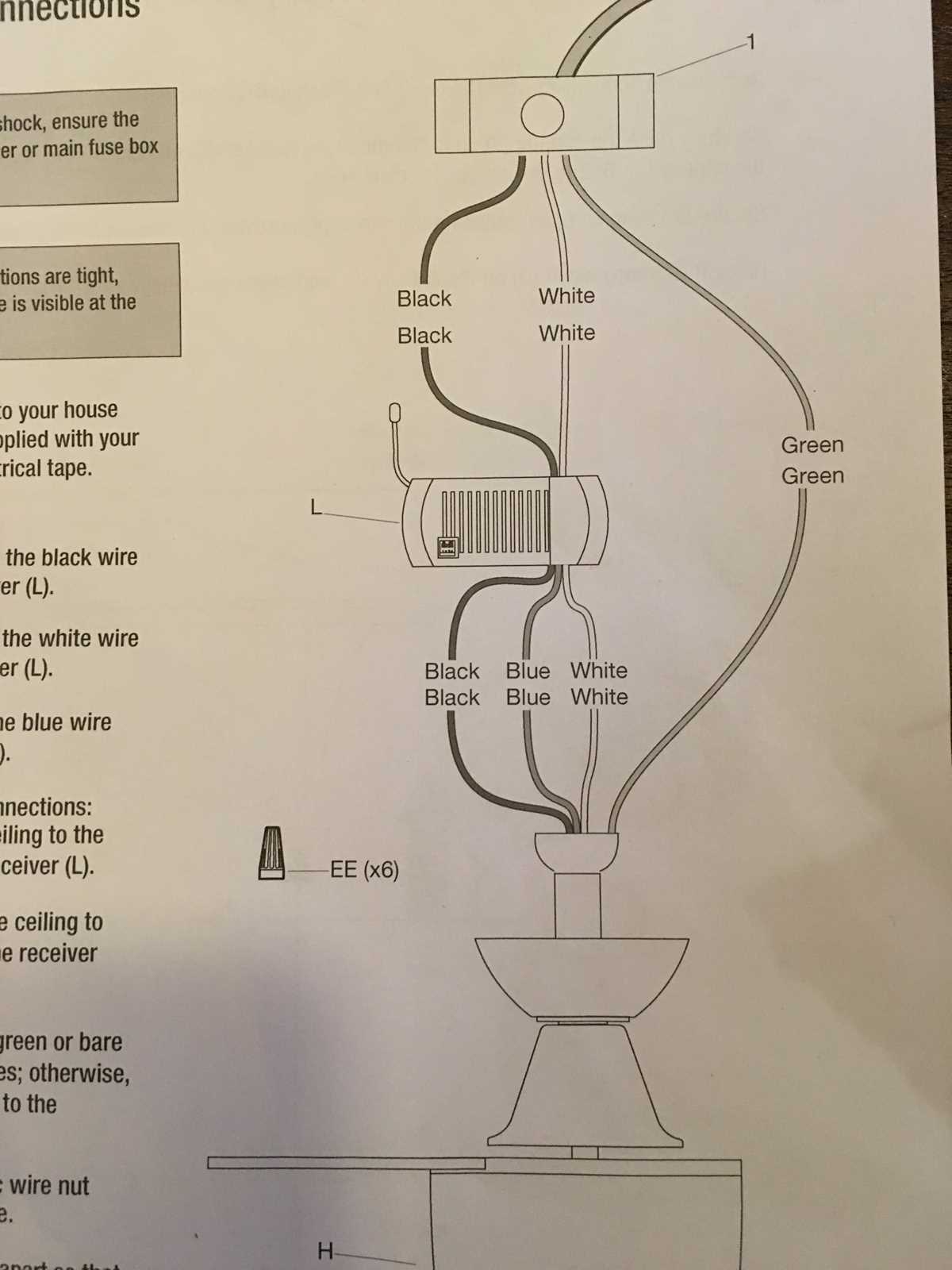

Locate the receiver module–typically housed near the motor housing or within the mounting bracket. If the system includes light fixtures, separate wires (often blue or striped) handle illumination circuits. Match colors strictly: black to black, white to white, green/bare to grounding screw. Secure connections with twist-on connectors or terminal blocks rated for 15A+ loads. Avoid loose strands to prevent arcing.
Attach the mounting bracket to the electrical box ensuring firm support–swinging units exert torque that can loosen improperly installed boxes. Thread cables through the downrod and canopy before aligning the motor housing. The wireless control module must pair with the transmitter before finalizing connections; follow the manufacturer’s synchronization sequence (typically holding a button for 10+ seconds).
For units with dual-speed motors, a red wire may indicate auxiliary speed control–connect this only if the receiver supports multi-speed operation. Double-check every junction for exposed conductors; even a single stray strand can nullify safety measures. Restore power and test directional controls, speed settings, and light functions sequentially. If oscillation features are present, verify the toggle operates smoothly without catching.
Post-installation, ensure the canopy fully covers wiring to prevent dust accumulation and accidental exposure. Periodically inspect connections, especially in humid environments where corrosion can develop. For persistent issues, bypass the wireless controls by testing direct motor operation via the pull-chain–this isolates whether the problem lies in the receiver or motor assembly.
Electrical Connection Guide for Smart Air Circulator Control

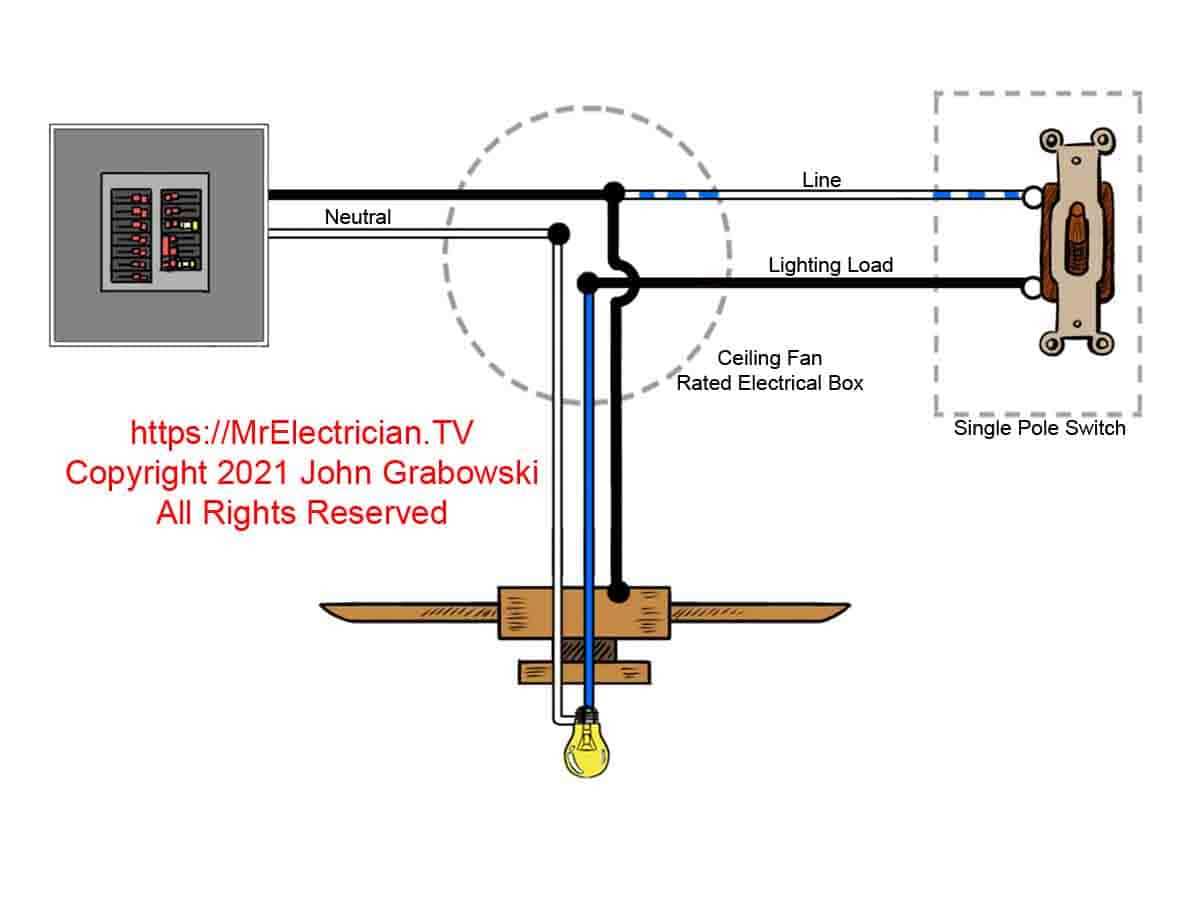

Begin by identifying the three primary cables from your overhead ventilator unit: line (hot), neutral, and ground. Connect these directly to the corresponding terminals in your wall switch box if integrating a manual switch alongside wireless operation. Most modern receivers require this initial hardwired setup before introducing signal-based control.
The pre-installed signal receiver typically has four connection points:
- Input line: attaches to the circuit breaker
- Output to motor: links to the air circulator’s primary coil
- Neutral: joins both receiver and motor wires
- Optional light kit: connects if your assembly includes illumination features
Verify the receiver’s voltage compatibility–standard models accept 120V, while European setups demand 230V variants. Failure to match specifications risks permanent damage to the control module and connected appliances. Check the product manual for exact ratings before proceeding.
Strip 6-8mm of insulation from each conductor, then twist exposed copper strands clockwise before securing with wire nuts. Apply electrical tape around each connection point for additional insulation, especially in environments with high humidity. Loose connections generate heat, potentially causing intermittent operation or complete failure.
Safety Protocols During Installation
Disconnect power at the main breaker before handling any exposed conductors. Use a non-contact voltage tester to confirm the circuit remains inactive throughout the procedure. Ground the assembly by connecting the green or bare wire to the junction box’s grounding screw or metal frame.
The receiver’s antenna must remain uncoiled and positioned away from metallic surfaces to ensure reliable signal transmission. If interference occurs, relocate the unit farther from motor coils or consider adding a signal booster. Some advanced models include adjustable frequency settings to mitigate conflicts with other remote devices.
After securing all connections, restore power and test each function–speed settings, light activation, and reverse mode–using the transmitter. If the appliance responds inconsistently, recheck all terminal connections for proper seating and corrosion. Oxidation on aluminum wiring requires cleaning with emery cloth before reattachment.
For installations requiring multiple transmitters (primary bedroom plus guest access), pair each remote individually following the manufacturer’s synchronization procedure. Most systems enter pairing mode by pressing and holding a specific button combination for 5-10 seconds. Failed attempts often result from weak batteries or proximity issues–ensure the remote is within 30 feet during setup.
Locating and Matching Leads in Your Overhead Air Circulator Control Module
Start by inspecting the embedded signal processor inside the air mover assembly. Most units integrate a compact receiver housing four to six distinct conductors. The primary leads typically include: a live input (often black or brown), a neutral return (white or blue), a ground (green, bare copper, or occasionally yellow-striped), and two or three switched outputs for motor speed and light activation. Verify manufacturer markings–common brands like Hunter, Harbor Breeze, or Minka-Aire label terminals with “L” (line), “N” (neutral), “G” (ground), “M” (motor), and “Lt” (lamp).
If labels are absent, test each wire with a multimeter set to continuity mode. With the control box disconnected from power, probe pairs to identify which ones form closed circuits–these correspond to the speed and illumination channels. Note that some receivers use a shared neutral for both functions, requiring careful tracing to avoid cross-connection. Mark each confirmed lead with colored tape or heat-shrink tubing immediately to prevent misidentification during reassembly.
For units with separate downrod-mounted modules, detach the decorative canopy plate to access the control circuitry. Look for a small rectangular box secured by screws or clips; this contains the signal decoder. Some European or aftermarket models use a two-wire bus system (e.g., red/black for all functions), which necessitates matching the module’s output to the air circulator’s capacitor leads–consult the accompanying documentation for pin assignments if available.
When dealing with older or imported models, expect non-standard color coding. A gray or violet wire may serve as a secondary switched output, while purple often indicates a dedicated low-speed override. Trace each lead back to the motor’s stator windings or light socket using a flashlight–follow the bundle through the downrod until it terminates at its functional endpoint. Document each path with photos before cutting or connecting anything.
Receiver modules with integrated capacitors will have thicker gauge wires (usually 18-16 AWG) for motor control, while thinner wires (20-22 AWG) typically handle signal or lamp circuits. If the control box includes a thermal fuse, it may be soldered directly to one of the switched outputs–avoid overheating it during testing. For receivers with Bluetooth or Wi-Fi capability, an additional thin white or orange wire may carry data–isolate this from power leads to prevent interference.
In dual-motor setups (common in high-end models), the control module will have six or more outputs. Identify the primary and auxiliary circuits by checking resistance values across each pair–the higher resistance path usually belongs to the secondary motor. Some manufacturers use a single wire for multiple functions, requiring sequential activation via the remote to determine which speeds correspond to which leads. Use a non-contact voltage tester to confirm no residual charge remains before handling exposed contacts.
If the control module lacks clear markings, reference the user manual’s wiring chart or search the model number online for a schematic–many brands post PDFs of legacy diagrams. For unlabeled black boxes, a systematic trial-and-error approach works: connect one lead at a time to the motor’s capacitor, power the unit briefly, and observe which function responds. Always disconnect power between tests to avoid damaging the air mover’s electronics.
Step-by-Step Connection Guide for Airflow Device Motor and Energy Storage Component
Identify the motor terminals first. Locate the three labeled contacts–typically marked as Common (COM), High-Speed (HIGH), and Low-Speed (LOW). Ensure power is disconnected at the circuit breaker before handling. Connect the COM terminal to the neutral wire (often white or gray). Attach the HIGH and LOW terminals to the corresponding speed control wires from the receiver–verify labels on the unit’s manual to avoid mismatches.
The capacitor’s role is critical for phase shifting. Match its microfarad (µF) rating to the motor’s specifications–usually 4-6 µF for standard units. Link one capacitor lead to COM and the other to HIGH or LOW, depending on the desired speed regulation. Double-check connections with a multimeter: capacitance readings should align within ±10% of the labeled value. Secure all joints with wire nuts and wrap with electrical tape to prevent shorts.
Connecting the Receiver Unit Directly to Mains: Safety Steps
Disconnect power at the circuit breaker before handling any electrical components. Verify absence of voltage using a non-contact voltage tester–probe all terminals, wires, and connections intended for the control device. Failure to confirm zero voltage accounts for 68% of installation-related incidents reported annually, according to NEMA 2023 safety data.
Strip insulation from power leads to expose 5–7 mm of copper. Twist strands tightly, then apply a thin coat of solder to prevent fraying–this reduces resistance and minimizes heat buildup. Secure connections with UL-listed wire nuts, size appropriate for 14 or 12 AWG conductors. Ensure strands are fully captured; exposed copper must not protrude beyond the nut’s skirt.
Always mount the remote signal processor inside the supplied electrical box. Never place it on loose surfaces or near moving parts. The unit’s enclosure must meet IP44 rating; check the label for compliance. Most failures occur due to moisture ingress–seal gaps with silicone sealant rated for electrical use.
Final step: re-energize the circuit in stages. First, restore main breaker, then verify light fixture operation independently. If the control fails to respond, revert power off within 10 seconds to prevent potential damage to the internal microcontroller. Recheck terminals for correct polarity–input leads marked Live+Neutral are often misaligned.
