Begin by locating the optical network terminal (ONT) provided by your service provider. This device converts fiber optic signals into Ethernet and coaxial outputs. Connect the fiber cable from the wall jack to the ONT’s input port–ensure the connector is fully seated to avoid signal loss. Most modern installations include a backup battery unit; verify it’s powered on before proceeding, as this ensures uninterrupted service during outages.
For Ethernet connections: Use Cat5e or Cat6 cable to link the ONT’s LAN port to your router or switch. Most setups prioritize this method for stability, offering gigabit speeds with minimal latency. If your router lacks sufficient ports, a managed gigabit switch can expand connectivity without sacrificing performance. Avoid daisy-chaining switches, as this introduces unnecessary bottlenecks.
For coaxial setups: Attach RG6 quad-shielded cable from the ONT’s coax output to a splitter if distributing signal to multiple TVs or modems. Use a high-quality splitter rated for MoCA (Multimedia over Coax Alliance) frequencies to prevent signal degradation. Ensure all coaxial connections are secured with a torque wrench to maintain proper shielding–over-tightening or loose fittings can cause intermittent disconnections.
Critical note: If your installation includes a home phone line, connect the ONT’s phone port to a VoIP-compatible jack using an RJ11 cable. Test dial tone immediately to confirm service activation. For multi-line setups, a dedicated adapter may be required to distribute the signal to multiple handsets.
Label all cables at both ends to simplify troubleshooting later. Use color-coded tags for Ethernet (blue for LAN, yellow for WAN) and coaxial assignments (e.g., “Main TV,” “Modem”). Document the layout with a quick sketch–include port numbers, cable types, and endpoint devices for future reference. This step eliminates guesswork when diagnosing issues or upgrading components.
If signal strength fluctuates, check for damaged cables, improper terminations, or interference from nearby electronics. A signal meter can verify dB levels at each connection point; target values should align with your provider’s specifications, typically between -7 to -2 dB for optimal performance. Replace any splitters or amplifiers showing signs of degradation–even minor corrosion can disrupt service.

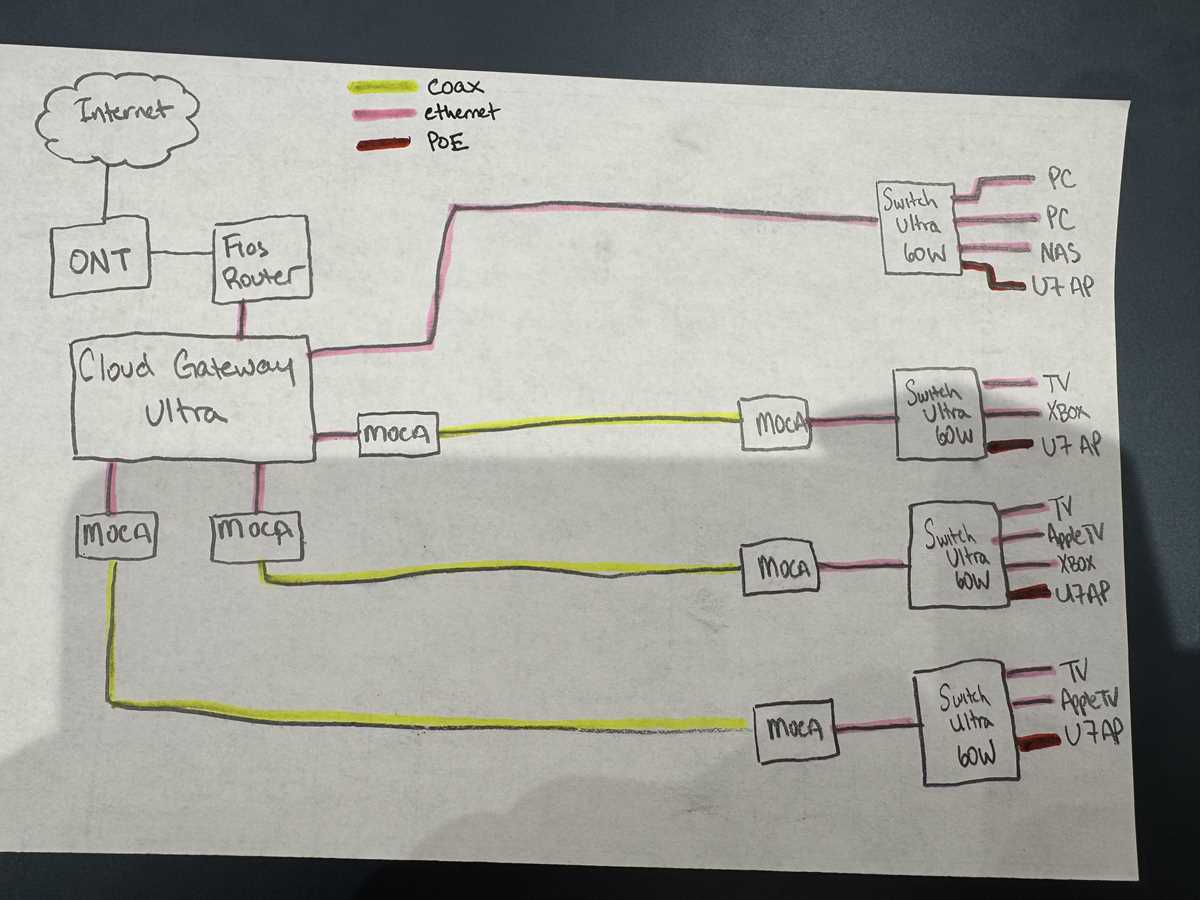

For advanced users, enable MoCA bridging on compatible routers to extend network coverage over existing coaxial wiring. Configure the router’s MoCA settings to match the network’s frequency bands (e.g., D-band for low interference) and ensure all connected devices support the same protocol version. This method leverages existing infrastructure without requiring additional cabling.
Optical Network Termination Setup Guide
Connect the Optical Network Terminal (ONT) directly to the primary service point using a single-mode fiber cable, no longer than 30 meters. Route the cable through basement joists or wall cavities, avoiding sharp bends (minimum bend radius: 30mm) and electromagnetic interference sources like power lines or fluorescent fixtures. Label both ends with unique identifiers–use heat-shrink tubing for outdoor sections–to prevent misconfiguration during future maintenance.
Equipment Placement Best Practices
Position the ONT in a cool, ventilated area, shielded from direct sunlight or moisture. Mount it at least 1.5 meters above floor level if using a wall bracket to reduce signal attenuation from structural obstructions. For multi-unit installations, install a splitter near the distribution hub; SC/APC connectors must be used for all terminations to maintain optical clarity. Document splitter locations and port assignments in a physical logbook stored on-site.
For coaxial cable extensions, use quad-shield RG-6 rated for 1 GHz bandwidth. Terminate all connections with compression fittings and apply waterproof tape to outdoor splices. Test signal strength with a certified meter after each installation phase–acceptable levels range between -15 to +15 dBm for downstream and -20 to -8 dBm for upstream. Replace any cable segment showing attenuation above 3 dB per 100 feet.
Locating the Optical Network Terminal and Broadband Service Interface
Check the exterior wall of your home near the utility meter–this is the most common placement for the Optical Network Terminal (ONT). Look for a compact, weatherproof box roughly the size of a thick paperback, typically white, grey, or beige. External mounts often include a small backup battery compartment, distinguishable by a hinged door or removable panel.
If the ONT isn’t outside, inspect basements, garages, or utility closets. Focus on areas where coaxial or fiber cables enter the building. The interface will have a power cable, a fiber strand (thin, flexible, and often bright yellow or orange), and output ports for Ethernet or coaxial lines. Manufacturers frequently label these units with model numbers: Alcatel-Lucent I-211M or Nokia G-240W, for example.
Key Markers for Identification
Trace the fiber line from the street to its termination point. The cable usually transitions indoors via a small entry hole sealed with caulk or foam. The ONT itself connects to a Network Interface Device (NID) via a short patch cable. Inside the NID, check for green-and-red indicator lights–steady green confirms active service, while blinking or red signals require troubleshooting.
For multi-unit buildings, the ONT may reside in a shared telecom closet or a locked utility room. Landlords or building managers often install a master switch here, branching service to individual apartments through splitter panels. Request access if the unit is secured; interference with these components violates service agreements and may incur penalties.
Grounding is critical–verify the ONT connects to a copper grounding wire terminated at a grounding block or rod. Absence of this link risks electrical damage during surges. Measure the grounding path with a multimeter: voltage between the ONT’s ground screw and a known earth (like a water pipe) should read near 0V. Readings above 5V indicate a faulty ground.
If the ONT isn’t visible, examine the upstream infrastructure. The fiber drop to your property terminates at a pedestal or vault near the curb. Use the pedestal’s serial number (engraved on a metal plate) to cross-reference service records. Note that unauthorized opening of these pedestals violates federal law under 47 CFR § 73.208.
Backup batteries degrade over 3–5 years. Test the ONT’s battery by unplugging the power adapter–service should drop if the battery is dead. Replace with a matching unit: most home installations use a 12V 5Ah sealed lead-acid battery, available from telecom suppliers. Non-OEM batteries must match voltage and form factor to prevent hardware failure.
When relocating the terminal, ensure fiber bend radius exceeds 30mm to avoid signal loss. Direct burial fiber requires armored sheathing; indoor runs need fire-rated riser cable (OFNR). Document changes to port configurations–misassigning Ethernet ports to phone lines creates service outages detectable via remote diagnostics.
Identifying Coaxial and Ethernet Connections in Your Network Layout
Start by locating the termination points behind wall plates or near routers–coaxial cables are rigid, round, and feature a single metallic pin at the center, often threaded for F-connectors. Check for markings: RG6 or RG59 standards confirm video/audio signal transmission, with RG6 handling higher bandwidth (up to 1.5 GHz) for modern ISP demands. Ethernet cables, in contrast, have modular RJ45 connectors with eight visible wires, typically color-coded (T568A/B) for data transfer. Compare diameters: Ethernet sheaths (Cat5e/Cat6) measure ~6mm, while coaxial cores sit at ~7mm including shielding.
- Inspect connectors:
- Coaxial: F-type (male/female), threaded, with a protruding pin
- Ethernet: RJ45, rectangular, snap-in latch
- Test continuity:
- Use a multimeter on coaxial–DC resistance between center conductor and shield should read ~75 ohms (±3 ohms).
- For Ethernet, verify link speed via device settings (e.g., 1 Gbps for Cat5e/6).
- Trace cables:
- Coaxial runs terminate at splitters/modems–label each port with signal strength (dBmV for video).
- Ethernet paths lead to switches/routers; use a tone generator for bundled wires.
- Avoid interference:
- Keep coaxial ≥6 inches from power lines; separate Ethernet from fluorescent lighting (>3 feet).
Step-by-Step Guide to Installing a Splitter for Multiple Devices
Locate the primary coaxial cable outlet on an exterior wall near where your service enters the premises. Use a hex wrench to unscrew the existing wall plate, exposing the threaded connector behind it. Inspect the cable for damage–frayed shielding or bent pins will degrade signal quality. If corrosion is present, clean the threads with a wire brush before proceeding.
Attach the splitter directly to the wall outlet’s connector. Choose a splitter with the correct bandwidth rating for your setup: 1GHz models support up to 4 devices, while 2GHz models handle 8+ without noticeable signal loss. Tighten the connection by hand first, then secure it with a wrench–over-tightening can strip the threads. Position the splitter horizontally to prevent moisture accumulation in outdoor installations.
- For each device: Use RG6 cables with quad shielding for runs over 50 feet to minimize interference.
- Avoid daisy-chaining splitters; each additional split reduces signal strength by ~3.5dB.
- Label each output port with the connected device to simplify troubleshooting later.
Route cables along baseboards or through walls, maintaining a 6-inch clearance from electrical lines. Secure cables every 2 feet with plastic staples to prevent sagging, which can cause micro-bends and signal reflections. At the device end, terminate cables with compression connectors–crimp-style connectors loosen over time. Test each connection with a signal meter; readings below -10dBmV indicate poor signal integrity.
Power-cycle all connected equipment sequentially, starting from the modem and proceeding to downstream devices. Access the network interface (192.168.1.1) to verify signal levels: downstream power should read between -15dBmV and +15dBmV, upstream between 35dBmV and 55dBmV. If levels are outside these ranges, reduce the number of splits or upgrade to an amplified splitter, ensuring the amplifier’s frequency range covers both downstream (54–1002MHz) and upstream (5–42MHz) bands.
