Always match voltage ratings when grouping energy storage units together. A single 12V unit paired with another 12V unit will maintain that output, while mixing 12V and 6V creates imbalance–leading to uneven charging and potential damage. Verify terminal orientation before making connections; reversing polarity causes immediate short circuits, risking thermal runaway.
Use cables with identical length and gauge for equal current distribution. A 4 AWG cable handles 50A safely, but stepping down to 8 AWG drops capacity to 20A–compromising the setup’s stability. Terminate each link with crimped copper lugs, soldered joints, or high-quality clamps; poor connections generate heat, wasting stored energy and reducing lifespan by up to 30%.
Install a fuse or circuit breaker within 7 inches of each positive terminal. For a 100Ah setup, a 100A fuse limits fault current without false trips. Skip this step, and a single short can drain all capacity in seconds, melting insulation and starting fires. Balance load demand: two 100Ah units in a shared circuit deliver 200Ah, but overloading beyond 80% depth of discharge accelerates sulfation, cutting cycle life by half.
Group identical chemistries: lithium pairs with lithium, lead-acid with lead-acid. Mixing lithium iron phosphate (LiFePO4) with sealed lead-acid (SLA) disrupts charging profiles, leaving one undercharged and the other overcharged. Parallel groups tolerate slight capacity mismatches (e.g., 100Ah + 80Ah) but never voltage discrepancies. Measure open-circuit voltage within 0.1V tolerance before connecting–anything wider indicates a defective or mismatched unit.
Arrange units close together, minimizing cable length to reduce voltage drop. A 1V drop over 10 feet at 50A equals 50W wasted as heat–enough to reduce runtime by an hour in high-draw applications. Ground all negative terminals to a single common point; floating grounds create stray currents, interfering with sensitive electronics and causing erratic behavior.
Connecting Energy Cells Side by Side: A Practical Schematic Guide
Ensure all power sources share identical voltage ratings before linking them. Mismatched voltages create circulating currents that degrade performance and shorten lifespan. For example, pairing a 12V cell with a 6V unit risks damaging both. Use a multimeter to verify consistency across terminals–tolerance should not exceed ±0.1V.

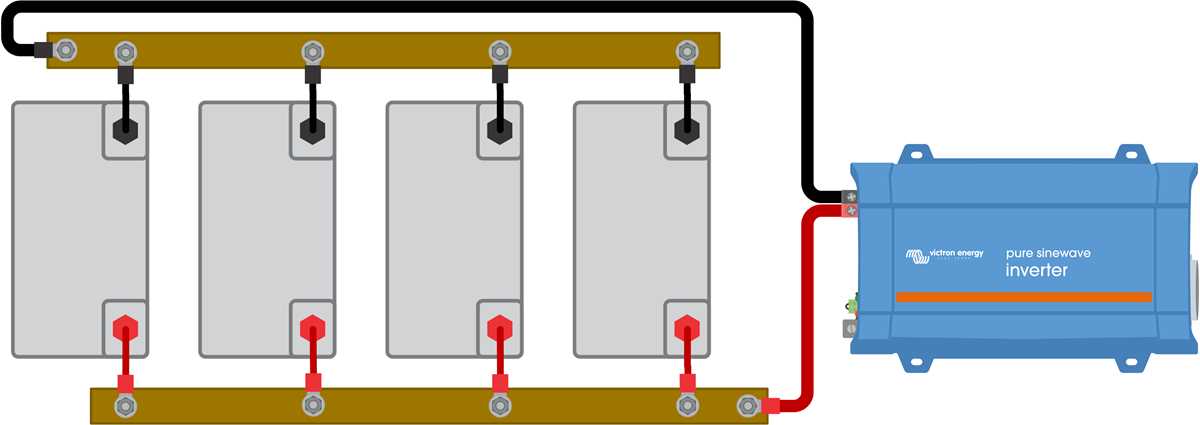

Distribute current evenly by connecting terminals in a balanced configuration. A common error is daisy-chaining cells, which overload the first links in the chain. Instead, run individual leads from each cell to a central bus bar or thick copper plate. The cross-sectional area of conductors must match the expected load: 4 AWG for 100A, 2/0 AWG for 250A. Below is a comparison of conductor sizes for different currents:
| Current (A) | Recommended Conductor (AWG) | Resistance (Ω/km at 20°C) |
|---|---|---|
| 50 | 6 | 1.296 |
| 100 | 4 | 0.815 |
| 200 | 2/0 | 0.161 |
| 300 | 4/0 | 0.102 |
Isolate each energy cell with a fuse to prevent cascade failures. Place a fuse inline with the positive lead of every unit, sized at 125% of the cell’s maximum continuous discharge rating. For a 20Ah cell with a 30A discharge limit, use a 37.5A fuse. Avoid glass fuses–they lack precision; opt for ANL or Class T types for higher currents.
Equalize state of charge before integration. Fully discharging one unit while leaving others at 80% capacity introduces imbalances. Use a dedicated charger with balancing functionality or a passive balancer for lithium-iron-phosphate systems. Lead-acid variants require manual top-ups with distilled water if electrolyte levels drop below the plates.
Minimize wire length to reduce voltage drop. A 1-meter run of 4 AWG copper at 100A incurs a 0.08V drop; doubling the length doubles the loss. Route all positive and negative leads symmetrically to maintain identical path resistance. Terminate connections with crimped lugs and heat-shrink tubing–never solder alone, as solder creeps under thermal cycling.
How to Determine Compatible Cell Groups for Simultaneous Linking
Match cells with identical nominal voltages before grouping. A lithium-ion 18650 cell rated at 3.6V will not pair safely with a 3.2V LiFePO4 unit–voltage disparity causes circulating currents that degrade capacity within minutes. Use a digital multimeter to verify match within ±0.1V across all units in the set.
Select cells whose capacities differ by no more than 5 %. A 2500 mAh and a 2600 mAh unit will share load evenly, whereas a 2000 mAh and 3000 mAh pair forces the smaller to discharge deeper, shortening cycle life. Measure true capacity with a dedicated tester or discharge each at C/10 until cutoff, noting the coulomb count.
Key Chemical Compatibility Rules
- Lithium-ion chemistries (NCA, NMC, LCO) can link simultaneously only with same sub-type; mixing risks thermal runaway.
- LiFePO4 units tolerate minor voltage mismatch but require separate BMS logic for balancing.
- Lead-acid (AGM, flooded) pairs must share identical float voltages; gel variants are incompatible due to sedimentation risks.
- Nickel-based cells (NiMH, NiCd) demand matched internal resistance (±0.5 mΩ) to avoid hot spots.
Verify internal resistance with a low-ohm meter at 1 kHz AC. Group cells whose readings are within 10 %–higher disparity indicates aging or manufacturing variance that accelerates uneven wear. Re-test after 50 cycles; discard units whose resistance climbs beyond 20 % of baseline.
Creating a Connection Layout for Uniform Power Sources: A Practical Walkthrough
Start by sketching the base elements of your power assembly using standardized symbols. Each cell should be represented by a rectangle with a plus (+) and minus (-) sign clearly marked on opposite ends. Use a consistent scale–for example, 2 cm wide for a 12V unit–to maintain uniformity across all components. Label each source individually (e.g., Cell A, Cell B) to prevent confusion during the joining process.
Connecting Terminals Correctly
Draw straight, unbroken lines between matching poles of adjacent cells. The positive lead (+) of the first unit must link exclusively to the positive lead of the next, while negative leads (-) follow the same rule. Ensure lines intersect only at designated junctions–never let them cross randomly. For clarity, use red for positive pathways and black or blue for negative ones. If working with more than three units, add a central bus bar (a thick horizontal line) to simplify branching.
Verify every link visually before finalizing. Trace each path from the first cell to the last, confirming no polarity errors exist. Add a master switch symbol where the combined output exits the system, followed by a fuse symbol rated 20% above the aggregate amp-hour capacity. Include a brief annotation near each connection point stating the expected voltage (e.g., “12V combined at output”).
Scan the completed sketch for isolated segments or loops. Double-check that all corresponding poles share a single, continuous circuit. If integrating charging components, mirror the connection pattern on the charge controller side, maintaining identical color-coding and terminal alignment.
Critical Errors to Evade When Linking Power Cells Side-by-Side
Mixing units with different voltages will create circulating currents, leading to rapid degradation. Never pair a 12V accumulator with a 6V counterpart–even a 0.1V discrepancy forces one set to overcharge while the other drains. Use a multimeter to confirm identical voltages before finalizing connections.
Ignoring internal resistance mismatches causes uneven loading. A high-capacity lithium pack shouldn’t share terminals with a worn lead-acid unit. Check ESR values; deviations above 5% result in one cluster bearing 80% of the load while the other idles.
Skipping fuse protection invites thermal runaway. Each positive terminal must include a fuse sized 30% above the combined maximum discharge current. Omission under a 100A load turns wiring into a 300°C conductor within seconds.
Using undersized interconnects generates resistive losses. A 2-gauge cable can’t handle 200A–voltage drops surpass 0.5V per meter, cutting system efficiency by 12%. Match wire gauge to amperage: 1/0 AWG for 150A+, 2/0 AWG for 200A+.
Overlooking polarity reversal during installation destroys electronics. A single reversed 12V module in an array of four will backfeed into control circuits, frying BMS chips instantly. Double-check connections with a polarity tester before energizing.
Environmental Oversights That Compromise Stability
Mounting unmatched chemical types in the same enclosure accelerates corrosion. Lithium’s low self-discharge rate conflicts with lead-acid’s sulfation process, producing hydrogen gas buildup. Isolate chemistries in separate compartments with dedicated venting.
Disregarding temperature differentials shortens lifespan. A 10°C gradient between clusters forces one to overheat while the other underperforms. Install temperature sensors on each terminal block and adjust charge profiles dynamically.
Failing to balance state of charge (SoC) before linkage creates immediate imbalance. Two 12V modules at 90% and 60% SoC will equalize violently, drawing 30A+ surges through connectors. Equalize to within 2% SoC using a dedicated balancer prior to hookup.
Long-Term Maintenance Pitfalls
Neglecting periodic resistance testing hides degrading contacts. A 0.1Ω increase at a terminal doubles heat output under 100A loads. Schedule inspections every 6 months–clean oxidation with a wire brush and reapply anti-corrosion grease.
