Begin by sketching the reference axis for the applied voltage as a baseline. Position the current vector at a 90-degree lead relative to the voltage in the capacitive branch, as capacitors inherently shift the phase of the current ahead. For precise calculations, use trigonometric ratios: if the resistance equals XC, the phase angle will stabilize at 45 degrees, simplifying subsequent measurements.
Measure the impedance magnitude using Z = √(R² + XC²), where XC = 1/(2πfC). For a 10 kΩ resistor paired with a 10 nF capacitor at 1 kHz, XC calculates to approximately 15.9 kΩ. The resulting impedance vector will form a right-angled triangle with the resistance and reactance components, enabling straightforward geometric projection.
Verify the phase displacement experimentally by applying a sine-wave input at the calculated frequency. Use an oscilloscope to overlay voltage and current waveforms–expect the current peak to precede the voltage by the computed angle. Adjust the frequency until the oscilloscope traces confirm the predicted phase relationship, ensuring minimal parasitic effects from stray inductance or lead resistance.
For transient analysis, derive the exponential decay constant τ = RC. In the same 10 kΩ/10 nF example, τ equals 100 µs. Plot the charging curve on semi-logarithmic graph paper to extract τ from the linear section, avoiding errors from early nonlinearities or saturation in measurement equipment.
Visualizing Voltage and Current Relationships in Resistive-Capacitive Networks
Start by plotting the voltage across the resistor (VR) horizontally–this represents the in-phase component of the total voltage. The capacitive voltage (VC) should extend vertically downward from the endpoint of VR, forming a right angle, since current leads voltage by 90° in a capacitor. The resultant vector, drawn from the origin to the tip of VC, gives the supply voltage magnitude and its phase lag relative to the current.
- For precise construction, calculate VR = I × R and VC = I × XC, where XC = 1/(2πfC).
- Use a consistent scale (e.g., 1 cm = 5 V) to avoid distortion.
- Verify the phase angle (θ) via tanθ = VC/VR or θ = arctan(XC/R).
Rotating the entire vector arrangement counterclockwise at the system’s angular frequency (ω = 2πf) transforms the static image into a dynamic tool. The current vector remains fixed along the reference axis, while VR and VC rotate in unison, preserving their 90° separation. This rotation mirrors the sinusoidal variations of voltage and current over time, revealing how their amplitudes and relative phases evolve.
Adjust component values to observe practical shifts: increasing resistance shrinks VR relative to VC, steepening the phase angle; raising capacitance or frequency reduces XC, flattening it. Simulate transient conditions by introducing a step change–note how the vectors realign as the capacitor charges, with VC initially dominating then decaying exponentially. Track these transitions using an oscilloscope or SPICE model for validation.
- For series R-C pairs, measure the supply voltage’s magnitude as √(VR² + VC²).
- In parallel configurations, plot individual branch currents first, then sum them vectorially.
- Add a third axis (e.g., 10° increments) to represent time progression, converting the static sketch into a spiral for transient analysis.
Understanding Voltage and Current Phase Relationships in RC Networks
Measure voltage across the resistor (VR) and capacitor (VC) with an oscilloscope simultaneously to observe their 90-degree offset. VR aligns with the current waveform, while VC lags by a quarter-cycle–this delay grows as frequency increases. For a 1 kΩ resistor and 100 nF capacitor at 1 kHz, expect VC to trail by approximately 0.25 ms. Verify calculations using VC = I * XC, where XC = 1/(2πfC).
Key Parameters and Their Impact
| Component | Phase Shift | Magnitude Behavior | Frequency Dependency |
|---|---|---|---|
| Resistor | In-phase with current | VR = I * R | Independent |
| Capacitor | Lags current by 90° | VC = I * XC | XC ↓ as frequency ↑ |
| Series RC | Total shift = arctan(XC/R) | Vtotal = √(VR² + VC²) | Shift angle ↓ as frequency ↑ |
At cutoff frequency (fc = 1/(2πRC)), the phase angle between total voltage and current reaches 45°. For R = 1 kΩ and C = 1 μF, fc ≈ 159 Hz–here, VR and VC magnitudes equal, confirming the 45° split. Below fc, VC dominates; above it, VR takes over. This behavior dictates filter design: high-pass configurations exploit the lag, low-pass utilize the lead. Always ground probes at the same point to avoid measurement errors from stray capacitance.

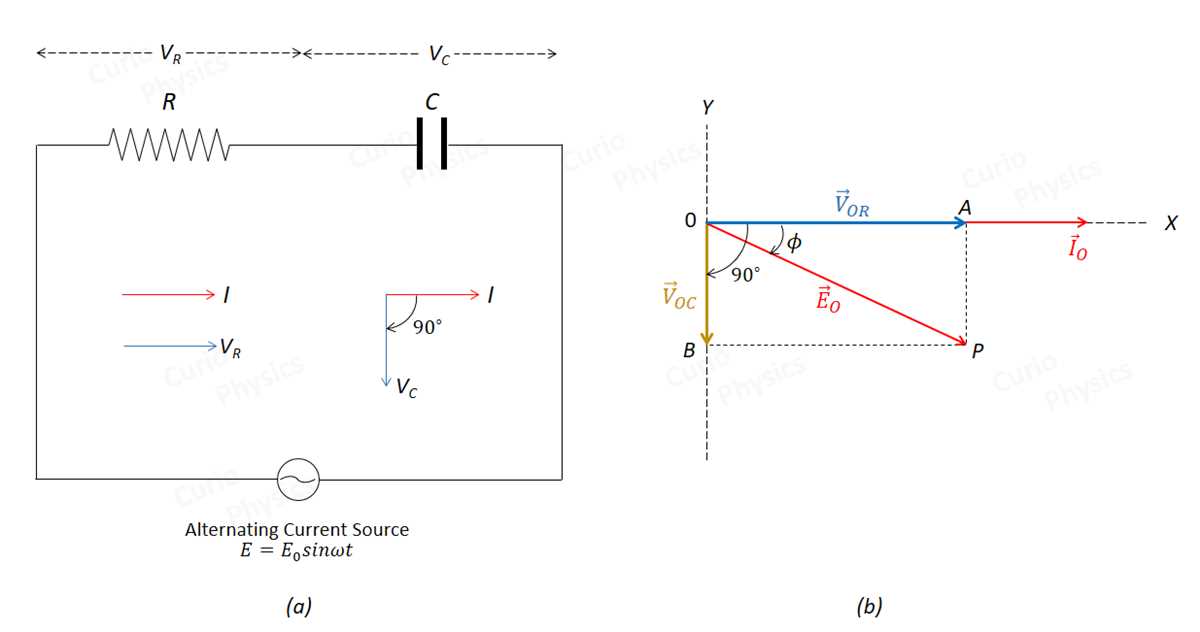

Constructing Vector Representations for Series Resistor-Capacitor Arrangements
Start by sketching the reference axis horizontally to represent the applied sinusoidal voltage waveform. Label this segment as *Vs* with its full amplitude–specify the RMS or peak value directly on the axis if known. Choose a scale appropriate for the expected magnitudes, ensuring both voltage and current vectors remain clearly distinguishable; for instance, a 1 cm = 5 V rule prevents overlap in common low-voltage scenarios.
Measure the resistive voltage drop *VR* by drawing a vector collinear with the current flow, equal in length to the product of current magnitude and resistance. This segment originates at the reference axis endpoint and terminates at the tip of the *Vs* arrow. Verify proportionality: if *I* = 2 A and *R* = 10 Ω, *VR* must span 20 units on the chosen scale.
Plot the capacitive voltage *VC* perpendicular to the *VR* vector, pointing downward when conventional current flow enters the capacitor’s positive terminal. Its length equals the reactance-amplitude product (*I* × *XC*), where *XC* = 1/(2πfC)*. Example: for *I* = 2 A, *f* = 50 Hz, and *C* = 100 μF, *XC* ≈ 31.83 Ω, yielding *VC* = 63.66 units–scale accordingly.
Complete the triangle by joining the *Vs* origin to the *VC* endpoint with a dashed line, confirming the hypotenuse matches the original voltage magnitude. Measure phase displacement *φ* between the source voltage and current vectors using a protractor or trigonometric calculation: *φ* = arctan(*XC*/*R*). Store the angular value directly adjacent to the hypotenuse for quick reference during performance analysis or troubleshooting.
Calculating Phase Angles Using Impedance and Reactance Values
Begin by determining the resistance (R) and capacitive reactance (XC) directly from component specifications or measurements. For a capacitor with capacitance C and signal frequency f, compute XC as:
- XC = 1 / (2πfC)
Record both R and XC in ohms to proceed with phase angle calculation.
The tangent of the phase shift (θ) between voltage and current is derived from the ratio of XC to R. Use:
- tan(θ) = XC / R
This yields θ in radians; convert to degrees by multiplying by (180/π) if required. For example, if R = 1 kΩ and XC = 2 kΩ, θ ≈ -63.4° (negative sign indicates current leads voltage).
For precise angle resolution, avoid approximations when R and XC differ by less than an order of magnitude. Instead of tan-1(XC/R), apply:
- θ = tan-1(XC / R) – correction factor (when |XC – R| < 0.2R)
Apply the correction factor δ = (XC / R – tanθ) / (1 + (XC / R)2) to improve accuracy. Toolchains like Python’s ` numpy.arctan2(XC, R)` inherently account for quadrant-related errors.
When resistive and reactive components form a series network, the overall impedance magnitude (Z) follows:
- Z = √(R2 + XC2)
The phase angle θ is identical to the shift across individual elements since series conditions enforce identical current. Verify by measuring θ at multiple nodes–deviations exceeding 2° suggest parasitic inductance or improper grounding.

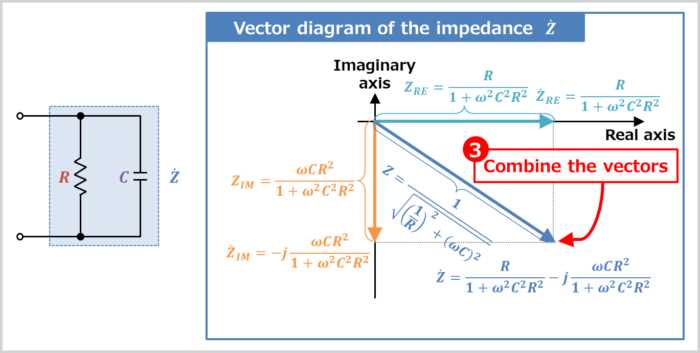

For parallel configurations, compute individual branch angles first, then derive the combined θ via current division. Use:
- IR = V / R
- IC = V / XC
- θ = tan-1(IC / IR)
Parasitic resistances in capacitors can skew results; include equivalent series resistance (ESR) in calculations if measurements deviate by >3%.
Visualizing Capacitive Reactance Impact on Vector Magnitude and Orientation
Plot the voltage-current relationship on polar coordinates with capacitive opposition (XC) at a fixed 50 Hz. Use a reference axis for resistive drop (0°) and observe how the reactive component’s arrow shrinks as XC decreases–its length scaling inversely with capacitance. For a 1 μF capacitor, expect an 84.9° lag with a vector span of 3.18 kΩ at 50 Hz; double the capacitance to 2 μF, and the span halves to 1.59 kΩ while the lag angle remains unchanged. Rotate the reference angle 90° ahead of current to align reactive drop vertically; this isolates XC influence, confirming angular symmetry regardless of component scaling.
Measure voltage drops across the resistor and capacitor separately at 1 kHz: the resistive drop maintains a steady 0° orientation, while the capacitive drop’s magnitude plunges to 159 Ω for 1 μF–yet its direction stays perpendicular to current. Adjust source frequency to 10 kHz; the reactive vector collapses to 15.9 Ω, but its orthogonal stance persists. Use this to calibrate oscilloscope traces–capacitive drop magnitude diminishes with rising frequency, but its phase offset locks at 90° lag relative to resistive drop, preserving a consistent right-angle separation in the schematic’s arrow layout.
