Ensure the power is completely shut off at the circuit breaker before handling any electrical installation. Use a non-contact voltage tester to verify the absence of current–never rely on the switch alone. Most residential setups use three primary conductors: hot (black or red), neutral (white), and ground (bare copper or green). Confirm the voltage rating of the device matches the household supply (typically 120V or 240V in North America) to prevent overheating or failure.

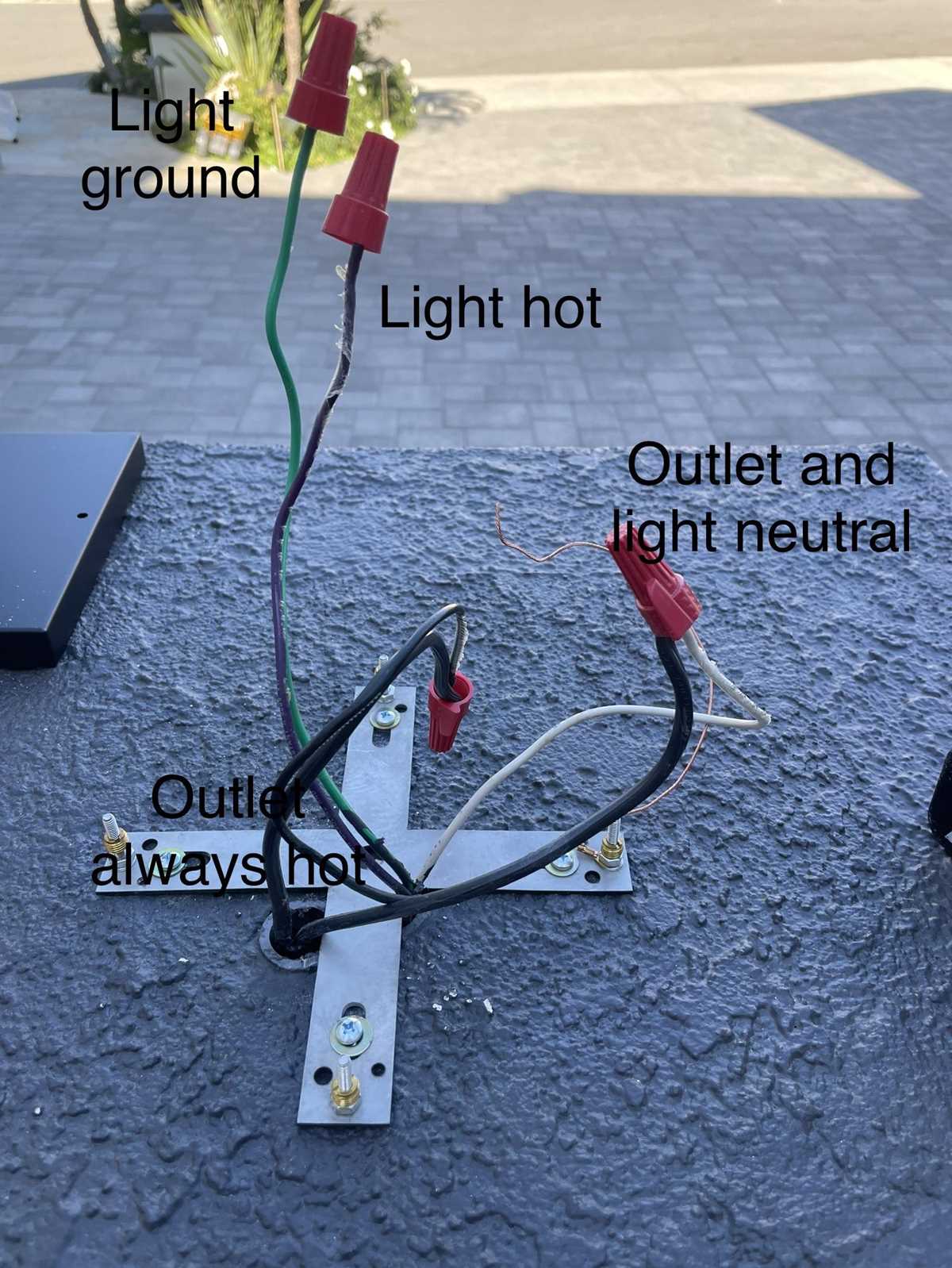

Begin by identifying the mounting bracket or base plate of the unit. Secure it firmly to the electrical box with the provided screws, ensuring it’s level to avoid strain on the connectors later. If the box isn’t grounded, attach a pigtail wire to the ground screw inside the box and connect it to the device’s grounding terminal. For units with a metal housing, this step is non-negotiable to avoid electrical shock hazards.
Strip approximately 3/8 inch (9.5 mm) of insulation from each conductor using wire strippers, taking care not to nick the copper strands. Twist the exposed ends clockwise to prevent fraying. Match the wire colors precisely: hot to hot, neutral to neutral, and ground to ground. Use wire nuts rated for the gauge of the conductors (usually 14-12 AWG for standard residential circuits) and twist them securely in a clockwise direction to create a reliable mechanical connection.
For units with a built-in switch or dimmer, follow the manufacturer’s color-coded diagram–often included in the packaging. If the device lacks labeling, prioritize connecting the ground first, then neutral, and finally the hot conductor. Tug gently on each connection to confirm they’re tight before tucking them neatly into the electrical box. Overcrowding can cause overheating, so avoid forcing wires into small spaces.
Once secured, attach the decorative cover or lens according to the manufacturer’s instructions, ensuring no wires are pinched or exposed. Restore power at the circuit breaker and test the device with a working bulb. If flickering occurs, recheck the connections–loose wiring is the most common cause. For dimmable units, ensure the bulb type is compatible (LED bulbs often require specific dimmers) to prevent buzzing or early failure.

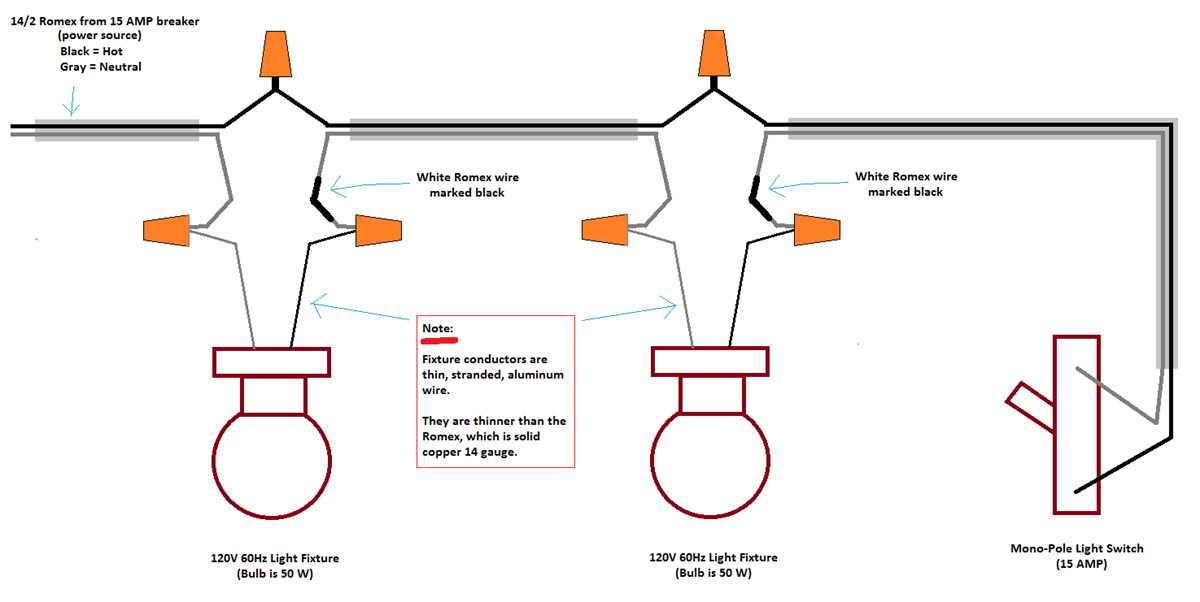

Connecting an Illumination Unit: Visual Guide
Shut off power at the circuit breaker before handling any electrical components. Verify absence of current using a non-contact voltage tester–hold the probe near terminal screws or copper strands for 2-3 seconds to confirm. Identify the grounded conductor (neutral, typically white or gray), energized conductor (hot, black or red), and grounding wire (bare copper or green). If the existing setup lacks a grounding path, consult local codes to determine whether retrofitting an insulated ground is mandatory.
Strip 1/2 inch of sheathing from each conductor, then twist strands clockwise to prevent fraying. Secure connections with UL-listed wire nuts, matching sizes to conductor gauge:
| Conductor Gauge (AWG) | Wire Nut Color Code | Max Conductors per Nut |
|---|---|---|
| 18-16 | Orange | 3 |
| 14 | Yellow | 4 |
| 12 | Red | 3 |
| 10 | Blue | 2 |
Loop each stripped conductor clockwise around its corresponding brass or silver terminal screw, ensuring no bare wire extends beyond the screw head. Tighten screws to 12-15 inch-pounds using an insulated screwdriver–over-torquing risks breaking terminal posts. For push-in terminals, insert fully until a distinct click confirms engagement. Fold conductors neatly into the electrical box, tucking ground wires toward the rear to maintain clearance. Restore power and test operation with a wall switch; if flickering occurs, recheck all connections for loose strands.

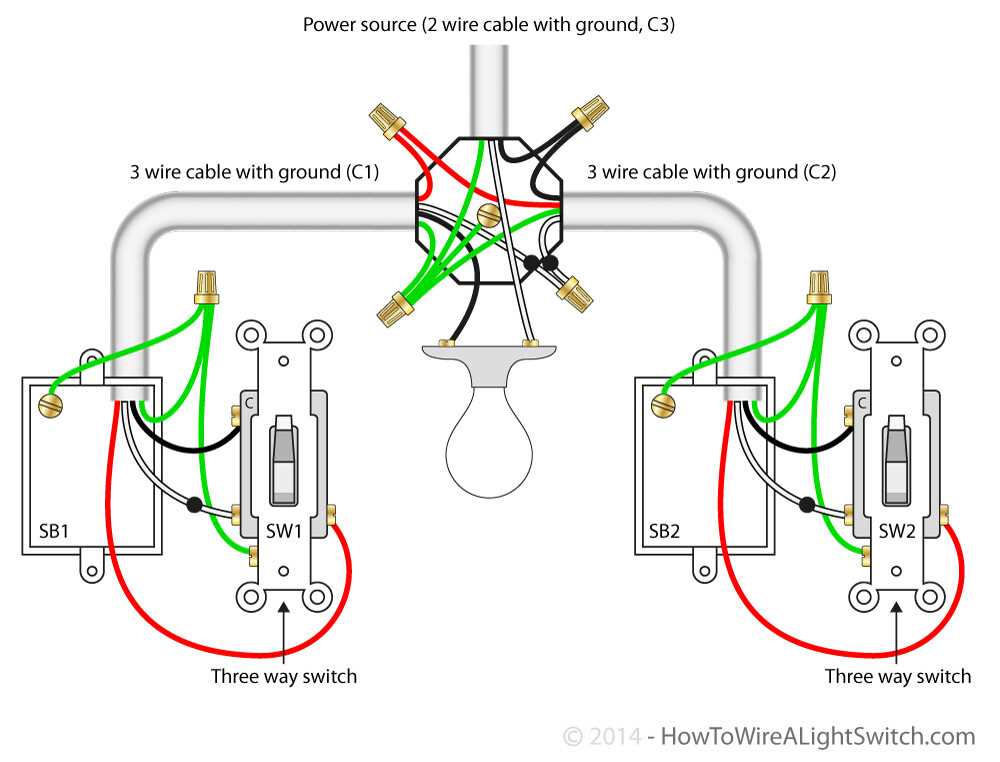

Multi-Way Installations
For two or three-switch control, label common terminals (usually darker) on both switch units. Connect the energized conductor to the common terminal of the first switch, then link traveler screws (brass) between switches–use 14-gauge solid copper for reliability. Terminate the common terminal of the second switch to the load terminal of the illumination unit. Grounding conductors must bond all switches and the unit’s metal frame; use a pigtail splice if the box lacks grounding screws.
Essential Gear and Supplies for Installing an Illuminator
Begin with a non-contact voltage tester (minimum 50–1000V range) to confirm circuits are dead before handling bare conductors. Choose models with both visual and audible alerts–some budget units miss low-voltage live wires. A multimeter (CAT III, 600V) is secondary but crucial for verifying resistance and continuity in splices.
Use wire strippers with integrated cutters; avoid adjustable jaws–precision-ground slots for 14–10 AWG prevent nicks that weaken copper. Insulated handles rated to 1000V are non-negotiable; common plastic-dipped versions crack under repetitive use. Include a needle-nose pliers with smooth jaws for twisting stranded wire and retrieving dropped screws in tight electrical boxes.
Fastening and Securing Components
A clutch-drive screwdriver (No. 2 Phillips and 1/4″ slotted) prevents over-torquing; most residential junction boxes strip at 12-15 inch-pounds. For heavier ceiling assemblies, add a cordless impact driver (18V,
Grab cable staples (UL Listed, 1/2″ crown width) spaced ≤4.5′ apart for non-metallic sheathed builds. Secure connectors use compression rings–not set screws–to prevent insulation damage; Romex clamps must bite the outer jacket, not individual conductors. Verify box fill capacity: derate 14 AWG wire at 2.0 cubic inches per conductor, add 25% for devices and grounds.
Stock heat-shrink tubing (3:1 shrink ratio, polyolefin) in 3/16″, 1/4″, and 3/8″ widths–standard electrical tape unravels within months in high-heat environments like recessed housings. Crimp ferrules (bare copper, tin-plated) prevent stranded wire strands from escaping screw terminals; squeeze with ratcheting crimpers designed for #14–#10 lugs.
Finally, keep a fiberglass fish tape (1/8″ x 50′) rigid enough to push 90° bends in conduit but flexible enough to navigate existing walls without tearing insulation. Lubricate with silicone spray–not dish soap–to reduce pull tension by 40%. For fixtures over 20 lbs, swap standard outlet boxes for 1/2″ threaded hub boxes rated 50 lbs pull-out strength; check local codes for horizontal vs vertical mounting requirements.
How to Safely Attach Electrical Leads for a Ceiling Installation
Turn off the power at the circuit breaker before touching any conductors. Verify absence of voltage using a non-contact voltage tester–hold the probe near each terminal for at least 3 seconds. If the tester emits a steady beep or flashes continuously, power remains active; retest after double-checking the breaker. Strip exactly 12mm of insulation from each wire end using wire strippers, ensuring no nicks remain on the copper strands, as this weakens conductivity and increases fire risk.
- Identify matching colors: black (live) to black, white (neutral) to white, green or bare copper (ground) to ground.
- Twist exposed ends clockwise until tight, then secure with a wire nut by capping clockwise with firm pressure–spin the nut 3 full turns past the point of resistance.
- Gently tug each connection to confirm a snug fit, then wrap electrical tape around the nut base extending 5mm onto the insulation for added strain relief.
- For grounded metal housings, attach the green ground wire to the mounting bracket’s designated screw using a looped connection–tighten the screw until the loop cannot rotate freely under finger pressure.
Tuck bundled conductors into the junction box carefully, avoiding sharp edges that could abrade insulation. Fold wires compactly, ensuring no part extends beyond the box’s inner rim. If the box includes a mounting strap, position it flush against the ceiling before securing with screws–torque to 1.2 Nm to prevent loosening from vibration. Restore power, then test the assembly with a wall switch; if flickering occurs, recheck all twists and nuts for incomplete connections.
Identifying Hot, Neutral, and Ground Conductors in Electrical Setup

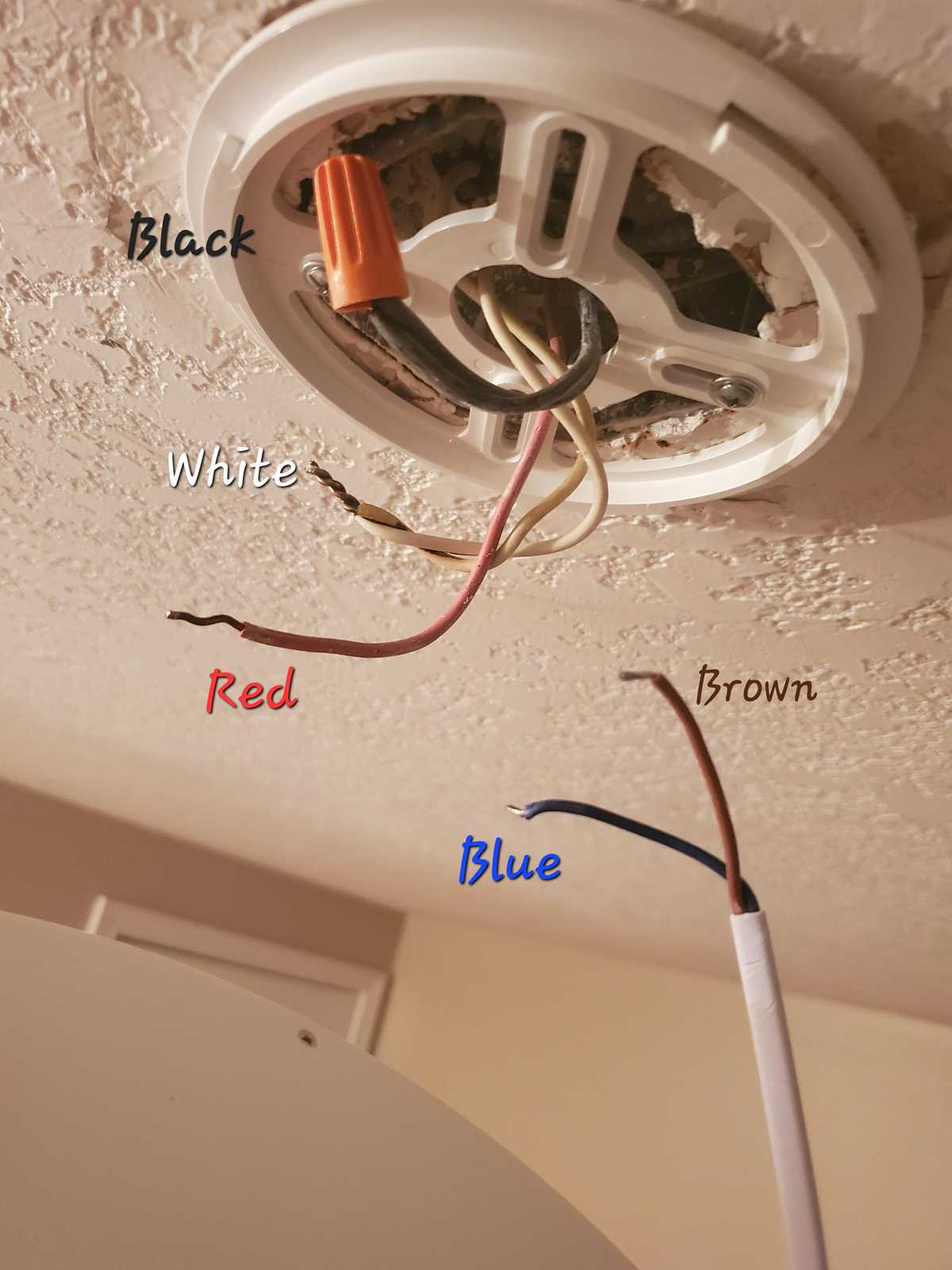

Begin by verifying wire colors against local electrical codes–North America typically uses black or red for live conductors, white for neutral, and bare copper or green for earth. In Europe and regions following IEC standards, brown marks live, blue denotes neutral, and green/yellow striped signifies ground. Always cross-reference with the specific installation manual, as some manufacturers deviate from these conventions.
Use a non-contact voltage tester to confirm the energized conductor. Hold the probe near each wire–only the live one will trigger the device’s visual or audible alert. For multimeter testing, set it to AC voltage mode, attach the black lead to the neutral or ground, and touch the red probe to each remaining wire. A reading around 120V (or 230V in IEC systems) identifies the live conductor. Neutral will show near 0V against ground, absent faults.
Distinguishing Neutral vs. Ground in Confusing Configurations
Neutral and ground wires connect at the main panel but serve distinct purposes: neutral carries return current under normal operation, while ground acts as a safety path only during faults. To tell them apart in a terminal block where both are present, measure voltage–neutral will register minimal voltage against ground (ideally 0V), whereas a live-to-ground reading matches the system’s nominal voltage. If both appear identical, trace them back to the panel; ground connects to the bus bar, neutral may join a separate bar or splice.
In older installations or certain industrial setups, wires might lack color coding. Scrape insulation slightly to expose bare metal, then label them based on continuity tests: ground connects to metal enclosures or conduit, neutral links to the widest terminal slot in outlets (in NEMA 5-15 configurations), and live wires feed switches or terminals with narrowed slots. Label each immediately to avoid confusion during final connections.
For split-phase systems (e.g., 120/240V), two live conductors share a neutral–test each live wire against neutral to confirm proper voltage division. If wiring a three-way switch setup, note that travelers (live conductors between switches) often use the same color (e.g., red and black). Mark these permanently with colored tape after verification, as misidentification risks short circuits or reversed polarity.
Before energizing, double-check connections with a plug-in polarity tester. These devices identify miswired live/neutral/ground arrangements via LED indicators. If no tester is available, perform an insulation resistance test between each conductor and ground using a megohmmeter–readings below 1 megohm indicate potential faults, necessitating re-inspection. Never rely solely on visual cues; hidden damage or prior miswiring can invalidate assumptions.
