Start with the neutral wire–essential for most advanced control modules. Connect it directly to the terminal labeled “N” or a marked white conductor. Skipping this step risks flickering, inconsistent operation, or total failure in newer fixtures.
Identify the line input (typically black, red, or another dark shade) from the power source. Attach it to the marked “L” or “Hot” terminal. Verify voltage with a multimeter–120V for North American circuits, 230V for most others. Reverse connections here will damage the device.
The load output (often gray, brown, or another non-standard color) carries power to the light fixture. Secure it to the terminal labeled “Load” or “L1.” Loose or crossed connections here cause heating or arcing–check torque specifications (usually 0.5–0.7 Nm) and use a screwdriver with a torque setting.
Ground wires (green or bare copper) must connect to the chassis or ground terminal. Omitting this creates shock hazards and violates electrical codes. For metal junction boxes, ensure an additional ground pigtail bonds the box to the device.
For multi-way setups, travelers (yellow, blue, or striped) require matching between controllers. Label each wire before disconnecting; miswiring here prevents sync between units. Use a continuity tester to confirm correct pairing.
Check compatibility–LED drivers often need minimum loads (5W–20W). Below this range, modules may not function or could overheat. Refer to the fixture’s specifications and use a bypass capacitor if required.
After installation, power-test incrementally. Turn on the circuit at the breaker, then use the device to confirm operation. If the light doesn’t respond, recheck neutral and ground connections first–these are the most common failure points.
For troubleshooting, measure voltage between line and neutral (should match supply voltage) and between neutral and load (should drop near zero when active). A reading outside these parameters indicates a wiring error.

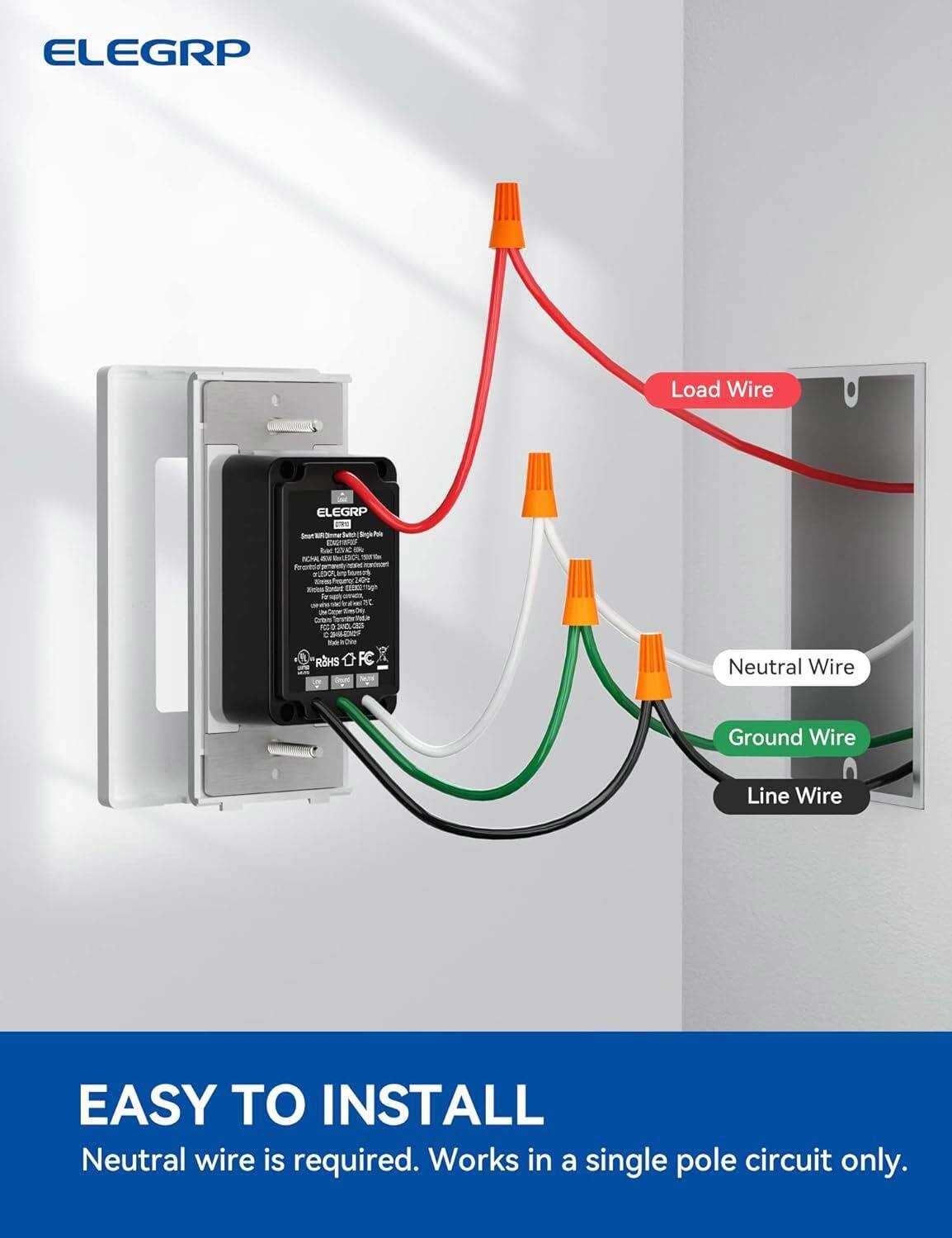

Electrical Connection Guide for Smart Dimmer Installation
Verify the power source before handling any cables–shut off the circuit breaker labeled for the fixture. Identify the incoming live conductor (typically black or red) and connect it to the brass terminal on the control device. The neutral wire (white) should bypass the mechanism entirely unless the model specifically requires a neutral link; confirm compatibility with your setup. Ground the system by attaching the bare copper or green wire to the green screw on the device or metal electrical box.

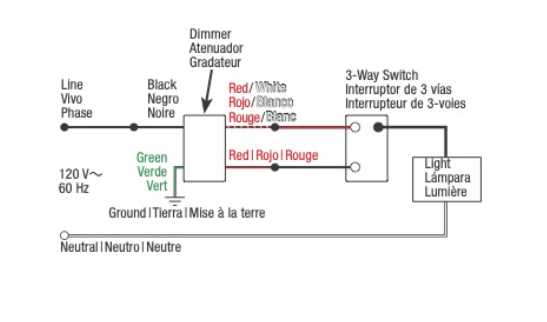

For single-pole setups, attach the load wire (black or red) to the remaining brass terminal. In three-way configurations, install a traveler wire between the main device and auxiliary unit–use the same color (often red) for consistency. Check the manufacturer’s documentation for specific terminal labels, as some designs use numbered ports instead of color-coded screws. Use a voltage tester to confirm all connections are secure before restoring power.
If integrating with LED fixtures, ensure the chosen dimmer supports low-wattage loads; most modern units are rated for 15W minimum. Older incandescent dimmers may cause flickering or humming with LEDs due to differing electrical characteristics. Replace incompatible components–failure to match the technology to the bulb type risks damage to the circuitry. Consider a bypass module if issues persist.
When retrofitting an existing box, assess the available space. Smart controls often require more room due to additional internal components. If the box is too shallow, use a deeper junction box or relocate the installation to a nearby accessible location. Avoid overcrowding wires–excessive bending or compression can cause insulation damage or poor connections.
For multi-location control, pair the primary unit with a companion device. Connect the traveler wires between the two, ensuring polarity matches (e.g., red to red, not red to black). Some systems use wireless coordination, eliminating the need for physical traveler wires–check the product specifications. Program the secondary control as per the manufacturer’s pairing instructions, typically involving a button sequence or LED indicator pattern.
Install a dedicated neutral if the dimmer requires one. Older homes may lack neutral wires at the lighting box; in such cases, choose a no-neutral-required model or run a new neutral wire from the nearest junction box. Skipping this step with incompatible models risks irregular operation or device failure. Use wire nuts for splices, securing them with electrical tape to prevent loosening over time.
Test the system in different positions before finalizing the installation. Gradually adjust brightness levels to detect any irregularities like jumps, delays, or buzzing. If the load responds inconsistently, reconfirm the connections and verify the bulb wattage aligns with the dimmer’s specifications. Some high-performance models include calibration modes–activate this feature if present to optimize performance.
Label all wires and breakers for future reference. Use a permanent marker or color-coded tags on both ends of each conductor. Document the wiring configuration in a visible location, such as inside the electrical panel door, to simplify future troubleshooting or upgrades. Store the product manual and any calibration codes in an accessible but protected location, like a zip-top bag attached to the circuit breaker.
Decoding Control Device Terminals and Their Proper Attachments
Begin by identifying the common terminal labels on your device: *COM*, *ON/OFF*, *LOAD*, and *TRAVELER*. The *COM* (common) terminal serves as the anchor point for the incoming hot conductor; attach the black or red supply cable here first. For single-pole configurations, the *ON/OFF* terminal connects to the fixture’s hot lead–secure it with a reliable wire nut or lever connector, ensuring no exposed strands remain. Multi-way setups require distinction: *LOAD* marks the output to the luminaire, while *TRAVELER* handles the intermediate linkage between coordinated devices–never interchange these without verifying the included documentation.
Tighten all terminal screws to a torque specified in the device’s engineering notes–typically 12-15 in-lbs for standard models. Loose connections generate heat, risking premature failure or intermittent operation. Use stranded copper conductors rated for at least 600V; solid wire can work but risks breaking under repeated flex near the clamp. Avoid back-wiring (inserting wires behind clips) unless the design explicitly permits push-in attachments; these often lack the clamping force of screw-driven terminals.
Distinguishing Low-Voltage vs Line-Voltage Setups
Electronic controls handling 24V circuits feature distinctly marked terminals: *RED* for power input, *BLUE* for load output, with optional *YELLOW* and *ORANGE* serving auxiliary signals. Connect these strictly as labeled–reversing polarity may disable dimming functionality or damage internal components. For 120V/277V variants, follow color-coding: black (phase), white (neutral), and bare/green (ground). Neutral bonding is mandatory for grounded systems; omit it only when replacing legacy two-wire installations already grandfathered by local codes.
Verify ground continuity using a multimeter: probe the bare conductor at the terminal against the device’s mounting yoke–readings should show zero ohms. If resistance exceeds 0.5 ohms, clean mounting surfaces and retighten; oxidized metal surfaces introduce noise into sensitive electronic circuits. For recessed mountings, ensure the grounding pigtail makes direct contact with the metal box; plastic enclosures require an external ground via the cable’s equipment conductor.
Handling Specialized Terminal Types
Advanced models include *PHASE* and *NEUTRAL* terminals separated from load connections–wire these exclusively to dedicated source conductors. Bridging them internally risks short circuits; external jumpers must follow manufacturer schematics precisely. Devices supporting motion sensors or fixtures with nonlinear loads (e.g., LEDs) may need a *BYPASS* terminal–connect a 0.1µF film capacitor if flicker persists beyond 10% under minimum brightness. Avoid substituting generic capacitors; wrong capacitance values destabilize the control algorithm.
Always cap unused terminals with a label denoting their future purpose–undocumented ports attract misconnections during later modifications. Preserve original packaging or take a high-resolution photograph before enclosure closure; terminal layouts differ even among visually identical models from the same product line.

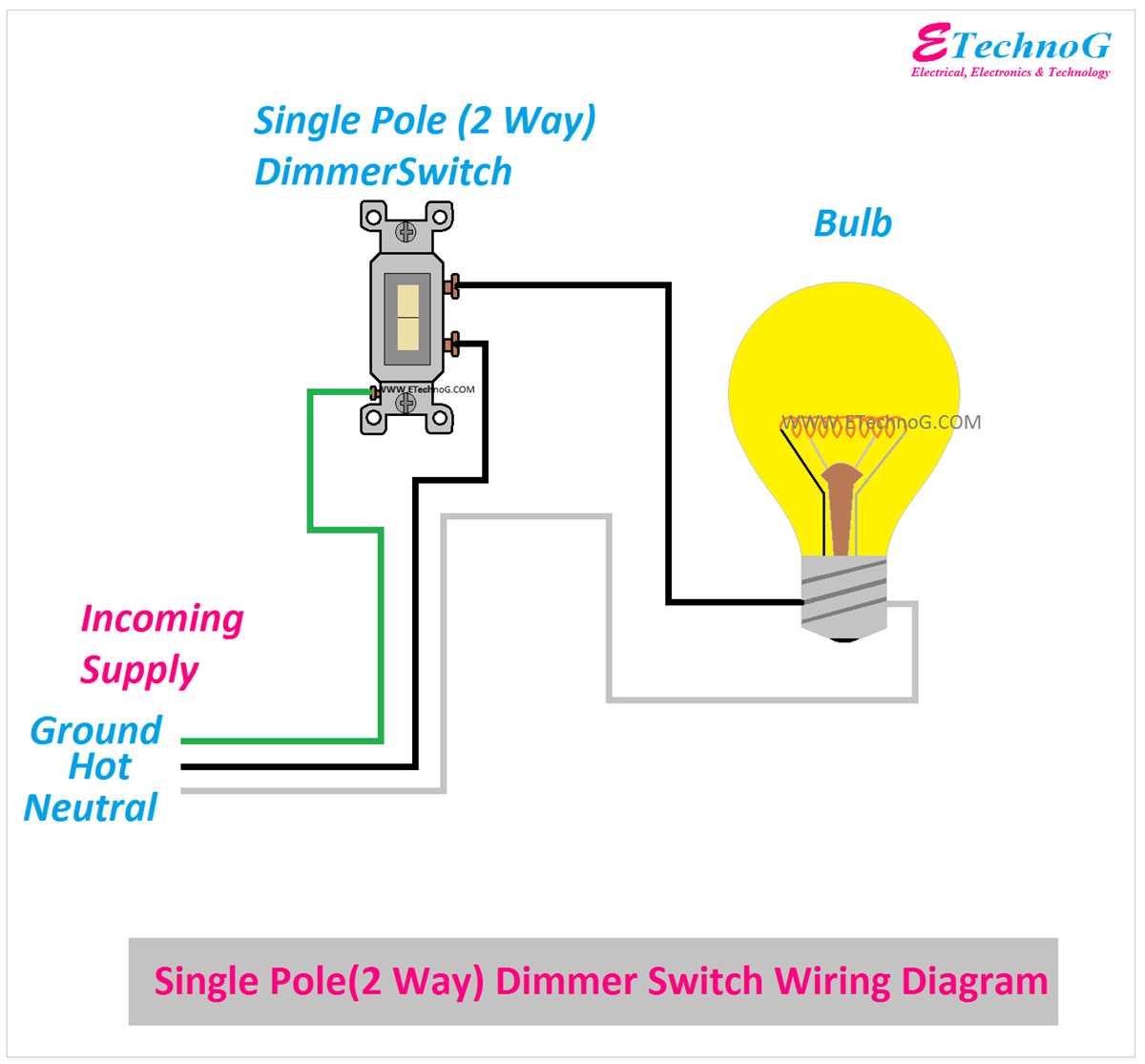

Connecting a Single-Pole Control Module: Clear Instructions
Shut off power at the circuit breaker before handling any wires–confirm absence of voltage with a non-contact tester. Identify the incoming hot conductor (black or red, often marked with tape) and attach it to the brass terminal on the control device. Secure the neutral (white) wire to the silver terminal if the module requires it; some dimmers ignore this connection, so verify compatibility with the manufacturer’s specifications. The load wire (black or red) connects to the remaining brass terminal–double-check connections with a torque screwdriver (1.2 Nm for #14 AWG, 1.5 Nm for #12 AWG) to prevent loose contacts.
Grounding and Final Checks
Bond the ground wire (bare copper or green) to the green terminal on the module–never omit this step, even in older installations. Fold wires neatly into the electrical box, ensuring no bare conductors touch metal surfaces or adjacent terminals. Restore power at the breaker and test operation by cycling the control through its full range; flickering or failure to turn on indicates reversed connections or an incompatible load (check for LED compatibility if using
Label the breaker panel with the room and control type for future reference–use a permanent marker on 1-inch wide electrical tape wrapped around the wire entering the box. If the module includes an air gap switch, verify its function by pulling it out and ensuring complete power cutoff to the connected device before reinstalling wall plates.
