Start by turning off the circuit breaker controlling the power source to prevent electric shock–verify the absence of voltage using a non-contact voltage tester before handling any conductors. Identify the feed wires: typically, a black or red wire carries the live current, a white wire serves as the neutral, and a bare copper or green wire grounds the installation. If the junction box contains multiple conductors, trace the feed cable from the switch to isolate the correct wires.
Check the fixture’s manual or label for specific requirements–some models require a dedicated ground connection while others operate safely without one. Strip ½ inch of insulation from each wire end using wire strippers, ensuring no damage to the copper strands. Twist the exposed ends of matching wires together (live to live, neutral to neutral) using pliers, then secure with a wire nut, rotating clockwise until tight. For added security, wrap the nut and connection with electrical tape.
For fixtures weighing over 15 pounds, locate a joist or install a support brace rated for the load–never rely on drywall anchors alone. Position the fixture’s mounting bracket against the junction box, aligning screw holes, and fasten tightly with the provided hardware. Attach the fixture’s wires to the corresponding conductors in the box, following the same matching protocol, then tuck excess wire neatly into the box.
Before restoring power, double-check all connections for exposed copper or loose nuts. Turn the circuit breaker back on and test the fixture with the switch–if it doesn’t illuminate, immediately cut power and re-examine the wiring for misaligned connections or short circuits. For dimmable installations, ensure compatibility between the dimmer switch and the fixture’s ballast or driver to avoid flickering or premature failure.
Installing a Room Fixture: Step-by-Step Guide
Turn off the power at the circuit breaker first. Locate the breaker controlling the overhead fixture and flip it to the off position. Verify absence of current with a non-contact voltage tester before proceeding–even momentary contact can cause severe injury. If unsure which breaker governs the circuit, switch off the main breaker for absolute safety.
Identify the electrical box attached to the joist or support beam above. Older homes may have shallow or improperly secured boxes; ensure the box can support at least 50 pounds. If replacing an existing fixture, remove the old unit by unscrewing mounting screws or twisting off the canopy. Disconnect wires by unscrewing wire nuts and separating copper ends–never tug or pull forcibly, as brittle insulation may break.

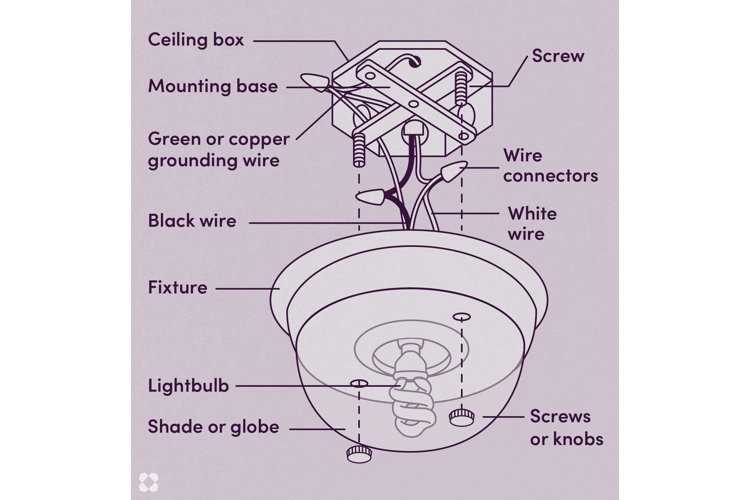

Match the fixture’s color-coded conductors to the house wiring: black to black (hot), white to white (neutral), green or bare copper to ground. For installations without a ground wire, attach the fixture’s ground to the metal box if present. Secure connections with wire nuts, twisting clockwise until tight; wrap with electrical tape for added stability. Avoid loose strands–even a single misaligned wire can arc and cause overheating.
Fold wires neatly into the box, aligning the fixture’s mounting bracket with the box screws. Tighten screws evenly to prevent uneven stress; misalignment can lead to flickering or premature failure. Once secured, attach any decorative covers or trim rings, ensuring no bare wire is exposed. Snap on diffusers or globes last–confirm all seals are intact to prevent dust or insects from entering.
Restore power at the breaker and test the unit. If the luminaire fails to illuminate, turn off the breaker immediately and inspect connections for reversed polarity, loose wires, or incorrect grounding. Dim or intermittent brightness often indicates a poor neutral connection–recheck wire nuts and bare strands. LED modules may require additional drivers; verify compatibility with the household voltage (120V in North America, 230V in Europe).
For suspended fixtures, measure the chain or cord length twice before cutting. Leave 6–8 inches of slack inside the box for future adjustments. If using a swag hook, ensure the ceiling anchor supports at least four times the fixture’s weight–standard drywall anchors hold only 10–15 pounds. Clean the glass or acrylic components with a microfiber cloth before final installation to avoid trapped debris distorting light output.
Essential Gear for Installing Overhead Fixtures
Gather insulated screwdrivers with both flathead (4mm, 6mm) and Phillips (PH1, PH2) tips–non-conductive handles prevent accidental shorts when adjusting terminal connections. Include a voltage tester with a sensitivity range of 50–1000V AC to verify circuit deactivation before handling any junction points. A multimeter (minimum 600V CAT III rating) ensures precise current, resistance, and voltage readings during troubleshooting.
- Wire strippers (18–12 AWG capacity) with built-in cutting blades eliminate the need for separate pliers.
- Needle-nose pliers with serrated jaws grip small-gauge conductors without slippage during bending or looping.
- Fish tape (1/4″ width, 25ft length) guides new conductors through enclosed spaces like attics or conduit runs.
- Cable ripper (for non-metallic sheathed cables) scores insulation cleanly without nicking copper strands.
For mounting hardware, use toggle bolts (minimum 50lb load capacity) when anchoring to hollow drywall or plaster–expansion anchors suffice for solid masonry. Steel junction boxes (4″ x 4″ octagonal or rectangular) must meet NEC 314.16 volume requirements, accommodating at least 7 cubic inches per #14 AWG conductor. Include Romex connectors (clamp-style for NM-B cables) to secure entries and prevent insulation damage from sharp edges.
Specialized Tools for Complex Setups
- Conduit bender (1/2″ EMT) with angle markings (15°, 30°, 45°, 90°) simplifies rigid pipe installation for exposed runs.
- Hacksaw with 24 TPI blade ensures clean cuts through conduit without burrs–file edges to eliminate snagging risks.
- Crimping tool (ratcheting, with 10–22 AWG range) applies insulated butt splices for secure, code-compliant joints.
- Heat gun (adjustable 250°F–1000°F) activates shrink tubing (3:1 ratio) for moisture-resistant seals on outdoor or damp-location connections.
Safety gear includes arc-rated gloves (ASTM F696) and safety glasses with side shields for sparks or debris. A headlamp (minimum 200 lumens, adjustable beam) frees both hands in dim workspaces, while a non-contact voltage detector (with audible/visual alerts) confirms power shutdown without direct contact. For elevated tasks, a folding work platform (OSHA-compliant, 30″ height) stabilizes footing–avoid aluminum ladders near electrical panels.
Stock copper conductors in the required gauge: #14 AWG for 15A circuits, #12 AWG for 20A, and #10 AWG for dedicated appliance circuits. Use THHN/THWN-2 for conduit installations (rated 90°C dry, 75°C wet) or NM-B cable (Romex) for residential concealed runs. Grounding components must include bare copper #10 AWG for main service panel bonds and green-insulated #12 AWG for fixture grounds. Verify local codes for derating requirements when bundling more than three current-carrying conductors in a single raceway.
Step-by-Step Guide to Identifying Live, Return, and Earth Conductors
Switch off the circuit at the breaker panel before handling any electrical lines–verify absence of voltage using a non-contact tester. Place the probe near each conductor; a live line will trigger an audible or visual alert while neutral and ground will not.
Examine wire insulation colors: in most modern installations, the active conductor is wrapped in black or red, the return line in white or gray, and the protective earth in green or bare copper. Older systems may deviate–yellow or blue insulation can indicate either active or return lines depending on regional standards.
Use a multimeter set to AC voltage mode (200V+ range) to measure between conductors. Probe the active and return lines–expect 110–120V (or 220–240V in some regions). Testing active to earth should yield similar readings; return to earth should show near-zero voltage, confirming correct polarity.
Label conductors with masking tape if colors are ambiguous or faded. Write “L” for active, “N” for return, and “⏚” for earth–avoid permanent markers that may smudge or bleed through insulation. Temporary labels prevent errors during reassembly.
Trace conductors back to the junction box or main panel if identification remains unclear. The active line typically connects to a breaker, the return to the neutral bus, and earth to a grounding terminal or rod. Follow conductors visually where possible–bundles may intertwine near terminals.
For dual-circuit configurations (e.g., split-phase systems), the active line may split into two 120V lines (red/black) sharing a common return. Test each active conductor to earth–both should register voltage, while their mutual reading should be 240V (or 0V if same phase).
Discard conductors with damaged insulation, exposed strands, or inconsistent readings–replace with new 14/2 or 12/2 cable (gauge depends on breaker amperage). Secure all connections with wire nuts or Wago clamps, then cap with electrical tape to prevent corrosion. Re-test all pairs before restoring power.
How to Safely Turn Off Power and Test for Live Circuits
Locate the circuit breaker panel–typically found in basements, garages, or utility rooms. Identify the breaker controlling the fixture by switching each one off and checking the area with a non-contact voltage tester. Mark the correct breaker with tape to avoid confusion. If the panel lacks labels, turn off the main breaker to cut power entirely; this requires restarting clocks and electronics later. Double-check all connections with the tester before touching any exposed conductors, as some systems may have multiple power sources or backfeed risks.
Use an insulated screwdriver and rubber-soled shoes when testing. Probe wires with the voltage tester’s tip by holding it against each conductor for 3–5 seconds–the device should beep or flash for live circuits. If no reading appears, verify the tester’s functionality on a known live outlet. For older installations, test between neutral and ground wires; a reading above 10V indicates potential hazards. Never rely on wall switches alone–some fixtures retain power even when switched off. Once confirmed safe, secure wires with wire nuts and wrap with electrical tape to prevent accidental contact.
