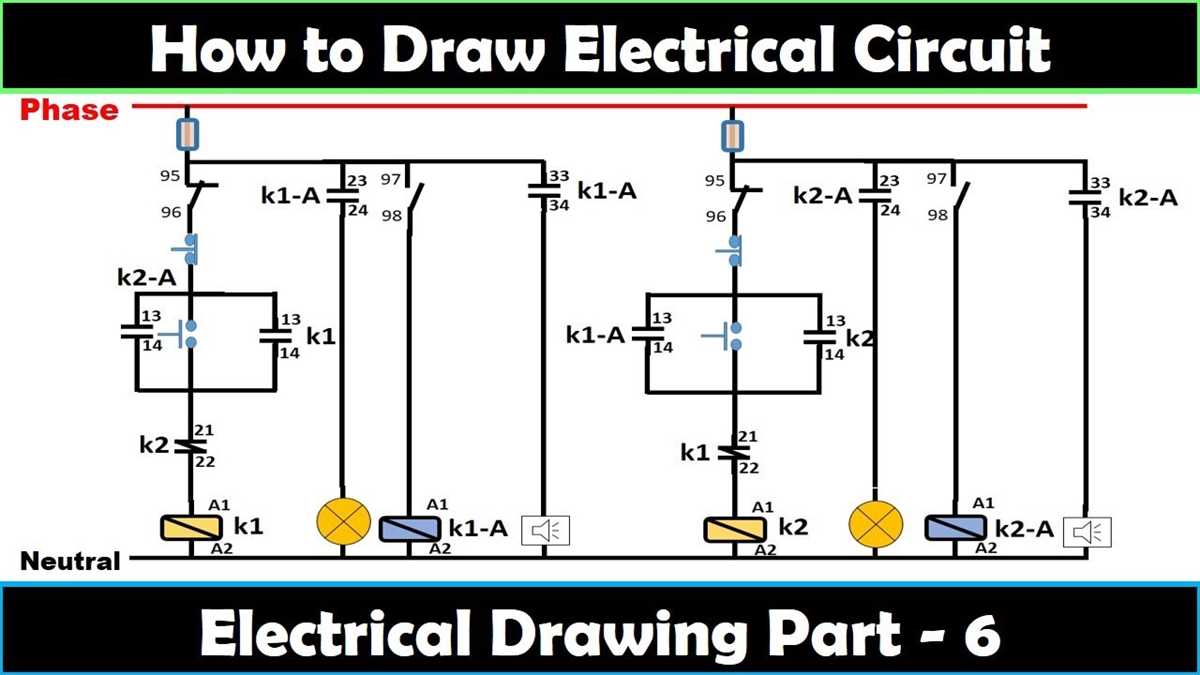

Begin by selecting standardized symbols for resistors (IEC 60617 or ANSI Y32.2), capacitors, transistors, and integrated components. Place them logically–power sources at the top, grounds at the bottom–ensuring signal flow moves left to right or top to bottom without crossing lines. Use orthogonal routing (90-degree bends) to maintain readability; avoid diagonal connections unless clarity demands it. Label every node with consistent notation (VCC, GND, VOUT) and include component values (e.g., R1 = 10kΩ) adjacent to their symbols.
Group related functions into functional blocks: power regulation, signal processing, and output stages. Separate them with dashed or shaded borders if the layout supports modularity. For complex designs, split the blueprint across pages using hierarchical ports (e.g., < > connectors) to link sections. Number components sequentially (R1, R2, C1) to simplify reference during troubleshooting or PCB layout. Verify electrical rules (short-circuit checks, floating pins) with tools like KiCad’s ERC or Altium’s Design Rule Check before finalizing.
Optimize spacing to prevent overcrowding: leave 5–10mm gaps between parallel traces and 2–3x symbol width around high-frequency or high-voltage nodes. Use net labels (e.g., CLK, DATA) instead of direct connections for repeated signals. For microcontroller-based designs, annotate pin numbers (PA0, PB1) and peripheral functions (UART_TX) next to the IC symbol. Export the final blueprint in vector formats (SVG, PDF) to preserve scaling, or as Gerber files if transitioning to PCB design.
Designing Clear Electrical Blueprints
Begin with a precise list of components–resistors, capacitors, integrated circuits–and assign each a standardized symbol. Use IEEE 315 or IEC 60617 as references to avoid ambiguity. Misaligned symbols confuse readers and increase debugging time.
Organize connections in a top-down or left-right flow to mirror signal progression. Avoid diagonal lines; straight horizontal and vertical paths improve readability. Label power rails immediately–VCC, GND, VDD–to prevent misinterpretation of voltage levels.
Group related elements: place all decoupling capacitors near their corresponding ICs, and cluster control logic together. Separate analog and digital sections with clear spacing or dashed borders to highlight isolation requirements.
Use consistent line widths: thin for signals, thick for power rails. Differentiate high-current paths with double lines or wider strokes. Color-code critical nets–red for regulated supplies, blue for ground–if the format supports it, but ensure grayscale readability remains.
Number components sequentially (R1, R2, C1, C2) and reference them in a separate bill of materials. Cross-reference connectors (J1, P1) to corresponding pinouts in annotations.
Avoid overcrowding by splitting large designs into functional blocks. Each block should fit on a single screen or page without zooming. Include test points (TP1) near high-impedance nodes or fault-prone areas.
Validate net connectivity before finalizing. Use DRC (design rule checks) to flag floating pins, shorted nets, or unconnected grounds. Simulate the layout in SPICE-based tools to verify behavior matches expectations.
Export in vector formats (.SVG, .PDF) to preserve scalability. Embed metadata: design revision, date, and engineer initials. Archive both editable and static versions for future reference.

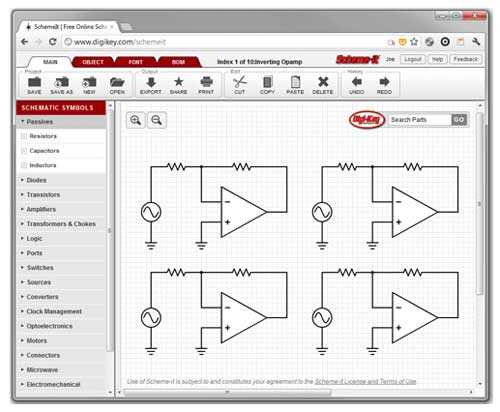

Selecting Optimal Software for Electrical Blueprint Creation
KiCad remains the most capable open-source solution for both novice and experienced designers. Its library management system supports over 25,000 pre-built components, eliminating manual symbol creation for common ICs, connectors, and passives. The built-in footprint editor allows custom land pattern generation without external tools, while the integrated SPICE simulator validates transient behavior directly from the layout. Version 7.0 added multi-sheet hierarchical navigation with click-through connectivity tracing, reducing debugging time by 40% compared to earlier releases.
Altium Designer outperforms alternatives for multi-board projects requiring strict documentation standards. The software enforces IEEE-compliant annotation rules automatically, ensuring reference designators follow PCB assembly requirements. Its active BOM feature links directly to supplier databases, updating pricing and availability in real-time. For teams using mechanical CAD, the SolidWorks ECAD-MCAD collaboration module maintains copper pour clearance sync with 3D enclosure models, preventing interference errors before prototyping.
For embedded systems work, STM32CubeMX generates code-ready schematics from STM32 microcontroller selections. The tool produces human-readable netlists with proper pin multiplexing while exporting to KiCad, Altium, or OrCAD formats. Its greatest advantage lies in hardware-software co-design: peripheral configuration directly generates HAL initialization code, reducing firmware development time by 60% for typical applications.
Proteus VSM uniquely combines logic representation with interactive simulation. Users can probe voltages at any node during simulation, watching LED indicators toggle in real-time alongside scope waveforms. The software handles mixed-signal validation with 1% accuracy for analog components, though its component library requires manual verification–counterfeit symbols occasionally appear in third-party packs.
Engineers working with FPGAs should prioritize Xilinx Vivado or Intel Quartus Prime. Vivado’s block diagram editor preserves high-level design intent while generating synthesizable VHDL/Verilog code. Intel’s tool offers superior timing analysis for critical paths, showing slack violations in graphical form. Both integrate seamlessly with their respective IDEs, but require significant RAM–32GB minimum for complex SoC designs.
For lightweight tasks, Fritzing provides rapid breadboard-to-schematic conversion. Its drag-and-drop interface maps physical prototyping components directly to electrical symbols, ideal for educational Arduino projects. However, the automated layout feature produces suboptimal routing; manual adjustment remains necessary for professional documentation.
Specialized Tools for Niche Applications
RF designers need ADS from Keysight for impedance matching visualizations. The Smith Chart view updates interactively as component values change, while touchstone file import maintains S-parameter accuracy across simulations. For power electronics, SIMPLIS simulates switch-mode converters 100x faster than SPICE, showing steady-state waveforms within seconds instead of hours.
Collaborative teams should evaluate Upverter. The cloud-based platform tracks version history with bidirectional Git integration, while permission controls allow selective access to IP blocks. Component libraries sync across global branches, eliminating duplicate symbols. On-premise enterprise options exist but require significant server infrastructure.
Mastering Key Electronic Component Symbols and Their Practical Roles
Begin by memorizing these core visual representations–each carries distinct functional weight in a layout. A resistor (zigzag line) limits current flow to protect sensitive parts like LEDs, where precise resistance values (e.g., 220Ω for 5V supply) prevent burnout. Capacitors (parallel lines or curved plates) smooth voltage fluctuations, with polarized types (marked with a “+”) critical for DC filtering; misuse risks explosion. Transistors (NPN/PNP variants) amplify or switch signals–position the emitter (arrowed line) toward ground in common-emitter setups for correct biasing. Always cross-reference symbols with datasheets: a MOSFET’s body diode behaves differently from a BJT’s, demanding unique PCB traces.
| Symbol | Name | Typical Use | Critical Note |
|---|---|---|---|
| ⏚ | Ground | Reference point (0V) | Chassis ground ≠ signal ground; mix-ups create noise loops. |
| ━━━┳━━━ | Battery | Power supply | Longer line = positive; reverse polarity damages ICs instantly. |
| ─[ ]─ | Switch | Circuit control | SPST vs DPDT: wrong choice leaves paths unintentionally linked. |
| ─∞─ | Inductor | Energy storage/filtering | Core material (air/ferrite) dictates frequency response (kHz vs MHz). |
Fuse symbols (rectangle with “F”) must match rated current–replaceable types (e.g., 250V/500mA) require space near the input to cut power during shorts. ICs (rectangles with numbered pins) often embed multiple functions (e.g., LM7805 regulator), so pinout variations between suppliers demand checking footprint compatibility. Coils (helical squiggles) self-inductance grows with turns–microwave circuits use air-core to avoid saturation; audio applications prefer toroidal cores to reduce EMI. Group related symbols logically: decoupling capacitors (100nF) should sit
Step-by-Step Placement of Elements in an Electrical Blueprint
Begin by arranging power sources centrally or along the top edge of the layout. Batteries, voltage regulators, and AC inputs should occupy strategic positions to minimize connector crossings. For example, place a 9V battery symbol vertically with its positive terminal facing upward, while a DC jack aligns horizontally below it. This reduces clutter when linking components downstream. Label each supply with values (e.g., “+5V,” “GND”) immediately, avoiding later revisions.
Organize functional blocks logically: inputs on the left, processing units in the middle, outputs on the right. Sensors like thermistors or photoresistors belong near the left boundary, followed by microcontrollers such as ATmega328 or ESP32. Keep IC pins unobstructed–rotate chips 90 degrees if pin labels overlap neighboring elements. For resistors, capacitors, and inductors, maintain consistent spacing: 0.5 cm between small passives, 1.2 cm for electrolytic capacitors. Use net labels for repetitive signals (e.g., “CLK,” “DATA”) instead of drawn lines to simplify tracing.
- Ground symbols should converge at a single node or bus line at the bottom. Avoid scattered ground points–this invites noise in high-frequency designs.
- Reserve the top-right quadrant for indicators (LEDs, displays) and actuators (relays, motors). Align their control lines vertically to prevent tangles.
- For multi-layer boards, pre-assign nets to layers: red for power, blue for signals, green for grounds. Toggle layers frequently to verify no nets disappear.
Aligning Connections for Readability
Draw wires horizontally or vertically–never diagonally. Snapping to a 2.54 mm grid ensures consistency with breadboard layouts. When connections intersect, use a small arc or dot to denote a junction; omit the dot if lines merely cross. For buses, widen the line (1.5–2 points) and label with signal ranges (e.g., “ADDR[0..7]”). Cluster related signals: group I²C lines (SCL, SDA) together, separate from SPI (MOSI, MISO). Finalize by running a design rule check to flag orphaned pins or unconnected nets.
